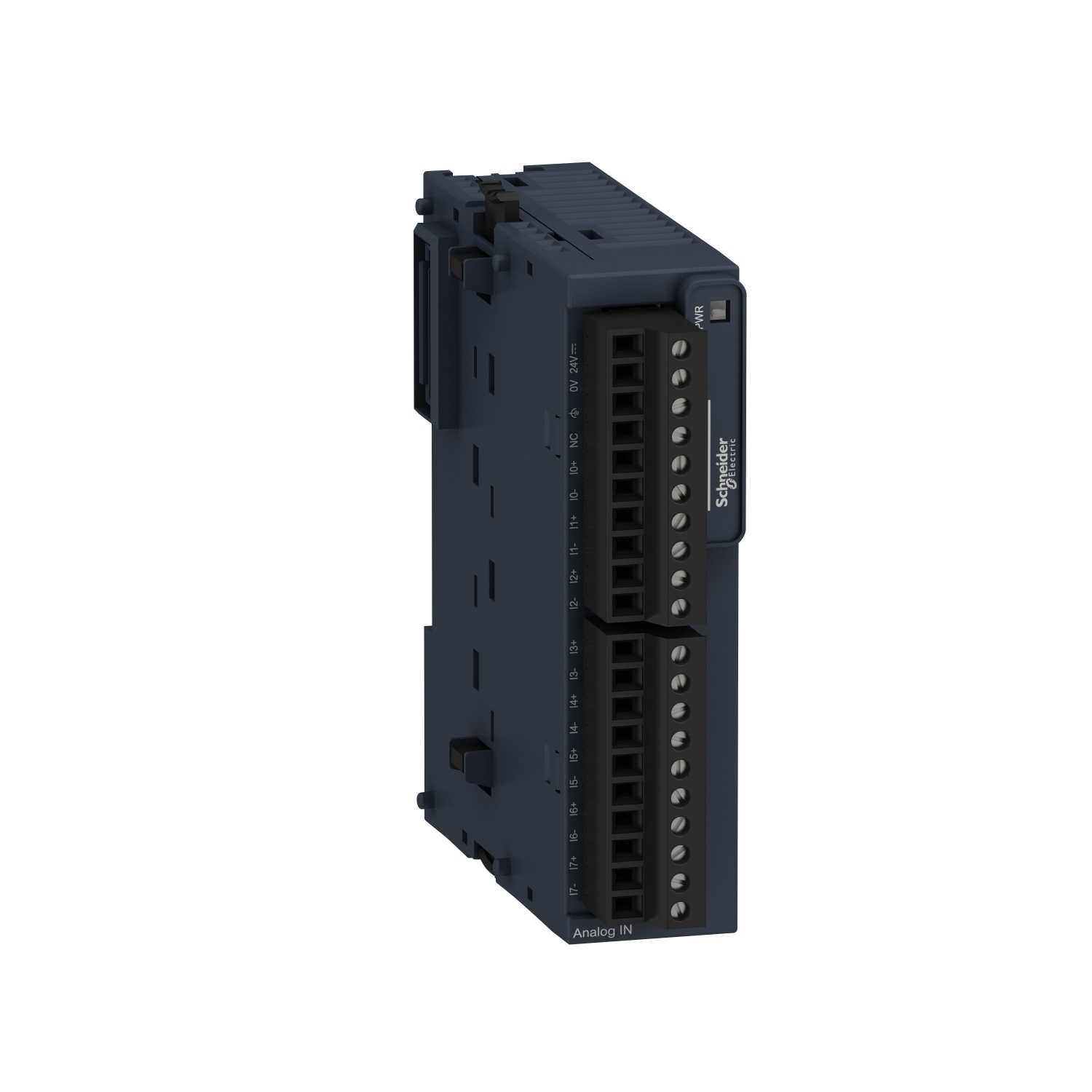

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 16bit and 15bit + sign resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 30mA at 24V DC via external supply, 45mA/40mA at 5V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon TM3 |
| Analogue input type | thermocouple - 200...1000 °C, PTC thermistor 100...10000 Ohm, NTC 10k thermistor -90...150 °C, thermocouple 0...2315 °C with thermocouple C, thermocouple - 200...800 °C with thermocouple E, thermocouple - 200...1300 °C with thermocouple N, thermocouple - 200...400 °C with thermocouple T, thermocouple 0...1820 °C with thermocouple B, thermocouple 0...1760 °C with thermocouple S, thermocouple 0...1760 °C with thermocouple R, thermocouple - 200...1300 °C with thermocouple K, thermocouple - 200...1000 °C with thermocouple J |
| Range compatibility | Modicon M262, Modicon M251, Modicon M241, Modicon M221 |
| Analogue input number | 8 |
| Product or component type | analog input module |
| Complementary | |
| Insulation | between input and internal logic at 500 V AC, between input and supply at 1500 V AC |
| Surge withstand | 1 kV input common mode conforming to IEC 61000-4-5, 0.5 kV power supply differential mode conforming to IEC 61000-4-5, 1 kV power supply common mode conforming to IEC 61000-4-5 |
| Supply voltage limits | 20.4-28.8 V |
| Temperature drift | +/- 0.01 %FS/°C |
| Conversion time | 100 ms + 100 ms per channel + 1 controller cycle time |
| Marking | CE |
| Type of cable | twisted shielded pairs cable <30 m for input circuit |
| Height | 90 mm |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply |
| Repeat accuracy | +/-0.5 %FS |
| Sampling duration | 100 ms |
| [Us] rated supply voltage | 24 V DC |
| Depth | 70 mm |
| Width | 23.6 mm |
| Cross talk | <= 1 LSB |
| Local signalling | 1 LED (green) for PWR |
| Mounting support | plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Current consumption | 40 mA at 5 V DC via bus connector, 45 mA at 5 V DC via bus connector, 30 mA at 24 V DC via external supply |
| Absolute accuracy error | +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C, +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C, +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C, +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C, +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C, +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C, +/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C |
| Net weight | 0.11 kg |
| Analogue input resolution | 15 bits + sign, 16 bits |
| LSB value | 1 Ohm with PTC/NTC probe, 0.1 °C with NTC probe, 0.1 °Cthermocouple |
| Non-linearity | +/- 0.2 %FS |
| Input impedance | >= 1 MOhm thermistor, >= 1 MOhm temperature probe, >= 1 MOhm thermocouple |
| Environment | |
| Resistance to fast transients | 1 kV (I/O) conforming to IEC 61000-4-4 |
| IP degree of protection | IP20 |
| Resistance to electrostatic discharge | 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2 |
| Relative humidity | 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation) |
| Ambient air temperature for storage | -25-70 °C |
| Resistance to magnetic fields | 30 A/m conforming to IEC 61000-4-8 |
| Pollution degree | 2 |
| Ambient air temperature for operation | -10-35 °C vertical installation, -10-55 °C horizontal installation |
| Immunity to microbreaks | 10 ms |
| Resistance to electromagnetic fields | 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 |
| Resistance to conducted disturbances | 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6 |
| Electromagnetic emission | radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011 |
| Operating altitude | 0...2000 m |
| Vibration resistance | 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Storage altitude | 0-3000 m |
| Standards | IEC 61131-2 |
| Product certifications | cULus HazLoc, cULus, EAC, RCM, UKCA, CE |
