Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | voltage 0...10 V non differential, current 4...20 mA non differential |
| Cross talk | <= 2 LSB |
| Analogue input number | 2 |
| Input level | high level |

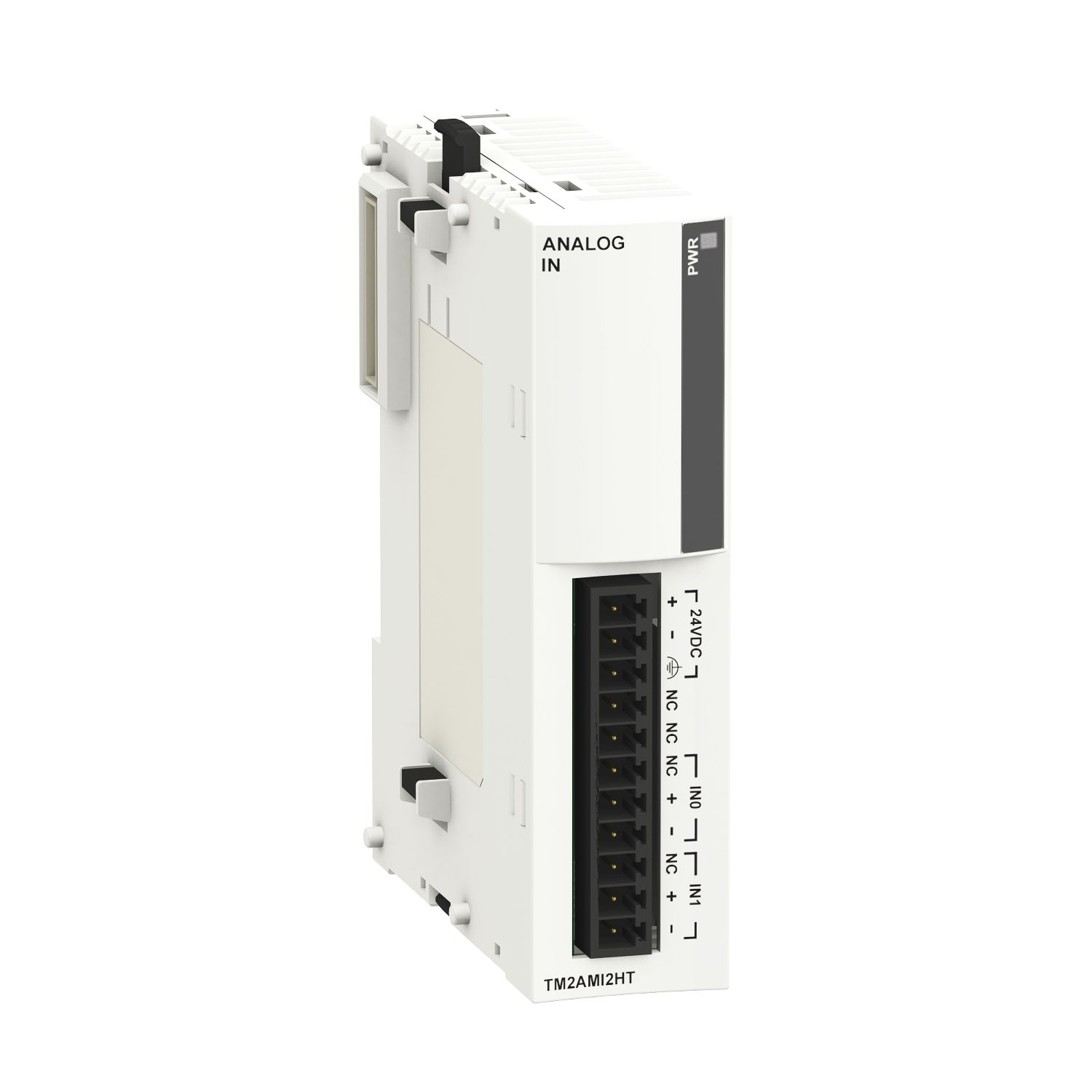

| Product or component type | I/O expansion module |
| Range of product | Modicon M238 logic controller |
| Complementary | |
| Repeat accuracy | +/-0.5 %FS |
| Sampling duration | 10 ms |
| [Us] rated supply voltage | 24 V DC |
| Range compatibility | Advantys OTB, Twido |
| Temperature coefficient | +/-0.006 %FS/°C |
| Supply voltage limits | 20.4-28.8 V |
| Type of cable | shielded cable |
| Net weight | 0.085 kg |
| Acquisition period | 10 ms per channel + 1 controller cycle time |
| Analogue input resolution | 12 bits |
| Current consumption | 40 mA at 24 V DC external, 50 mA at 5 V DC internal |
| Permissible continuous overload | 13 V, analogue input type: voltage, 40 mA, analogue input type: current |
| Supply | external supply |
| Total error | +/-1 %FS |
| Non-linearity | +/- 0.2 %FS |
| Measurement error | +/- 0.2 % of full scale at 25 °C |
| Input impedance | 10 Ohm current, >= 1 MOhm voltage |
| Insulation between channel and internal logic | photocoupler |
| Electrical connection | 1 removable screw terminal block |
| LSB value | 4.8 µA current current, 2.5 mV voltage voltage |
| Environment | |
| Dielectric strength | 500 V between the I/O and internal logic, 500 V between the I/O and the external supply circuit |
| Depth | 70 mm |
| Width | 23.5 mm |
| Height | 90 mm |
