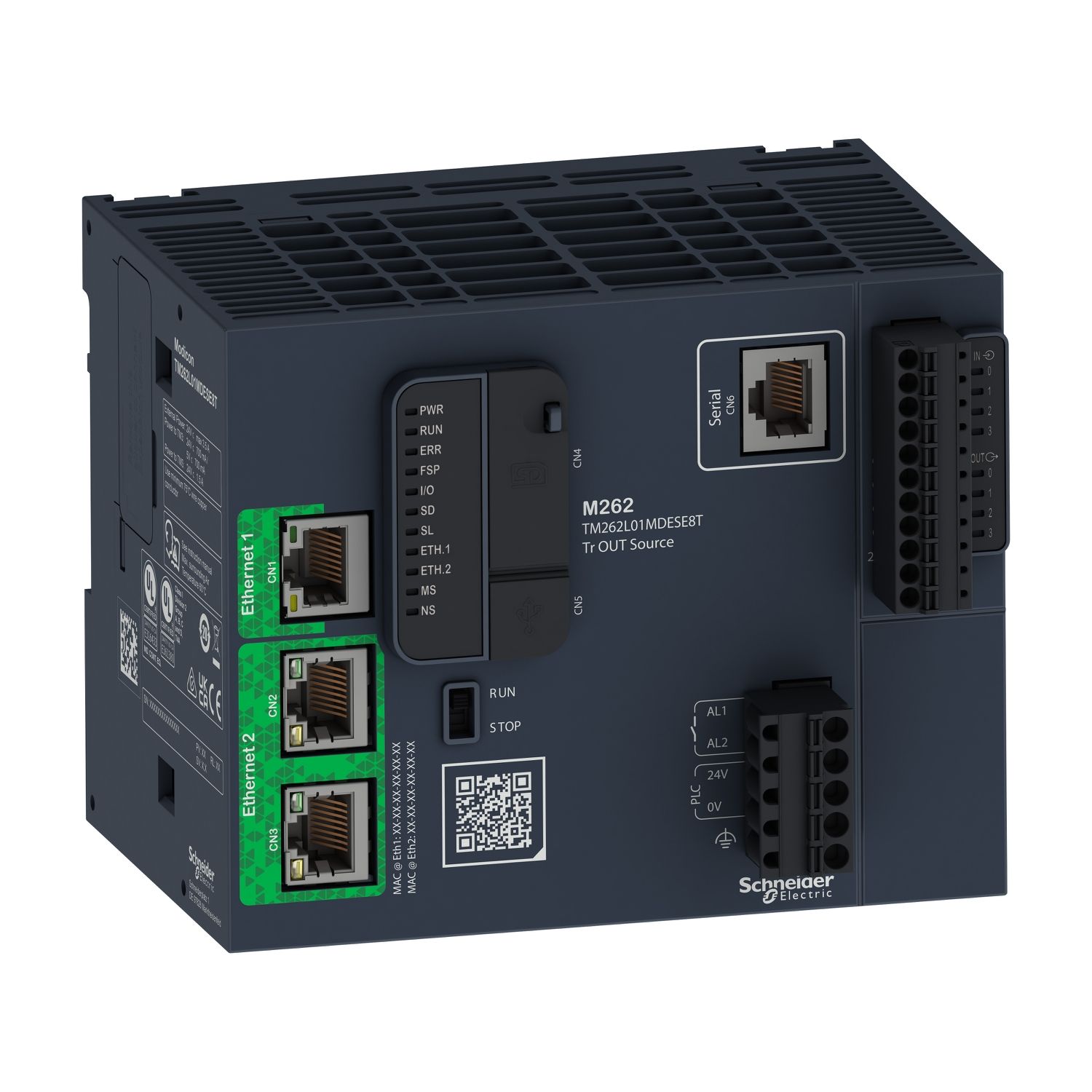

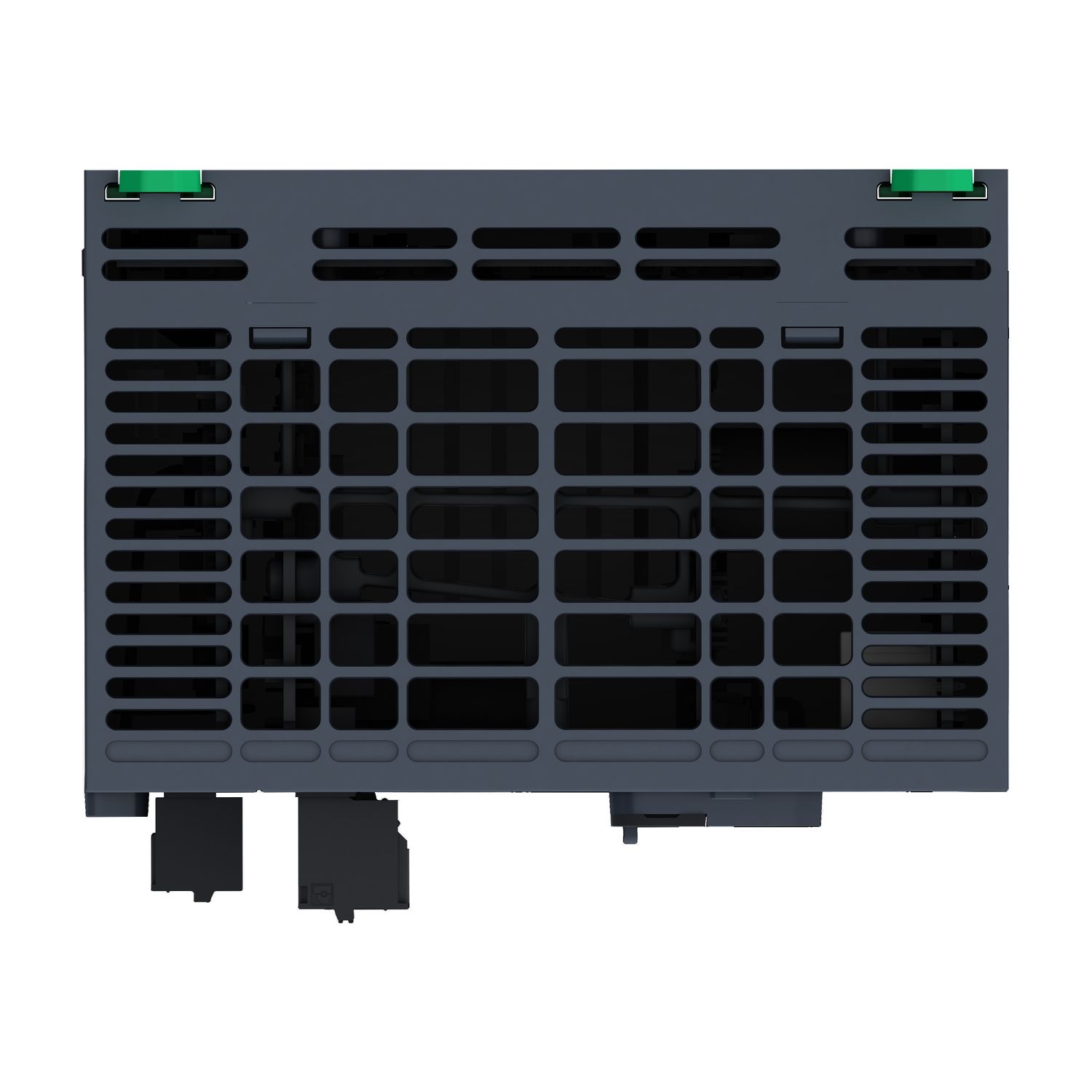

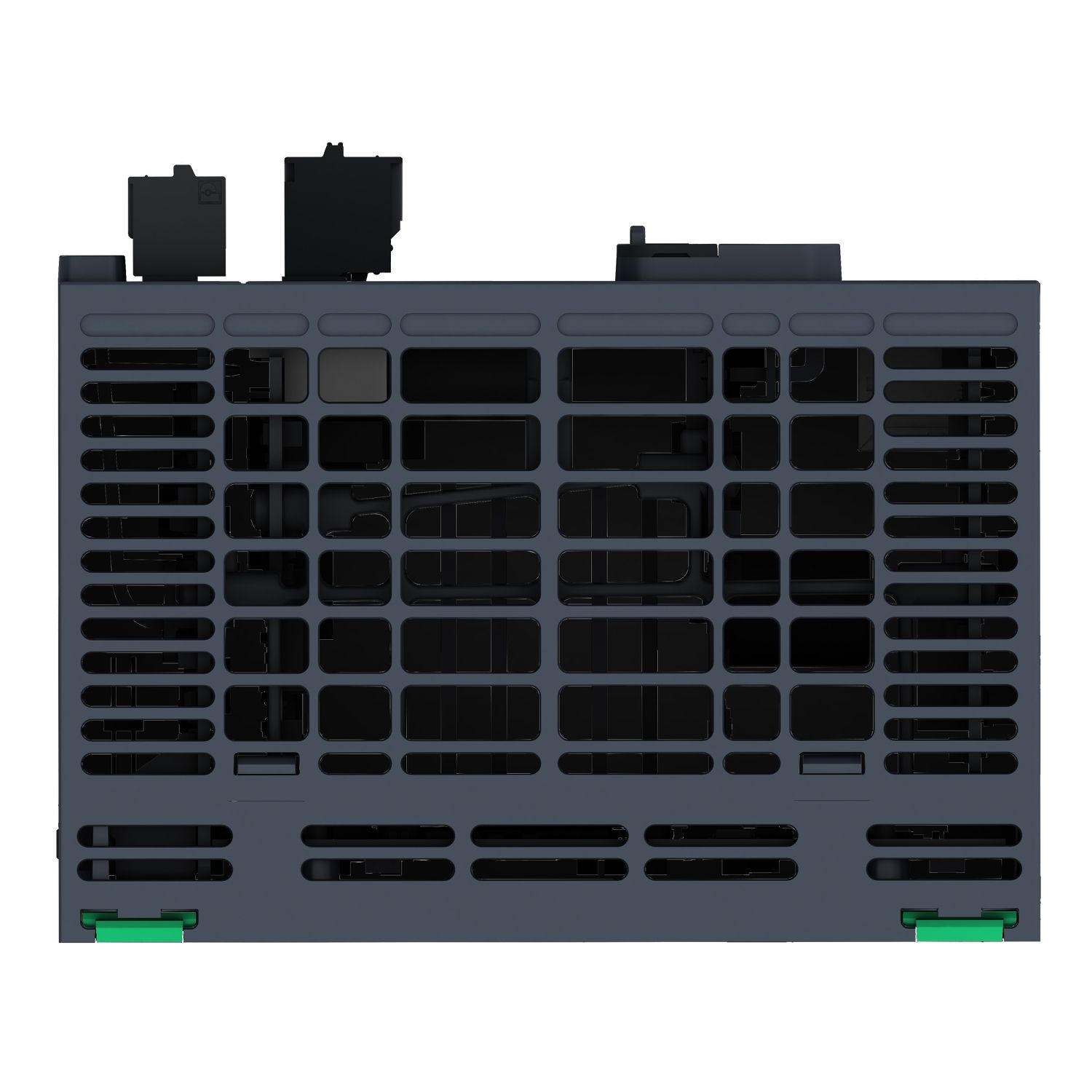

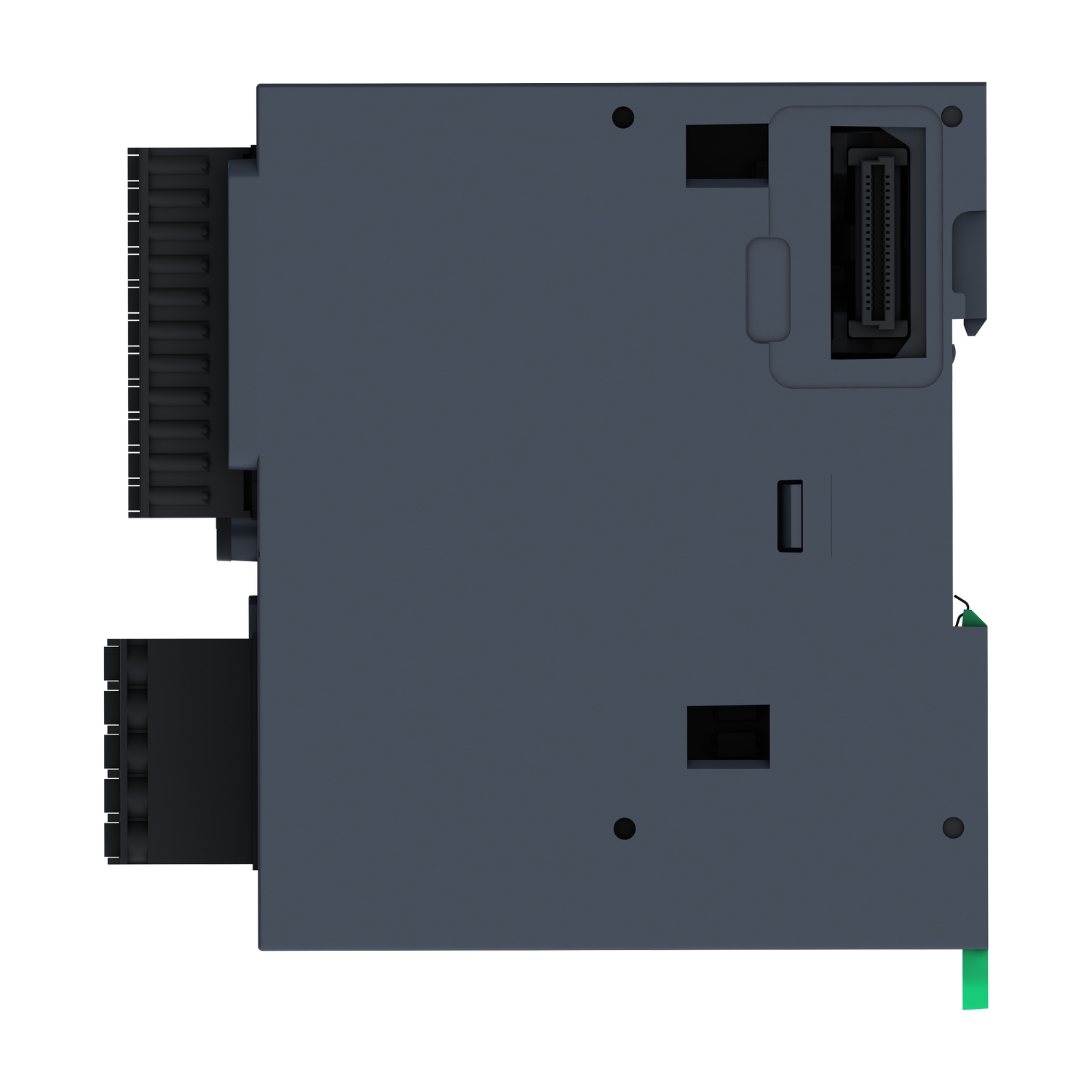

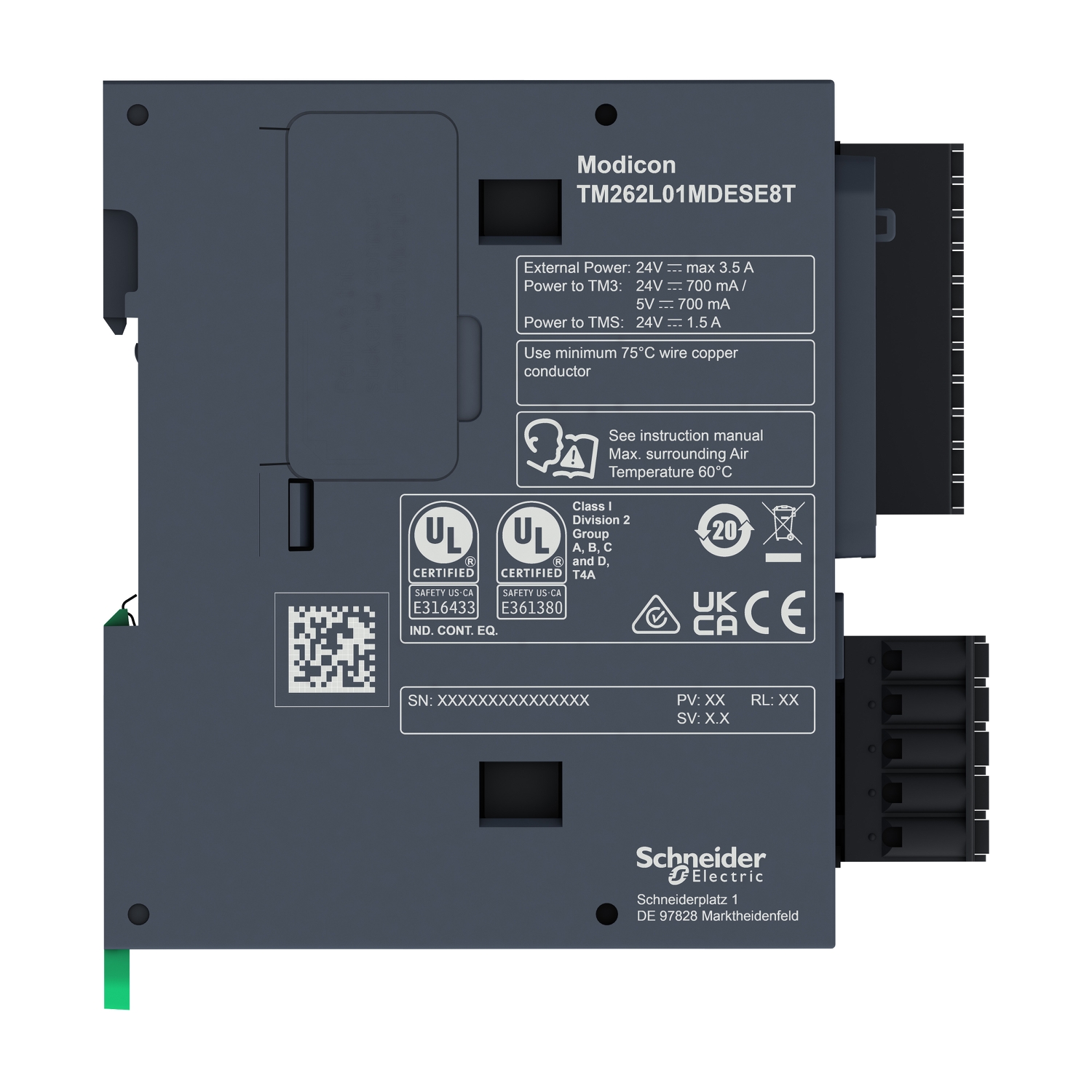

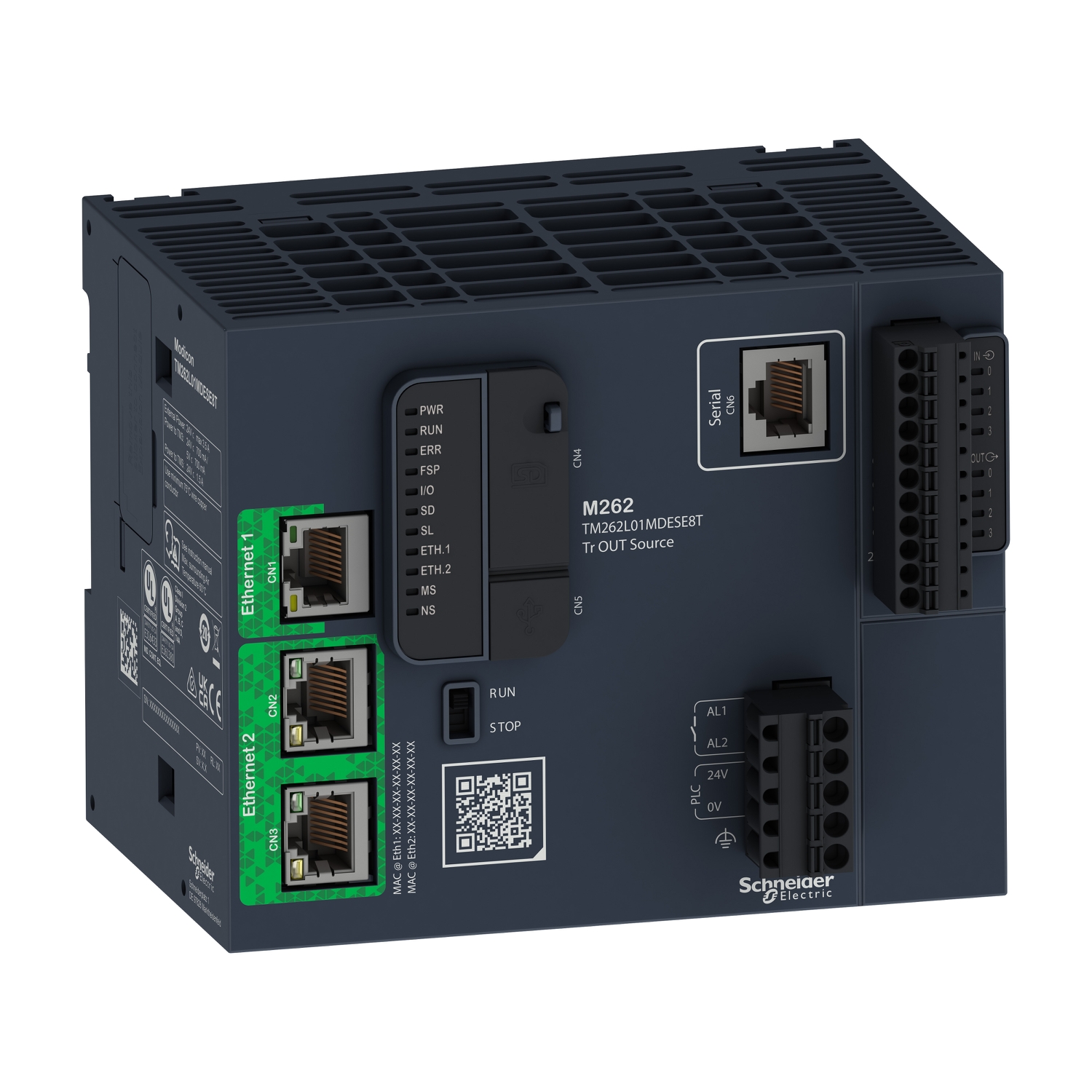

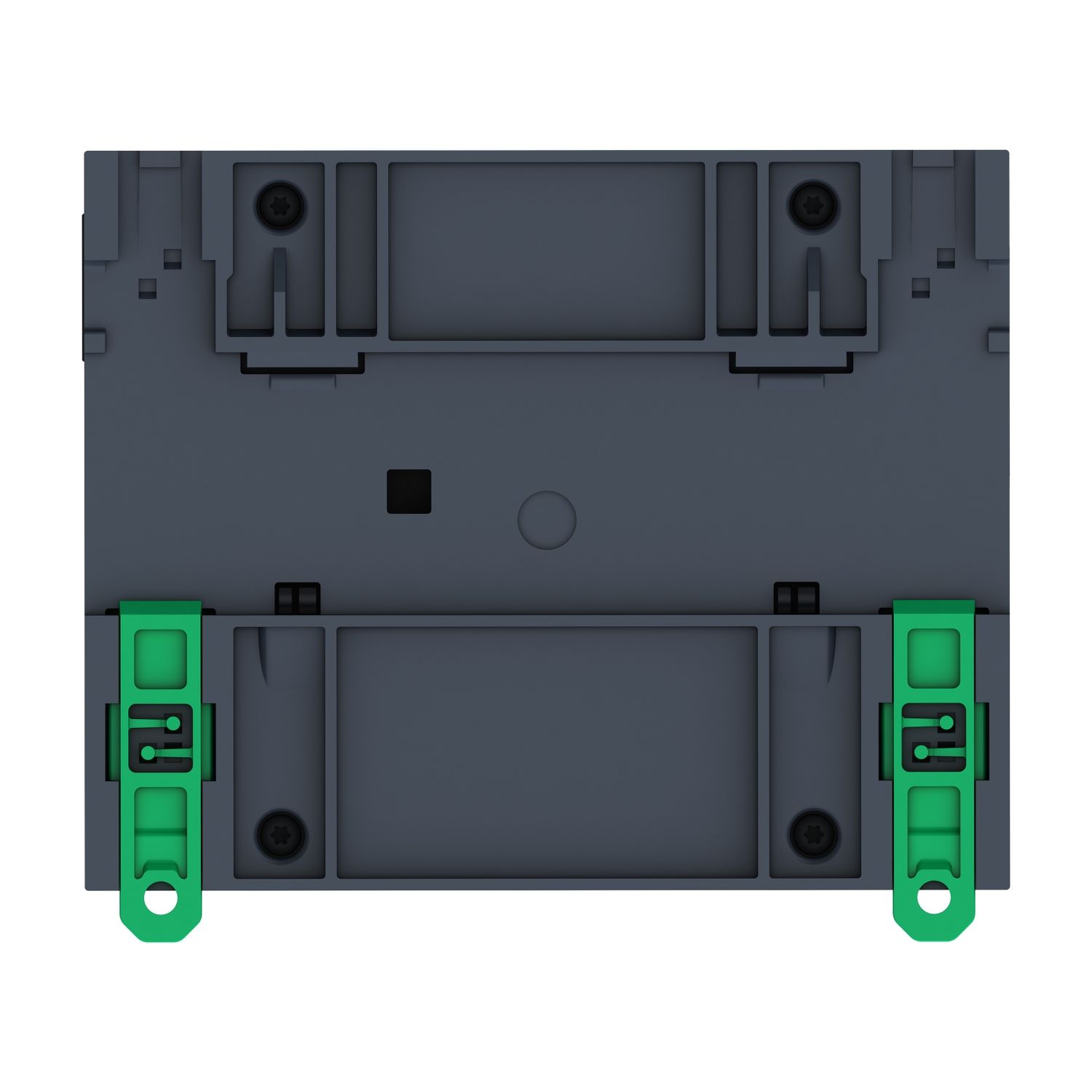

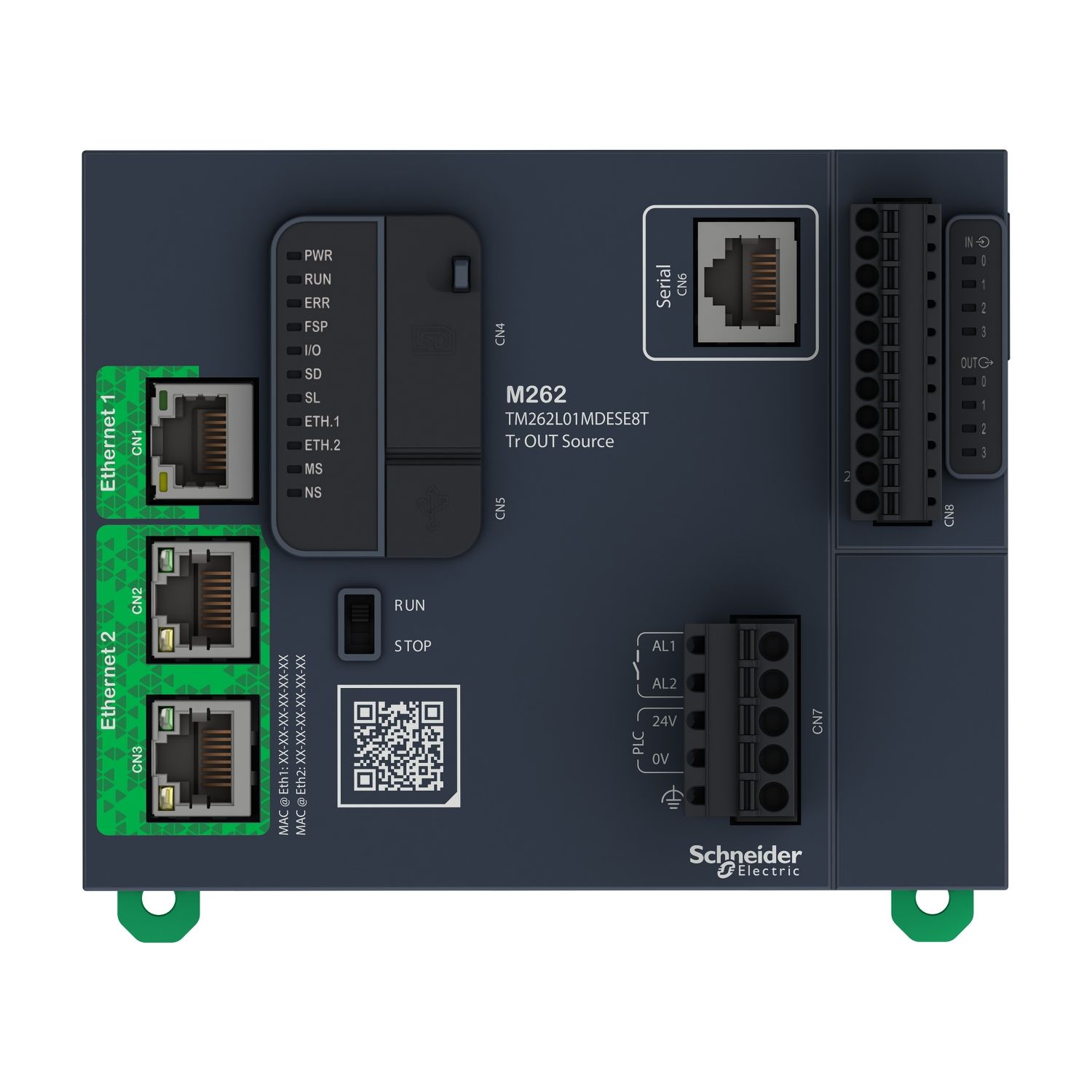

The Modicon M262 distributed PAC module is part of the EcoStructure Automation Expert hardware controller range. It is an optimised dPAC controller that supports Modicon TM3 I/O catalog. The controller carries up to 448 discrete I/O channels, 112 analog I/O channels and 14 (7 local + 7 remote) Modicon TM3 bus expansion modules. Modicon M262 dPAC is the controller for medium size machines and distributed processes. It embeds both OPC UA client and server to ease its vertical and horizontal integration in the architectures. It is powered with a non-isolated 24V DC power supply, has a built-in overload protection, embeds a dual-core processor and a 256MB memory capacity, and reaches a 5ns per instruction performance. This logic controller has two communication buses (Ethernet TCP/IP and Serial), one I/O bus, and one I/O port. It weighs 0.655kg (1.444lb). Certified with CE, cULus HazLoc, RCM. Conform to IEC/EN 61131-2, UL 61010-1, UL 61010-2-201, ANSI/ISA 12.12.01-2007, CSA C22.2 No.213. This controller supports Modicon TM3 I/O expansion modules. Modicon M262 logic controller installs on 35mm DIN rail with Clip-on locks.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | EcoStruxure Automation Expert |
| Product or component type | dPAC module |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| Complementary | |
| Insulation | non-insulated between supply and ground, between supply and internal logic at 500 V AC |
| Realtime clock | with |
| Execution time for 1 KInstruction | 0.005 ms |
| Surge withstand | 1 kV transistor output common mode conforming to EN/IEC 61000-4-5, 1 kV input common mode conforming to EN/IEC 61000-4-5, 0.5 kV relay output differential mode conforming to EN/IEC 61000-4-5, 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5, 1 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5 |
| Supply voltage limits | 20.4-28.8 V DC |
| Backup time | 1000 h at 25 °C |
| Communication port protocol | Modbus SL client/server, Modbus TCP IO scanner, Modbus TCP client/server, EtherNet/IP scanner |
| Transmission rate | 10/100/1000 Mbit/s for Ethernet2, 10/100 Mbit/s for Ethernet1, 57.6 kbit/s for bus length of 3-3 m for RS232, 57.6 kbit/s for bus length of 15-15 m for RS485 |
| Communication service | NTP client, HTTPs Methods (API), OPC UA server (Encrypt) |
| Height | 100 mm |
| Maximum cable distance between devices | shielded cable: <15 m for RS232, shielded cable: <30 m for RS485 link |
| Electrical connection | removable spring terminal blockfor connecting the 24 V DC power supply, removable spring terminal blockfor inputs and outputs |
| Data backed up | 1 GB built-in flash memory for backup of user programs |
| Maximum number of connected devices | Modbus TCP/EtherNet/IP: 96 , Modbus TCP: 64 , EtherNet/IP: 64 |
| Depth | 90 mm |
| Width | 125 mm |
| Overvoltage protection | with |
| Local signalling | 1 LED (green/red) for EIP NS, 1 LED (green/red) for EIP MS, 1 LED (green/red) for ETH2 state, 1 LED (green/red) for ETH1 state, 1 LED (green/orange) for SL activity, 1 LED (green/orange) for SD card activity, 1 LED (green/red) for I/O error (I/O), 1 LED (green/red) for stop forced, 1 LED (green/red) for ERROR (fault), 1 LED (green/red) for RUN, 1 LED (green/red) for PWR |
| Mounting support | plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Integrated connection type | TM3 IO bus, serial link with RJ45 connector and RS232/RS485 interface , Ethernet 2 with 2 RJ45 connector and 100/1000BASE-T interface , Ethernet 1 with RJ45 connector and 10/100BASE-T interface |
| Net weight | 0.655 kg |
| Maximum number of I/O expansion module | 7 TM3 IO module (remote I/O-Architecture), 7 TM3 IO module (local I/O-Architecture) |
| Clock drift | <= 10 s/month at 25-25 °C |
| Inrush current | 40 A |
| Power consumption in W | 82 W |
| Environment | |
| Resistance to fast transients | 1 kV (transistor output) conforming to EN/IEC 61000-4-4, 1 kV (input) conforming to EN/IEC 61000-4-4, 1 kV (serial link) conforming to EN/IEC 61000-4-4, 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4, 2 kV (power lines) conforming to EN/IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2 |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 %, without condensation (in storage), 5-95 %, without condensation (in operation) |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -20-45 °C (flat mounting), -20-50 °C (vertical installation), -20-60 °C (horizontal installation) |
| Pollution degree | 2 |
| Standards | EN 61131-2, ANSI/ISA 12-12-01, CSA C22.2 No 213, CSA C22.2 No 61010-2-201, CSA C22.2 No 61010-1, UL 61010-2-201, UL 61010-1 |
| Immunity to microbreaks | 0.01 ms |
| Resistance to electromagnetic fields | 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to conducted disturbances | 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz), 3 V 0.1...80 MHz, 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-4 |
| Electromagnetic emission | radiated emissions at 230-1000 MHz conforming to EN/IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to EN/IEC 55011, radiated emissions - test level: 40 dBµV/m at 30-230 kHz conforming to EN/IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to EN/IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to EN/IEC 55011 |
| Operating altitude | 0...2000 m |
| Vibration resistance | 1 gn at 8.4-200 Hz on panel mounting, 3.5 mm at 2-8.4 Hz on panel mounting, 1 gn at 8.4-200 Hz on symmetrical rail, 3.5 mm at 2-8.4 Hz on symmetrical rail |
| Shock resistance | 15 gn for 11 ms |
| Storage altitude | 0-3000 m |
| Product certifications | RCM, cULus HazLoc Class I Division 2 CSA 22-2 No 213, cULus, CE |
Only registered users can write reviews
Related products
connecting cable, Modicon M340, USB, PC or terminal, for processor, 1.8m
BMXXCAUSBH018
connecting cable, Modicon M340, USB, PC or terminal, for processor, 1.8m
$272.25 inc GST
$360.05 inc GST
Memory card, Modicon M221, for M2xx controller
TMASD1
Memory card, Modicon M221, for M2xx controller
$153.34 inc GST
$185.54 inc GST

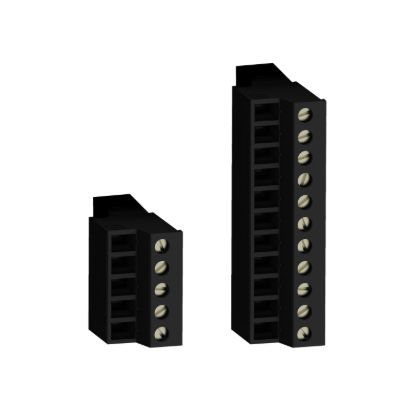

Set of connector, Logic/motion controller Modicon M262, Screw connectors, 5 + 11 conn. Blocks
TMA262SET8S
Set of connector, Logic/motion controller Modicon M262, Screw connectors, 5 + 11 conn. Blocks
$40.59 inc GST
$36.63 inc GST

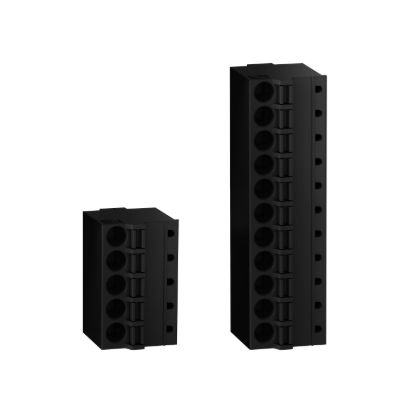

Set of connector, Logic/motion controller Modicon M262, Spring connectors, 5 + 11 conn. Blocks
