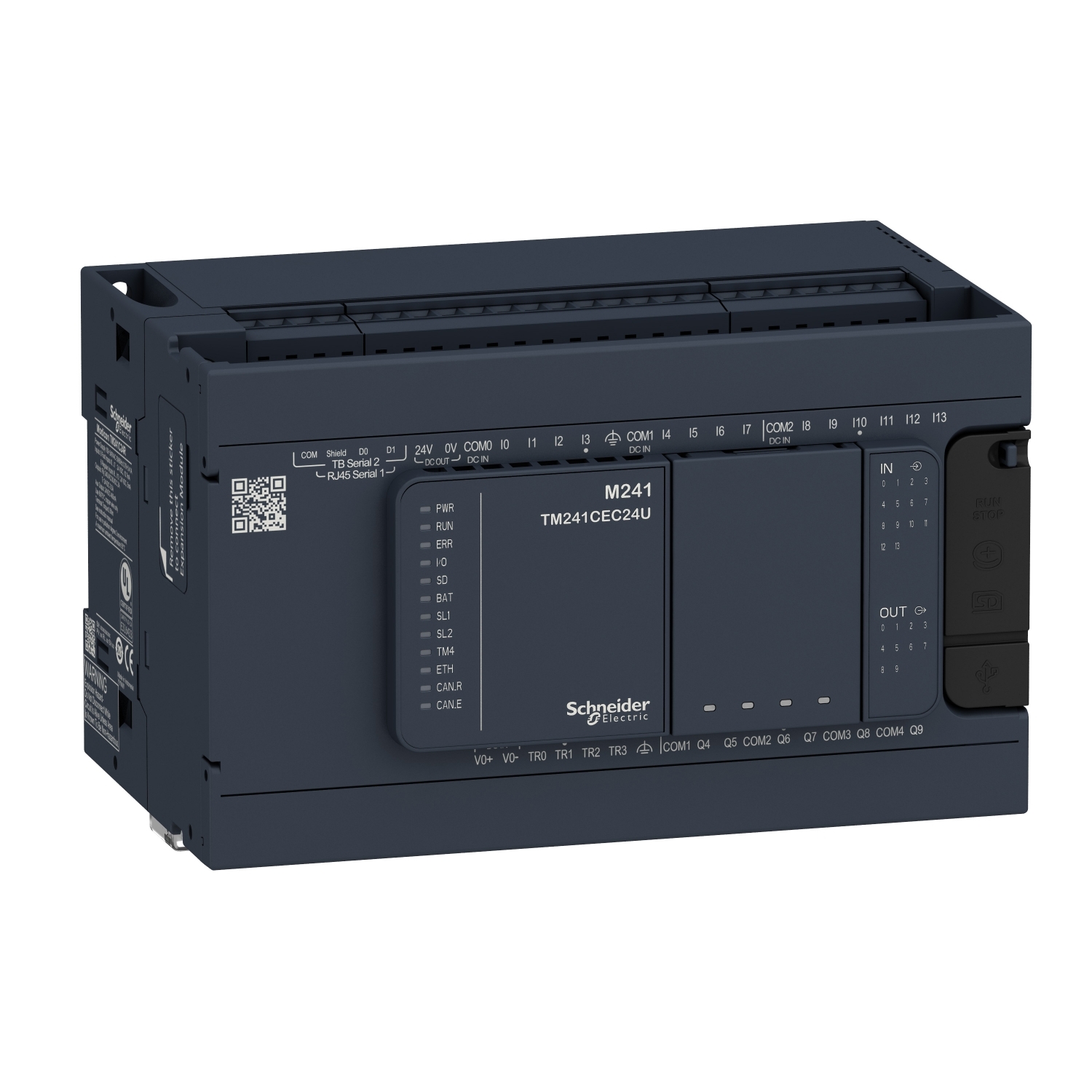

This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 14 discrete, 8 fast inputs, 6 relay, 4 transistor, 4 fast outputs with transistor, relay output. It has a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC or 5V to 250V AC for relay, 24V DC for transistor, and an output current of 2A for relay, 0.1A for fast output, 0.5A for transistor. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link 1 with RJ45 connector and RS232/RS485 interface and non isolated serial link 2 with removable screw terminal block connector and RS485 interface. It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 150mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.53kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input number | 14 , discrete input 8 fast input conforming to IEC 61131-2 Type 1 |
| [Us] rated supply voltage | 100...240 V AC |
| Discrete output voltage | 24 V DC for transistor output, 5...250 V AC for relay output, 5...125 V DC for relay output |
| Discrete output current | 0.5 A for transistor output (TR0...TR3), 0.1 A for fast output (PTO mode) (TR0...TR3), 2 A for relay output (Q4...Q9) |
| Range of product | Modicon M241 |
| Discrete output type | relay, transistor |
| Product or component type | logic controller |
| Discrete output number | 4 transistor 4 fast output, 6 relay |
| Complementary | |
| Supply | (serial 1)serial link supply: 5 V, <200 mA |
| Insulation | non-insulated between supply and ground, between supply and internal logic at 500 V AC |
| Data storage equipment | <= 16 GB SD card (optional) |
| Protection type | without protection for relay output, reverse polarity protection for transistor output, short-circuit and overload protection with automatic reset for transistor output, short-circuit protection for transistor output |
| Realtime clock | with |
| Execution time for 1 KInstruction | 0.7 ms for other instruction, 0.3 ms for event and periodic task |
| Maximum output frequency | 100 kHz for fast output (PLS mode), 20 kHz for fast output (PWM mode), 1 kHz for transistor output |
| Surge withstand | 1 kV transistor output common mode conforming to IEC 61000-4-5, 1 kV input common mode conforming to IEC 61000-4-5, 1 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 2 kV relay output common mode conforming to IEC 61000-4-5, 2 kV power lines (AC) common mode conforming to IEC 61000-4-5 |
| Control signal type | single phase at 200 kHz for fast input (HSC mode), pulse/direction at 200 kHz for fast input (HSC mode), A/B at 100 kHz for fast input (HSC mode) |
| Supply voltage limits | 85-264 V |
| Memory capacity | 64 MB for system memory RAM |
| Configurable filtering time | 1 µs for fast input |
| Voltage state 0 guaranteed | <= 5 V for input |
| Application structure | 8 event tasks, 8 external event tasks, 3 cyclic master tasks + 1 freewheeling task, 4 cyclic master tasks |
| Discrete I/O number | 24 |
| Backup time | 2 years at 25 °C |
| Marking | CE |
| Communication port protocol | non isolated serial link: Modbus master/slave |
| Transmission rate | 480 Mbit/s for bus length of 3-3 m for USB, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485 |
| Accuracy | +/- 1 % at 0.1-1 kHz for fast output, +/- 0.1 % at 0.02-0.1 kHz for fast output |
| Positioning functions | PTO function 4 channel(s) (positioning frequency: 100 kHz) |
| Discrete output logic | positive logic (source) |
| Height | 90 mm |
| Maximum cable distance between devices | shielded cable: <3 m for fast output, unshielded cable: <50 m for output, shielded cable: <10 m for fast input, unshielded cable: <50 m for input |
| Electrical connection | removable screw terminal blockfor connecting the 24 V DC power supply (pitch 5.08 mm), removable screw terminal blockfor inputs and outputs (pitch 5.08 mm) |
| Data backed up | 128 MB built-in flash memory for backup of user programs |
| Counting input number | 14 standard input at 1 kHz, 4 fast input (HSC mode) at 200 kHz |
| Depth | 95 mm |
| Width | 150 mm |
| Discrete input current | 5 mA for input |
| Response time | 50 µs turn-on, I0...I13 terminal(s) for input |
| Local signalling | 1 LED per channel (green) for I/O state, 1 LED (red) for bus fault on TM4 (TM4), 1 LED (green) for SL2, 1 LED (green) for SL1, 1 LED (red) for BAT, 1 LED (green) for SD card access (SD), 1 LED (red) for I/O error (I/O), 1 LED (red) for module error (ERR), 1 LED (green) for RUN, 1 LED (green) for PWR |
| Mounting support | plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Sensor power supply | 24-24 V DC at 400 mA supplied by the controller |
| Integrated connection type | USB port with mini B USB 2.0 connector, non isolated serial link serial 2 with removable screw terminal block connector and RS485 interface , non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface |
| Voltage state 1 guaranteed | >= 15 V for input |
| Output voltage limits | 277 V AC relay output, 30 V DC transistor output, 125 V DC relay output |
| Net weight | 0.53 kg |
| Maximum number of I/O expansion module | 14 (remote I/O-Architecture), 7 (local I/O-Architecture) |
| Reset time | 12 s automatic reset fast output, 10 ms automatic reset output |
| Battery type | BR2032 lithium non-rechargeable, battery life: 4 year(s) |
| Clock drift | <= 60 s/month at 25-25 °C |
| Discrete input voltage type | DC |
| Discrete input voltage | 24 V |
| Input impedance | 4.7 kOhm for input |
| Discrete input logic | sink or source |
| Network frequency | 50/60 Hz |
| Environment | |
| Resistance to fast transients | 1 kV (transistor output) conforming to IEC 61000-4-4, 1 kV (input) conforming to IEC 61000-4-4, 1 kV (serial link) conforming to IEC 61000-4-4, 2 kV (relay output) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2 |
| IP degree of protection | IP20 with protective cover in place |
| Relative humidity | 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation) |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | -10-55 °C (horizontal installation), -10-50 °C (vertical installation) |
| Pollution degree | 2 |
| Standards | UL 508, Marine specification (LR, ABS, DNV, GL), IEC 61131-2:2007, CSA C22.2 No 213, CSA C22.2 No 142, ANSI/ISA 12-12-01 |
| Immunity to microbreaks | 10 ms |
| Resistance to electromagnetic fields | 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 |
| Resistance to conducted disturbances | 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6 |
| Electromagnetic emission | radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines) at 0.5-300 MHz conforming to IEC 55011, conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines) at 0.15-0.5 MHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011 |
| Operating altitude | 0...2000 m |
| Vibration resistance | 3 gn at 8.4-150 Hz on panel mounting, 3.5 mm at 5-8.4 Hz on panel mounting, 3 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on symmetrical rail |
| Shock resistance | 15 gn for 11 ms |
| Storage altitude | 0-3000 m |
| Product certifications | LR, ABS, DNV-GL, UKCA, CE, cULus, RCM |
