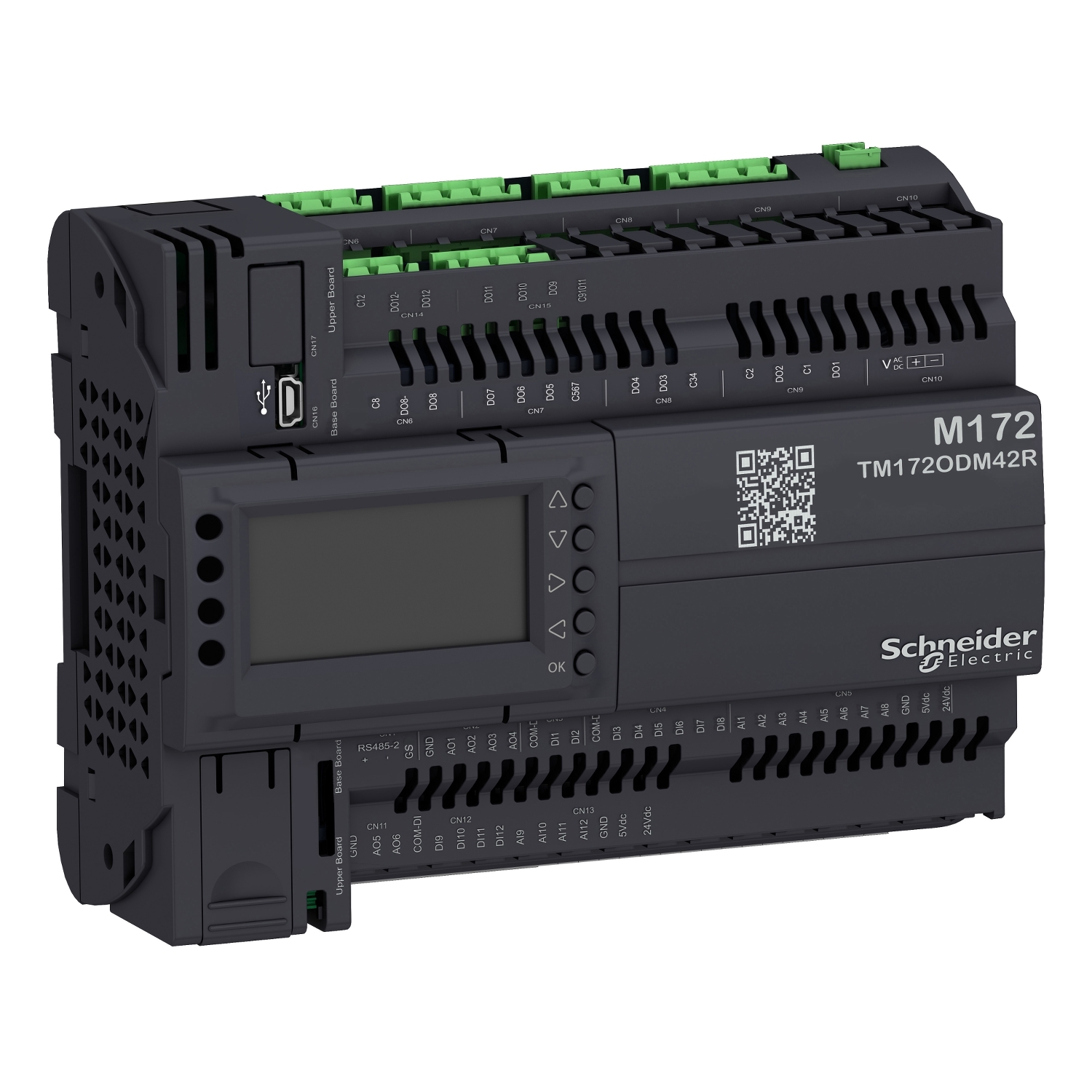

Controller, Modicon M171/M172/M173, optimized display 42 IO

Manufacturer: Schneider Electric

SKU: TM172ODM42R

GTIN: 3606481390134

PDF

Image of product

User guide

Instruction sheet

Catalog

Brochure

Full Description

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 12 digital inputs, 12 analog inputs, 12 digital outputs, 6 analog outputs, and a display. This controller embeds one CAN expansion bus port, two RS485 ports, one USB-B port, and one Communication module port. It is a programmable logic controller for HVAC and Pumping applications. Dis are 24 VACDC, high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm. DOs are SPDT relays, or SPST 3A with the same or independent common, AOs are 0-10V, 4-20mA, PWM (2kHz, 24Vdc). It measures 144mm wide, 60.5mm deep, 110mm high, and weighs 0.480kg. This controller is designed for HVAC solutions. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with screw terminal blocks, remote display, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Availability: Out of stock

Old price: $1,089.00 inc GST

Price: $1,317.69 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Analogue output number	4 voltage, range: 0...10 V, 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz)
Discrete output number	2 for relay outputs SPDT with independent common, 3 for relay outputs SPST with same common, 5 for relay outputs SPST with same common, 2 for relay outputs SPST with independent common
Product or component type	programmable controllers
Range of product	Modicon M171/M172
Variant	programmable
Analogue input number	12 configurable by pair
Discrete input number	12
Product specific application	HVAC control
Number of inputs/outputs	42
Discrete output current	3 A for relay SPDT, 3 A for relay SPST
Complementary
Measurement accuracy	NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C, NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C, NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 200...-100 °C +/- 10 °C, Pt 1000 - 100...-50 °C +/- 2.5 °C, Pt 1000 - 50...100 °C +/- 1.5 °C, Pt 1000 100…400 °C +/- 2.4 °C, Pt 1000 400...850 °C +/- 10 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit, 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...1500 hOhm +/- 8.5 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm
Power consumption in W	14 W at 24 V AC/DC
Mounting support	panel mounting with accessory, DIN rail
Local signalling	1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power
Input impedance	10 kOhm
Width	144 mm
Realtime clock	built-in clock, clock drift <= 30 s/month at -20-65 °C
Depth	60.5 mm
Discrete input voltage	24 V AC/DC
Input/output number	12 analog input(s), 6 analog output(s), 12 digital input(s), 12 digital output(s)
Net weight	0.385 kg
Number of port	1 CAN port - screw terminal block, 1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP)
Sensor power supply	5-5 V DC at 50 mA supplied by the controller, 24-24 V DC at 150 mA supplied by the controller
Discrete input current	2.5 mA
Analogue input type	impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm, impedance 0...300 daOhm - resolution: 1 daOhm at 2 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm, voltage 0...10 V - resolution: 1 digit at > 10 kOhm, NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (extended), current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm, PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 2 kOhm, voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric), Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 2 kOhm, direct input at > 10 kOhm
Overvoltage category	II
Discrete input logic	sink or source (positive/negative)
Height	110 mm
Display type	backlit LCD - 128 x 64 pixels
[Us] rated supply voltage	24 V +/- 10 % AC, 20...38 V DC
Environment
Ambient air temperature for storage	-30-70 °C
Relative humidity	5-95 % non-condensing
Standards	CAN/CSA-E60730-1, CSA E60730-2-9, EN 60068-2-27, EN 60068-2-6 Fc, EN 60730-1, EN 60730-2-9, UL 60730-1, UL 60730-2-9, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11, UL94 (material V0)
Pollution degree	2
Ambient air temperature for operation	-20-65 °C conforming to UL 60730-1, -20-60 °C horizontal conforming to UL 60730-1
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection	IP20
Product certifications	EAC, CE, cURus, CSA, RCM
Operating altitude	0...2000 m
Contractual warranty
Warranty	18
