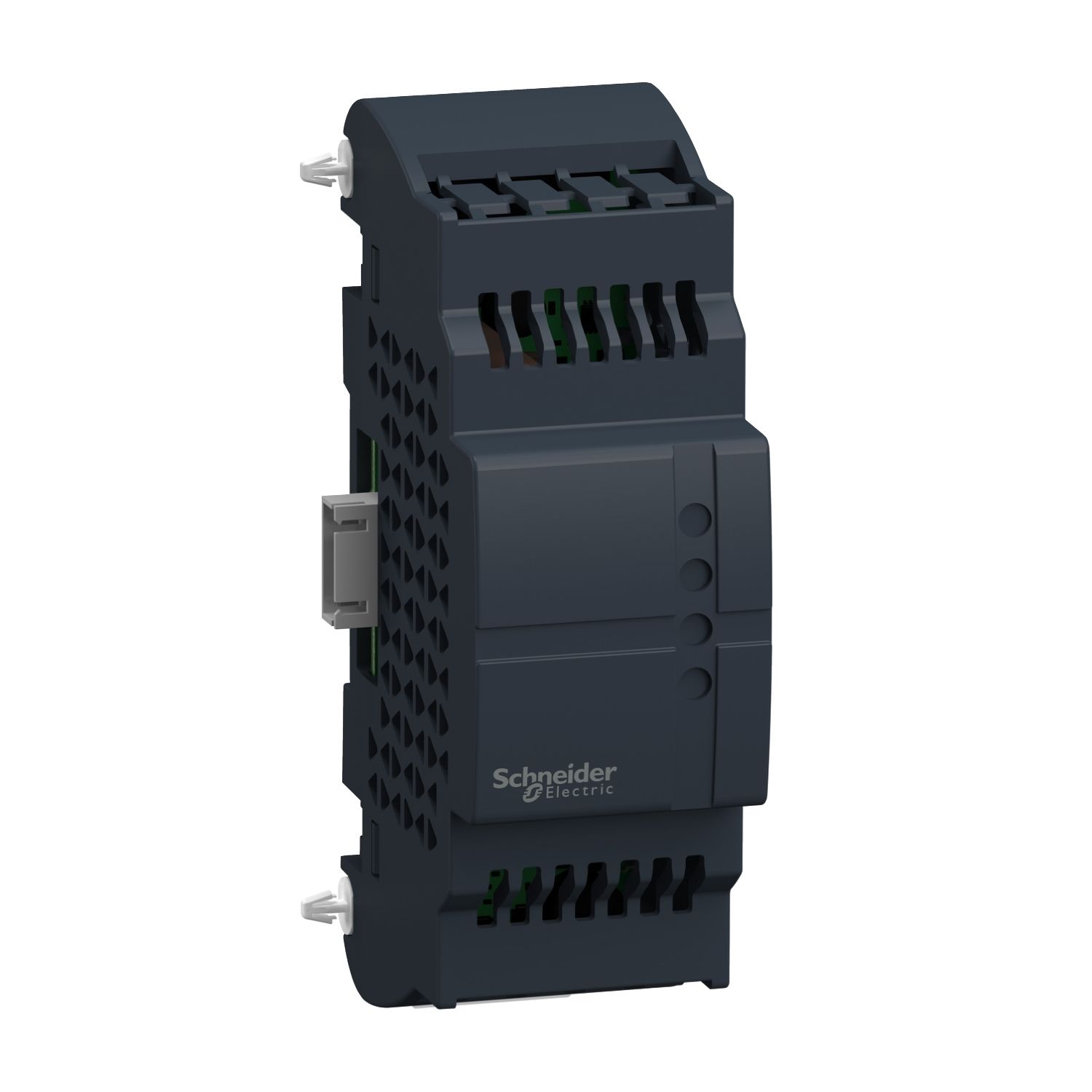

This accessory belongs to Modicon M171/M172 range of controllers. It is a battery backup for electronic expansion valve drivers, and should be ordered separately. It weighs 0.157kg. It measures 36mm wide, 110mm high, 60mm deep. It provides power when the primary source of power is unavailable. It is certified CE, UL, CSA, EAC, RoHS China. It is compatible with TM172EVEV1U TM172EVEV1B TM172EVEV2B electronic expansion valve drivers.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part type | battery |
| Accessory / separate part category | electrical accessory |
| Range of product | Modicon M171/M172 |
| Complementary | |
| Accessory / separate part destination | electronic expansion valve module |
| Depth | 60 mm |
| Width | 36 mm |
| Product compatibility | Modicon M172 expansion EEV |
| Net weight | 0.157 kg |
| Battery life | 0-5 year(s) |
| Height | 110 mm |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -30-70 °C |
| Standards | UL94 (material V0) |
| Ambient air temperature for operation | -20-60 °C |
| Battery power in VAH | 0.06 VAh |
