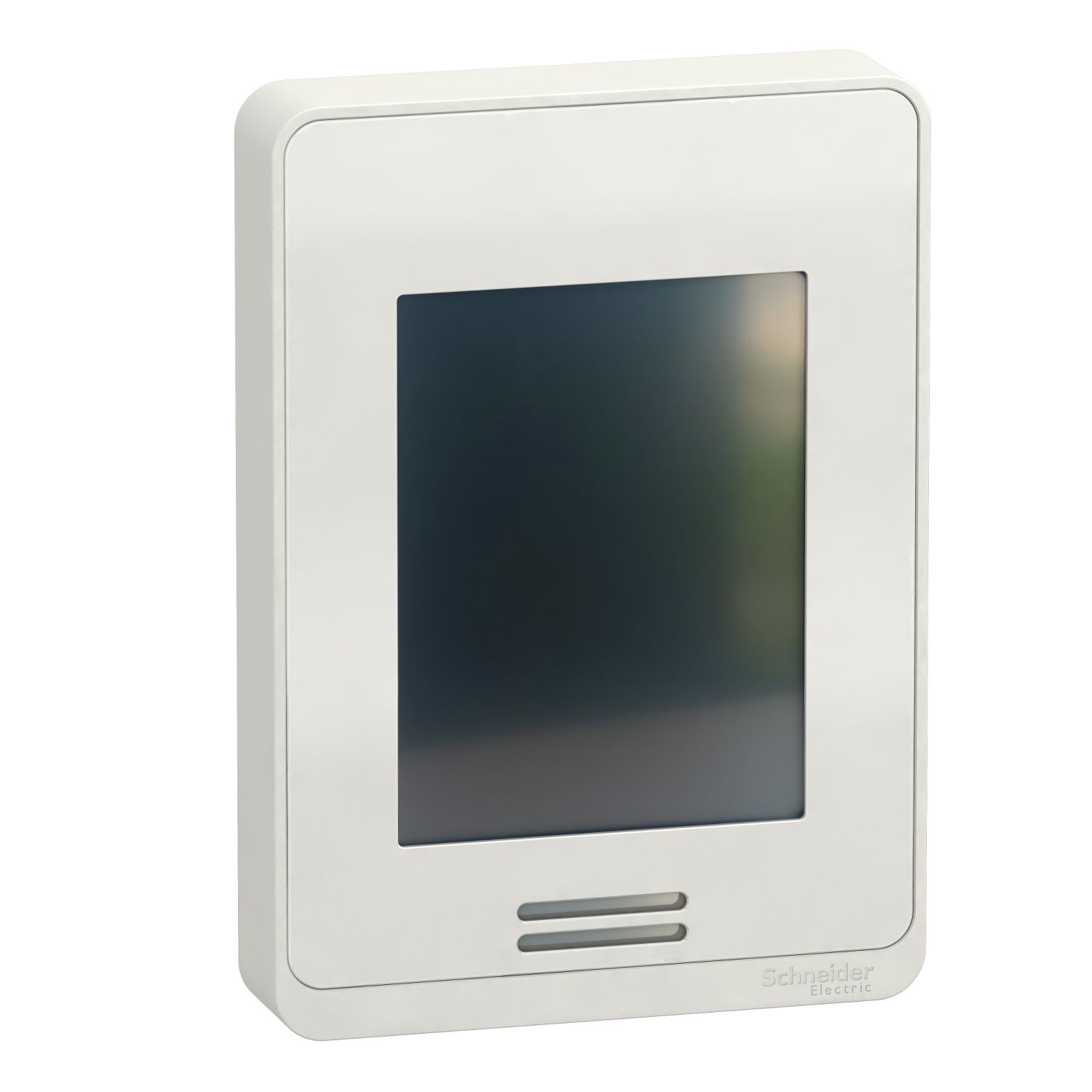

This product is part of the Modicon M171/M172 range, an offer of display modules for HVAC solutions. This display module features an LCD display and color touchscreen with 320 x 240 pixels display resolution. It offers external source supply with rated supply voltage of 24V AC/DC. Its dimensions are 86mm (width) x 25mm (depth) x 120mm (height). It weighs 0.34kg. This product is certified by CE, RCM, EAC and CTUVus. It meets EN 60950-1, EN 55024, CSA C22.2 No 24, EN 55032 and UL 873 standards. It is compatible with logic controller M172 and logic controller M171. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon M171/M172 |
| Product or component type | display module |
| Supply | external source |
| Complementary | |
| Product compatibility | logic controller M171, logic controller M172 |
| Display type | colour touchscreen, LCD display |
| Colour | white |
| [Us] rated supply voltage | 24 V AC/DC |
| Power consumption in W | 1.3 W, 3.2 VA |
| Height | 120 mm |
| Depth | 25 mm |
| Analogue input type | humidity probe 10...90 % without condensation 80...90 % +/- 10 %, humidity probe 10...90 % without condensation 20...80 % +/- 5 %, humidity probe 10...90 % without condensation 10...20 % +/- 10 %, NTC 10k temperature probe at 21 °C +/- 0.5 °C, NTC 10k type 2 temperature probe - 40...50 °C +/- 0.1 °C |
| Width | 86 mm |
| Net weight | 0.34 kg |
| Display resolution | 320 x 240 pixels |
| Environment | |
| Ambient air temperature for storage | -30-50 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-50 °C |
| Standards | IEC 60950-1, EN 55024, CSA C22.2 No 24, EN 55032, UL 873 |
| Product certifications | CE, RCM, EAC, cTUVus |
