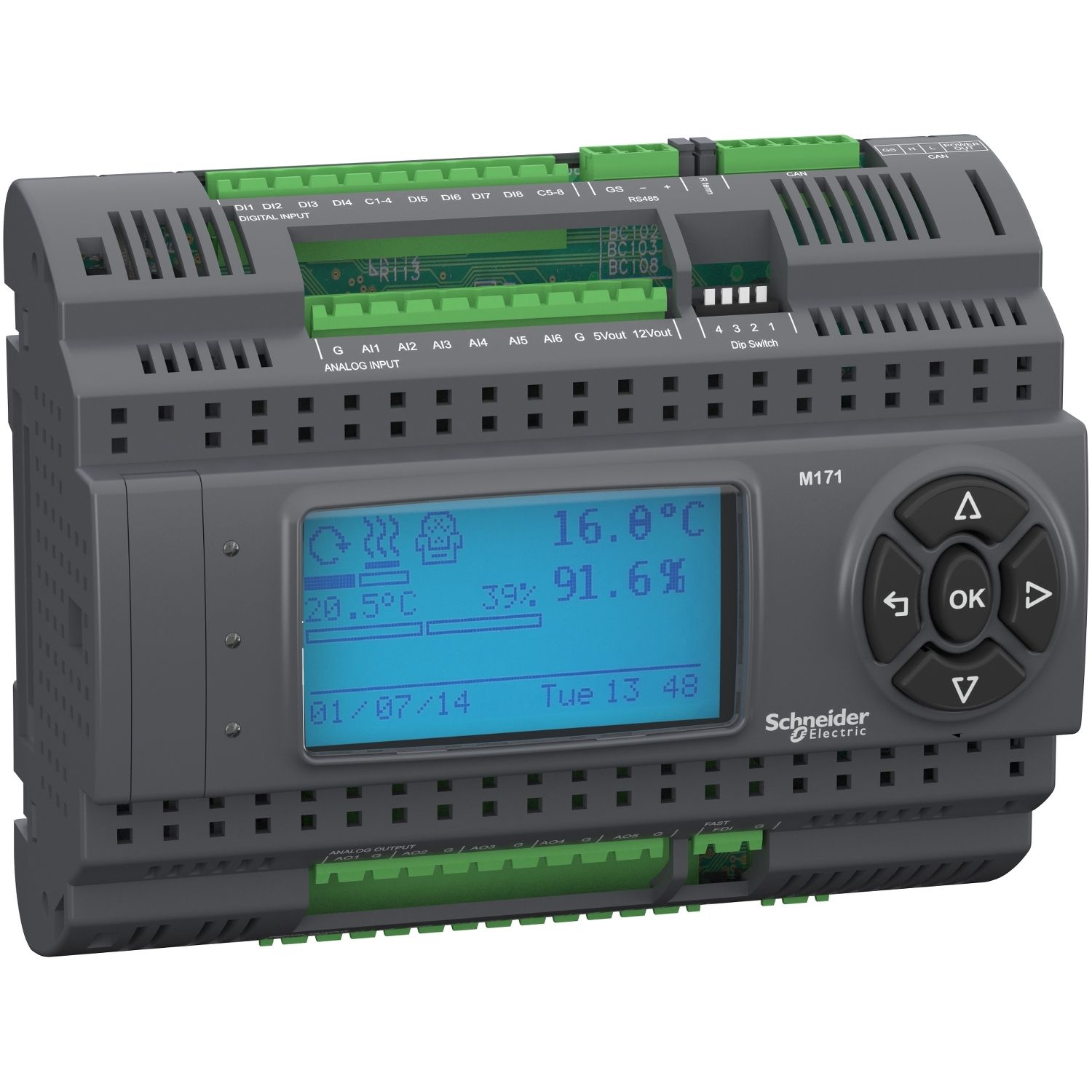

Modicon M171 Performance Display 27 I/Os Modbus, 2 SSR

Manufacturer: Schneider Electric

SKU: TM171PDM27S

GTIN: 3606480752841

Catalog

User guide

Instruction sheet

Environmental Disclosure

Brochure

Circularity Profile

Old price: $977.90 inc GST

Price: $1,183.26 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 9 digital inputs, 6 configurable analog inputs, 7 digital outputs, 5 analog outputs, and a display. This programmable controller embeds 2 communication ports for RS485 and CAN expansion bus, and Two USB connectors. It is a programmable logic controller for HVAC and Pumping applications, equiped with a LCD display. Inputs are digital (8x 24Vac/48Vdc, 1x fast), and analog (2x NTC, 4x PT1000). Outputs are digital (2x SPDT 8A, 230Vac, 3x SPST 5A/230Vac, 2x SSR 1A, 230Vac), and analog (3x 0-10V/4-20mA, 2x 0-10V/4-20mA). It measure 160mm wide, 54.3mm deep, 96mm high, and weighs 0.350kg. This controller is designed for HVAC solutions. It is certified by CE, cURus, CSA and EAC. It is compatible with screw terminal blocks, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name	Attribute value
Main
Discrete output current	0.5 A for solid state, isolated, 5 A for relay SPST, 8 A for relay SPDT
Number of inputs/outputs	27
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Discrete input number	8
Analogue input number	4 configurable, 2 analog input NTC
Product or component type	programmable controllers
Variant	programmable
Discrete output number	2 for solid state, isolated SSR with same common, 2 for relay outputs SPDT with independent common, 3 for relay outputs SPST with same common
Analogue output number	2 open collector, range: 1 kHz, 12 V, 35 mA, 3 voltage/current, range: 4...20 mA or 0...10 V
Complementary
Input/output number	1 high-speed counter(s), 7 digital output(s), 8 digital input(s), 5 analog output(s), 6 analog input(s)
[Us] rated supply voltage	48 V +/- 20 % DC, 24 V +/- 20 % AC/DC
Display type	LCD display - 128 x 64 pixels
Discrete input voltage	48 V DC, 24 V AC/DC
Height	96 mm
Discrete input logic	sink or source (positive/negative)
Depth	10 mm
Overvoltage category	II
Analogue input type	NTC temperature probe - 40...150 °C - resolution: 0.1 °C, Pt 1000 temperature probe - 200...800 °C - resolution: 0.1 °C, voltage 0...10 V, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), impedance 0...300 daOhm, impedance 0...1500 hOhm, current 4...20 mA, voltage 0...5 V (ratiometric)
Realtime clock	built-in clock at -10-55 °C
Width	160 mm
Discrete input current	2.5 mA
Input impedance	20 kOhm
Local signalling	1 LED (green) for programmable, 1 LED (yellow) for programmable, 1 LED (red) for programmable
Sensor power supply	12-12 V DC at 150 mA, 5-5 V DC at 50 mA
Number of port	1 RS485 - screw terminal block (Modbus serial link), 1 USB type mini B - USB device port Mini-B, 1 USB type A - USB type A female, 1 CAN port - screw terminal block
Net weight	0.35 kg
Mounting support	flush mounting
Power consumption in W	5 W at 24...48 V AC/DC
Environment
IP degree of protection	IP20
Relative humidity	10-90 % non-condensing
Ambient air temperature for storage	-20-85 °C
Directives	2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive
Ambient air temperature for operation	-10-55 °C conforming to UL 60730-1
Pollution degree	2
Standards	EN/IEC 60730
Product certifications	CSA, EAC, cURus, CE
