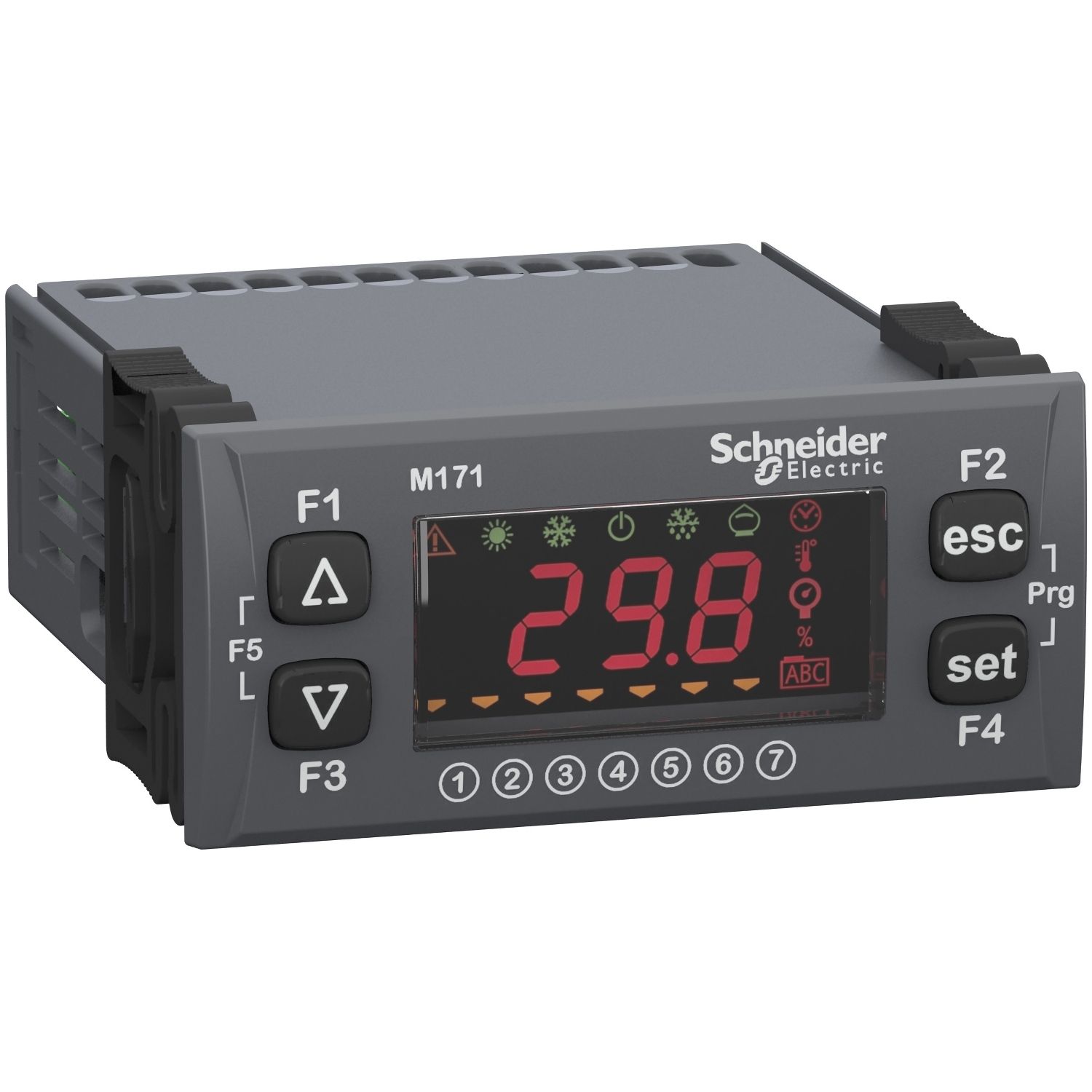

Modicon M171 Optimized Flush mounting 22 I/Os

Manufacturer: Schneider Electric

SKU: TM171OF22R

GTIN: 3606480752803

Catalog

User guide

Instruction sheet

Brochure

Old price: $350.35 inc GST

Price: $423.92 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 6 digital inputs, 5 configurable analog inputs, 6 digital outputs, 5 analog outputs, and a display. This programmable controller embeds 1 communication port for LAN expansion bus. It is a programmable logic controller for HVAC and Pumping applications, equiped with a LCD display. DIs are volt free in 1 group, AIs are NTC, 0-20mA, 4-20mA, 0-10V, 0-5V, 0-1V. DOs are SPST (2A, 230Vac), AOs are open collectors for 12V PWM/PPM, or 0-10V. It measures 70mm wide, 76mm deep, 32mm high, and weighs 0.164kg. This controller is designed for HVAC solutions. It is certified by CE, CURus, CSA and EAC. It is compatible with screw terminal blocks, and communication modules. It is sold in a 1-piece package. It is designed for flush mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name	Attribute value
Main
Discrete output current	2 A for relay
Number of inputs/outputs	22
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Discrete input number	6
Analogue input number	3 analog input NTC, 2 configurable
Product or component type	controller
Variant	programmable
Discrete output number	2 for relay outputs SPST with independent common, 3 for relay outputs SPST with same common, 1 for open collector
Analogue output number	2 PWM/PPM, range: 20 kHz, 12 V, 35 mA, 3 voltage, range: 0...10 V
Complementary
Input/output number	6 digital output(s), 5 analog input(s), 6 digital input(s), 5 analog output(s)
[Us] rated supply voltage	24 V +/- 20 % DC, 12...24 V +/- 20 % AC/DC
Display type	without display
Height	110 mm
Discrete input logic	sink or source (positive/negative)
Depth	61.6 mm
Overvoltage category	II
Analogue input type	voltage 0...1 V, current 0...20 mA/4...20 mA, NTC temperature probe - 50...100 °C - resolution: 0.1 °C, voltage 0...10 V, voltage 0...5 V (ratiometric)
Realtime clock	built-in clock at -10-55 °C
Width	140 mm
Local signalling	1 LED (green) for programmable, 1 LED (yellow) for programmable, 1 LED (red) for programmable
Sensor power supply	5-5 V DC at 20 mA, 12-12 V DC at 85 mA
Number of port	1 LAN expansion bus
Net weight	0.385 kg
Mounting support	DIN rail
Contacts usage	volt-free contacts
Power consumption in W	18 W at 24...48 V AC/DC
Environment
IP degree of protection	IP20
Relative humidity	10-90 % non-condensing
Ambient air temperature for storage	-40-85 °C
Directives	2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive
Ambient air temperature for operation	-10-55 °C conforming to UL 60730-1
Pollution degree	2
Standards	EN/IEC 60730
Product certifications	EAC, CSA, cURus, CE
