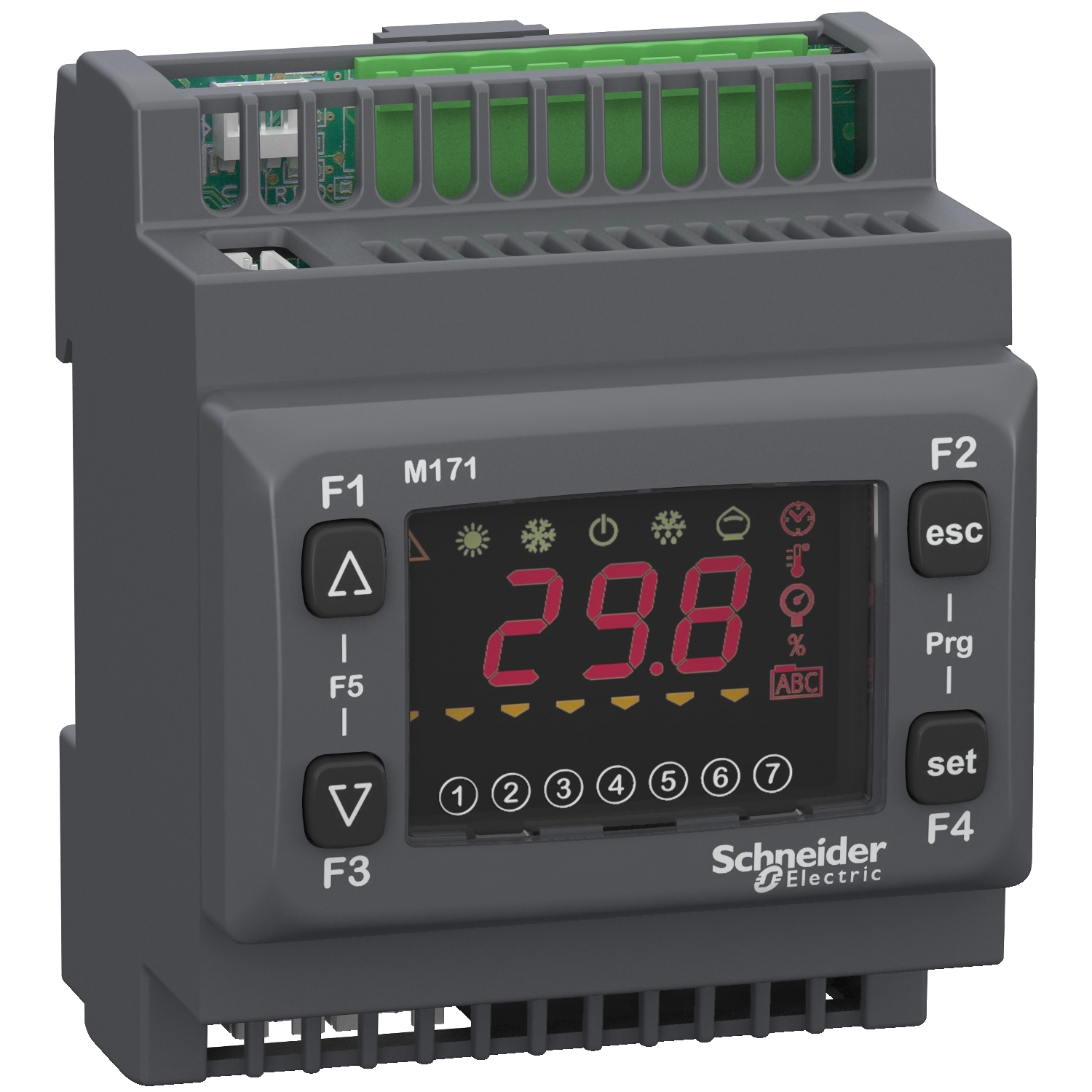

Modicon M171 Optimized Display 22 I/Os, Modbus, 2 SSR

Manufacturer: Schneider Electric

SKU: TM171ODM22S

GTIN: 3606480752797

Catalog

User guide

Instruction sheet

Environmental Disclosure

Brochure

Circularity Profile

Old price: $447.15 inc GST

Price: $541.05 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 6 digital inputs, 5 configurable analog inputs, 6 digital outputs, 5 analog outputs, and a display. This programmable controller embeds 2 communication ports for RS485 and LAN expansion bus. It is a programmable logic controller for HVAC and Pumping applications, equiped with a LCD display. DIs are volt free in 1 group, AIs are NTC, 0-20mA, 4-20mA, 0-10V, 0-5V, 0-1V. DOs are SPST (2A, 230Vac) with the same common,SSR (3A, 230Vac), or open collector, AOs are open collector for 12V PWM/PPM, or 0-10V. It measures 70.2mm wide, 61.6mm deep, 87mm high, and weighs 0.190kg. This controller is designed for HVAC solutions. It is certified by CE, CURus, CSA and EAC. It is compatible with screw terminal blocks, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name	Attribute value
Main
Discrete output current	2 A for triac, 2 A for relay
Number of inputs/outputs	22
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Discrete input number	6
Analogue input number	3 analog input NTC, 2 configurable
Product or component type	controller
Variant	programmable
Discrete output number	2 for solid state SSR with independent common, 3 for relay outputs SPST with same common, 1 for open collector
Analogue output number	2 triac, range: 3 A, 1 PWM/PPM, range: 20 kHz, 12 V, 35 mA, 3 voltage, range: 0...10 V
Complementary
Input/output number	6 digital output(s), 5 analog input(s), 6 digital input(s), 5 analog output(s)
[Us] rated supply voltage	24 V +/- 10 % DC, 12...24 V +/- 10 % AC
Display type	four 7-segment display units
Height	32 mm
Discrete input logic	sink or source (positive/negative)
Depth	76 mm
Overvoltage category	II
Analogue input type	voltage 0...1 V, current 0...20 mA/4...20 mA, NTC temperature probe - 50...100 °C - resolution: 0.1 °C, voltage 0...10 V, voltage 0...5 V (ratiometric)
Realtime clock	built-in clock at -20-55 °C
Width	74 mm
Local signalling	7 LEDs (amber) for programmable, 5 LEDs (green), 6 LEDs (red)
Sensor power supply	5-5 V DC at 20 mA, 12-12 V DC at 85 mA
Number of port	1 RS485 - screw terminal block (Modbus serial link), 1 LAN expansion bus
Net weight	0.164 kg
Mounting support	flush mounting
Contacts usage	volt-free contacts
Power consumption in W	4 W
Environment
IP degree of protection	IP20
Relative humidity	10-90 % non-condensing
Ambient air temperature for storage	-40-85 °C
Directives	86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
Ambient air temperature for operation	-20-55 °C conforming to UL 60730-1
Pollution degree	2
Standards	EN/IEC 60730
Product certifications	EAC, cURus, CE, CSA
