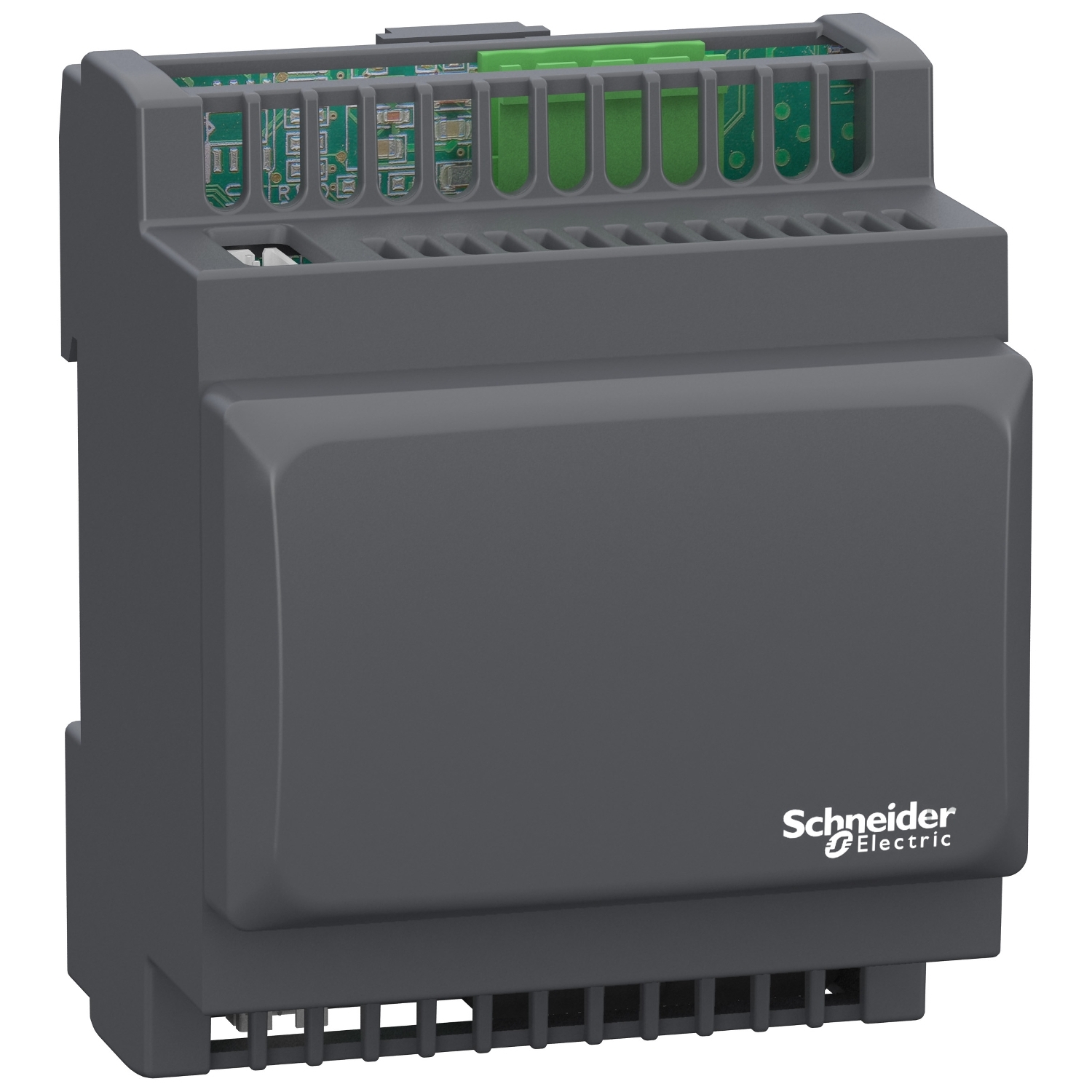

Modicon M171 Optimized expansion 15 I/Os

Manufacturer: Schneider Electric

SKU: TM171EO15R

GTIN: 3606480752681

Catalog

User guide

Environmental Disclosure

Instruction sheet

Brochure

Circularity Profile

Old price: $168.30 inc GST

Price: $203.64 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This I/O expansion module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This additional I/O module offers 6 digital inputs, 3 analog inputs, 4 digital outputs, and 2 analog outputs. It has one port for LAN expansion bus. This module offers Additional I/O to the M171 controller. DIs are volt-free, and AIs are NTC. DOs are 2A, 250Vac), AOs are open collectors PWM/PPM. It measures 70.2mm wide, 61.6mm deep, 87mm high, and weighs 0.385kg. This controller is designed for HVAC solutions. It is certified by CE, CSA, EAC, RCM, and CuRus. It is compatible with M171 optimized controllers. It is sold in a 1-piece package. It mounts on 35mm DIN rail. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name	Attribute value
Main
Product specific application	HVAC and pumping solution
Discrete input number	6
Analogue input number	3 analog input NTC
Discrete output current	2 A for relay
Number of inputs/outputs	15
Product or component type	additional I/O module
Discrete output number	3 for relay outputs SPST with same common, 1 for open collector
Range of product	Modicon M171/M172
Analogue output number	2, 1 PWM/PPM, range: 20 kHz, 12 V, 35 mA
Complementary
Discrete input logic	sink or source (positive/negative)
Input/output number	4 digital output(s), 6 digital input(s), 2 analog output(s), 3 analog input(s)
Depth	61.6 mm
Overvoltage category	II
Analogue input type	voltage 0...1 V, current 0...20 mA/4...20 mA, NTC temperature probe - 50...100 °C - resolution: 0.1 °C, voltage 0...10 V, voltage 0...5 V (ratiometric)
Realtime clock	built-in clock at -10-55 °C
Width	140 mm
Local signalling	1 LED (green) for programmable, 1 LED (yellow) for programmable, 1 LED (red) for programmable
Sensor power supply	12-12 V DC at 85 mA
[Us] rated supply voltage	24 V +/- 20 % DC, 12...24 V +/- 20 % AC/DC
Number of port	1 LAN expansion bus
Net weight	0.385 kg
Display type	without display
Height	110 mm
Contacts usage	volt-free contacts
Power consumption in W	18 W at 24...48 V AC/DC
Environment
IP degree of protection	IP20
Relative humidity	10-90 % non-condensing
Ambient air temperature for storage	-20-85 °C
Directives	86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
Ambient air temperature for operation	-10-55 °C conforming to UL 60730-1
Pollution degree	2
Standards	EN/IEC 60730
Product certifications	CE, CSA, EAC, cURus
