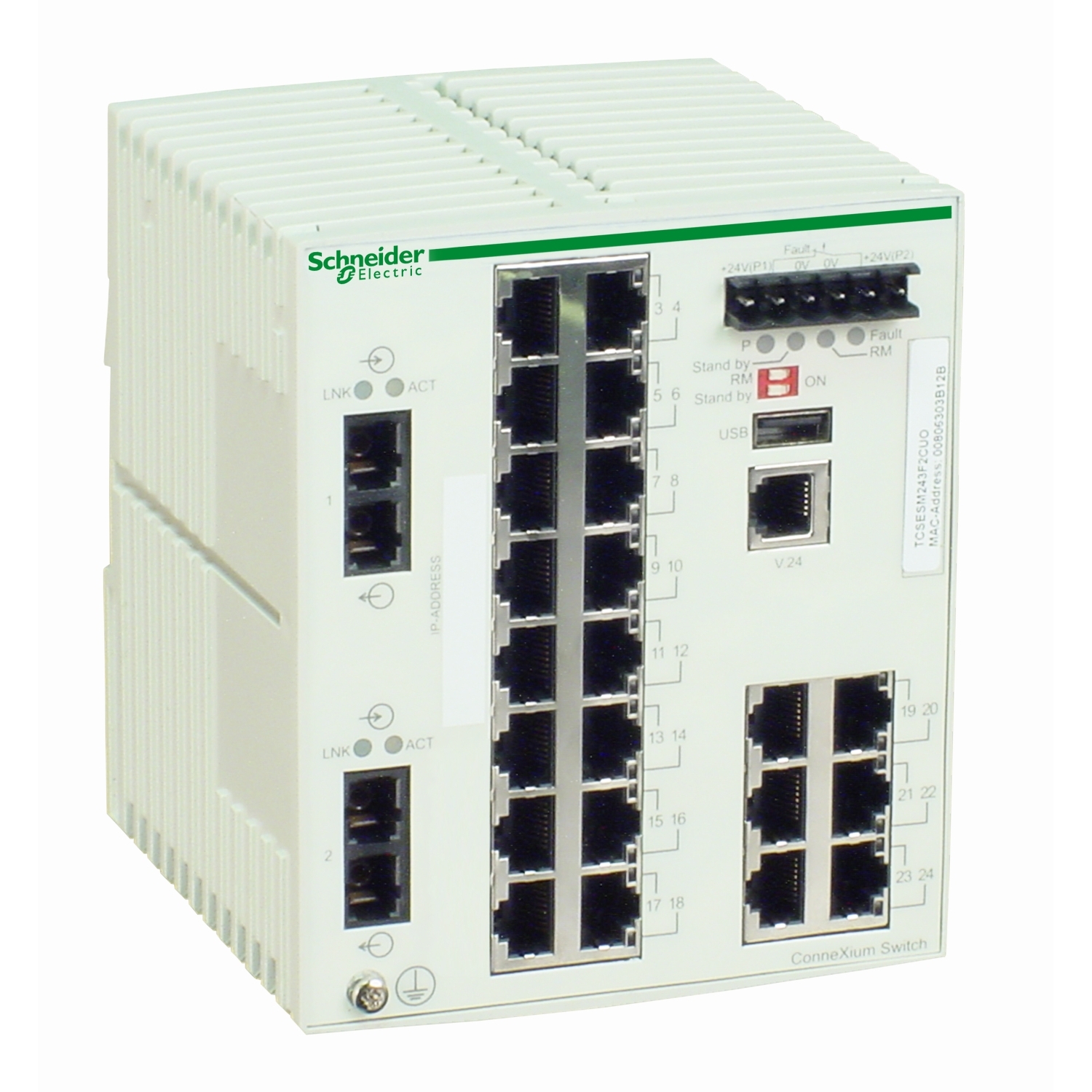

This switch is part of the Modicon Networking range, an offer of industrial network switches. This TCP/IP extended managed switch has 2 100BASE-FX ports for fiber optic and 22 10/100BASE-TX ports for copper cable. Both copper and fiber optic cablings are supported. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 14.5W and maximum number of switches in a ring is 50. It is furnished with 6-way removable connector. The supported transmission medium is twisted shielded pair CAT 5E copper cable. It is an IP20 rated product. Its dimensions are 111mm (width) x 111mm (depth) x 131mm (height). It weighs 0.61kg. It is suitable for all industrial automation segment applications. This switch is part of the Modicon Networking range, an offer of industrial network switches. This TCP/IP extended managed switch has 2 100BASE-FX ports for fiber optic and 22 10/100BASE-TX ports for copper cable. Both copper and fiber optic cablings are supported. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 14.5W and maximum number of switches in a ring is 50. It is furnished with 6-way removable connector. The supported transmission medium is twisted shielded pair CAT 5E copper cable. It is an IP20 rated product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Concept | Transparent Ready |
| Range of product | ConneXium |
| Maximum number of switches in cascade | unlimited |
| Cybersecurity | port hardening |
| Communication port protocol | MRP (Media Redundancy Protocol), SNTP, Telnet, LLDP, RS232, SNMP, HTTPS, HTTP, SSH, Ethernet TCP/IP |
| Product or component type | Ethernet TCP/IP managed switch |
| Port Ethernet | 10/100BASE-TX - 22 port(s) copper cable, 100BASE-FX - 2 port(s) fiber optic |
| Complementary | |
| Diagnostics run time | self test, signal contact |
| Optic fiber length | 5 km 50/125 µm, 4 km 62.5/125 µm |
| Supply voltage limits | 18-30 V AC SELV, 9.6-60 V DC SELV |
| Ethernet cabling system | TF switches |
| Function available | Trap log, report, system information, alarms (Traps) |
| Maximum number of switches in a ring | 50 |
| Attenuation | 0-8 dB (50/125 µm), 0-11 dB (62.2/125 µm) |
| Marking | EtherNet/IP, RCM, UL, CE |
| Communication service | address conflict detection, port mirroring, port monitoring, Quality of Service (QoS), TFTP |
| Power consumption in W | 14.5 W |
| Height | 131 mm |
| [Us] rated supply voltage | 12...48 V |
| Maximum cable distance between devices | 100 m copper cable |
| Depth | 111 mm |
| Width | 111 mm |
| Local signalling | Device status, 1 LED per channel (yellow) for ACT, 1 LED per channel (green) for link status, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for ring manager, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for P1 P2 power supplies |
| Ethernet service | SNMP-Traps and SYSLOG, IGMP Snooping, data stream control, multicast filtering, VLAN, configuration via web server |
| Electrical connection | removable connector 6 ways power supply |
| Net weight | 0.61 kg |
| Redundancy | redundant network coupling, RSTP, HiPER ring |
| Alarm output | 1 voltfree contact 1 A |
| Mounting support | 35 mm symmetrical DIN rail |
| Transmission support medium | multimode optical fiber for fiber optic, twisted shielded pairs cable CAT 5E for copper cable |
| Integrated connection type | shielded RJ45 copper cable, duplex SC fiber optic |
| Alarm function | switch fault, redundancy ring fault, data link status, power supply fault |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 10-95 % non-condensing |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Product certifications | GL, BV, ODVA EtherNet/IP, RCM, UL, CE |
| Ambient air temperature for operation | 0-60 °C |
| Standards | IEC 61850-3, EN/IEC 61131, UL 508 |
