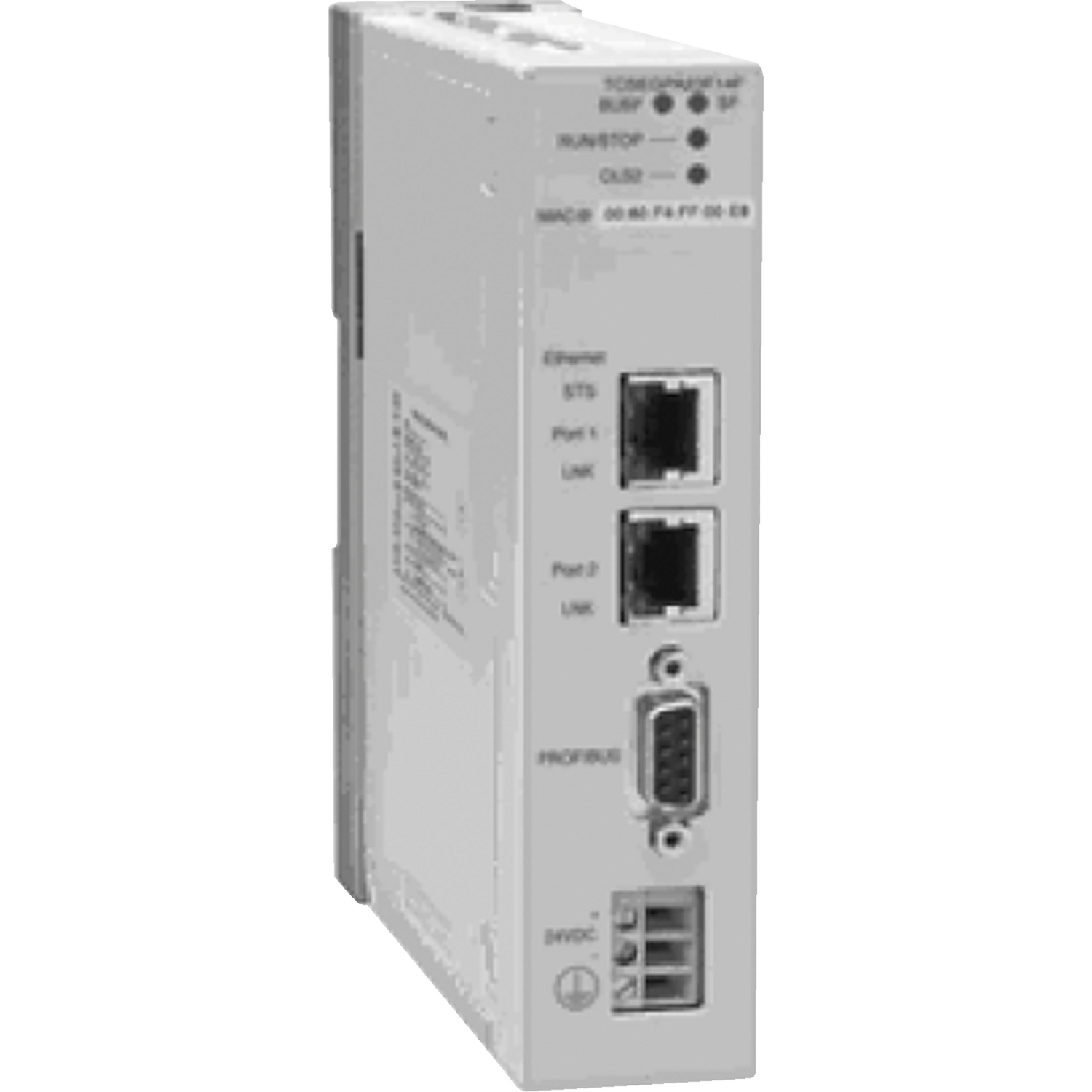

This product is part of the Profibus DP range, an offer of remote master modules. The Profibus Remote Master (PRM) module is connected to the Ethernet Modbus TCP/IP network via its integrated 2-port switch, as close as possible to the process and the instrumentation. It has Profibus 2 twisted shielded pairs cable and Modbus TCP category 5 shielded twisted pair (STP) transmission support medium. It is equipped with 2 Ethernet TCP/IP-RJ45 for Modbus TCP, Profibus DP SUB-D 9 for Profibus DP V1 connections. Communication services are check slave configuration (on power up) class 1 master, manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, no master/master dialogue class 2 master etc. It weighs 0.62kg. This product can be used to connect Modicon Quantum, Premium, M580, and M340 Programmable Logic Controllers (PLC) to Profibus DP V1 via the I/O scanner function. The kit includes CD including the communication DTM and CD including the master DTM for configuration inside UNITY.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Kit composition | CD including the Master DTM for PRM configuration inside UNITY, CD including the communication DTM |
| Product compatibility | Premium PLC, Quantum PLC, M580 PLC, M340 PLC |
| Communication gateway | Ethernet Modbus TCP to Profibus DP V1 gateway |
| Structure type | industrial bus |
| Product or component type | Profibus DP V1 remote master |
| Range of product | Profibus DP |
| Complementary | |
| Number of outputs | 2 |
| Module format | standard |
| Method of access | slave Modbus TCP, master class 2 Profibus DP, master class 1 Profibus DP |
| Physical interface | RS485 |
| Integrated connection type | Profibus DP - SUB-D 9 for Profibus DP V1, 2 Ethernet TCP/IP - RJ45 for Modbus TCP |
| Number of slave | 126 |
| Communication service | sync and freeze class 1 master, transfer slave diagnostic data class 1 master, set slave parameters (on power up) class 1 master, read/write DP slave I/O data class 1 master, Profibus FMS message handling not supported class 2 master, Profibus FMS message handling not supported class 1 master, no master/master dialogue class 2 master, manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, acyclic DP V1 communication (R/W) class 1/2 master, check slave configuration (on power up) class 1 master |
| Net weight | 0.62 kg |
| Transmission rate | 10...100 Mbit/s, 100 m bus for Modbus TCP without repeater, 9.6 kbit/s, 4800 m bus for Profibus with 3 repeaters, 9.6 kbit/s, 1200 m bus for Profibus without repeater, 12 Mbit/s, 400 m bus for Profibus with 3 repeaters, 12 Mbit/s, 100 m bus for Profibus without repeater |
| Current consumption | 200 mA at 24 V DC external |
| Number of inputs | 2 |
| Transmission support medium | Modbus TCP category 5 shielded twisted pair (STP), Profibus 2 twisted shielded pairs cable |
| Mode of transmission | NRZ |
| Environment | |
| Operating altitude | <= 2000 m |
| Relative humidity | 10-95 % without condensation |
| Ambient air temperature for storage | -45-85 °C |
| Ambient air temperature for operation | 0-60 °C |
