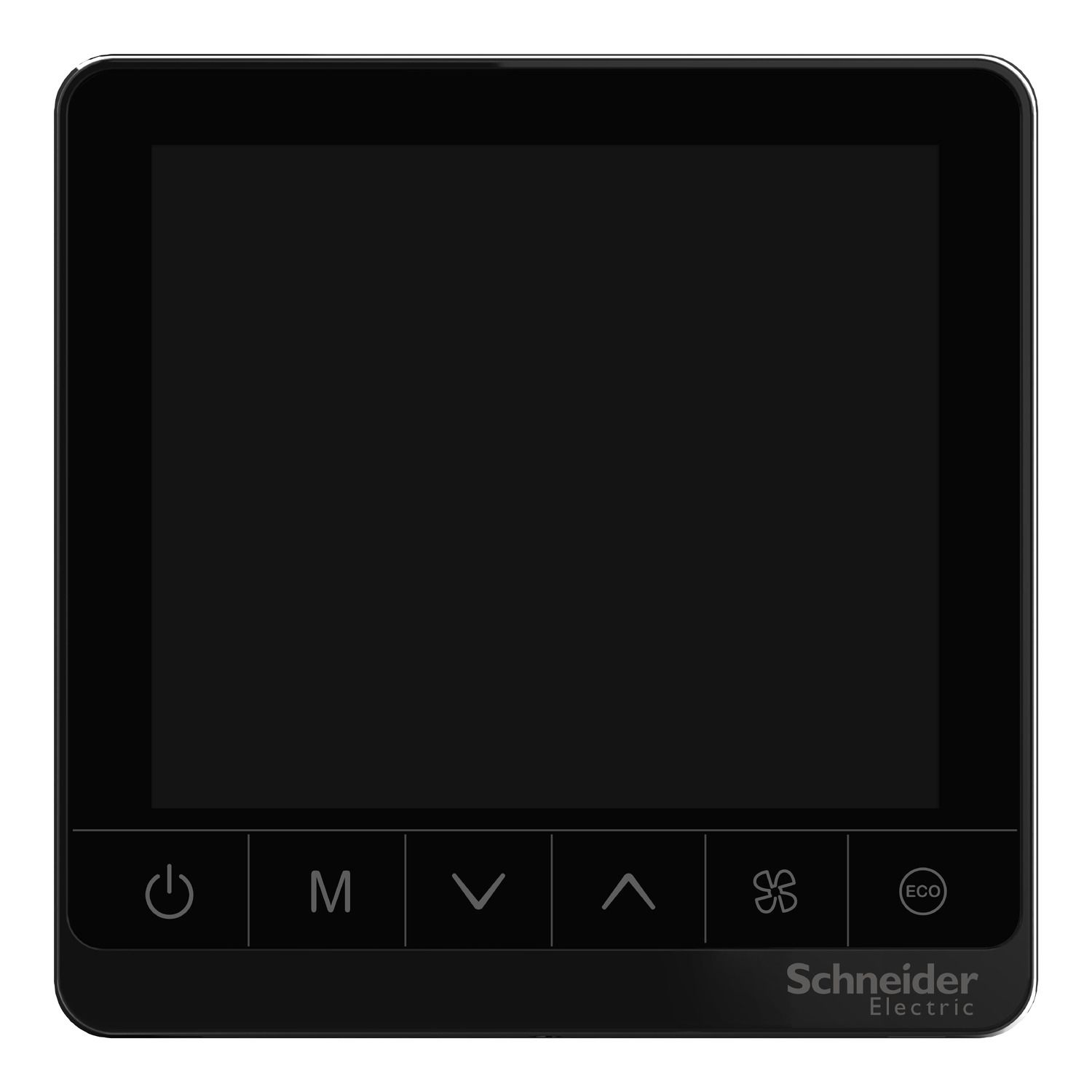

Spacelogic TC900 Series fan coil thermostats are optimized for office building, hotel, hospital and residential applications. The thermostats can be used for 2 pipe or 4 pipe application to control HVAC applications. TC900 series products are easy to operate and install, provides a microprocessor based control and large LCD display. Display operation status (cooling, heating, and ventilation), fan speed, room temperature and set-point alongwith other features. Features such as Eco button, sleep mode etc designed to maximise energy savings. Black glass housing with capacitive button and large LCD display for premium aesthetics. Products are designed for standard BS wall box installation. TC900 series thermostats are CE, RCM, UKCA, and EAC certified. The products and designed for easy installation and operation. The products comes in sustainable brown packaging. The thermostat is equipped with optional Modbus communication.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TC907 |
| Sensor type | 100 kOhm NTC thermistor |
| Range | SpaceLogic |
| Product name | SpaceLogic TC900 |
| Product or component type | thermostat |
| Complementary | |
| Device application | fan |
| Depth | 40 mm |
| Market segment | residential, healthcare, hotel, small buildings |
| Display type | backlit LCD screen |
| Width | 86 mm |
| Product specific application | 4-pipe system |
| Max power consumption in W | 1 W |
| Measurement accuracy | temperature: +/- 1 °C, |
| Control type | electronic, for fan, 2 positions ON-OFF button, for actuator, touch screen, for thermostat |
| Colour | black |
| [Us] rated supply voltage | 90...240 V AC 50/60 Hz |
| Function available | low temperature protection, alarm, disable functions, economiser, mode selection, fan control, setpoint adjustment |
| Connections - terminals | screw terminal (back) - 1 cable(s) 2.5-2.5 mm², screw terminal (back) - 2 cable(s) 1.5-1.5 mm² |
| Communication port protocol | Modbus |
| Number of outputs | 1 proportional |
| Output voltage | 0...10 V DC for electronic, 240 V AC 2 A for load, 240 V AC 5 A for relay |
| Height | 86 mm |
| Information displayed | current program, communication status ok, temperature alarm, day, time, ambient room temperature 0 to 50 °C |
| Network frequency | 60 Hz, 50 Hz |
| Housing colour | black |
| Environment | |
| IP degree of protection | IP20 |
| Temperature setting range | 5-35 °C |
| Relative humidity | 5-95 % |
| Product certifications | CE |
| Pollution degree | 2 |
| Standards | EN/IEC 60730-2-9, EN/IEC 60730-1 |
| Ambient air temperature for operation | 0-50 °C |
