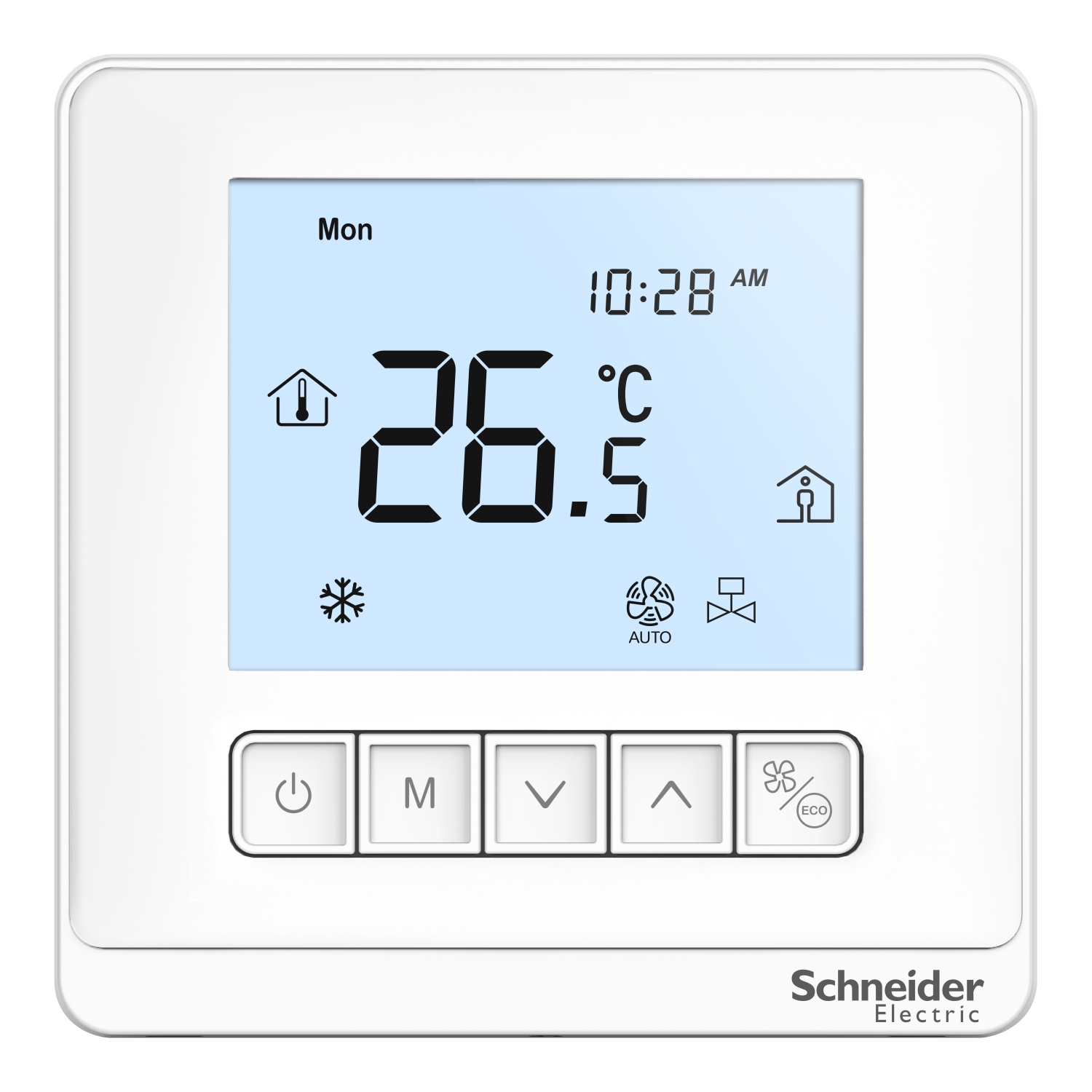

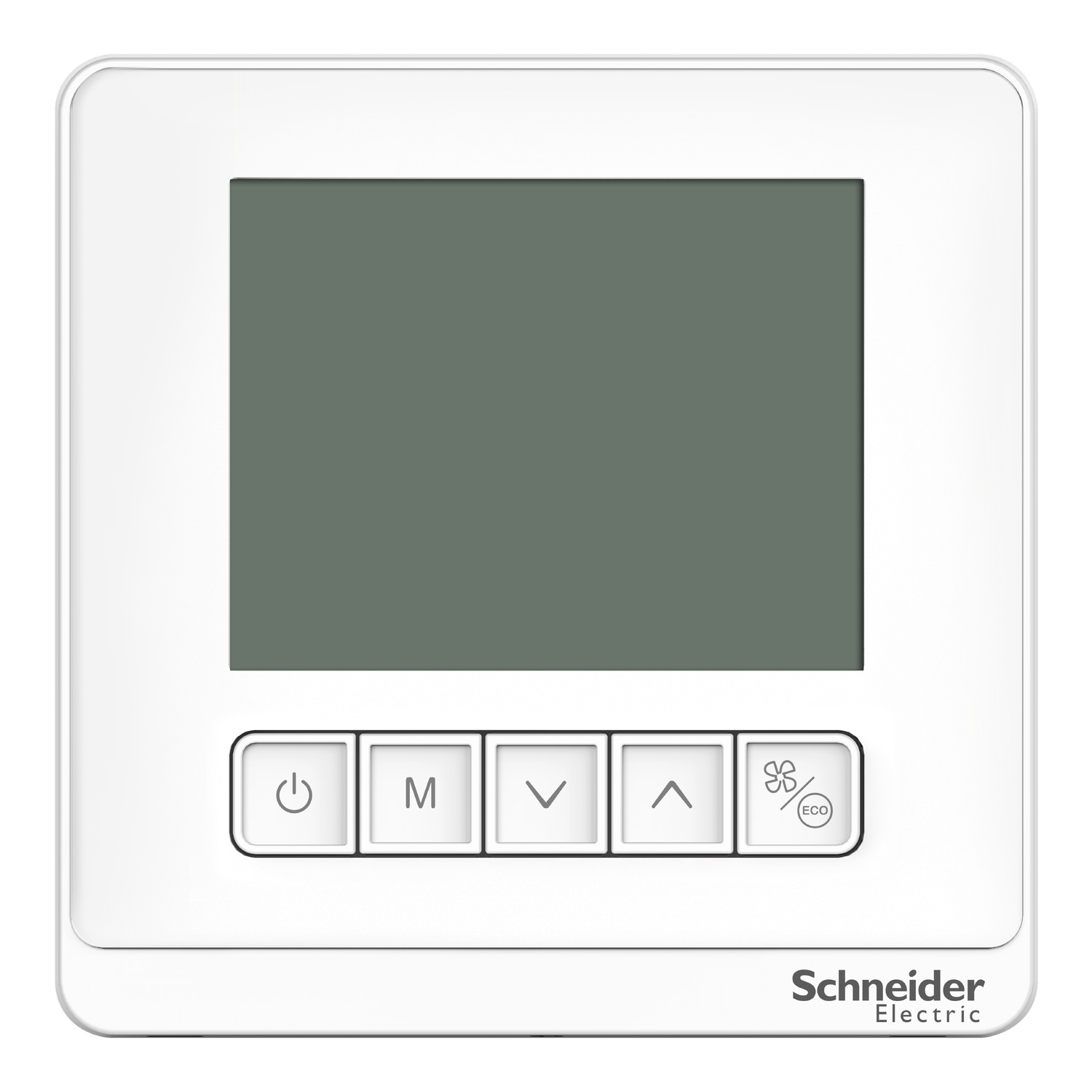

Spacelogic TC900 Series fan coil thermostats are optimized for office building, hotel, hospital and residential applications. The thermostats can be used for 2 pipe or 4 pipe application to control HVAC applications. TC900 series products are easy to operate and install, provides a microprocessor based control and large LCD display. Display operation status (cooling, heating, and ventilation), fan speed, room temperature and set-point alongwith other features. Features such as Eco button, sleep mode etc designed to maximise energy savings. White glass housing with mechnical button and large LCD display for better visibility. Products are designed for standard BS wall box installation. TC900 series thermostats are CE, RCM, UKCA, and EAC certified. The products and designed for easy installation and operation. The products comes in sustainable brown packaging. The thermostat is equipped with optional Modbus communication.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TC903 |
| Range | SpaceLogic |
| Sensor type | 100 kOhm NTC thermistor |
| Product name | SpaceLogic TC900 |
| Product or component type | thermostat |
| Complementary | |
| Device application | fan |
| Display type | backlit LCD screen |
| Measurement accuracy | temperature: +/- 1 °C, |
| Colour | white |
| [Us] rated supply voltage | 90...240 V AC 50/60 Hz |
| Function available | low temperature protection, alarm, disable functions, economiser, mode selection, fan control, setpoint adjustment |
| Communication port protocol | Modbus |
| Output voltage | 0...10 V DC for electronic, 240 V AC 2 A for load, 240 V AC 5 A for relay |
| Height | 86 mm |
| Housing colour | white |
| Depth | 40 mm |
| Market segment | residential, healthcare, hotel, small buildings |
| Width | 86 mm |
| Product specific application | 4-pipe system |
| Max power consumption in W | 1 W |
| Control type | electronic, for fan, 2 positions ON-OFF button, for actuator, mechanical, for thermostat |
| Connections - terminals | screw terminal (back) - 1 cable(s) 2.5-2.5 mm², screw terminal (back) - 2 cable(s) 1.5-1.5 mm² |
| Number of outputs | 1 proportional |
| Information displayed | current program, communication status ok, temperature alarm, day, time, ambient room temperature 0 to 50 °C |
| Network frequency | 60 Hz, 50 Hz |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % |
| Product certifications | CE |
| Pollution degree | 2 |
| Ambient air temperature for operation | 0-50 °C |
| Temperature setting range | 5-35 °C |
| Standards | EN/IEC 60730-2-9, EN/IEC 60730-1 |
