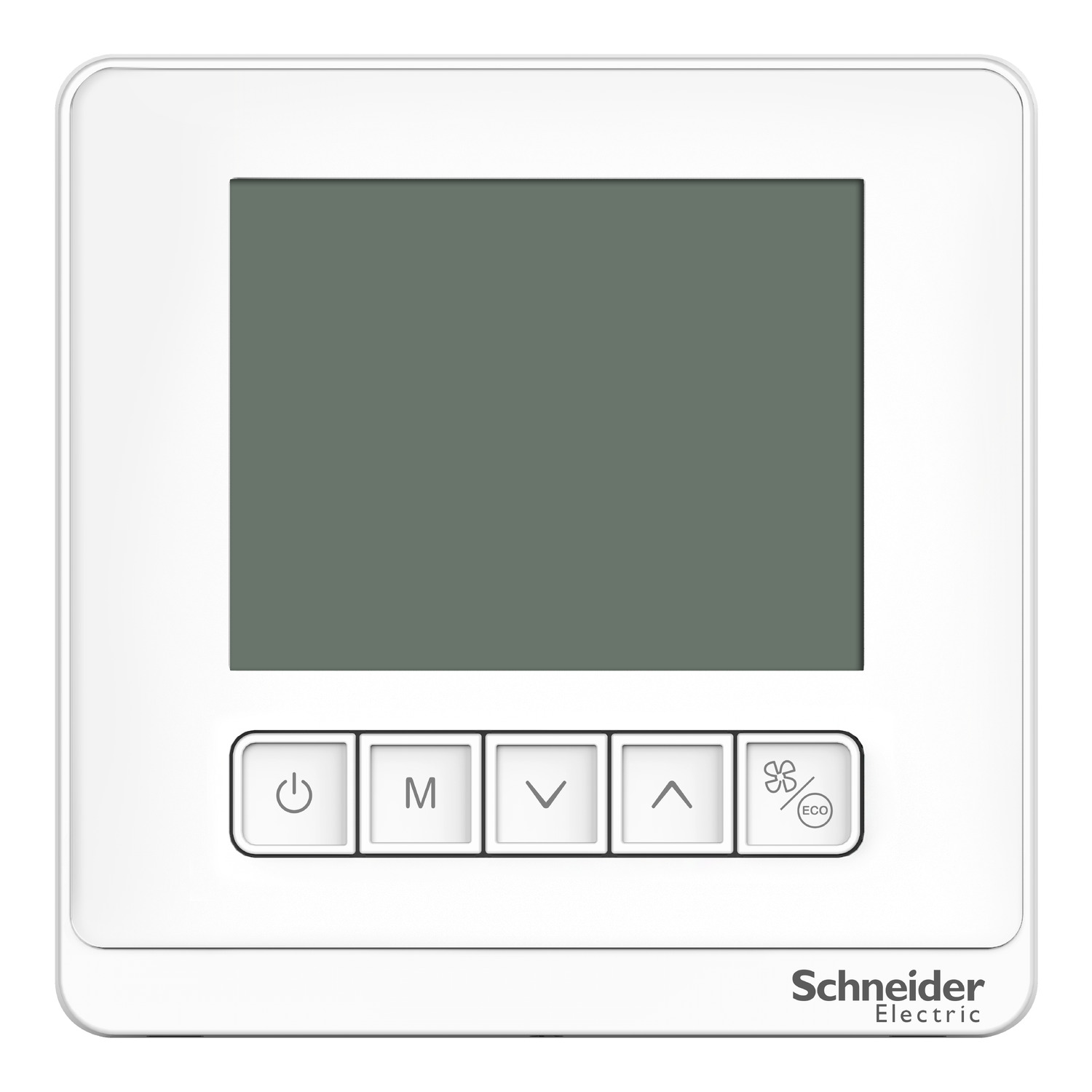

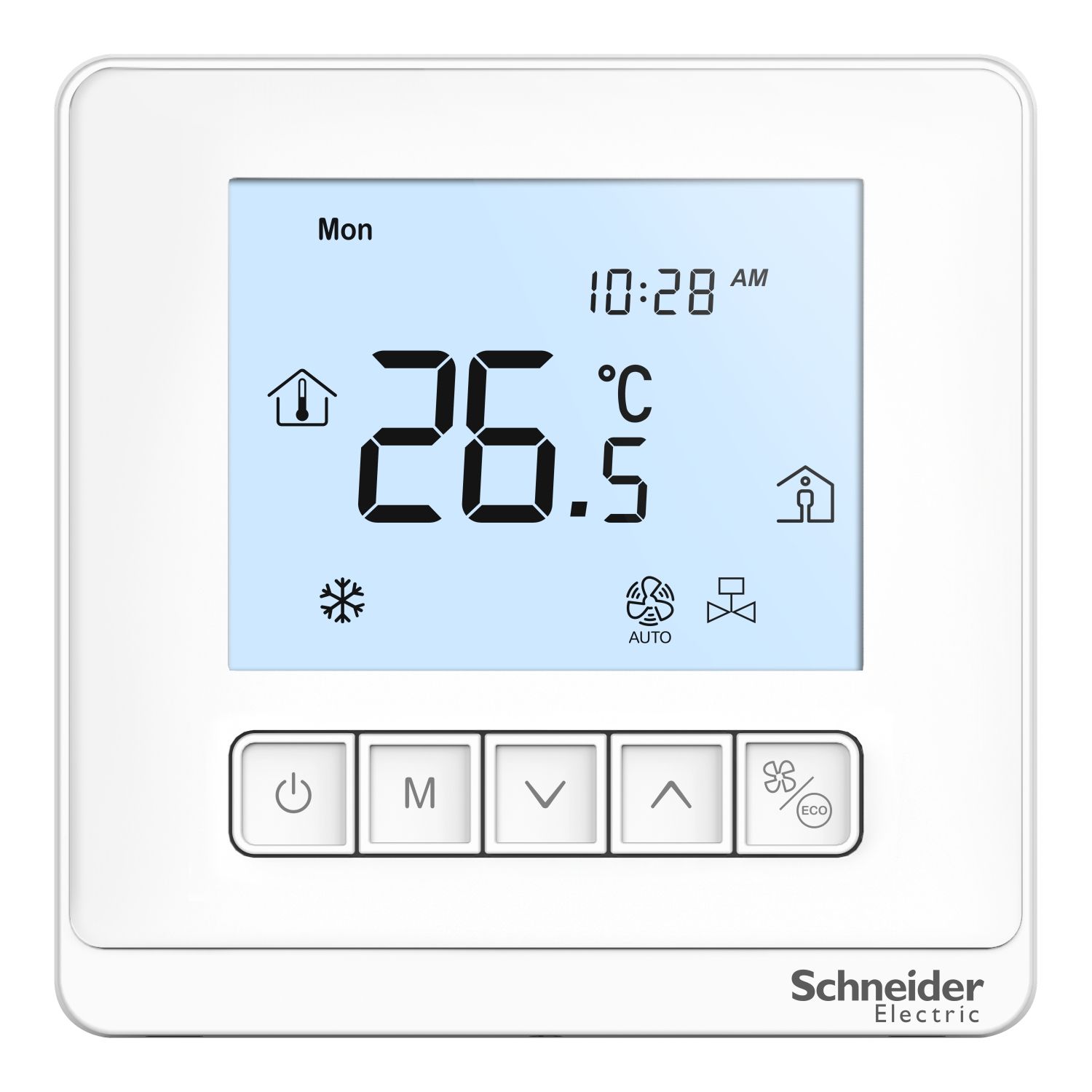

Spacelogic TC900 Series fan coil thermostats are optimized for office building, hotel, hospital and residential applications. The thermostats can be used for 2 pipe or 4 pipe application to control HVAC applications. TC900 series products are easy to operate and install, provides a microprocessor based control and large LCD display. Display operation status (cooling, heating, and ventilation), fan speed, room temperature and set-point alongwith other features. Features such as Eco button, sleep mode etc designed to maximise energy savings. White glass housing with mechnical button and large LCD display for better visibility. Products are designed for standard BS wall box installation. TC900 series thermostats are CE, RCM, UKCA, and EAC certified. The products and designed for easy installation and operation. The products comes in sustainable brown packaging. Standalone thermostat to display and control fan coil based HVAC applications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TC903 |
| Sensor type | optional NTC external sensor, 100 kOhm NTC thermistor |
| Range | SpaceLogic |
| Product name | SpaceLogic TC900 |
| Product or component type | thermostat |
| Complementary | |
| Device application | fan |
| Depth | 40 mm |
| Market segment | residential, healthcare, hotel, small buildings |
| Display type | backlit LCD screen |
| Width | 86 mm |
| Product specific application | 4-pipe system |
| Max power consumption in W | 1 W |
| Measurement accuracy | temperature: +/- 1 °C, |
| Control type | 3 speed control relay, for fan, 2 positions ON-OFF button, for actuator, mechanical, for thermostat |
| Colour | white |
| [Us] rated supply voltage | 90...240 V AC 50/60 Hz |
| Function available | sleep mode, low temperature protection, alarm, disable functions, economiser, mode selection, fan control, setpoint adjustment |
| Connections - terminals | screw terminal (back) - 1 cable(s) 2.5-2.5 mm², screw terminal (back) - 2 cable(s) 1.5-1.5 mm² |
| Number of inputs | 1 card reader |
| Communication port protocol | - |
| Output voltage | 240 V AC 2 A for load, 240 V AC 5 A for relay |
| Height | 86 mm |
| Information displayed | current program, communication status ok, temperature alarm, day, time, ambient room temperature 0 to 50 °C |
| Network frequency | 60 Hz, 50 Hz |
| Housing colour | white |
| Environment | |
| IP degree of protection | IP20 |
| Temperature setting range | 5-35 °C |
| Relative humidity | 5-95 % |
| Product certifications | CE |
| Pollution degree | 2 |
| Standards | EN/IEC 60730-2-9, EN/IEC 60730-1 |
| Ambient air temperature for operation | 0-50 °C |
