Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

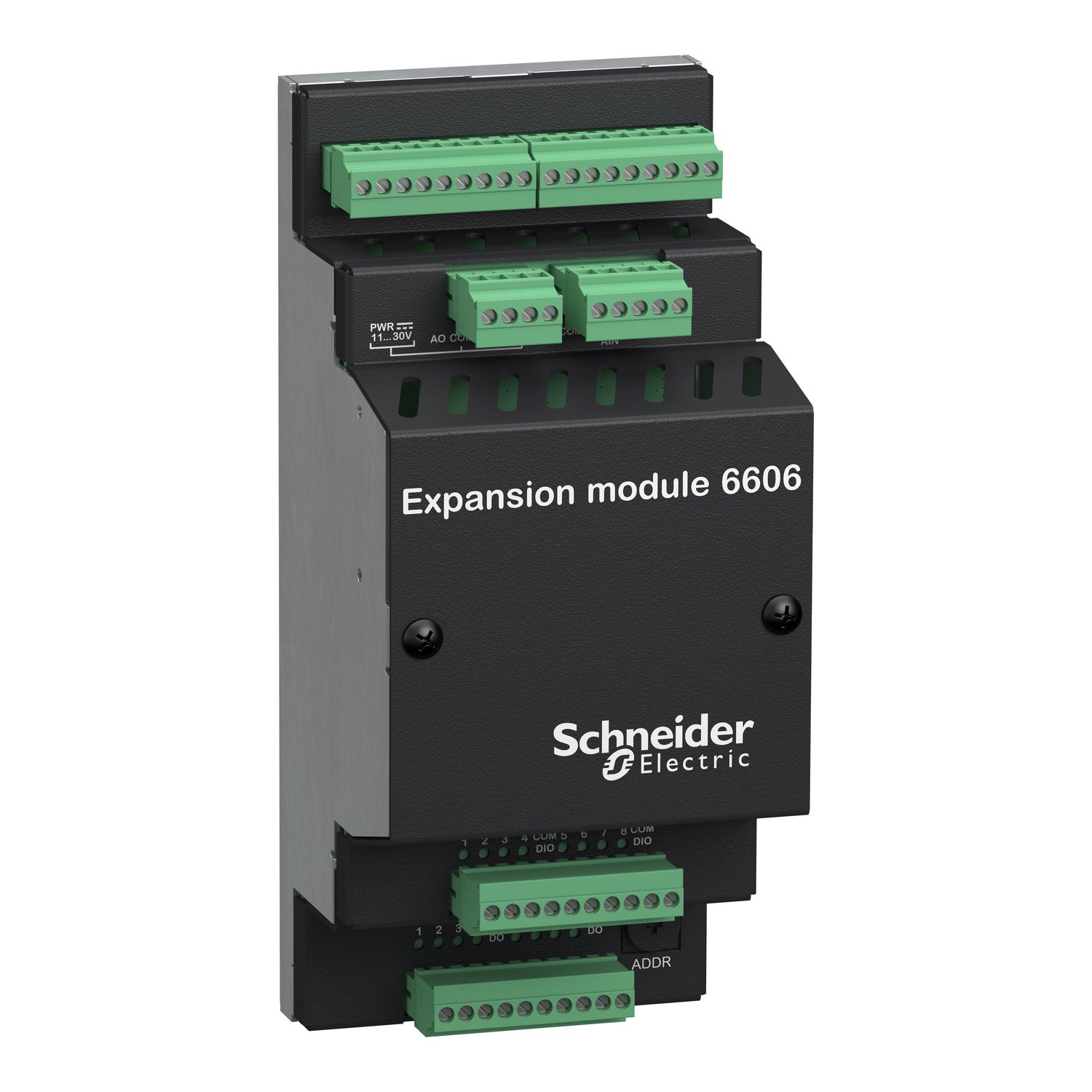

| Product or component type | I/O module |
| Range compatibility | SCADAPack 47x, SCADAPack 57x |
| Range of product | Expansion Modules |
| Product compatibility | SCADAPack x70 |
| Complementary | |
| Analogue output type | 4...20 mA, 0...20 mA |
| Length | 66 mm |
| Width | 70 mm |
| Analogue input type | voltage, input range: 0...5 V, voltage, input range: 1...5 V, current, input range: 0...20 mA, current, input range: 4...20 mA |
| Power consumption in W | 1.2-1.2 W |
| Height | 166 mm |
| Input type | digital x16 inputs,, 12-24 V DC, analog x4 inputs, |
| Output type | 8 digital, 30 V DC, 2 analog |
| Input voltage | 14...29 V DC |
| Environment | |
| Product certifications | CE, CSA, UL |
| Standards | FCC CFR 47 part 15, Subpart B, ICES-003, UL 61010-2-201, UL 61010-1, CSA C22.2 No 61010-1, CSA C22.2 No 61010-1-12, IEC 61131-2 |
| Ambient air temperature for operation | -40-70 °C, -40-158 °C |
| Pollution degree | 2 |
| Marking | CE |
| Relative humidity | 5-95 % |
| Ambient air temperature for storage | -40-85 °C, -40-185 °F |
| Contractual warranty | |
| Warranty | 18 |
