Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Market segment | water and waste water, oil and gas |
| Range compatibility | Realift |
| Sensor type | ARM Cortex-M3 at 500 MHz, ARM Cortex-A7 dual core at 500 MHz |
| Type of license | 20 flowrun license |
| Memory type | data storage 70 MB, NAND flash 256 MB, RAM DDR3 256 MB, SRAM 4 MB |

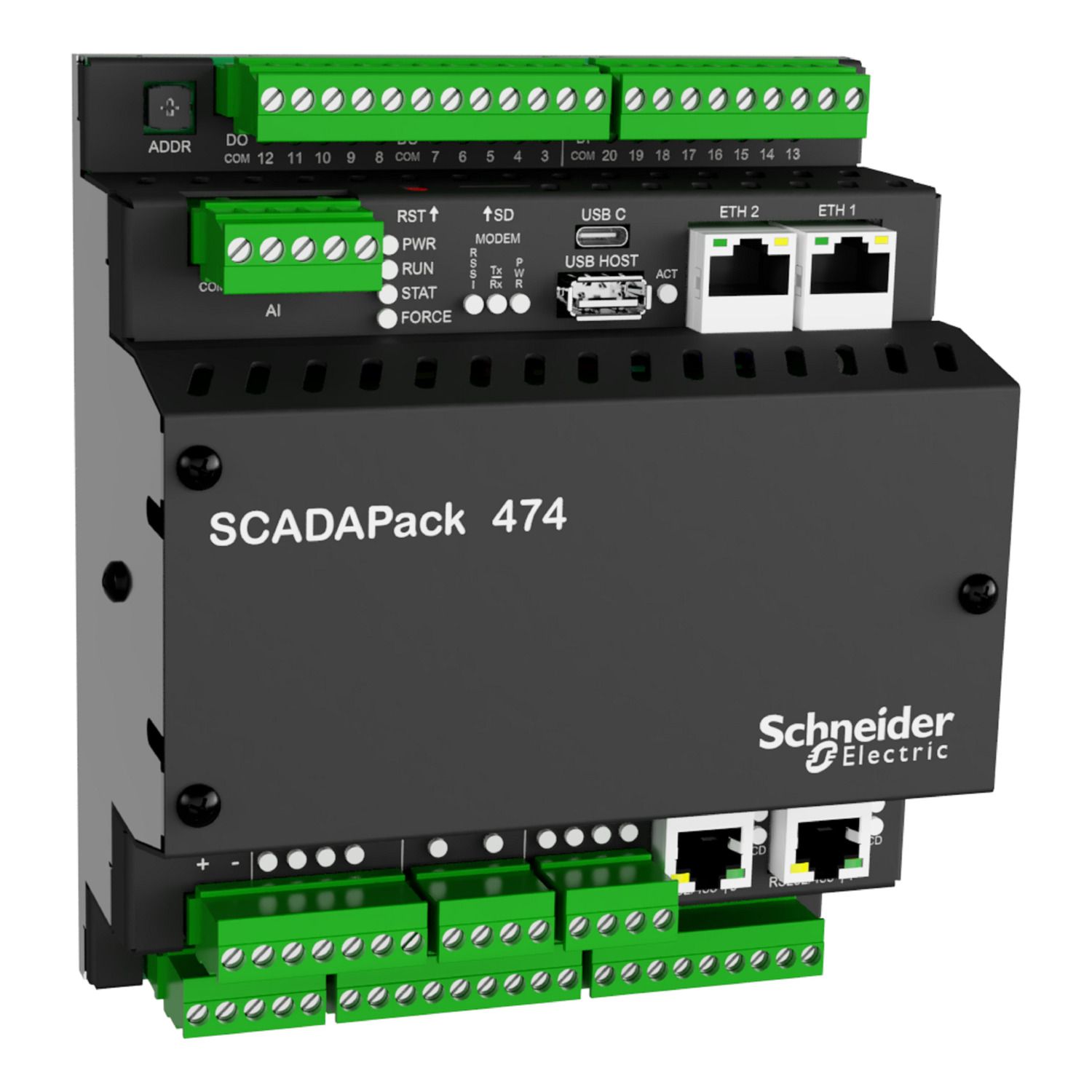

| Product or component type | remote terminal unit |
| Range of product | SCADAPack 47x | 47xi |
| Complementary | |
| Analogue input type | voltage, input range: 1...5 V, voltage, input range: 0...5 V, current, input range: 4...20 mA, current, input range: 0...20 mA |
| Counting frequency | 4 x 150 Hz, 4 x 1.5 kHz, 4 x 10 kHz |
| Width | 166.0 mm |
| Integrated connection type | 1 USB 2.0 port USB type C, 1 USB 2.0 port USB type A, 1 serial port for RS232, 2 serial port for RS232/RS485 - 115.2 kbps, 2 serial port for RS485 - 115.2 kbps, 2 Ethernet 8-pin modular, RJ45 - 10/100 Mbps |
| Communication port protocol | Telnet, FTP server, IEC 60870-5-104, DNP3 level 4, Modbus RTU client, Modbus RTU server, Modbus TCP server, Modbus TCP client |
| Input voltage | 12...28 V DC |
| Output type | 2 analog, 12 digital, 30 V, 2 A |
| Input type | counter x12 inputs,, analog x12 inputs,, digital x20 inputs,, 12-24 V DC |
| Net weight | 1.2 kg |
| Length | 142.0 mm |
| Maximum number of I/O expansion module | 5505 for RTD input, 6607 for expansion I/O, 6601 for expansion I/O, 5607 for expansion I/O, 5606 for expansion I/O, 5506 for analog input, 5415 for digital output, 5414 for digital input, 5304 for analog output |
| Communication service | data logging in DNP3/ IEC 104 |
| Power consumption in W | 4 W |
| Analogue output type | current 4...20 mA, current 0...20 mA |
| Height | 88.0 mm |
| Environment | |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -40-185 °F, -40-85 °C |
| Pollution degree | 2 |
| Vibration resistance | 1 gn constant acceleration, 7 mm constant amplitude |
| Marking | EAC, RCM, CE |
| Shock resistance | 15 gn for 15 ms conforming to IEC 61131-2 |
| Ambient air temperature for operation | -40-149 °F when the unit is mounted in any other position, -40-158 °F when the unit is mounted horizontally on a vertical surface, -40-65 °C when the unit is mounted in any other position, -40-70 °C when the unit is mounted horizontally on a vertical surface |
| Standards | FCC part 15 Subpart B class A, UL 61010-2-201, UL 61010-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 61010-1-12 |
| Product certifications | ICES-003, cULus HazLoc Class I Division 2 Group D, cULus HazLoc Class I Division 2 Group C, cULus HazLoc Class I Division 2 Group B, cULus HazLoc Class I Division 2 Group A, ACMA, CE, ATEX zone 2, ATEX II 3g Ex ec nC IIC T4 Gc, FCC part 15 class B |
