Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

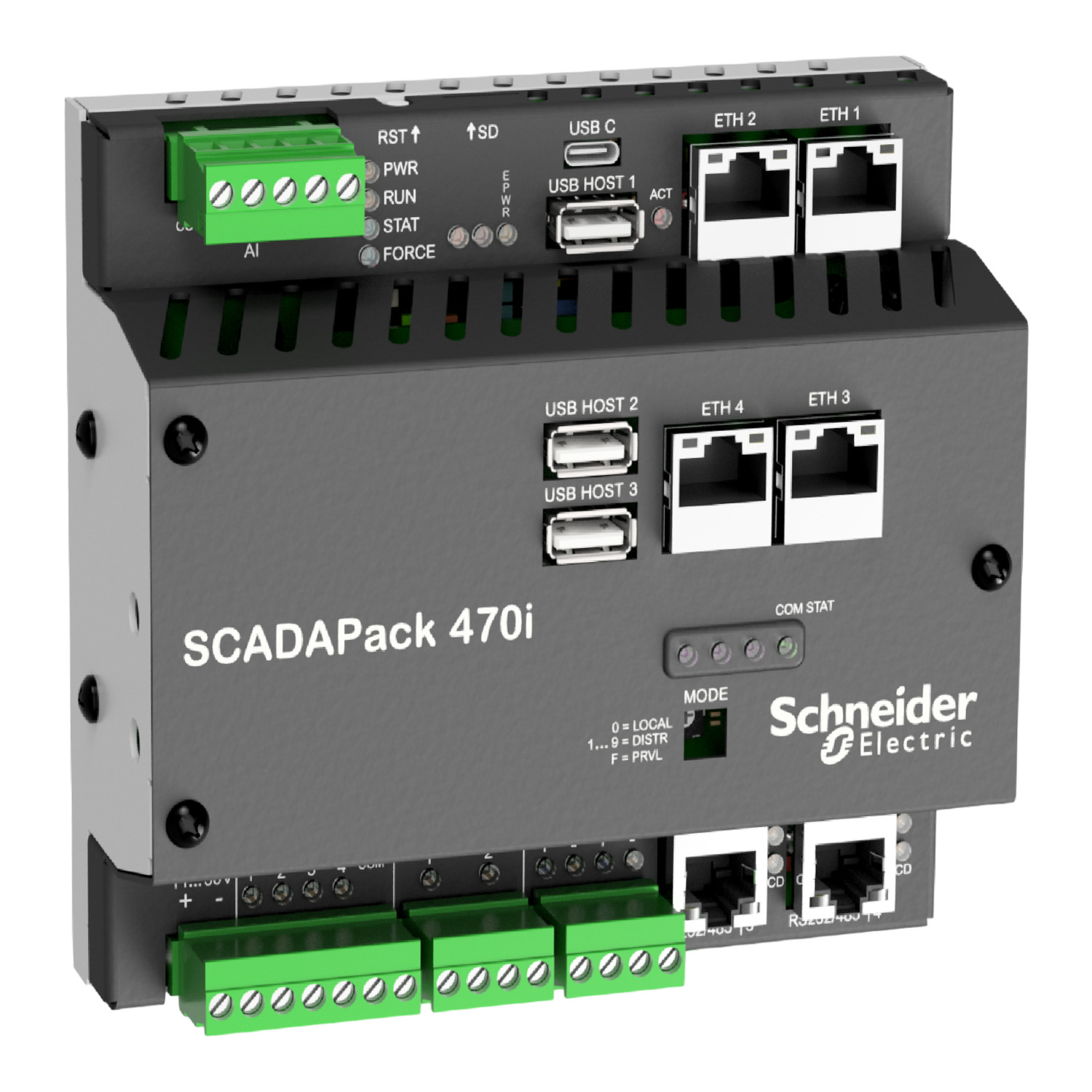

| Product or component type | remote terminal unit |
| Memory type | SRAM 4 MB for real time processor, RAM DDR3 256 MB for real time processor, NAND flash 256 MB for real time processor, data storage 70 MB for real time processor, RAM DDR3 1 GB for Linux edge application, NAND flash 1 GB for Linux edge application, data storage 500 MB for Linux edge application |
| Range compatibility | Realift |
| Range of product | SCADAPack 47x | 47xi |
| Product specific application | C/C++ applications, Node-RED applciations, containerized applications, custom web applications |
| Market segment | oil and gas, water and waste water, energy |
| Sensor type | ARM Cortex-A7 dual core at 500 MHz for real time processor, ARM Cortex-A7 dual core at 500 MHz for Linux edge application |
| Complementary | |
| Cybersecurity | IP firewall, Achilles certified, DoS prevention, HTTPS, IEC 62442-4-2 SL1, transport layer security, certificate based authentication, enable/disable communication ports, firmware signature, password protection, system hardening, NAT |
| Width | 142 mm |
| Depth | 68 mm |
| Power consumption in W | 4.8 W |
| Input voltage | 12...28 V DC |
| Maximum number of I/O expansion module | 5304 for analog output, 5414 for digital input, 5415 for digital output, 5506 for analog input, 5606 for expansion I/O, 5607 for expansion I/O, 6601 for expansion I/O, 6607 for expansion I/O, 5505 for RTD input |
| Communication port protocol | OPC UA, MQTT over TLS, Sparkplug B, Modbus, DNP3 level 4, IEC 60870-5-104, FTP server, Telnet server, SFTP, SSL, SSH |
| Integrated connection type | 4 Ethernet 8-pin modular, RJ45 - 10/100 Mbps, 2 serial port for RS485 - 115.2 kbps, 2 serial port for RS232/RS485 - 115.2 kbps, 3 USB 2.0 port USB type A, 1 USB 2.0 port USB type C |
| Analogue input type | current, input range: 0...20 mA, current, input range: 4...20 mA, voltage, input range: 0...5 V, voltage, input range: 1...5 V |
| Height | 126 mm |
| Communication service | data logging in DNP3/ IEC 104 |
| Input type | digital x4 inputs,, 12-24 V DC, analog x4 inputs,, counter x4 inputs, |
| Output type | 2 digital, 30 V, 1 A |
| Function available | RemoteConnect configuration software, software development, Linux development via C/C++ and Python, logic development via five IEC 61131-3 languages, advanced diagnostics |
| Shock resistance | 1 IEC 61131-3 master task, 1 IEC 61131-1 fast task, 2 IEC 61131-3 auxiliary task, Linux applications |
| Counting frequency | 4 x 10 kHz |
| Environment | |
| Standards | CSA C22.2 No 61010-1-12, CSA C22.2 No 61010-2-201, UL 61010-1, UL 61010-2-201, FCC part 15 Subpart B class A, FCC part 15 class B |
| Shock resistance | 15 gn for 15 ms conforming to IEC 61131-2 |
| Marking | CE, RCM, EAC |
| Vibration resistance | 7 mm constant amplitude, 1 gn constant acceleration |
| Pollution degree | 2 |
| Relative humidity | 5-95 % non-condensing |
| Product certifications | ATEX II 3g Ex ec nC IIC T4 Gc, ATEX zone 2, IECEx II 3g Ex ec nC IIC T4 Gc, IECEx zone 2, cULus HazLoc Class I Division 2 Group A, cULus HazLoc Class I Division 2 Group B, cULus HazLoc Class I Division 2 Group C, cULus HazLoc Class I Division 2 Group D, CE, ACMA |
| Ambient air temperature for operation | -40-70 °C when the unit is mounted horizontally on a vertical surface, -40-65 °C when the unit is mounted in any other position, -40-158 °F when the unit is mounted horizontally on a vertical surface, -40-149 °F when the unit is mounted in any other position |
| Ambient air temperature for storage | -40-85 °C, -40-185 °F |
| Contractual warranty | |
| Warranty | 18 |
