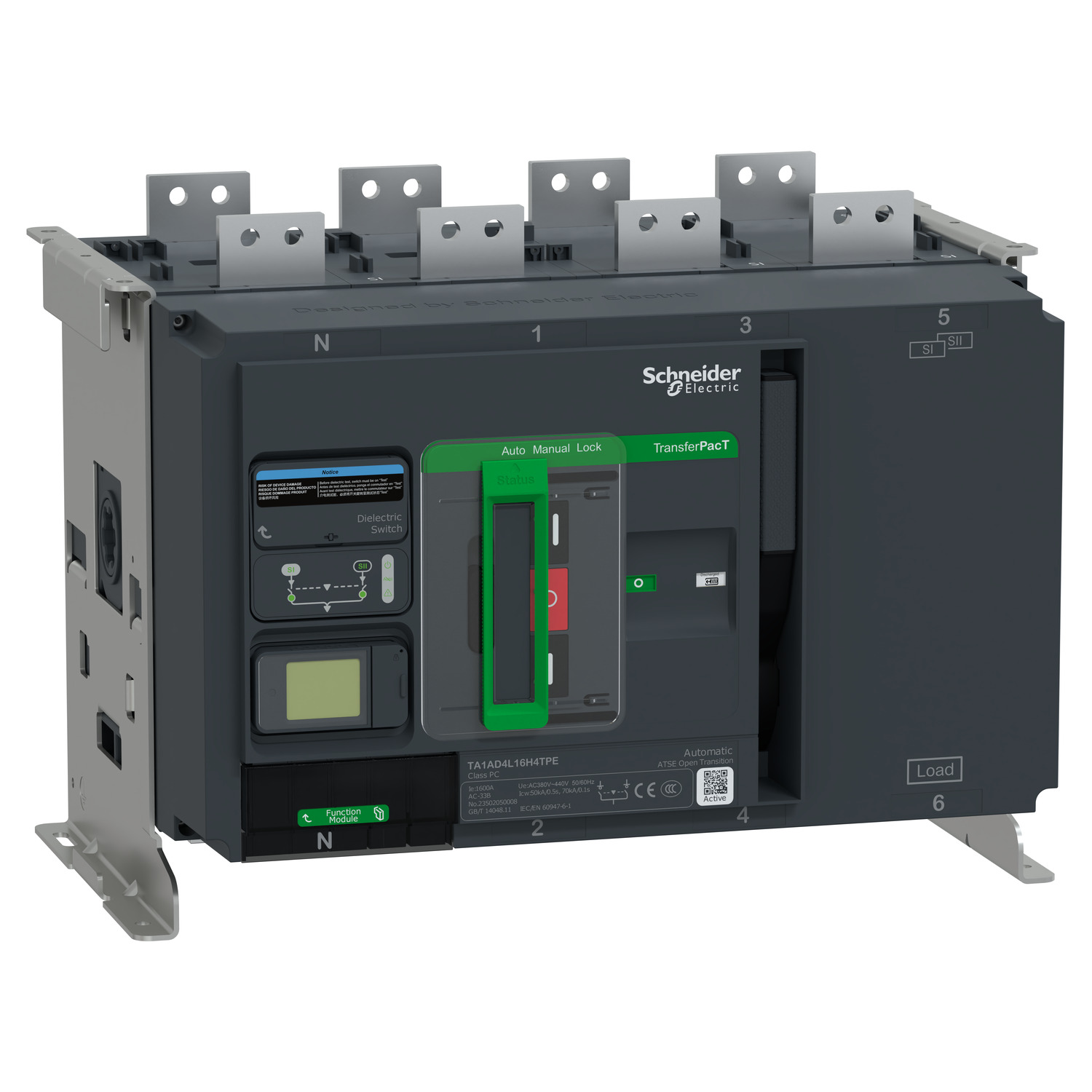

automatic transfer switch, TransferPacT, 1600A, 400V, 4P, LCD, TA1A

Speedy transfer in less than 500ms,reduced black out time.

Add-on or replacement of function modules, flexibility installation without power interruption.

Easy set and view control panel.

Multiple function modules,easy upgrade with digital features.

Space saving as compact design.

Wide range to do threshold settings.

High utilization category AC-33B full range without derating.

High rated short time withstand current Icw=70kA/0.1s,50kA/0.5s.

Built-in DPS and sensing wire, 30% commissioning time saving.

Manufacturer: Schneider Electric

SKU: TA1AD4L16H4TPE

GTIN: 3606487141044

PDF

Image of product

User guide

Instruction sheet

How to video

Declaration of conformity

Catalog

Full Description

This TA1AD4L16H4TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 1600A(Ie) at 60℃, with TA1A frame. The front has a inbuit LCD display module which is used for displaying status and alarm setting, and control by push button. This transfer switch provided 3 contact postion to the front by mechanical and electrical indication. It can be fixed on the plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This version is 540mm(width)x391mm(height)x383.5mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like Fire-fighting equipment, Smoke Extract Fans, Sprinkler pumps,emergency lights etc.

Availability: Out of stock

Old price: $28,228.20 inc GST

Price: $18,066.05 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Network frequency	50/60 Hz
Contact position indicator	yes
Product or component type	automatic transfer switch
[Icm] rated short-circuit making capacity	105 kA switch-disconnector alone, 154 kA with upstream protection circuit breaker
Poles description	4P
Range of product	TransferPacT
Upside connection	screwed
Mounting mode	fixed
Network type	AC
Downside connection	screwed
Suitability for isolation	yes
Device application	change source of supply
Complementary
[Ue] rated operational voltage	400 V AC 50/60 Hz
Mounting support	plate
Signal contacts composition	1 NO + 2 NC, 1 NC + 2 NO, 2 NO
Width	540 mm
Depth	383.5 mm
Number of contact position	3
Connection pitch	115 mm
[Ith] conventional free air thermal current	1600 A at 60 °C
Control type	4 push-buttons, automatic
[Icw] rated short-time withstand current	50 kA during 0.5 s, 70 kA during 0.1 s
Rated duty	uninterrupted
Operating mode	automatic, manual
Net weight	72 kg
Utilisation category	AC-33B
[Ui] rated insulation voltage	switch: 1000 V, controller: 500 V
Mechanical durability	10000 cycles
Mechanical interlocking	with mechanical interlocking
Transfer switch class	PC
Height	391 mm
Locking options description	padlock in OFF position
[Ie] rated operational current	1600 A
[Uimp] rated impulse withstand voltage	switch: 12 kV, controller: 6 kV
Display type	LCD screen
Environment
Standards	IEC 60947-6-1
Ambient air temperature for operation	-25-70 °C
IP degree of protection	front face: IP40 auto mode, inside the enclosure: IP20 manual mode
Pollution degree	3
Product certifications	CCC, CE, CB
Ambient air temperature for storage	-40-85 °C
Contractual warranty
Warranty	18
