SpaceLogic Central I/O Expansion Module, 8 Universal Inputs, 4 Analog Outputs

I/O Module, 12 Channels, 8 Universal Inputs, 4 Analog Outputs

Direct connection to the SpaceLogic AS-P server using built-in connectors

Analog outputs capable of supporting analog voltage or current point types

Up to 32 modules can be added to the AS-P to meet I/O requirement of the system

Hot-connectable and hot-swappable to terminal bases for continuous operation

Auto-addressing feature significantly reducing engineering and maintenance time

LED status indicators that denote the health and status of the module

Meets UL864 Smoke Control requirements for use in Smoke Control Systems

Manufacturer: Schneider Electric

SKU: SXWUI8A4X10002

GTIN: 3606486883754

PDF

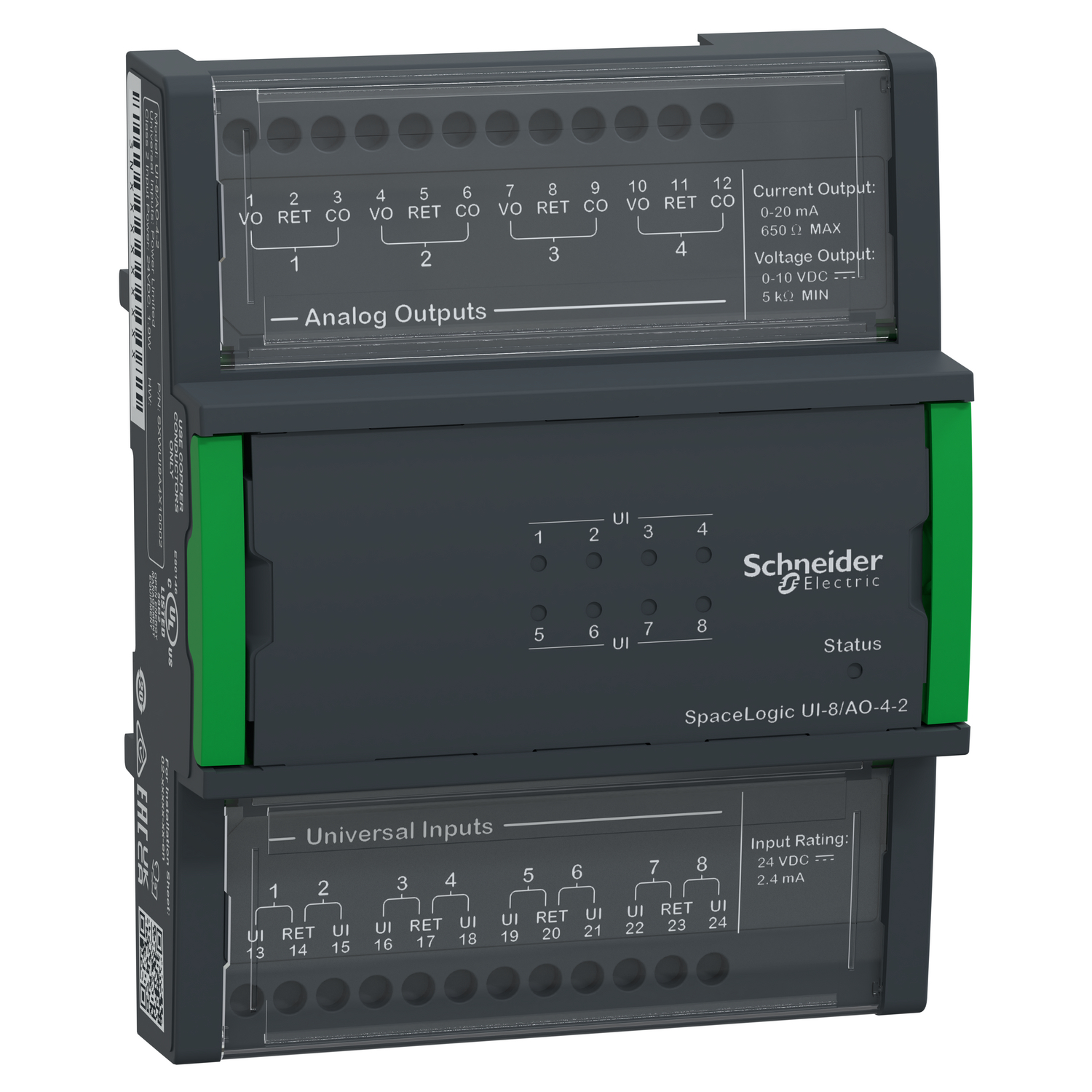

Image of product

Instruction sheet

Declaration of conformity

Full Description

The SpaceLogic UI-8/AO-4-2 is a universal input, 8 channel and analog output, 4 channel I/O expansion module for the SpaceLogic AS-P Server. The universal inputs are ideal for any mix of temperature, pressure, flow, status points and similar point types in a building control system. The analog outputs are capable of supporting analog voltage or current point types. They support a wide range of devices, such as actuators. The UI-8/AO-4-2 I/O expansion module features 8 universal inputs and 4 analog voltage/current outputs. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110002).

Availability: Out of stock

Old price: $2,643.55 inc GST

Price: $3,496.09 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Power consumption in W	3.2 W
Number of outputs	4 analog output
Product or component type	I/O module
Product name	I/O Modules
Width	90 mm
Depth	64 mm
Ambient air temperature for operation	0-50 °C
Range of product	SpaceLogic
Range	SpaceLogic
Flame retardance	UL94V0-5VB
Relative humidity	0-95 % non-condensing
Device short name	UI-8/AO-4-2
IP degree of protection	IP20
Product certifications	ICES-003, FCC part 15 class B, CE, RCM, UL
Product brand	Schneider Electric
Net weight	0.164 kg
[Us] rated supply voltage	24 V DC
Height	114 mm
Input/output type	universal input
Ambient air temperature for storage	-20-70 °C
Complementary
Mounting support	DIN rail
Local signalling	LED (green/red) for high signal level, LED (green/red) for low signal level
Electrical connection	plug-in sub-base
Control type	without
Product compatibility	Johnson Control, Xenta, Balco, Continuum, Honeywell, I/NET, Satchwell
Range compatibility	SpaceLogic TB-IO-W1-2 terminal base
Discrete output number	4
Discrete input number	8
Material	ABS + PC
Analogue input type	configurable voltage, current or probe 0...20 mA, configurable voltage, current or probe 0...10 V input voltage, configurable voltage, current or probe 20 kOhm connection of probes, configurable voltage, current or probe 10 kOhm connection of probes, configurable voltage, current or probe 2.2 kOhm connection of probes, configurable voltage, current or probe 1.8 kOhm connection of probes, configurable voltage, current or probe 1 kOhm connection of probes, configurable voltage, current or probe 10 kOhm with shunt
Switching frequency	25 Hz
Standards	UL 916, FCC CFR47 part 15
Contractual warranty
Warranty	18
