Touchscreen Room Controller Low Voltage FCU & Zone: BACnet MSTP, RH sensor, PIR sensor, Zigbee Pro & Wifi,White Hotel

Touchscreen Room Controller, SpaceLogic with modern aesthetics & high resolution 4.3 inch capacitive screen

Supports Fan Coil Unit Applications

Supports BACnet MS/TP & Modbus RTU connectivity for generic BMS integration

With 4x Universal outputs, 5x Digital Outputs, 8xUniversal Inputs. Total 17 I/O to support any market HVAC application

Integrated with Temperature & Humidity sensors

Integrated with PIR sensor with up to 8 meters range to support occupancy based efficent operation

Supports Lua scripting which allow customization of application and User Interface, making it freely programmable

Supports Wifi & Zigbee. Enables wireless connectivity to BMS which make it convenient for retrofits

Integrates with Wireless zigbee sensors

Manufacturer: Schneider Electric

SKU: SXWTRC3500B11WH

GTIN: 3606487610908

PDF

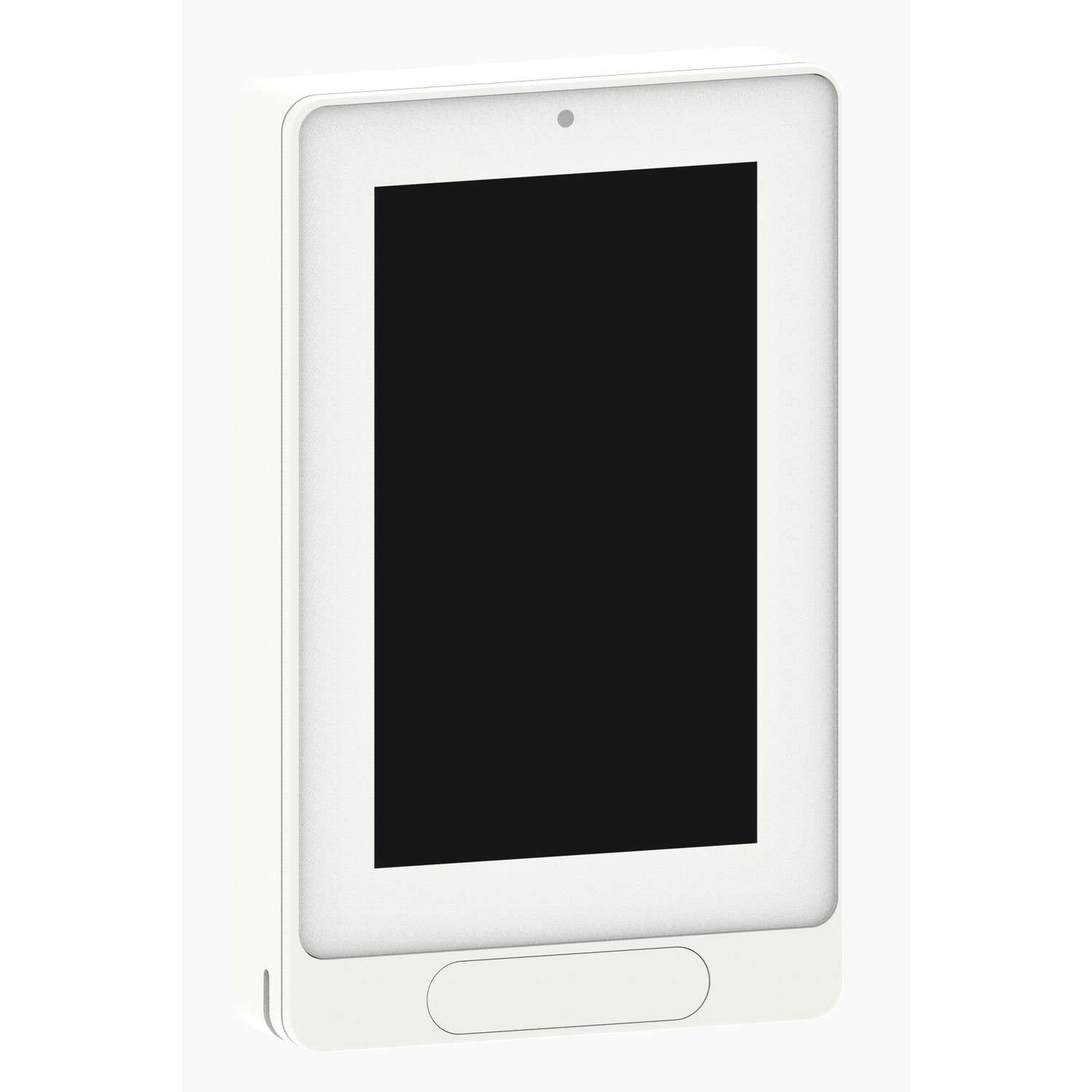

Image of product

User guide

Instruction sheet

Declaration of conformity

Full Description

Application Specific & programmable Room controller with HD colored touch screen. Wall mounted. Supports Fan Coil Unit Applications. Equipped with Passive Infrared Sensor (PIR) for occupancy detection. Configurable User integace with different themes, languages & units. Universal Inputs & outputs including CO2 sensor input and fresh air station input. Real time clouck with 7-day internal battery backup. Supports BACnet/MSTP & MODbus communication. Full white color cast. Schneider-Electric branded SpaceLogic Controller. Support BACnet IP over Wifi & Zigbee Pro connectivity.

Availability: Out of stock

Old price: $962.89 inc GST

Price: $1,273.42 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	room controller
Humidity measurement drift	less than 1 % yearly
Product name	Touchscreen Room Controller
Width	81 mm
Depth	28 mm
Housing colour	white
Ambient air temperature for operation	0-50 °C
Range	SpaceLogic Touchscreen Room Controller
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive
Relative humidity	0-95 %
Device short name	TRC3500
Net weight	340 g
Communication port protocol	BACnet MS/TP, Modbus RTU, BACnet wireless, Zigbee 3.0
AWG gauge	AWG 24...AWG 18
Sensor type	10 kOhm T2 NTC thermistor temperature, space RH sensor humidity, bulk polymer humidity, PIR
Market segment	lodging/hotel
Humidity setting range	30-95 %
Temperature resolution	0.1 °C
Height	120 mm
Standards	EN/IEC 60730-1, FCC part 15 Subpart B, ICES-003, ETSI EN 300 328, ETSI EN 301 489-1:v1.9.2, FCC part 15 Subpart C, UL 60730-2-9, ETSI EN 301 489-17:v2.2.1, 2012, ETSI EN 300 328:v2.1.1
Output voltage	24 V AC for relay output, 0...10 V DC for analog output
Output type	5 xrelay output, 4 xuniversal output
Input type	8 x universal input, 5 x analog
Ambient air temperature for storage	-30-50 °C
Output current	1 A relay output, 3 A relay output (inrush), 0.3 A universal output, 1.5 A universal output (inrush)
Input voltage	0...10 V DC
Temperature setting range	12-37.5 °C cooling, 4.5-32 °C heating
Device application	low voltage fan coil
Complementary
Surface finish	matt
Environment
Pollution degree	2
Contractual warranty
Warranty	18
