Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Targeted region | Asia Pacific., Australia., Europe, Latin America., Middle East and Africa. |
| Product or component type | room controller |
| Humidity measurement drift | less than 1 % yearly |

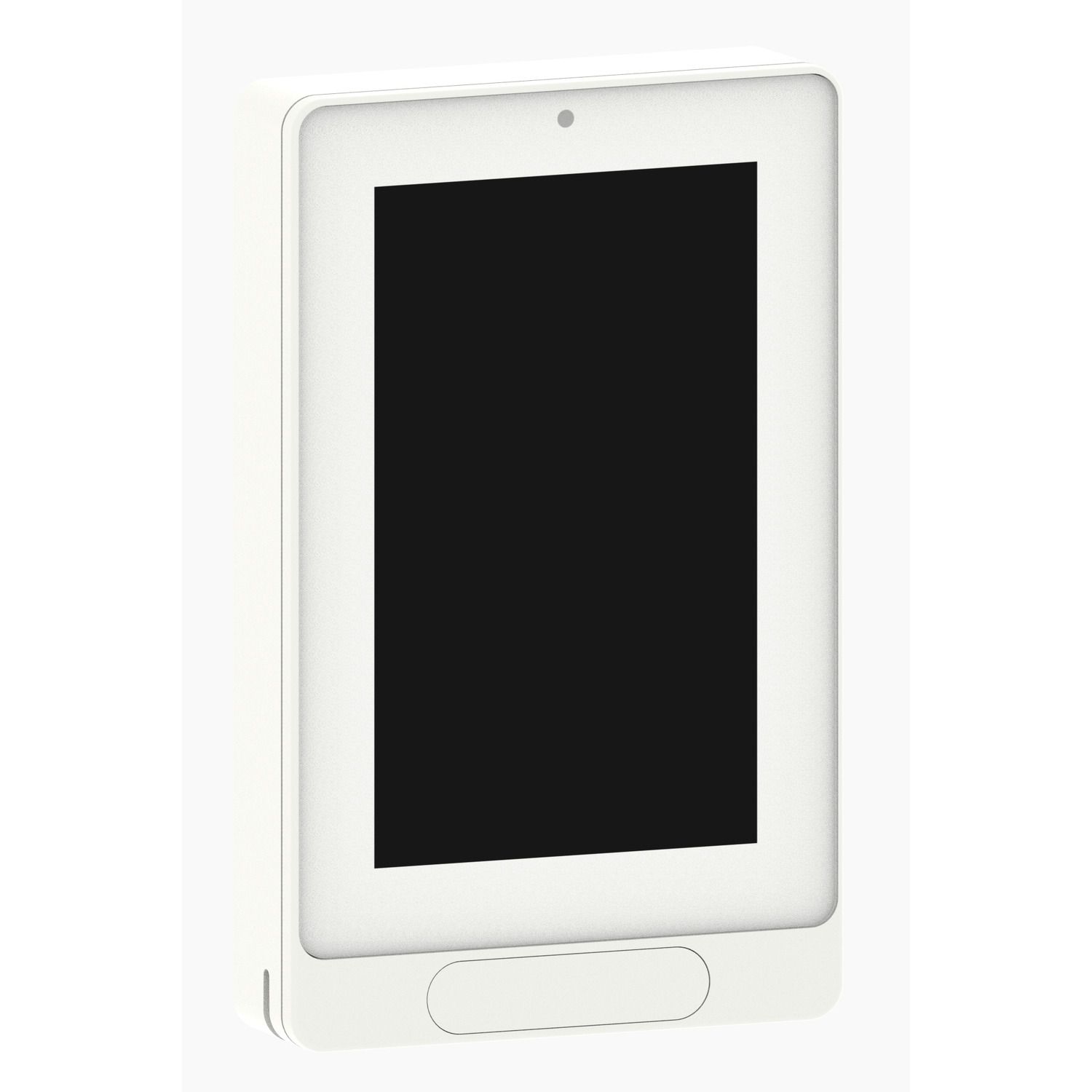

| Product name | Touchscreen Room Controller |
| Width | 81 mm |
| Depth | 28 mm |
| Housing colour | white |
| Ambient air temperature for operation | 0-50 °C |
| Range | SpaceLogic Touchscreen Room Controller |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive |
| Relative humidity | 0-95 % |
| Device short name | TRC3500 |
| Net weight | 340 g |
| Communication port protocol | BACnet MS/TP, Modbus RTU, BACnet wireless, Zigbee 3.0 |
| AWG gauge | AWG 24...AWG 18 |
| Sensor type | 10 kOhm T2 NTC thermistor temperature, space RH sensor humidity, bulk polymer humidity, PIR |
| Market segment | lodging/hotel, small commercial, buildings, healthcare, non-critical buildings, office, residential, school |
| Humidity setting range | 30-95 % |
| Temperature resolution | 0.1 °C |
| Height | 120 mm |
| Standards | EN/IEC 60730-1, FCC part 15 Subpart B, ICES-003, ETSI EN 300 328, ETSI EN 301 489-1:v1.9.2, FCC part 15 Subpart C, UL 60730-2-9, ETSI EN 301 489-17:v2.2.1, 2012, ETSI EN 300 328:v2.1.1 |
| Output voltage | 24 V AC for relay output, 0...10 V DC for analog output |
| Output type | 5 xrelay output, 4 xuniversal output |
| Input type | 8 x universal input, 5 x analog |
| Ambient air temperature for storage | -30-50 °C |
| Output current | 1 A relay output, 3 A relay output (inrush), 0.3 A universal output, 1.5 A universal output (inrush) |
| Input voltage | 0...10 V DC |
| Temperature setting range | 12-37.5 °C cooling, 4.5-32 °C heating |
| Device application | low voltage fan coil |
| Complementary | |
| Communication network type | wireless |
| Surface finish | matt |
| Environment | |
| Pollution degree | 2 |
| Contractual warranty | |
| Warranty | 18 |
