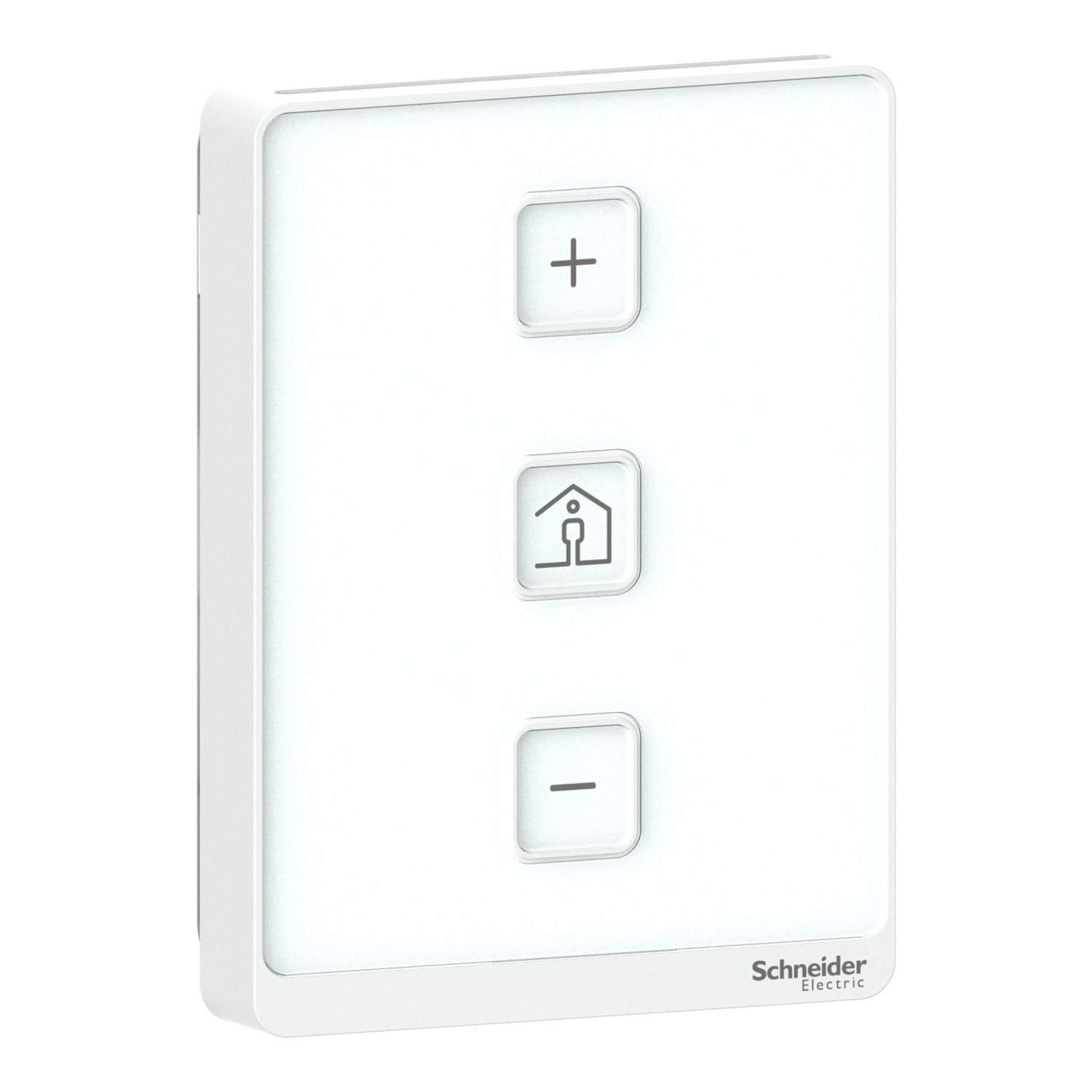

SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 sensor bus that provides communication and power from the SmartX IP controller.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP20 |
| Device application | control, HVAC |
| Depth | 20 mm |
| Colour | white |
| Display type | without display |
| Width | 85 mm |
| Flame retardance | UL94-V0 |
| Device presentation | cover plate |
| Local signalling | 1 red, green and blue LED modulating , function: heating or air-conditioning application |
| Range | SpaceLogic |
| Location | living space |
| Product name | SmartX Living Space Sensor |
| Product or component type | cover |
| Surface finish | matt |
| Product certifications | ICES-003, EAC, RCM, CE conforming to EN 61000-6-3 |
| Standards | FCC part 15 class B, UL 916 |
| Ambient air temperature for operation | 0-50 °C |
| Height | 115 mm |
| [Us] rated supply voltage | 24 V DC |
| Complementary | |
| Material | ABS (acrylonitrile butadiene-styrene) GF10 FR |
| Function available | setpoint adjustment, override switches |
| Connections - terminals | bus terminal (back) |
| Supply | base |
| Range compatibility | EcoStruxure Building Operation SmartX Living Space Sensor base unit, EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers |
