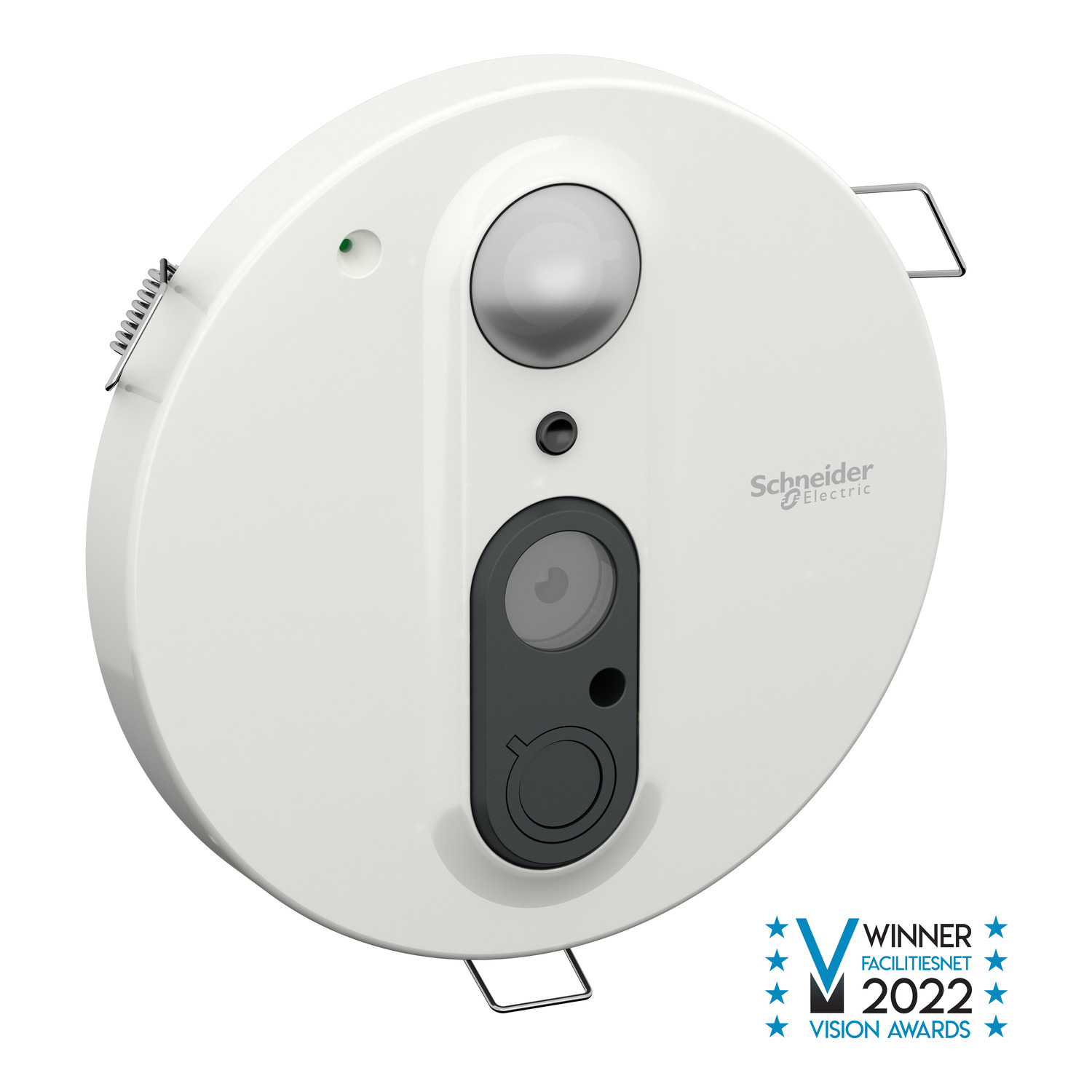

The SpaceLogic RP-C-EXT-IS-BLE Insight-Sensor is a sensor with multiple sensors and Beacon in a single device. It connects to the SpaceLogic RP controllers and is used for people counting, motion detection, luminosity and sound level monitoring. It supports Bluetooth Low Energy based applications such as beaconing and remote control communication. Measures temperature and humidity to control dew point Its dimensions are 97.5 mm (3.84 in.) in diameter and 19 mm (0.75 in.) in external thickness. Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP20. The insight-sensor's three flexible mounting brackets enable quick and easy installation on a suspended ceiling tile. The SpaceLogic Insight-Sensor also comes with a mounting ring, which allows the device to be installed in open ceiling applications. It can be combined with the RP controller expansion modules for lighting and blind control to provide a connected room solution.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Light intensity measurement range | 0...10000 lux |
| Depth | 19 mm |
| Colour | cover: white |
| Humidity measurement accuracy | +/- 4 % 20...80 % RH |
| Measurement temperature | 0-50 °C |
| Relative humidity | 20-90 % RH, non-condensing |
| Sensor type | longwave infrared imaging sensor people count, PIR motion, microelectromechanical system (MEMS) microphone sound, ambient light sensor light |
| Temperature measurement accuracy | +/- 1 °C |
| Ambient air temperature for storage | -20-70 °C |
| Noise measurement | 35…79 dBA |
| Product or component type | sensor |
| Communication port protocol | Bluetooth 5.1 low energy |
| Type of measurement | humidity, temperature, sound, light, motion, people count |
| Humidity measurement range | 0...100 % RH |
| Mounting support | ceiling |
| Embedding depth | 20 mm |
| Range of product | SpaceLogic |
| Diameter | 97.5 mm |
| Ambient air temperature for operation | 0-50 °C |
| Noise measurement accuracy | +/- 3dB |
| [Us] rated supply voltage | 24 V DC |
| Communication network type | RS485 |
