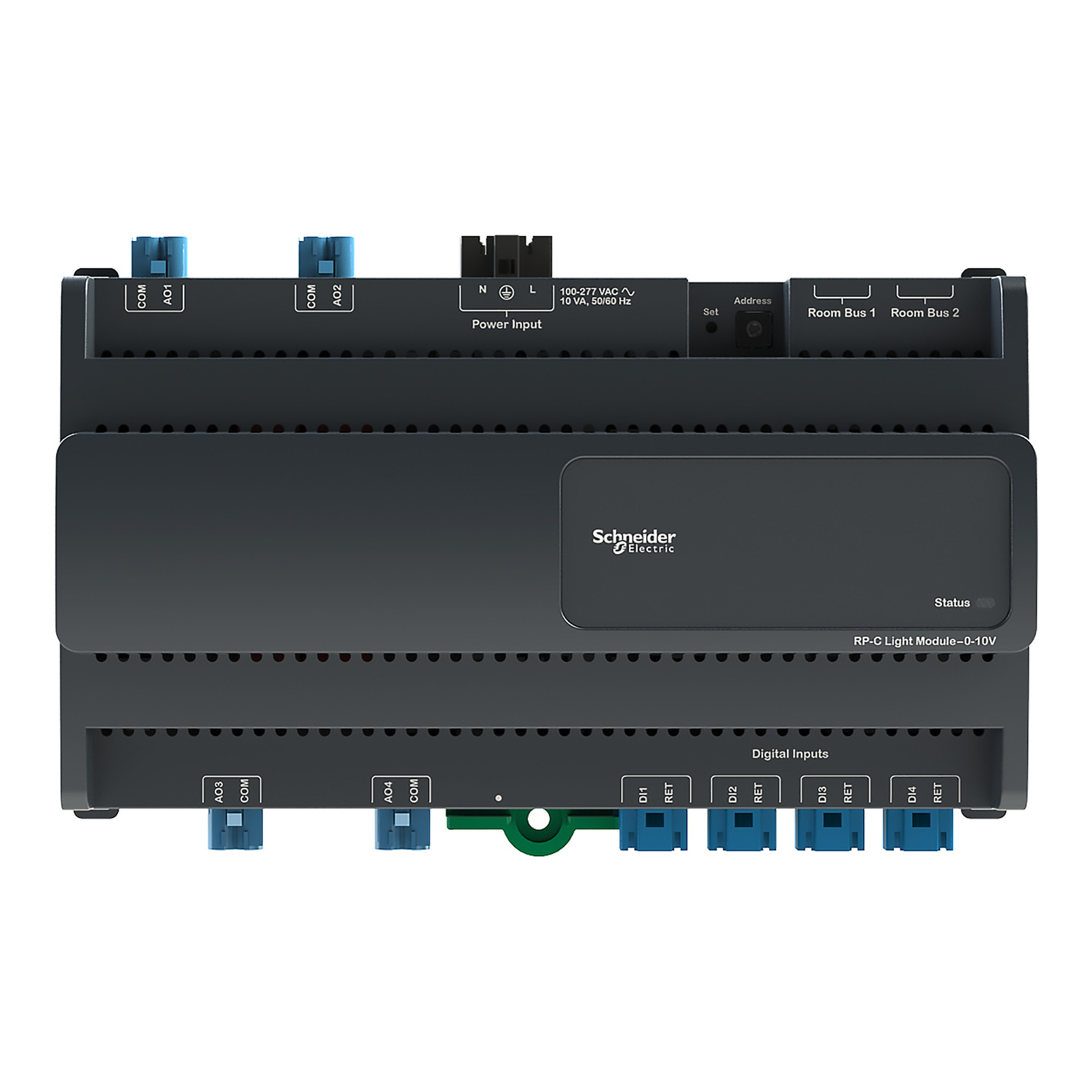

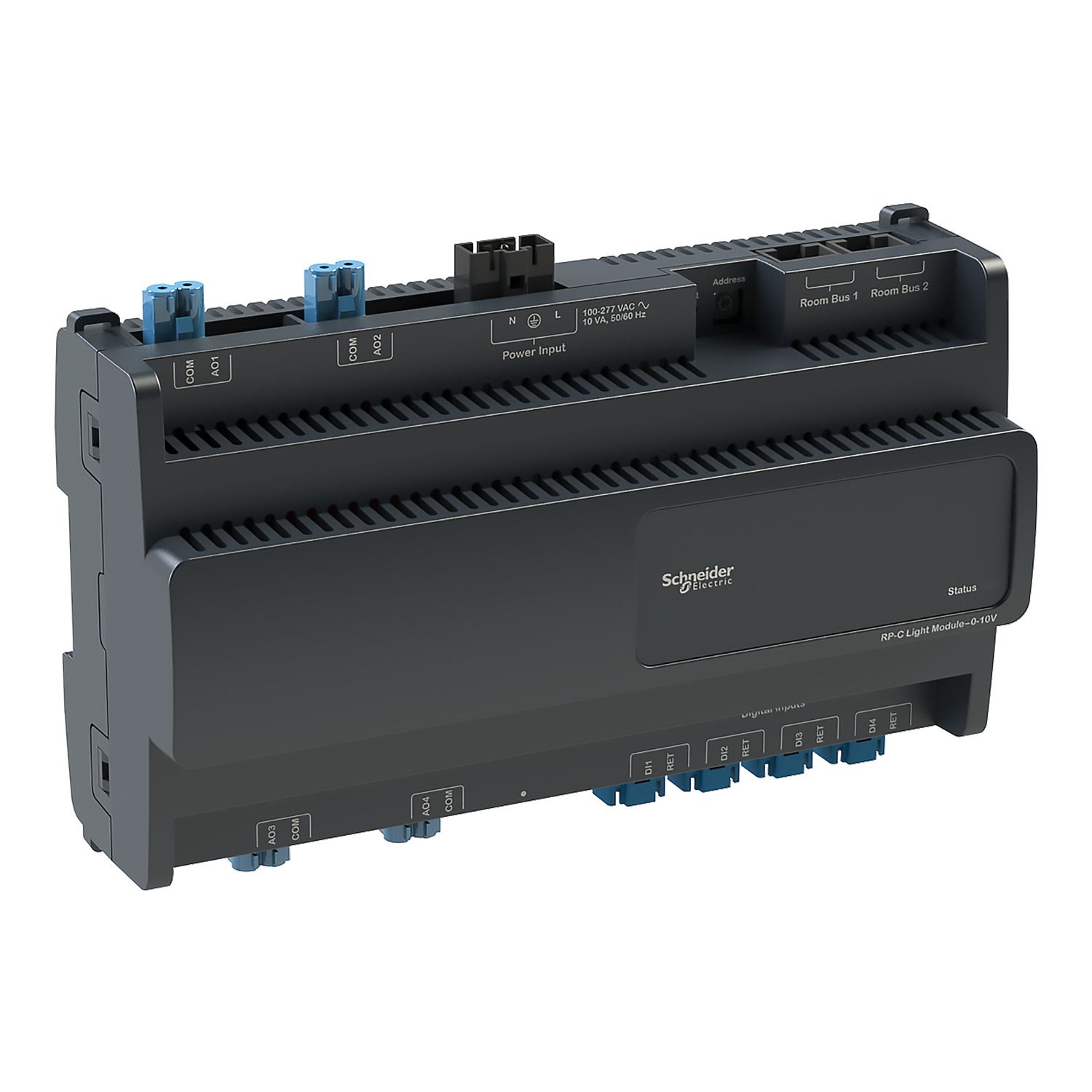

The SpaceLogic RP-C-EXT-0-10V-4-PD light module connects to the RP room controllers and provides I/O and power supply for 0-10V lighting control. The 0-10V light module enables power supply and control of lights equipped with 0-10V ballasts. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP20. This module is part of the RP Series expansion modules for connected room solution and can be combined with other modules from this product range.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RP-C-EXT-0-10V-4-PD |
| Discrete input number | 4 , dry contact |
| [Us] rated supply voltage | 230 V AC |
| Discrete output voltage | 230 V AC for power supply output, 0...10 V for lamp |
| Range | EcoStruxure Building Operation |
| Discrete output current | 5 A for per output (AO) |
| Product name | SmartX Room Purpose Controller |
| Product or component type | expansion unit |
| Discrete output number | 4 lamp |
| Product brand | Schneider Electric |
| Complementary | |
| Memory description | internal RAM 320 kB, flash 512 KB |
| Supply | mains, <10 A |
| Depth | 64 mm |
| Range compatibility | EcoStruxure Building Operation software |
| Width | 198 mm |
| Measurement accuracy | 1 % |
| Local signalling | LED (green) for output relay state, LED (green/red) for status indication |
| Mounting support | surface mount, DIN rail |
| Colour | black |
| Control type | ADDRESS, range: 0-9 with rotary switch(es) |
| Supply voltage limits | 207-253 V |
| Power supply input current | 2.2 mA at 5 V |
| Processor name | ARM Cortex-M4 |
| Function available | light control |
| Input type | digital |
| Net weight | 433 g |
| Protection type | external fuse at 16 A |
| Communication port protocol | RS485, Ethernet Modbus TCP/IP daisy chain |
| Maximum current per output common | 10 A at AO |
| Port Ethernet | 10/100BASE-T 2 port RJ45 |
| Measurement range | 1…3000 W |
| Height | 110 mm |
| Electrical connection | 3-pin terminal block, 1 terminal(s) power supply, 5-pin terminal block, 4 terminal(s) output, 2-pin terminal block, 4 terminal(s) input circuit |
| Data backed up | 16 MB flash memory |
| Network frequency | 60 Hz, 50 Hz |
| Environment | |
| Overvoltage category | III |
| IP degree of protection | IP20 |
| Relative humidity | 20-90 %, non-condensing |
| Ambient air temperature for storage | -20-70 °C |
| Flame retardance | UL94-V0 |
| Electromagnetic compatibility | immunity to electromagnetic emissions conforming to EN 61000-6-2, immunity to electromagnetic emissions conforming to EN 50491-5-3, electromagnetic emission class B conforming to FCC part 15 Subpart B, electromagnetic emission conforming to EN 50491-5-2, electromagnetic emission conforming to EN 61000-6-3 |
| Ambient air temperature for operation | 0-50 °C |
| Product certifications | RCM |
| Pollution degree | 2 |
| Standards | EN 61000-6-2, EN 50491-5-3, EN 50491-3, EN 60730-2-11, EN 60730-1 |
