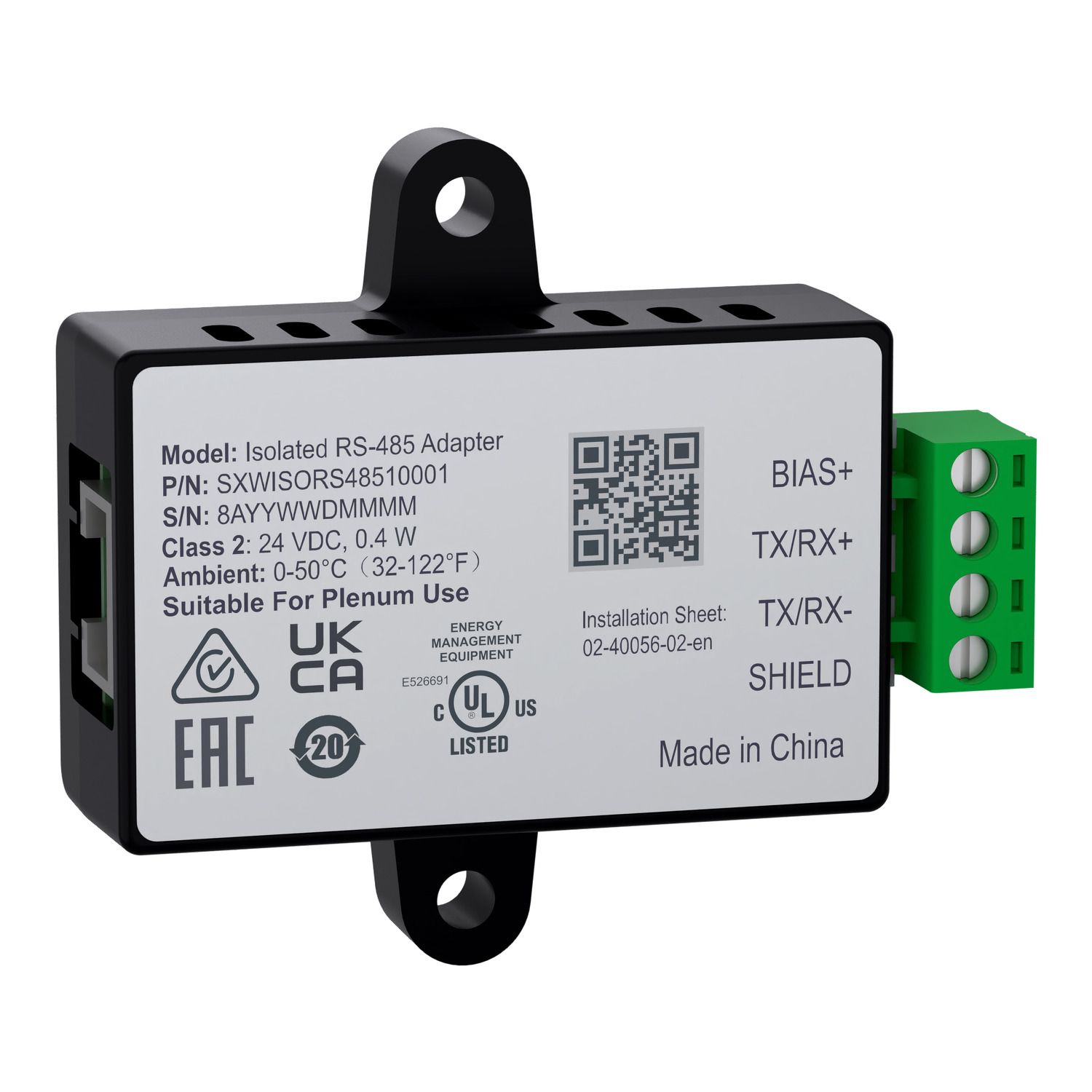

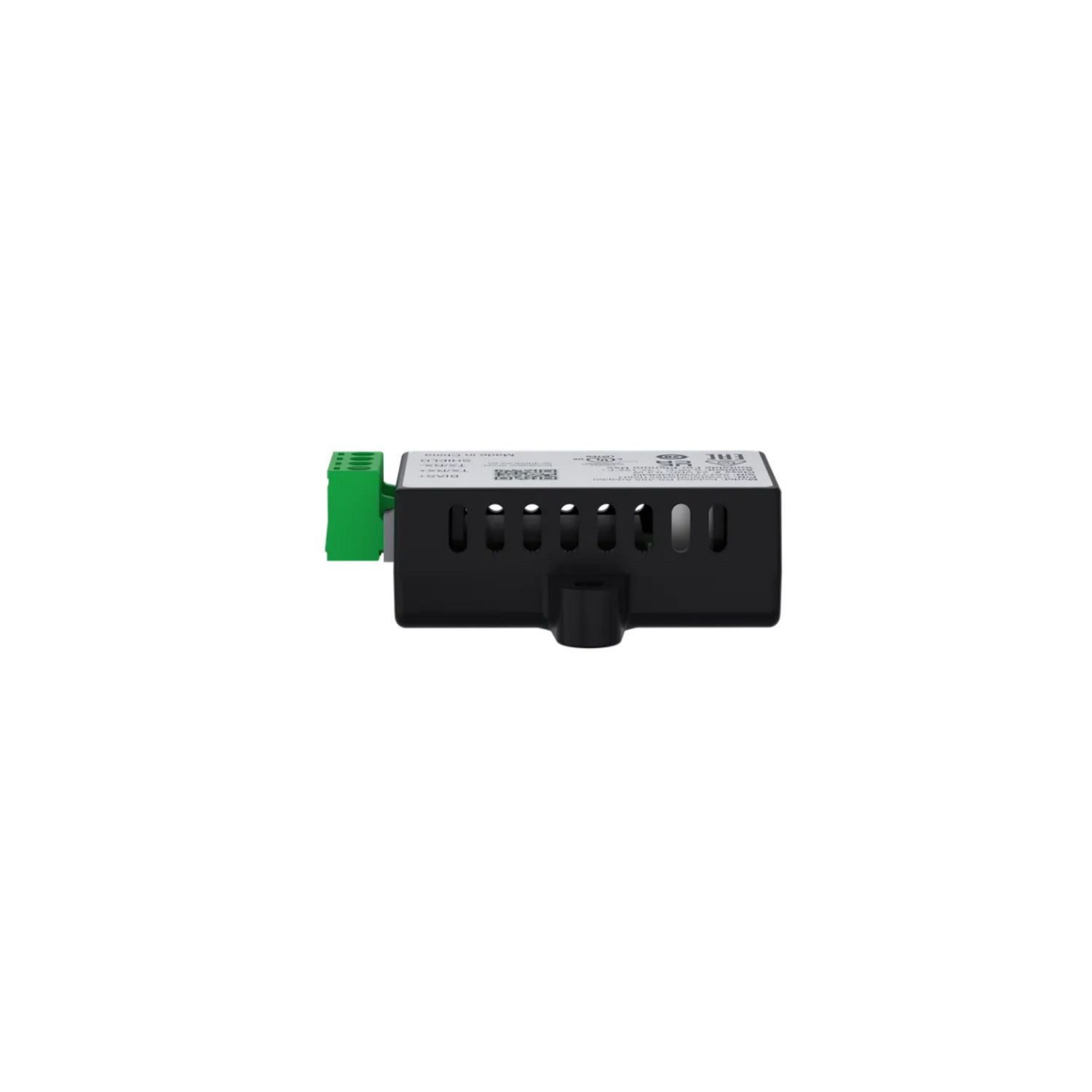

This SpaceLogic adapter is an isolated RJ45 to screw terminal RS485 adapter. It connects SpaceLogic controllers to a BACnet MS/TP network or for connecting BACnet MS/TP devices to the SpaceLogic controller. It can replace a failed MS/TP controller with IP controller using the same network infrastructure. The adapter has a 24 VDC input. Its dimensions are 2.63 inches in width, 0.85 inches in depth, 0.96 inches in height. The adapter is UL2043 certified and the ingress protecton rating is IP20. It can be mounted in the plenum. This adapter is compatible with SpaceLogic RP and MP controllers.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | SpaceLogic |
| Product or component type | RS485 converter |
| Complementary | |
| Depth | 24.5 mm |
| Width | 66.8 mm |
| Net weight | 0.0800 kg |
| Height | 74.3 mm |
| Environment | |
| Ambient air temperature for operation | 0-50 °C |
| Range | SpaceLogic |
