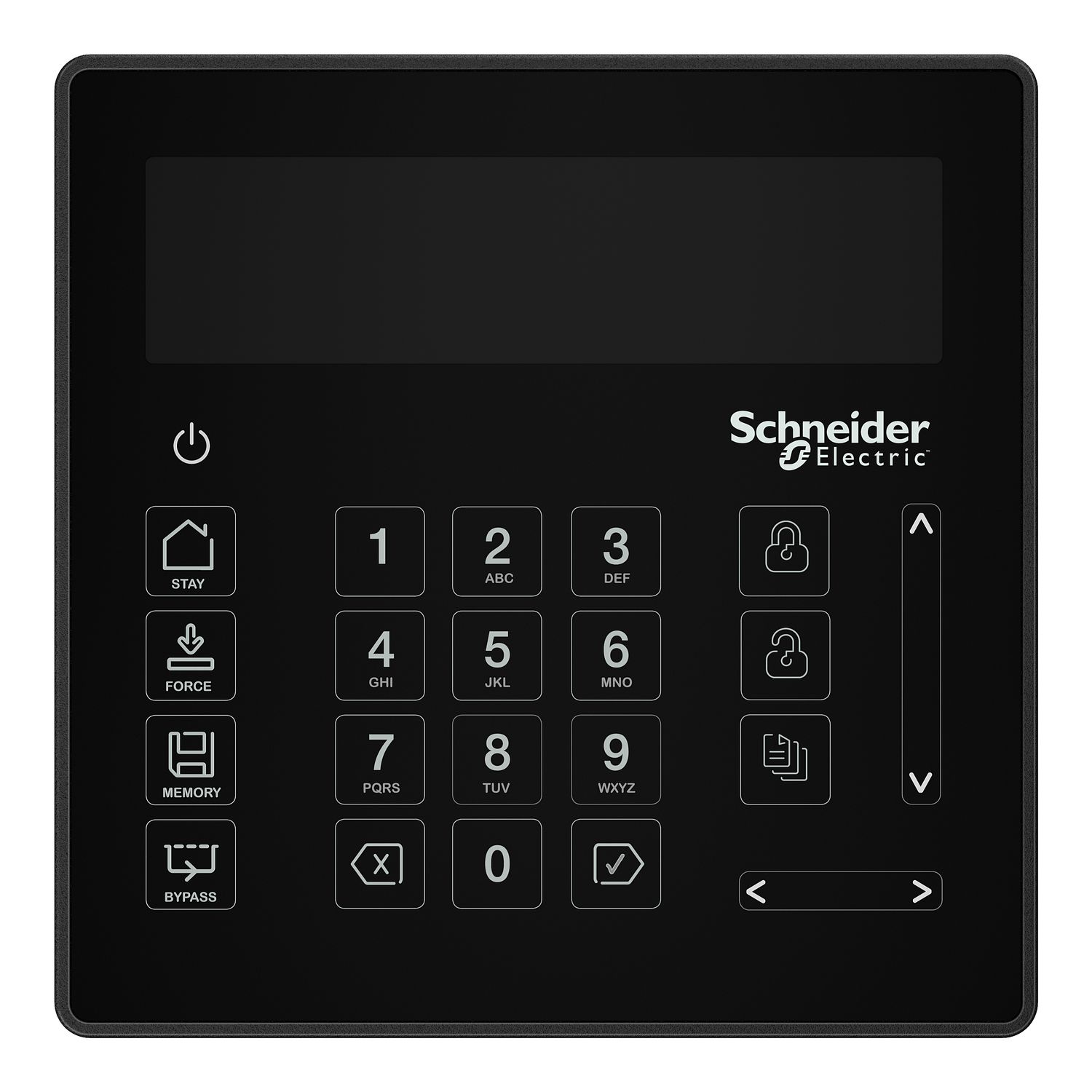

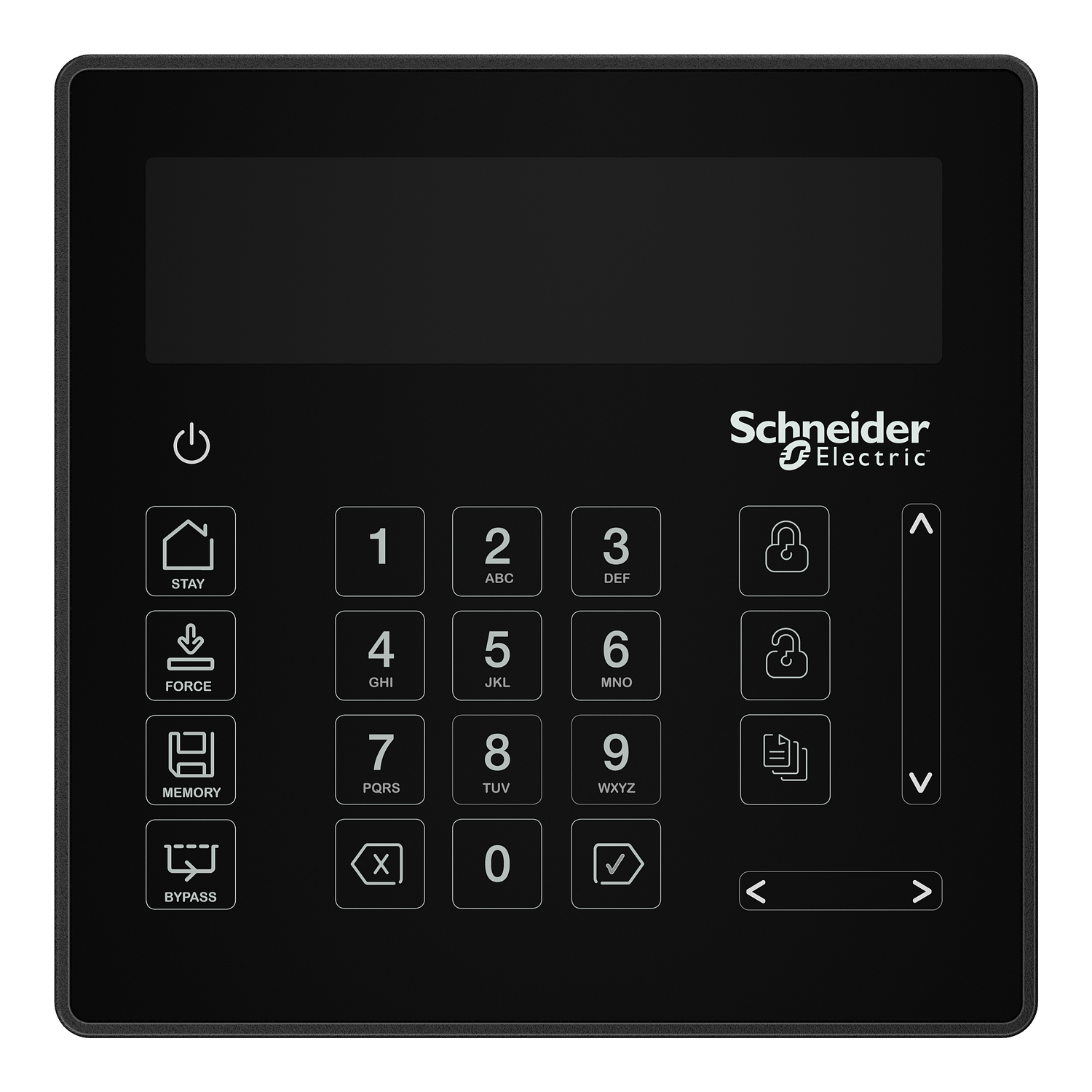

Security Expert touch sense LCD keypad, black
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SX-KLCS-B |
| Device application | control |
| Control button type | 4 for navigation touch button capacitive, 7 operation touch button capacitive, 12 numeric touch button capacitive |
| Range | EcoStruxure Security Expert |
| Product or component type | keypad |
| Colour tint | black |
| Product brand | Schneider Electric |
| Complementary | |
| Device composition | keypad, set of resistors |
| Depth | 18 mm |
| Width | 125 mm |
| [Ue] rated operational voltage | 11...14 V DC |
| [Ie] rated operational current | 95 mA maximum, 60 mA in operation |
| Discrete input type | 4 zone for duplex mode input, 2 zone for standard input |
| Local signalling | buzzer, green LED, disarmed front face, red LED, armed front face, LED, status front face |
| Net weight | 318 g |
| Display type | backlit LCD: 2 lines of 16 characters |
| Discrete output type | 1 open collector (50 mA), 4 configurable for signaling |
| Height | 125 mm |
| Environment | |
| Relative humidity | 0-93 % non-condensing |
| Ambient air temperature for storage | -10-85 °C |
| Ambient air temperature for operation | 0-49 °C |
