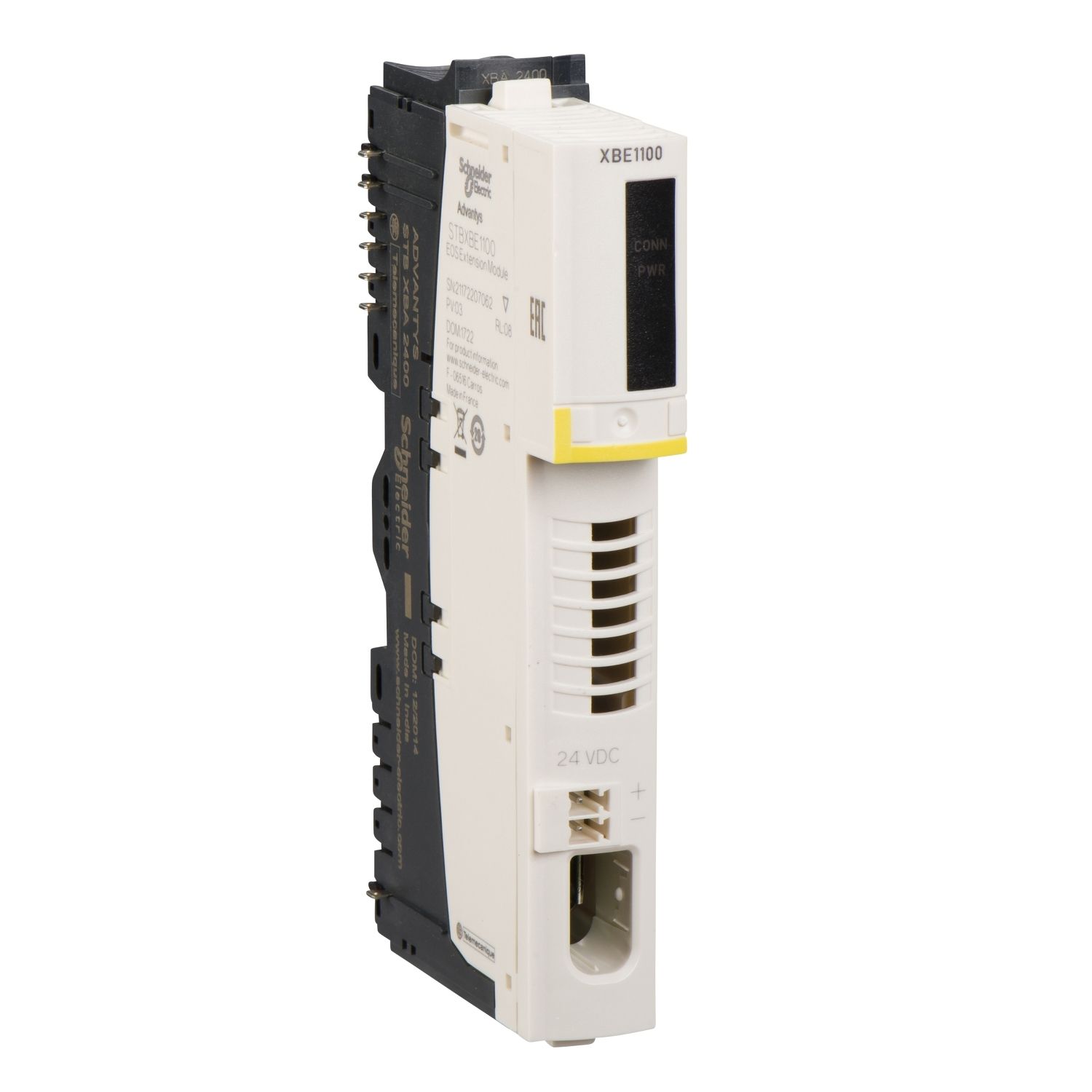

This bus extension kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This BOS internal bus extension kit is furnished with 2-pin removable connector for power supply and FireWire for interface. It is a BOS module with rated supply voltage of 24V DC and input current of 400mA. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA, UL. It is compatible with standard STB modules. The kit includes STBXTS1120, 2-terminal screw type connector, STBXBA2300 size 2 base, STBXTS2120, 2-terminal spring clamp connector and STBXBE1300 BOS module. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | BOS internal bus extension kit |
| Complementary | |
| Product compatibility | standard STB modules |
| Supply voltage limits | 19.2-30 V |
| Electrical connection | Firewire for interface, 2 pins for removable connector for power supply |
| Marking | CE |
| Output voltage type | DC |
| Output voltage | 5.25 V +/- 0.21 % logic bus |
| [Us] rated supply voltage | 24 V |
| Kit composition | STBXTS1120, 2-terminal screw type connector, STBXBA2300 size 2 base, STBXTS2120, 2-terminal spring clamp connector, STBXBE1300 BOS module |
| Overvoltage category | II |
| Supply circuit type | DC |
| Power supply output current | 1.2 A |
| Input current | 400 mA |
| Mounting location | beginning of extension segment |
| Environment | |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Electromagnetic compatibility | immunity to electromagnetic interference conforming to IEC 61131-2 |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Product certifications | CSA, UL, FM Class 1 Division 2 |
