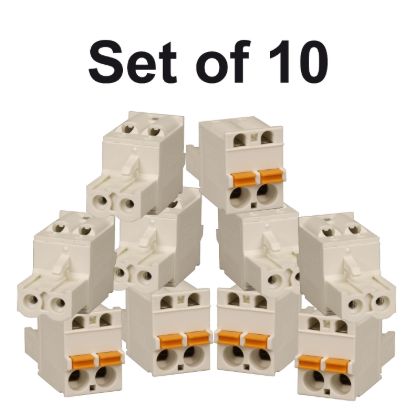

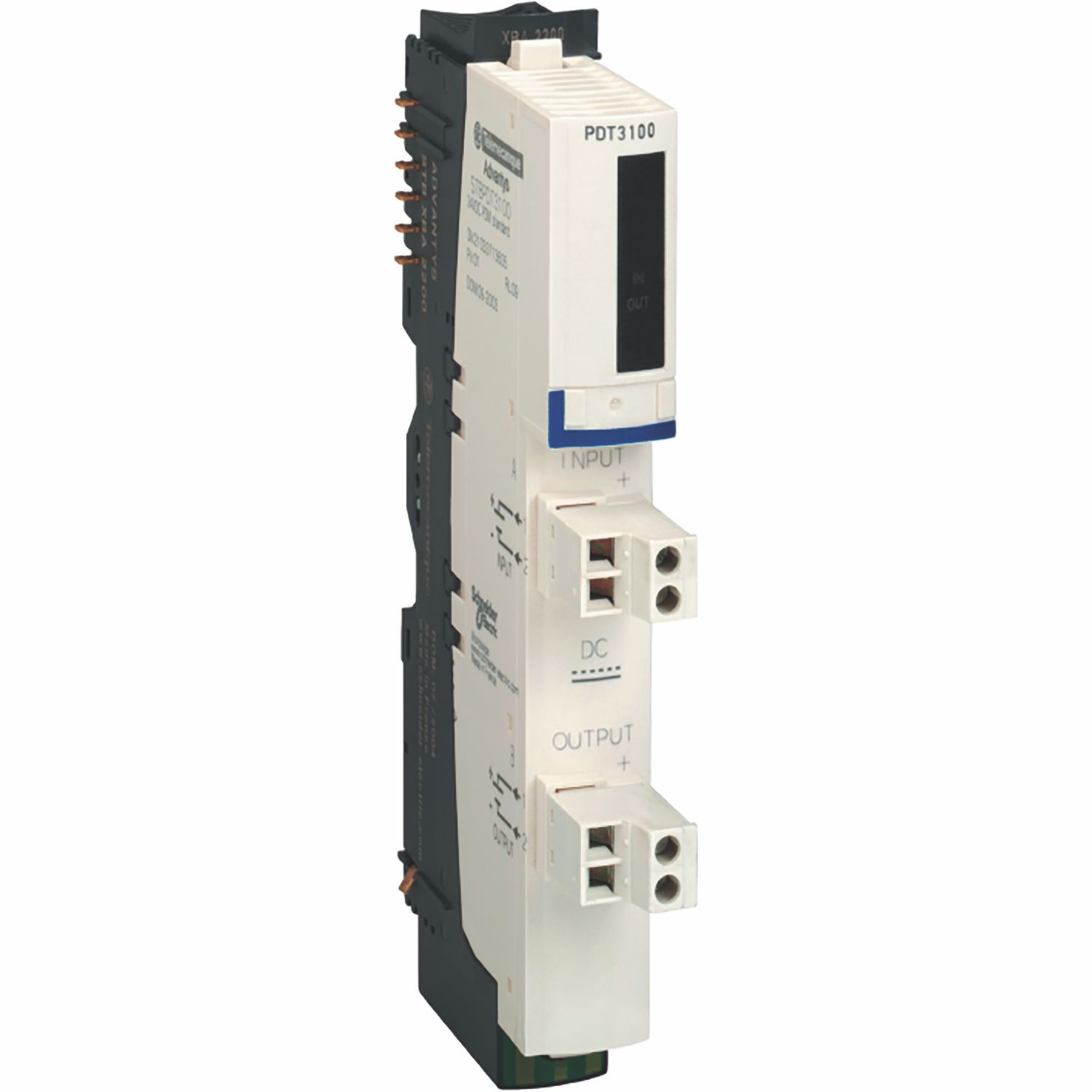

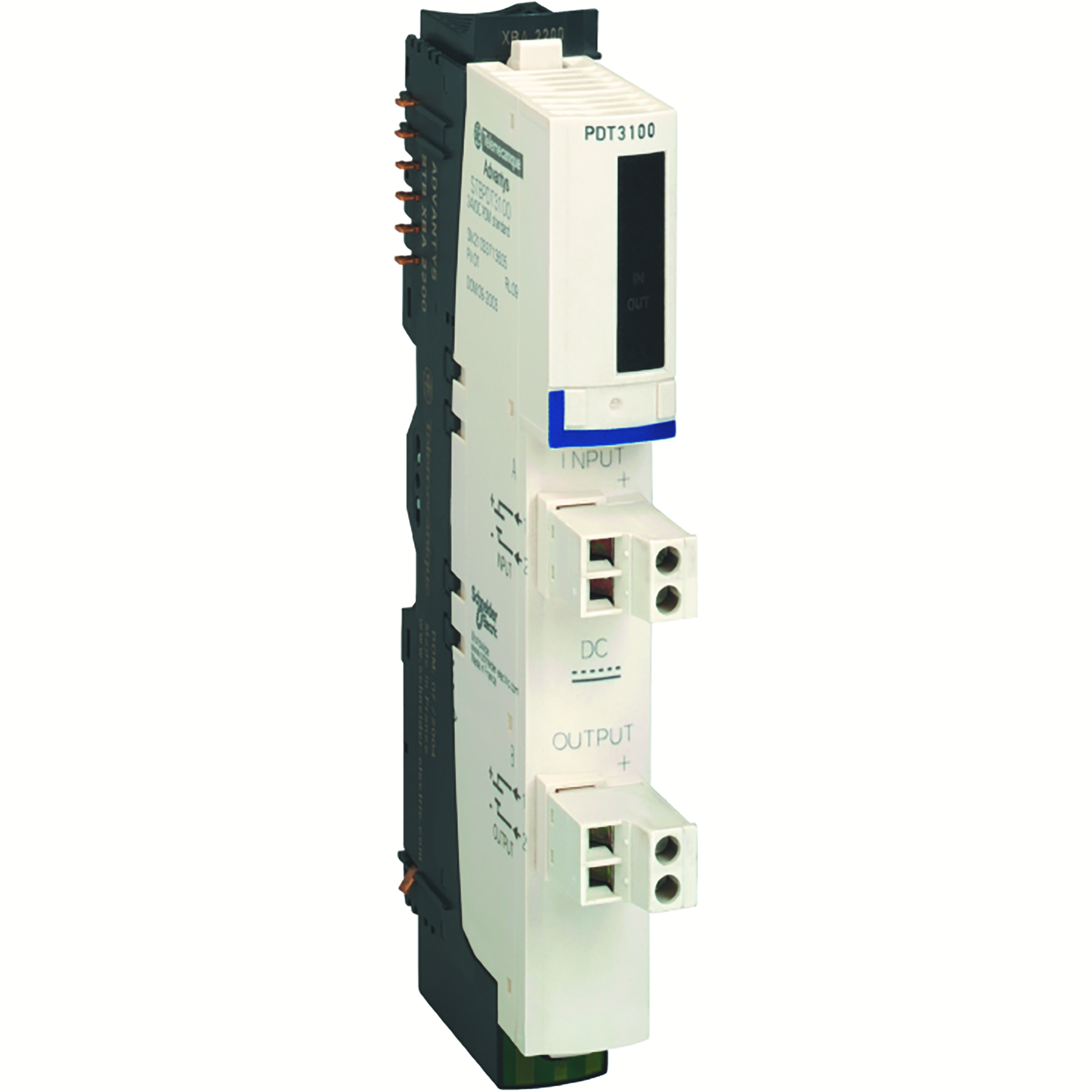

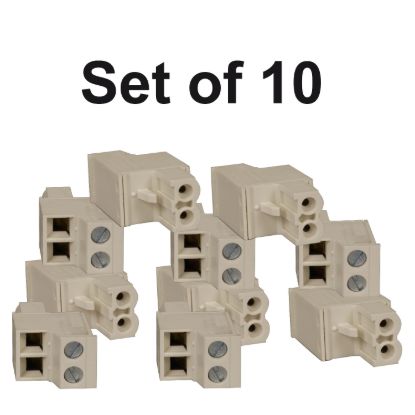

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard power distribution kit supports hot swapping illegal fallback. This product is compatible with most major fieldbus networks. It allows 30A permissible current for 2 minutes grounding terminal. The voltage detection threshold is <15V ±1 DC IN/OUT LED lit and ≥15V ±1 DC IN/OUT LED non lit. It is an IP20 rated product. Its dimensions are 18.4mm (width) x 65.1mm (depth) x 125mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with mounting base STBXBA2200. The kit includes STBXTS2130, spring type connectors, STBPDT2100 module, STBXBA2200 base and STBXTS1130 screw type connectors. It supports STBXBA2200 mounting base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | standard power distribution kit |
| Range of product | Modicon STB distributed I/O solution |
| Complementary | |
| Kit composition | STBXTS1130, screw type connectors, STBXBA2200 base, STBPDT3100 module, STBXTS2130, spring type connectors |
| Product compatibility | mounting base STBXBA2200 |
| Depth | 65.1 mm |
| Overvoltage category | II |
| Width | 18.4 mm |
| Supply circuit type | DC |
| Permissible current | 30 A for 2 minutes grounding terminal |
| Net weight | 0.13 kg |
| Power supply output current | 0-8 A at 30 °C (output circuit), 0-4 A at 30 °C (input circuit), 8-8 A at 60 °C (input/output circuit), 6-6 A at 70 °C (input/output circuit), 12-12 A at 30 °C (input/output circuit), 10-10 A at 45 °C (input/output circuit) |
| Marking | CE |
| Protection type | reverse polarity for actuator bus, built-in overcurrent protection, 5 A time-lag fuse for input circuit, built-in overcurrent protection, 10 A time-lag fuse for output circuit |
| Voltage detection threshold | >= 15 V +/-1 DC IN/OUT LED non lit, < 15 V +/-1 DC IN/OUT LED lit |
| Hot swapping fallback | hot swapping illegal |
| Status LED | 1 LED (green) sensor bus power supply (IN), 1 LED (green) actuator bus power supply (OUT) |
| Height | 125 mm |
| Voltage range | 19.2...30 V DC sensor/actuator bus |
| [Us] rated supply voltage | 24 V |
| Environment | |
| Operating altitude | <= 2000 m |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to EN 61131-2 class 1 |
| Vibration resistance | 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Ambient air temperature for operation | -25-70 °C (with derating factor), 0-60 °C (without) |
| Product certifications | CSA, FM Class 1 Division 2, UL |
