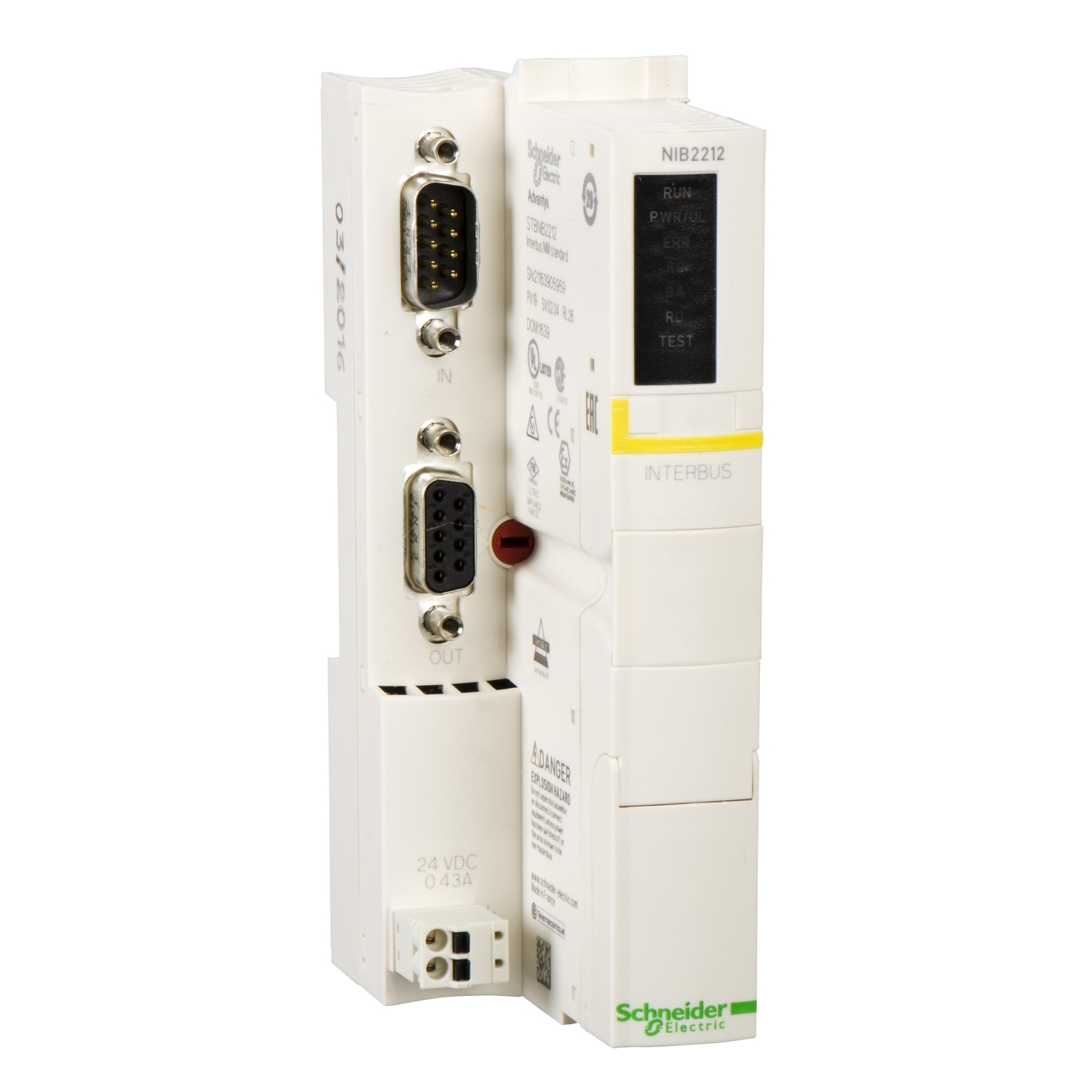

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of slave | 512 |
| Structure type | industrial field bus (Generation4) |
| Transmission rate | 500 kbit/s for bus length of 0-50 m for the installation bus, 500 kbit/s for bus length of 0-400 m per bus segment between stations, 500 kbit/s for bus length of 0-12800 m for the bus between stations |
| Range of product | Modicon STB distributed I/O solution |
| Integrated connection type | Interbus conforming to InterBus Club 8-way female (RS232 port), Interbus conforming to InterBus Club HE-13 (RS232 port), Interbus conforming to InterBus Club 9-way female isolated RS485 SUB-D 1 twisted shielded pair (output bus), Interbus conforming to InterBus Club 9-way male isolated RS485 SUB-D 1 twisted shielded pair (input bus) |
| Product or component type | standard Network Interface Module |
| Number of segments | 1 primary, maximum 6 extensions |
| Complementary | |
| Maximum output impedance | 0.05 Ohm at 100000 kHz |
| Maximum supply current | 700 A |
| Supply voltage limits | 19.2-30 V |
| Input current | 430 mA for supply circuit |
| Marking | CE |
| Communication service | diagnostics, logical addressing, implicit exchange of process data |
| Output voltage | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Status LED | 1 LED (yellow) test mode, 1 LED (red) RD, 1 LED (red) module error (ERR), 1 LED (green) RC, 1 LED (green) power supply (PWR), 1 LED (green) island state (RUN), 1 LED (green) BA |
| Height | 40 mm |
| Nominal output current | 1.2 A, 0.575 A at 60-70 °C |
| [Us] rated supply voltage | 24 V DC |
| Depth | 70 mm |
| Overvoltage category | II |
| Width | 128.3 mm |
| Net weight | 0.155 kg |
| Power supply type | SELV |
| Number of addressable I/O module | 0-32 per island |
| Environment | |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Electromagnetic compatibility | immunity to electromagnetic interference conforming to IEC 61131-2 |
| Ambient air temperature for operation | -25-70 °C (with derating factor), 0-60 °C (without derating) |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Product certifications | ATEX Cat 3G, FM Class 1 Division 2, UL, C-Tick, CSA |
