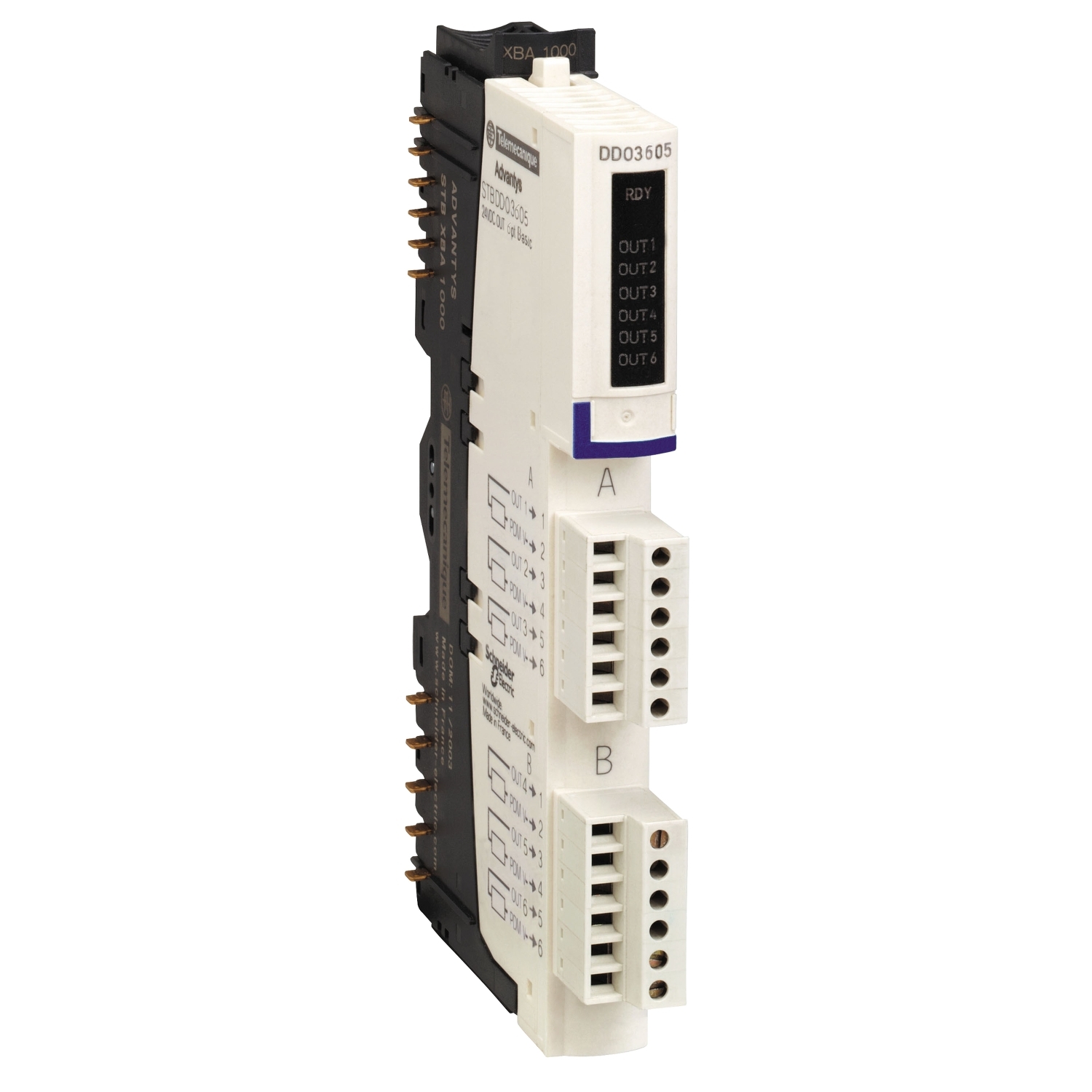

digital output kit, Modicon STB, basic, 24V DC, 6 O

Manufacturer: Schneider Electric

SKU: STBDDO3605K

GTIN: 3595863949346

Catalog

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $313.50 inc GST

Price: $414.60 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This output kit is part of the Modicon STB range, an offer of modular distributed I/O. This basic digital output kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). The kit has 6 digital outputs. Setting can be done via Advantys STB configuration software. It weighs 0.11kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. The kit includes STBXBA1000 base, STBDDO3605 module, STBXTS2100, 6-terminal spring clamp connector, and STBXTS1100 6-terminal screw type connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.

Products specifications

Attribute name	Attribute value
Main
Discrete output voltage type	DC
Range of product	Modicon STB distributed I/O solution
Discrete output type	solid state

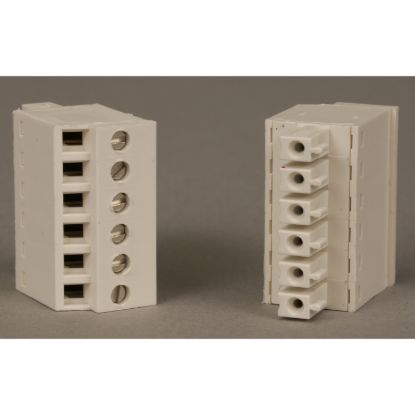

Kit composition	STBXTS1100, 6-terminal screw type connector, STBXBA1000 base, STBXTS2100, 6-terminal spring clamp connector, STBDDO3605 module
Discrete output number	6
Discrete output voltage	24 V
Product or component type	basic digital output kit
Complementary
Maximum load capacitance	50 µF
Product compatibility	power distribution module STBPDT3100/3105, I/O base STBXBA1000
Discrete output current	250 mA
Marking	CE
Protection type	thermal overload protection, short-circuit protection, reverse polarity protection, power protection integrated fuse on PDM time lag 5 A
Response time	900 µs on-to-off, 550 µs off-to-on
Maximum load inductance	500 mH at 4 Hz
Hot swapping fallback	no for basic NIMs
Output voltage	19.2...30 V DC
Status LED	1 LED per channel (green) channel status (OUT1 to OUT6), 1 LED (green) module status (RDY)
Discrete output logic	positive
Height	13.9 mm
Cold swapping	yes
Insulation between channels and logic bus	1500 V for 1 minute
[Us] rated supply voltage	24 V DC
Maximum leakage current	0.4 mA at state 0 30 V
Depth	70 mm
Overvoltage category	II
Width	128.3 mm
Net weight	0.114 kg
Current consumption	90 mA at 5 V DC for logic bus
Surge current	2.5 A 0.5 ms
Supply	power distribution module
Absolute maximum voltage	56 V 1.3 ms
Reset	manual or automatic reset COM fault
Environment
Ambient air temperature for operation	32...140 °F without derating, 0-60 °C (without derating)
Relative humidity	95-95 % at 60-60 °C without condensation
Ambient air temperature for storage	-40-85 °C without derating, -40...185 °F without derating
Pollution degree	2 conforming to IEC 60664-1
IP degree of protection	IP20 conforming to IEC 61131-2 class 1
Operating altitude	<= 2000 m
Vibration resistance	+/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance	30 gn for 11 ms conforming to IEC 88 reference 2-27
Standards	IEC 61131-2
Product certifications	FM Class 1 Division 2, CSA, UL
