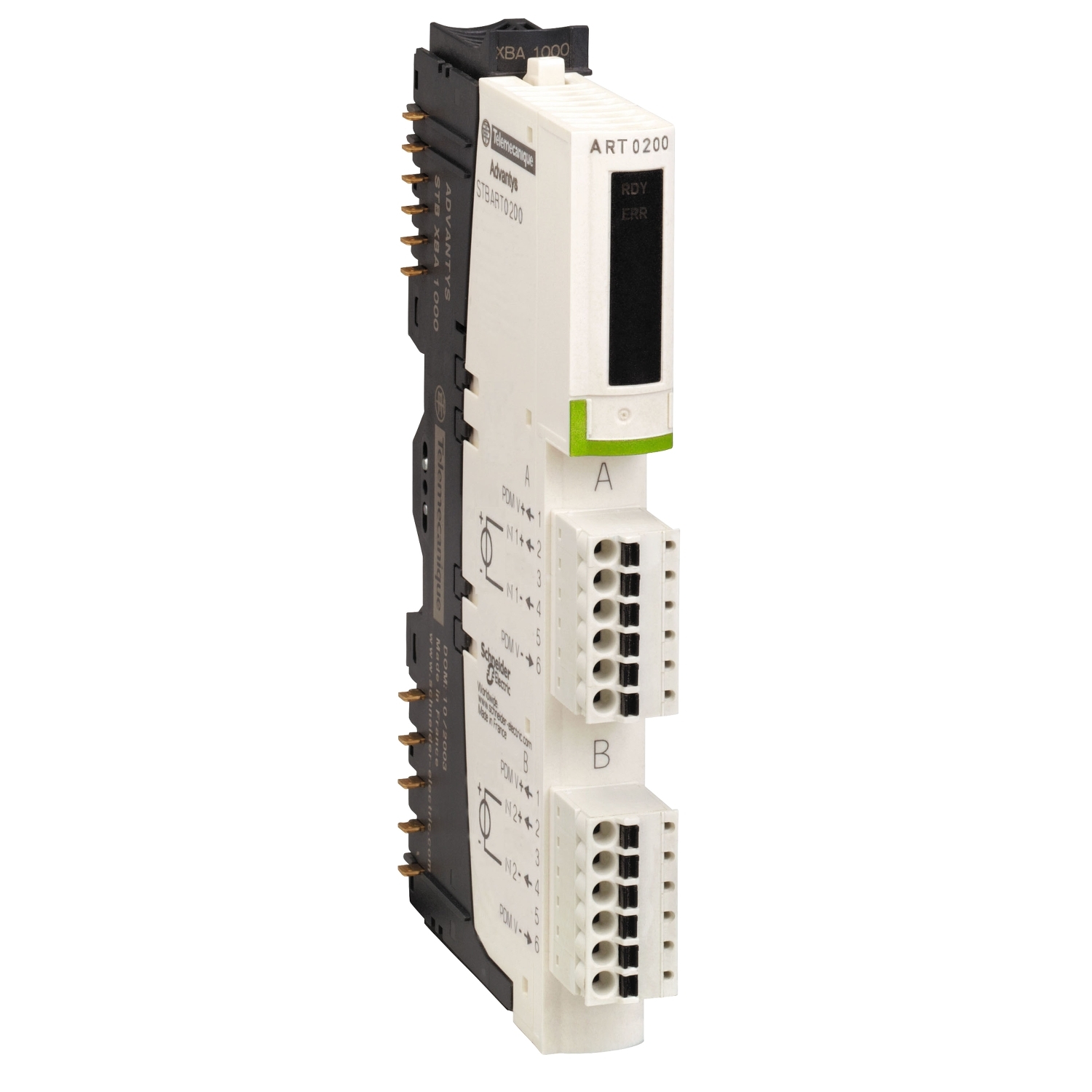

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs with 15bit plus sign resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBART0200 module, STBXTS1100, 6-terminal screw type connector, STBXBA1000 base and STBXTS2100, 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input resolution | 15 bits + sign |
| Type of filter | single low pass input filter 25 Hz |
| Range of product | Modicon STB distributed I/O solution |
| Analogue input type | thermocouple -50...+1665 °C thermocouple S, thermocouple -50...+1665 °C thermocouple R, thermocouple -270...+400 °C thermocouple T, thermocouple -270...+1370 °C thermocouple K, thermocouple -270...+1000 °C thermocouple E, thermocouple -200...+760 °C thermocouple J, thermocouple +130...+1820 °C thermocouple B, temperature probe -60...+180 °C Ni 1000 2, 3 or 4 wires IEC, temperature probe -60...+180 °C Ni 100 2, 3 or 4 wires IEC, temperature probe -200...+850 °C Pt 1000 2, 3 or 4 wires IEC, temperature probe -200...+850 °C Pt 100 2, 3 or 4 wires IEC, temperature probe -100...+450 °C Pt 1000 2, 3 or 4 wires US/JIS, temperature probe -100...+450 °C Pt 100 2, 3 or 4 wires US/JIS, temperature probe -100...+260 °C Cu 10 2, 3 or 4 wires IEC, voltage +/- 80 mV |
| Kit composition | STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base, STBXTS1100, 6-terminal screw type connector, STBART0200 module |
| Analogue input number | 2 |
| Product or component type | standard analog input kit |
| Complementary | |
| Measurement resolution | 0.1 °C or 0.1 °F thermocouple, 0.1 °C or 0.1 °F temperature probe, 0.01 mV voltage |
| Measurement accuracy | +/- 7 °C thermocouple J with internal cold-junction compensation 60 °C, +/- 6.8 °C thermocouple E with internal cold-junction compensation 60 °C, +/- 6.8 °C thermocouple B with internal cold-junction compensation 60 °C, +/- 6.4 °C thermocouple T with internal cold-junction compensation 60 °C, +/- 5.5 °C thermocouple K with internal cold-junction compensation 60 °C, +/- 5.1 °C thermocouple J with internal cold-junction compensation 25 °C, +/- 5 °C thermocouple S with internal cold-junction compensation 60 °C, +/- 4.6 °C thermocouple E with internal cold-junction compensation 25 °C, +/- 4.6 °C thermocouple B with internal cold-junction compensation 25 °C, +/- 4.4 °C thermocouple T with internal cold-junction compensation 25 °C, +/- 4.2 °C thermocouple R with internal cold-junction compensation 60 °C, +/- 4.1 °C thermocouple S with internal cold-junction compensation 25 °C, +/- 4 °C thermocouple K with internal cold-junction compensation 25 °C, +/- 4 °C Cu 10 25 °C internal, +/- 4 °C Cu 10 25 °C external, +/- 3.6 °C thermocouple R with internal cold-junction compensation 25 °C, +/- 2.85 °C thermocouple T with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple S with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple R with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple K with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple J with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple E with external cold-junction compensation 60 °C, +/- 2.85 °C thermocouple B with external cold-junction compensation 60 °C, +/- 2 °C Pt 1000 25 °C external, +/- 2 °C Pt 100 25 °C external, +/- 1.75 °C thermocouple T with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple S with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple R with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple K with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple J with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple E with external cold-junction compensation 25 °C, +/- 1.75 °C thermocouple B with external cold-junction compensation 25 °C, +/- 1 °C Pt 1000 25 °C internal, +/- 1 °C Pt 100 25 °C internal, +/- 1 °C Ni 1000 25 °C internal, +/- 1 °C Ni 1000 25 °C external, +/- 1 °C Ni 100 25 °C internal, +/- 1 °C Ni 100 25 °C external |
| Product compatibility | power distribution module STBPDT3100/3105, mounting base STBXBA1000 |
| Protection type | short-circuit protection |
| Addressing requirement | 2 input words, 1 word for cold-junction compensation |
| Conversion time | 400 ms thermocouple with external cold-junction compensation 50 Hz, 360 ms thermocouple with external cold-junction compensation 60 Hz, 340 ms temperature probe 50 Hz 3 wires, 300 ms temperature probe 60 Hz 3 wires, 230 ms thermocouple with internal cold-junction compensation 50 Hz, 210 ms thermocouple with internal cold-junction compensation 60 Hz, 200 ms temperature probe 50 Hz 2 or 4 wires, 180 ms temperature probe 60 Hz 2 or 4 wires, 170 ms voltage 50 Hz, 150 ms voltage 60 Hz |
| Fallback status | user configurable standard NIMs, state 0 basic NIMs |
| Marking | CE |
| Data format | IEC 61131-2, EN 61131-2 |
| Hot swapping fallback | yes for standard NIMs |
| Status LED | 1 LED (red) module error (ERR), 1 LED (green) module status (RDY) |
| Cold swapping | yes |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| [Us] rated supply voltage | 24 V DC |
| Overvoltage category | II |
| Absolute maximum input | +/- 7.5 V DC |
| Absolute accuracy error | +/- 0.15 % of full scale 25 °C external, +/- 0.1 % of full scale 25 °C internal |
| Maximum wiring resistance | 500 Ohm Pt 1000 IEC/US/JIS 4 wires, 500 Ohm Ni 1000 IEC/US/JIS 4 wires, 50 Ohm Pt 100 IEC/US/JIS 4 wires, 50 Ohm Ni 100 IEC/US/JIS 4 wires, 50 Ohm Cu 10 IEC/US/JIS 4 wires, 200 Ohm Pt 1000 IEC/US/JIS 2 or 3 wires, 200 Ohm Ni 1000 IEC/US/JIS 2 or 3 wires, 20 Ohm Pt 100 IEC/US/JIS 2 or 3 wires, 20 Ohm Ni 100 IEC/US/JIS 2 or 3 wires, 20 Ohm Cu 10 IEC/US/JIS 2 or 3 wires |
| Current consumption | 30 mA at 5 V DC for logic bus |
| Supply | power distribution module |
| Input impedance | 10 MOhm +/- 80 mV |
| Maximum supply current for sensors | 100 mA per input channels |
| Environment | |
| Ambient air temperature for operation | 32...140 °F without derating, 0-70 °C |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C without derating, -40...185 °F without derating |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Operating altitude | <= 2000 m |
| Vibration resistance | 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Product certifications | C-Tick, ATEX Cat 3G, CSA, FM Class 1 Division 2, UL |
