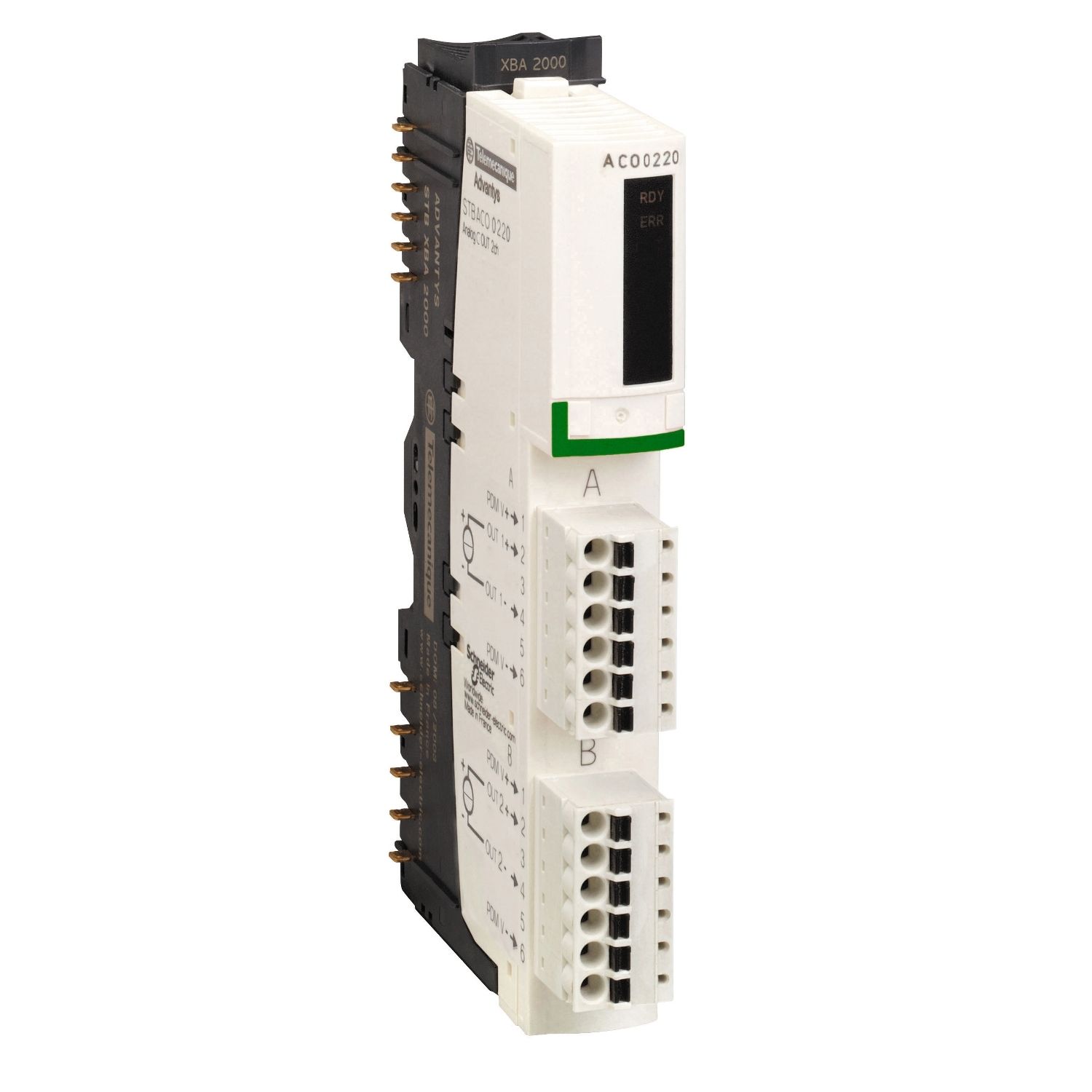

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue output kit has 2 analogue outputs with 15bit + sign resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 210mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA1000. The kit includes STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector, STBXBA2000 base and STBAVI1270 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue output number | 2 |
| Range of product | Modicon STB distributed I/O solution |
| Kit composition | STBACO0220 module, STBXBA2000 base, STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector |
| Analogue output resolution | 15 bits + sign |
| Product or component type | standard analog output kit |
| Analogue output type | current: 4...20 mA |
| Complementary | |
| Product compatibility | mounting base STBXBA1000, power distribution module STBPDT3100/3105 |
| Update time | 8 ms |
| Insulation between channels and actuator bus | 200 V |
| Temperature drift | +/-0.005 %/°C |
| Fallback status | user configurable standard NIMs, state 0 basic NIMs |
| Marking | CE |
| Data format | IEC 61131-2, EN 61131-2 |
| Analogue output current | 0.02-0.02 A |
| Hot swapping fallback | yes for standard NIMs |
| Status LED | 1 LED (red) module error (ERR), 1 LED (green) module status (RDY) |
| Height | 18.4 mm |
| Cold swapping | yes |
| Insulation between channels and logic bus | 1500 V for 1 minute |
| [Us] rated supply voltage | 24 V DC |
| Conversion time | 4 ms for both channels |
| Depth | 70 mm |
| Overvoltage category | II |
| Width | 128.3 mm |
| Response time | 4 ms |
| Absolute accuracy error | +/- 0.3 % of full scale at 25 °C |
| Current consumption | 210 mA at 5 V DC for logic bus |
| Supply | power distribution module |
| Integral linearity | +/- 0.5 %FS |
| Differential linearity | monotonic |
| Environment | |
| Ambient air temperature for operation | 32...140 °F without, 0-60 °C (without) |
| Relative humidity | 95-95 % at 60-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C without, -40...185 °F without |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 61131-2 class 1 |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Product certifications | FM Class 1 Division 2, UL, CSA |
