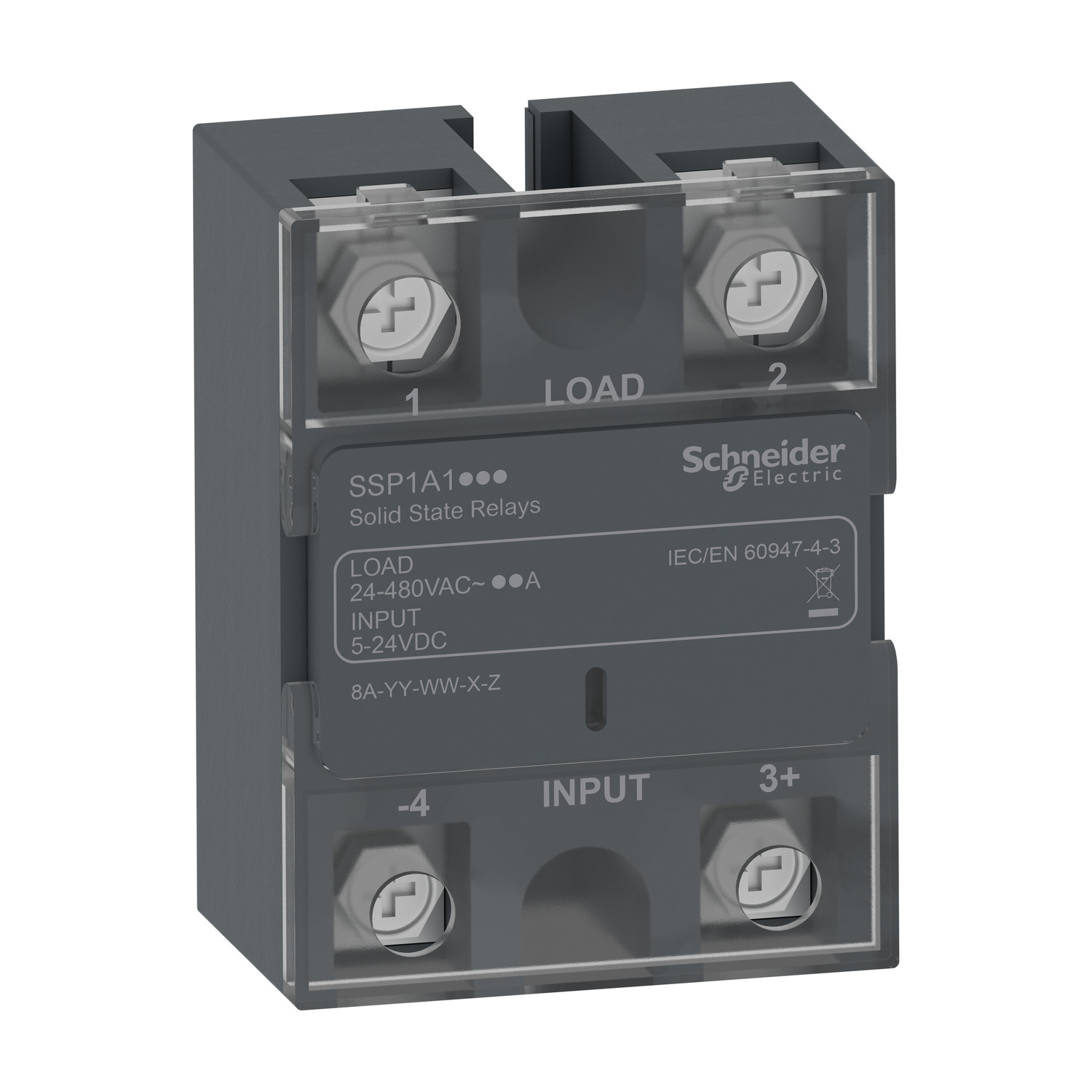

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Connections - terminals | screw connectors |
| Mounting support | panel |
| Network number of phases | 1 phase |
| [In] rated current | 25 A |
| Range of product | Easy Harmony Solid State Relays |
| Provided equipment | thermal pad |
| [Uc] control circuit voltage | 4...32 V |
| Device short name | SSP1E |
| Output switching mode | zero voltage switching |
| Contacts type and composition | 1 NO |
| Solid state output type | SCR output |
| Complementary | |
| [Uc] control circuit voltage | 4...32 V DC |
| Maximum I²t for fusing | 900 A².s for 10 ms at 50 Hz |
| Dielectric strength | 3.8 kV AC for input/output, 2 kV AC for output connection |
| Response time | 0.5 cycle (turn-on) |
| Load current | 0.1-25 A |
| Local signalling | LED, green for input |
| [Uimp] rated impulse withstand voltage | 8 kV output to case, 6 kV input to output |
| Maximum leakage current | 1 mA off-state |
| Absolute maximum voltage | 530 V |
| Width | 59 mm |
| Depth | 29 mm |
| Cos phi | 0.8-0.8 (with maximum load) |
| Minimum switching voltage | 4 V DC turn-on |
| IP degree of protection | IP10 |
| Control type | electronic controller |
| Input voltage | 5...24 V DC |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Tightening torque | 1.5...1.7 N.m for input, 2...2.4 N.m for output |
| Surge current | 250 A for 1/2 Cycle |
| Net weight | 115 g |
| Height | 45 mm |
| Insulation resistance | 500 MOhm at 500 V DC |
| Maximum voltage drop | <1.6 V on-state |
| Connections - terminals | screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end, screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end, screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end, screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end, forked type tag connectors: 9.2 x 4 mm, ring lugs: 9.2 x 4 mm, forked type tag connectors: 11.7 x 4.5 mm, ring lugs: 11.7 x 4.5 mm |
| Device presentation | complete product |
| Maximum switching voltage | 2 V DC turn-off |
| Environment | |
| Standards | UL 508, EN/IEC 60947-4-3, EN/IEC 62314, CSA C22.2 No 14 |
| Ambient air temperature for operation | -30-80 °C |
| Pollution degree | 2 |
| Marking | UL, CE, UKCA, TÜV |
| Product certifications | UL, CE, UKCA, TÜV, RoHS, REACH |
| Overvoltage category | III |
| Ambient air temperature for storage | -30-100 °C |
| Contractual warranty | |
| Warranty | 18 |
