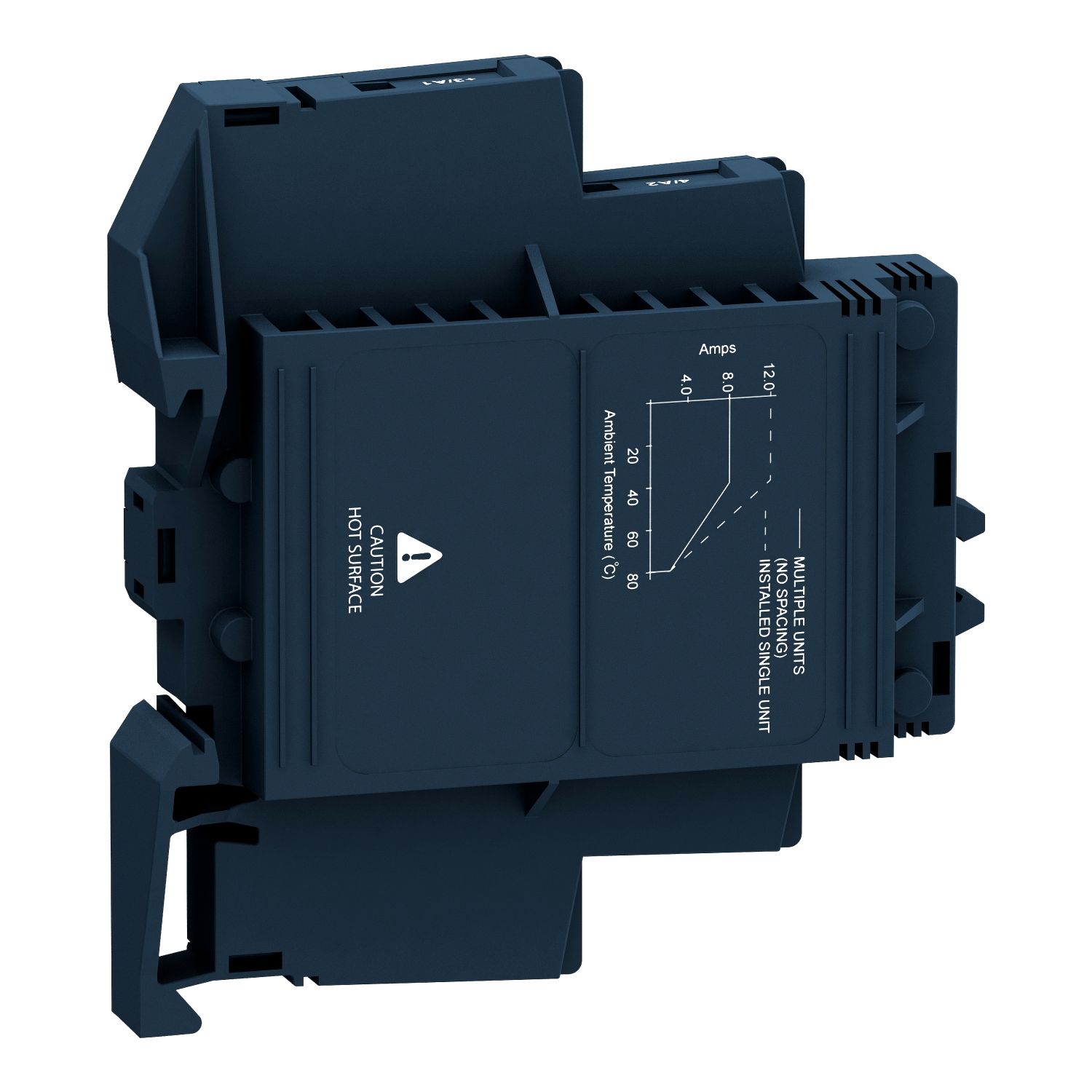

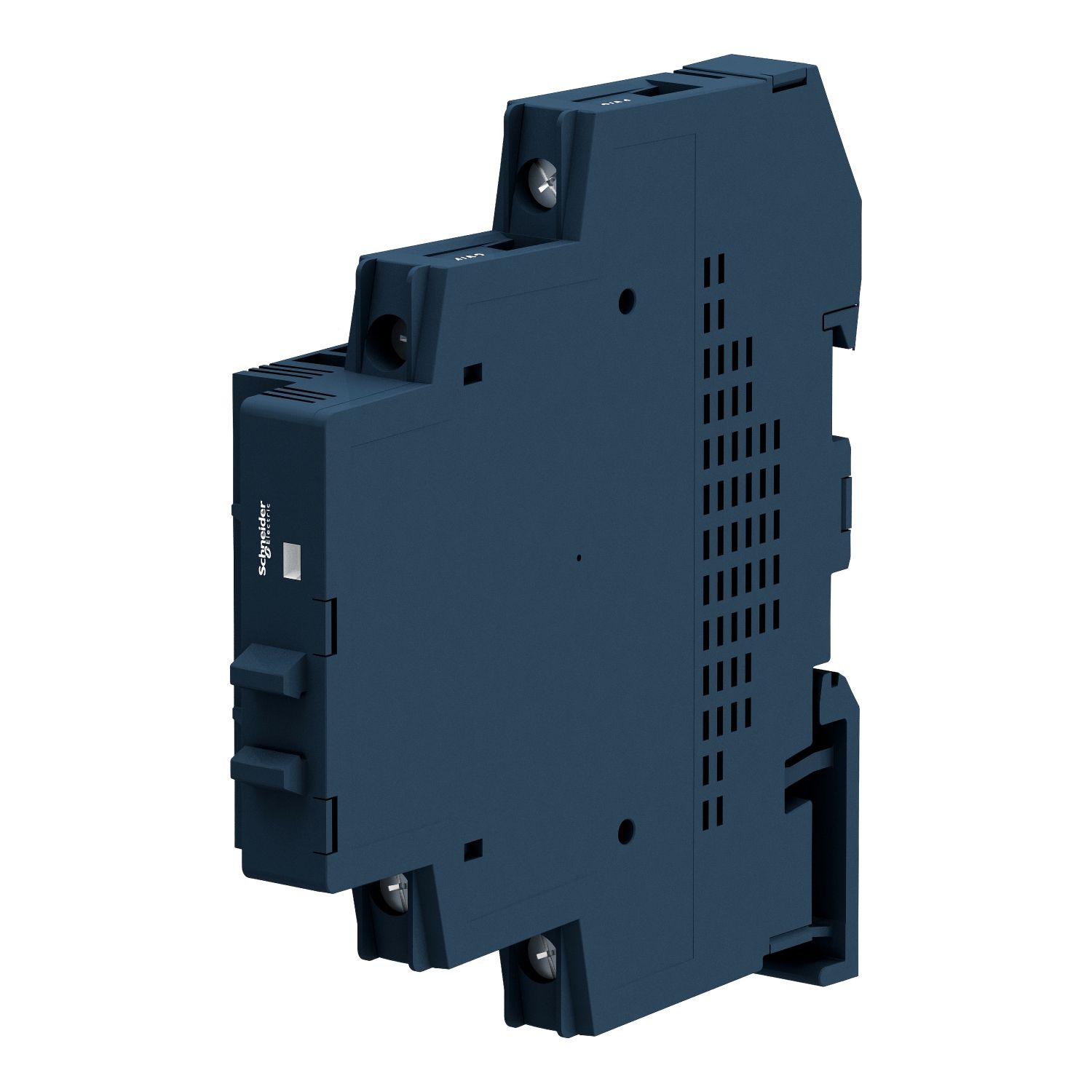

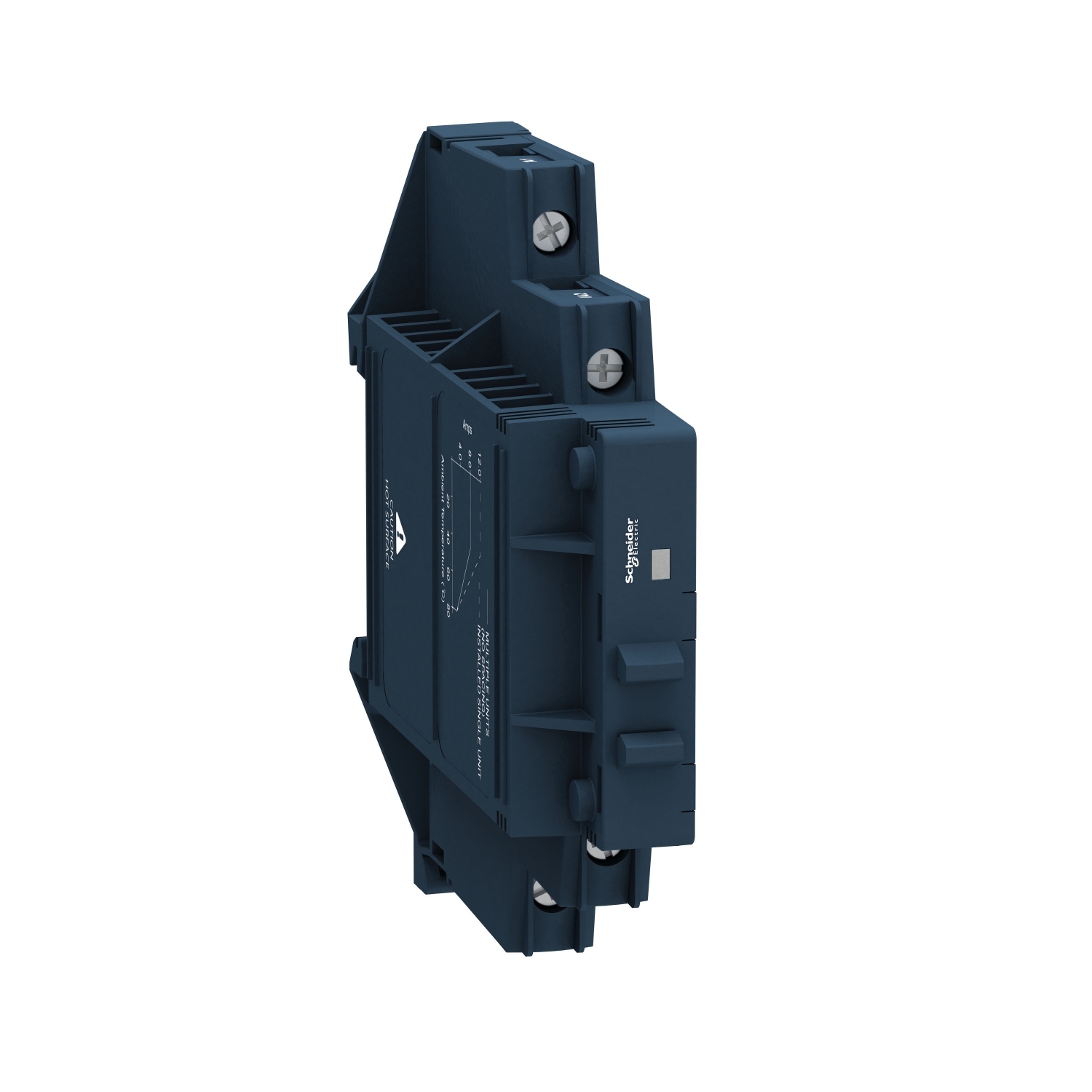

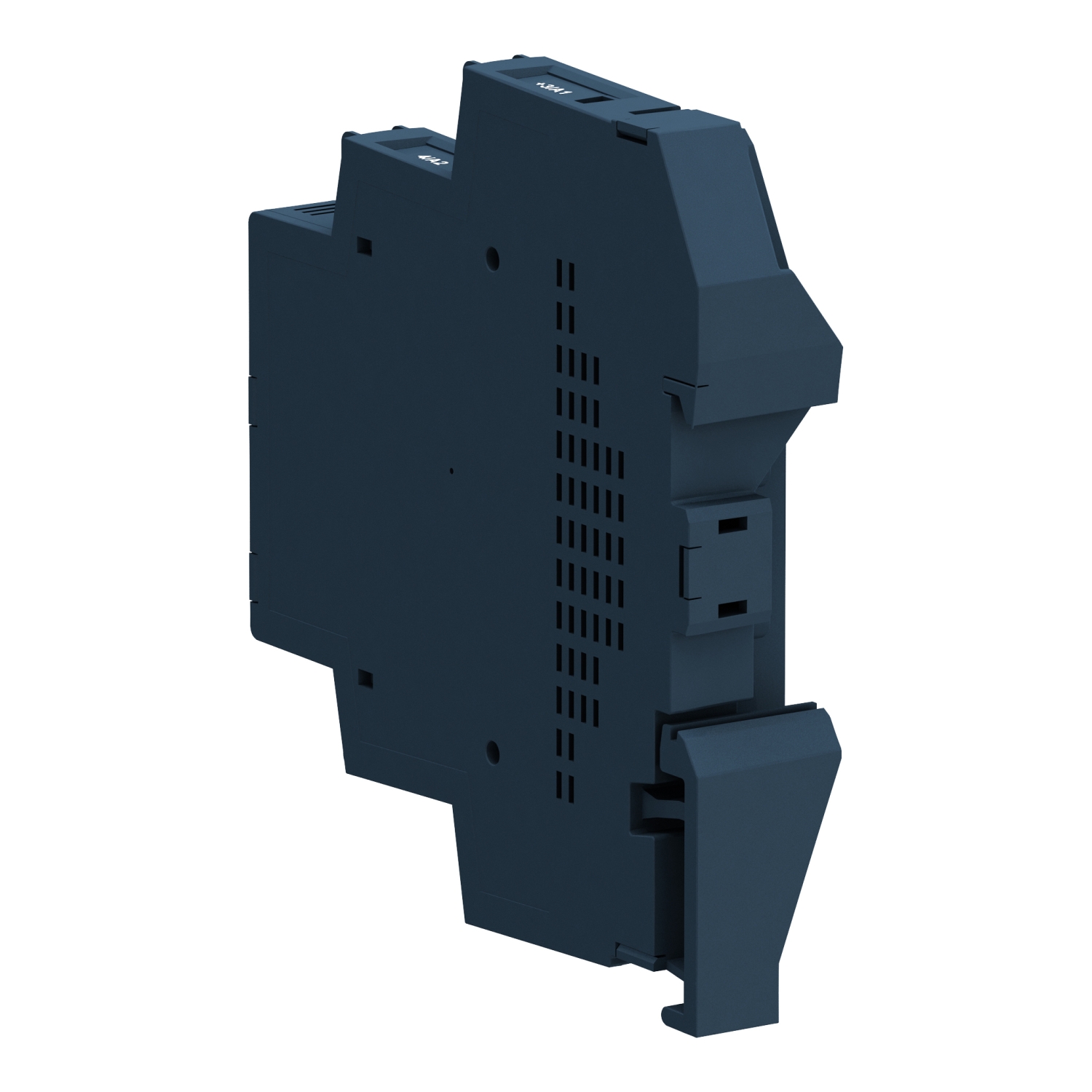

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 100V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSM |
| [Uc] control circuit voltage | 4...32 V |
| Number of channels | 1 |
| Network number of phases | 1 phase |
| Product or component type | solid state relay up to 20 A |
| Output switching mode | DC switching |
| Range of product | Harmony Solid State Relays |
| Connections - terminals | screw connectors |
| Complementary | |
| Depth | 83.7 mm |
| Overvoltage category | III |
| Input current limits | 9-11 mA |
| Width | 18 mm |
| [In] rated current | 12 A |
| Resistance | 0.045 Ohm on-state |
| Capacitance unbalance | 10 pF for input/output |
| Solid state output type | Mosfet output, DC switching |
| Maximum switching voltage | 1 V DC turn-off |
| Local signalling | LED (green) for input status |
| Absolute maximum voltage | 100 V |
| Device presentation | complete product |
| Maximum leakage current | 0.1 mA off-state |
| Minimum switching voltage | 4 V DC turn-on |
| Net weight | 0.09 kg |
| Load current | 0.0025-12 A |
| Response time | 0.3 ms (turn-off), 0.6 ms (turn-on) |
| Surge current | 100 A for 10 ms |
| Connections - terminals | screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output, screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input |
| Maximum voltage drop | <0.5 V on-state |
| Mounting support | symmetrical DIN rail |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Tightening torque | 0.5...0.8 N.m for output, 0.5...0.8 N.m for input |
| Output voltage | 1...100 V DC |
| Height | 90.3 mm |
| [Uc] control circuit voltage | 4...32 V DC |
| Environment | |
| Ambient air temperature for storage | -30-100 °C |
| Flame retardance | V0 conforming to UL 94 |
| IP degree of protection | IP20 |
| Marking | CE |
| Dielectric strength | 4 kV DC for input or output to case, 4 kV DC for input/output |
| Pollution degree | 2 |
| Standards | IEC 61000, IEC 62314, IEC 60950-1 |
| Ambient air temperature for operation | -30-80 °C |
| Product certifications | UL, CSA |
