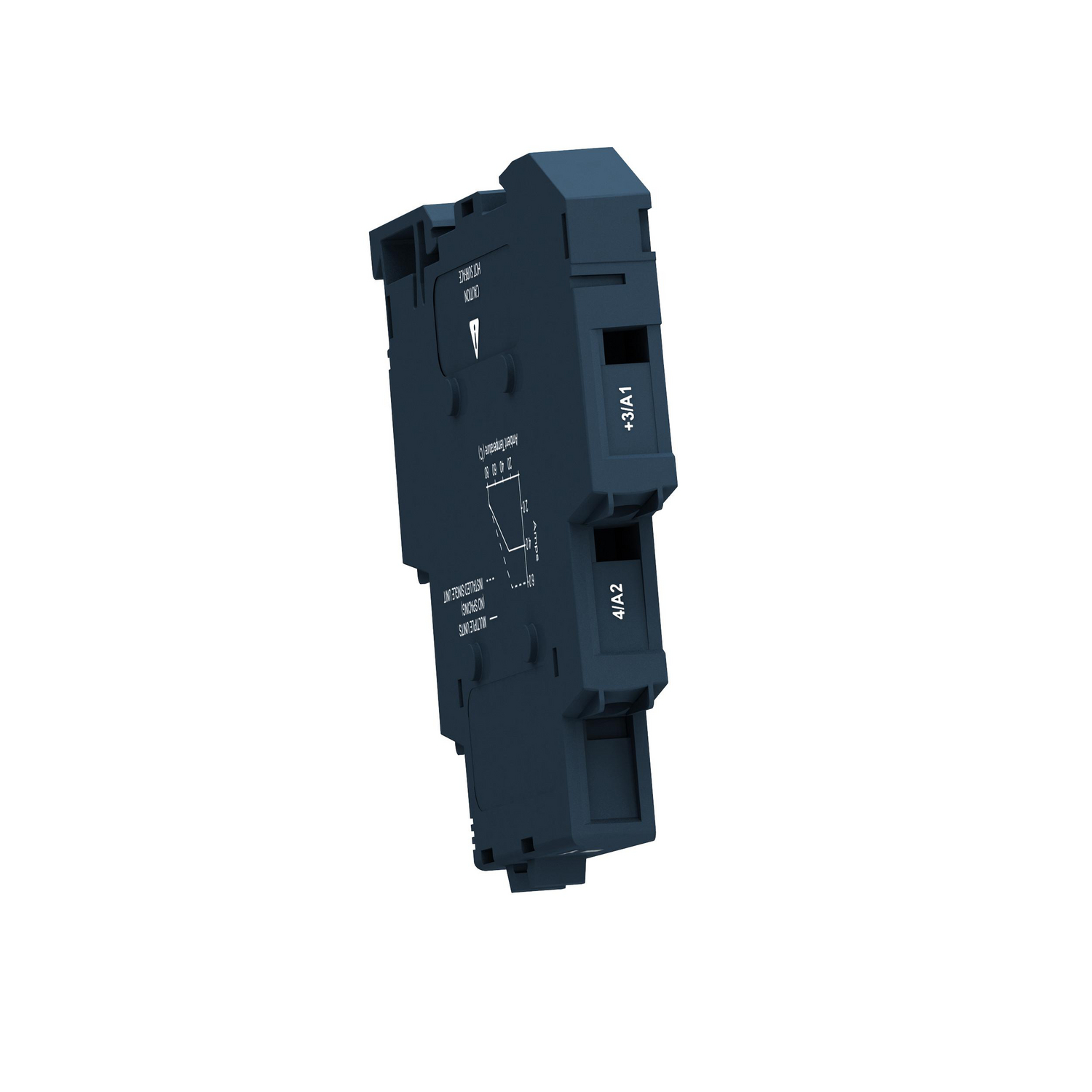

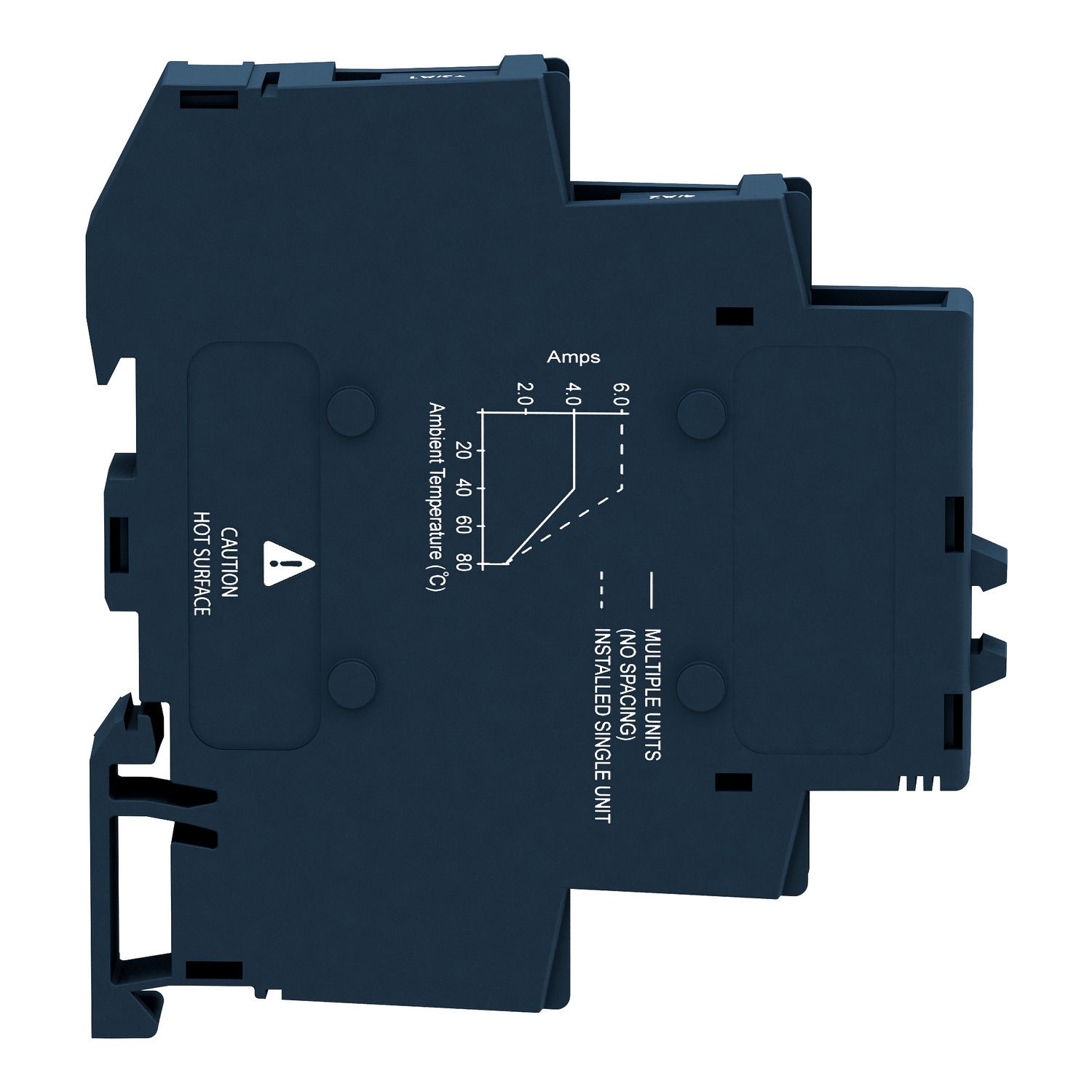

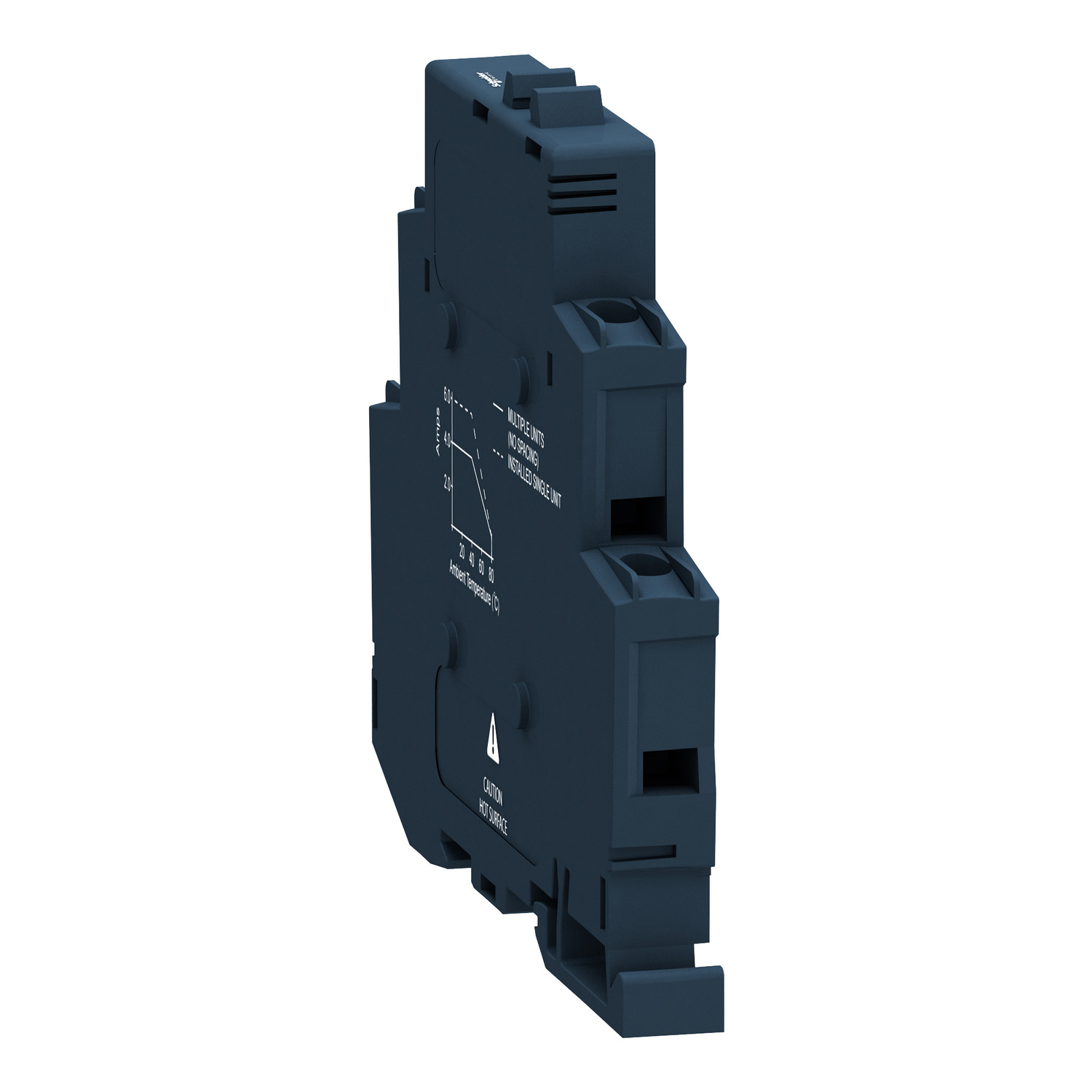

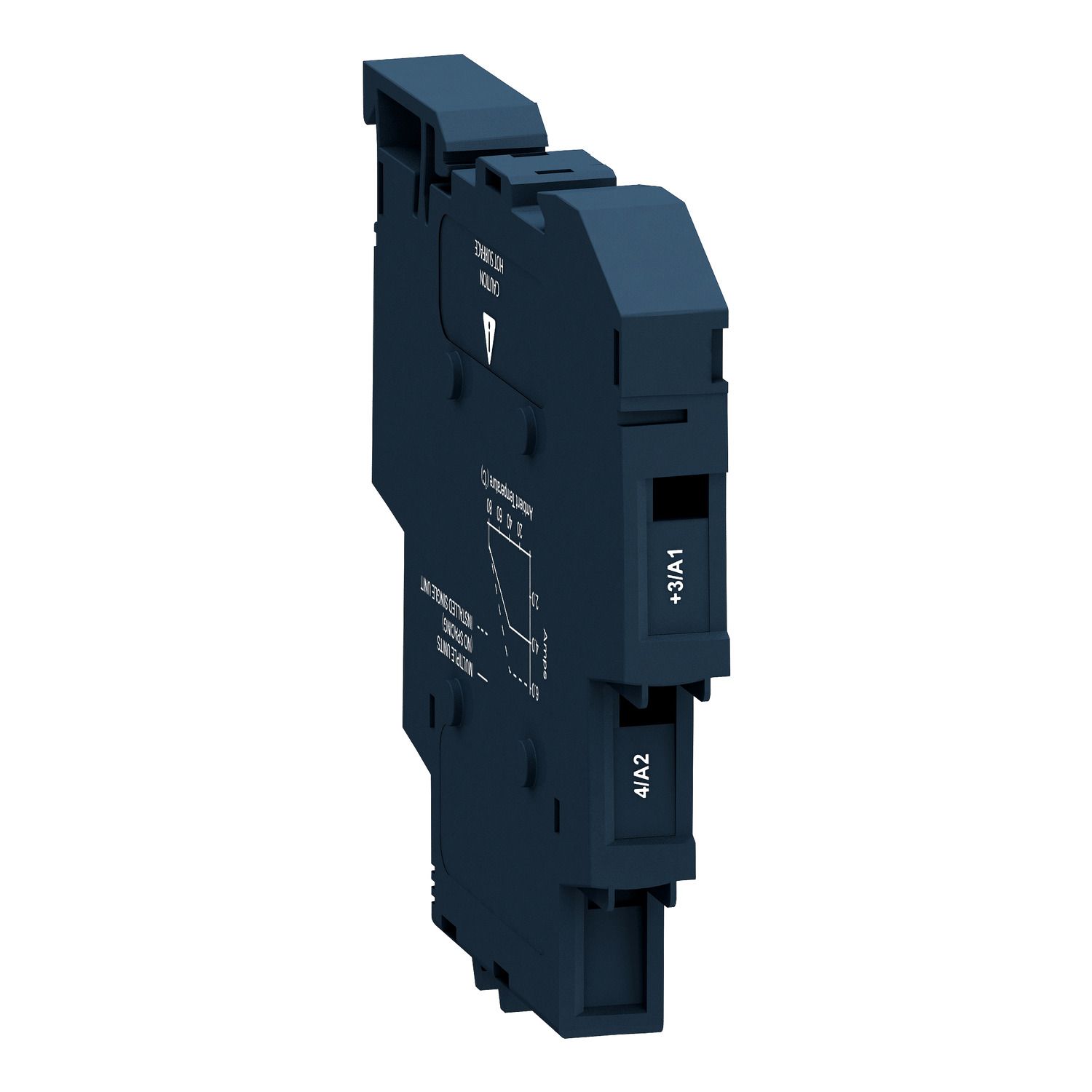

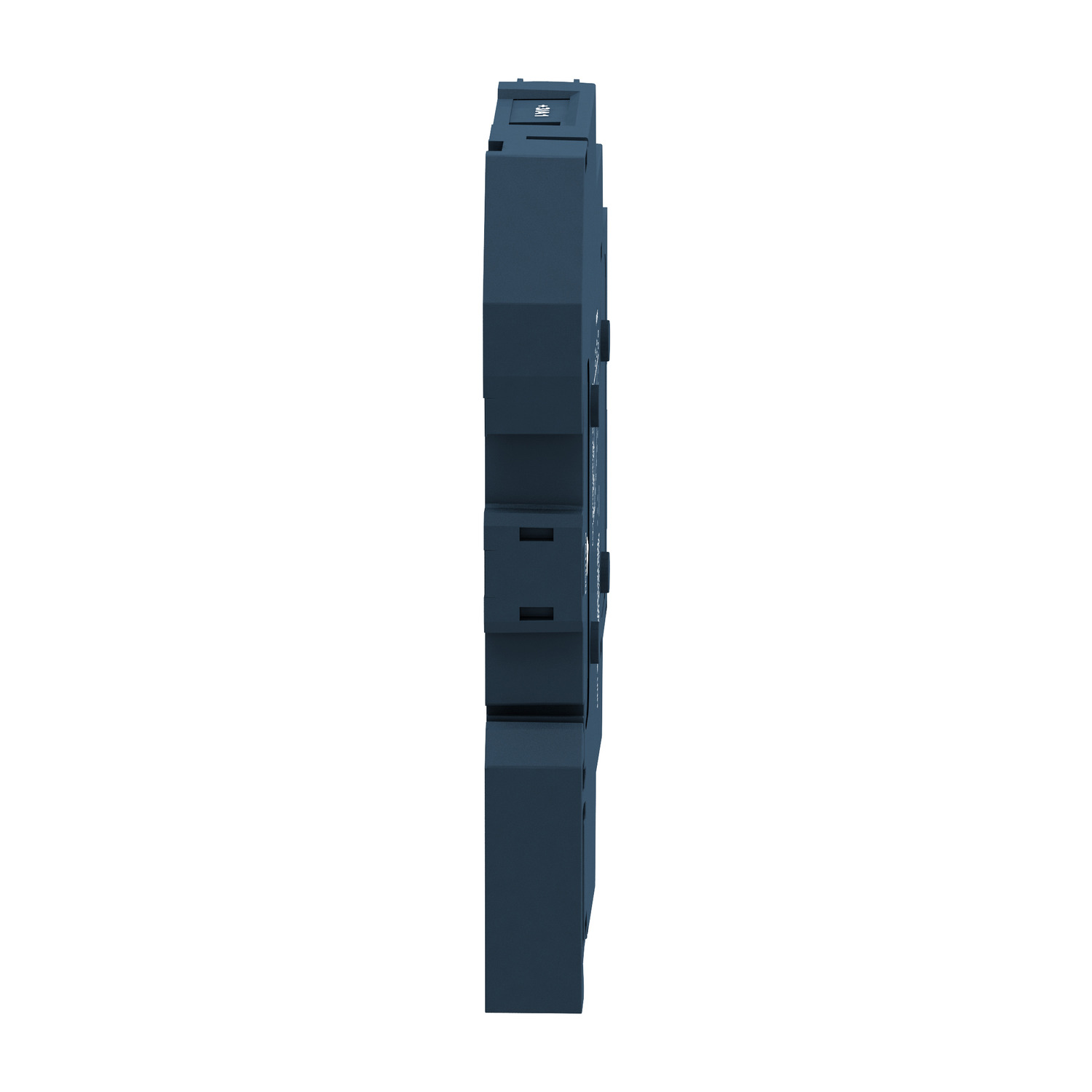

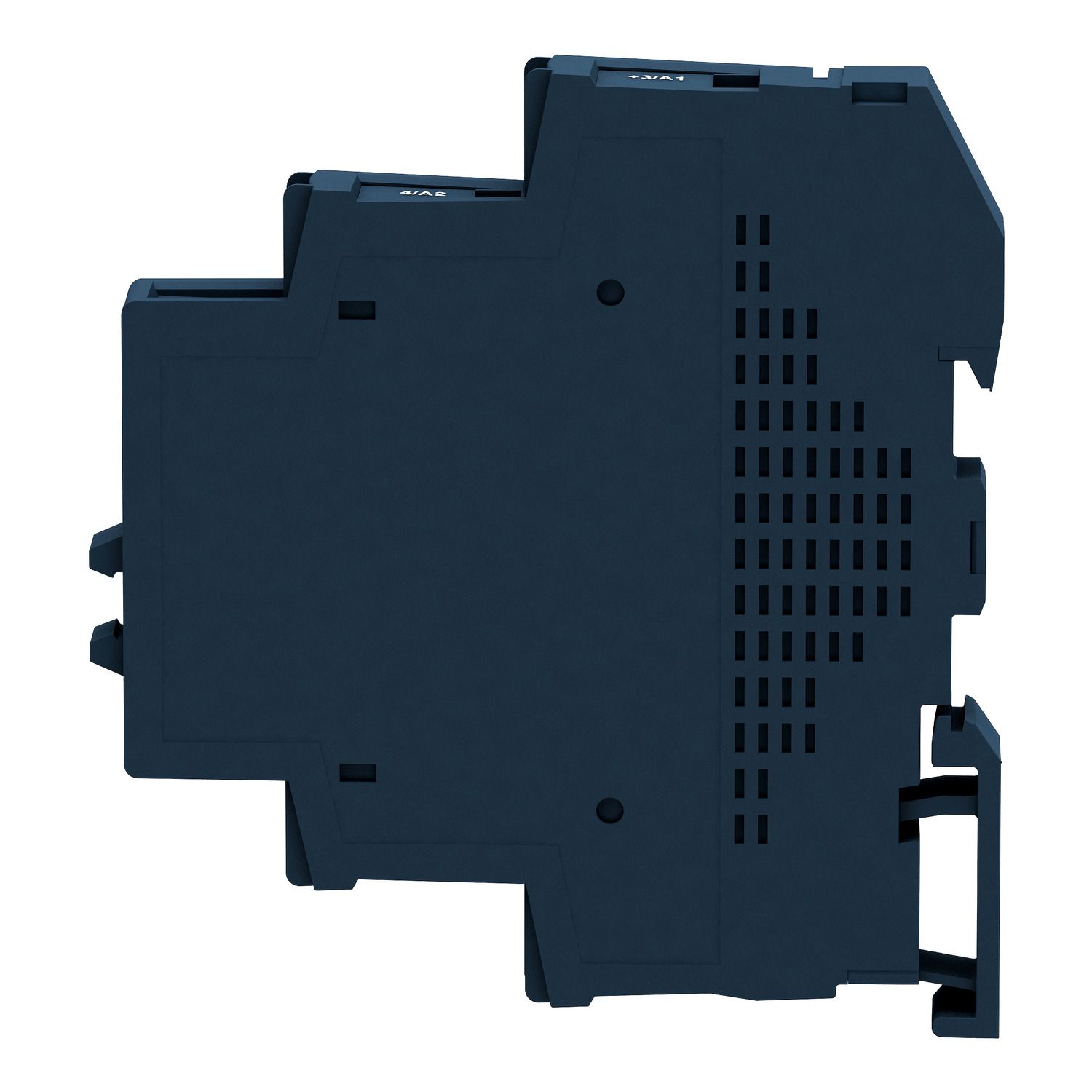

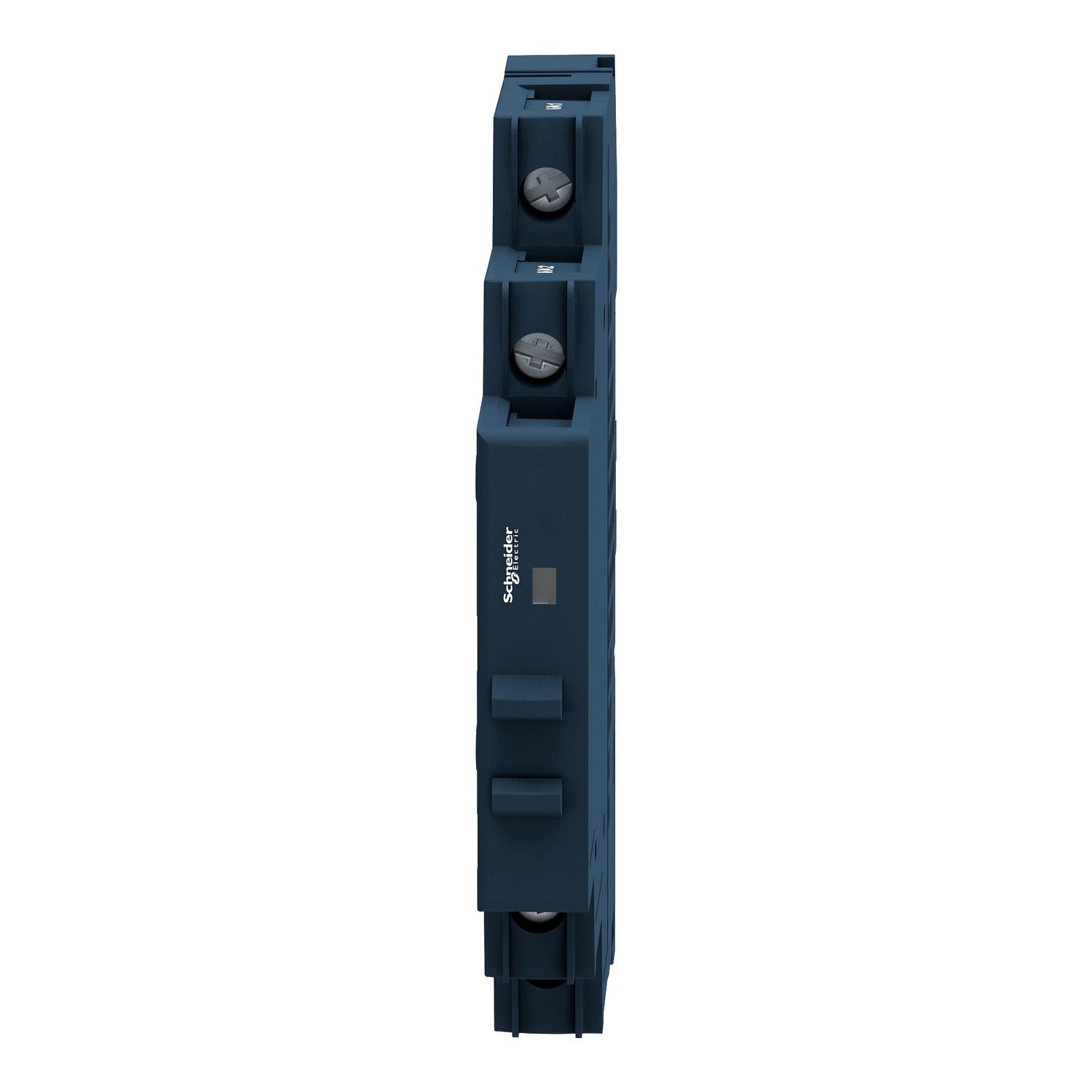

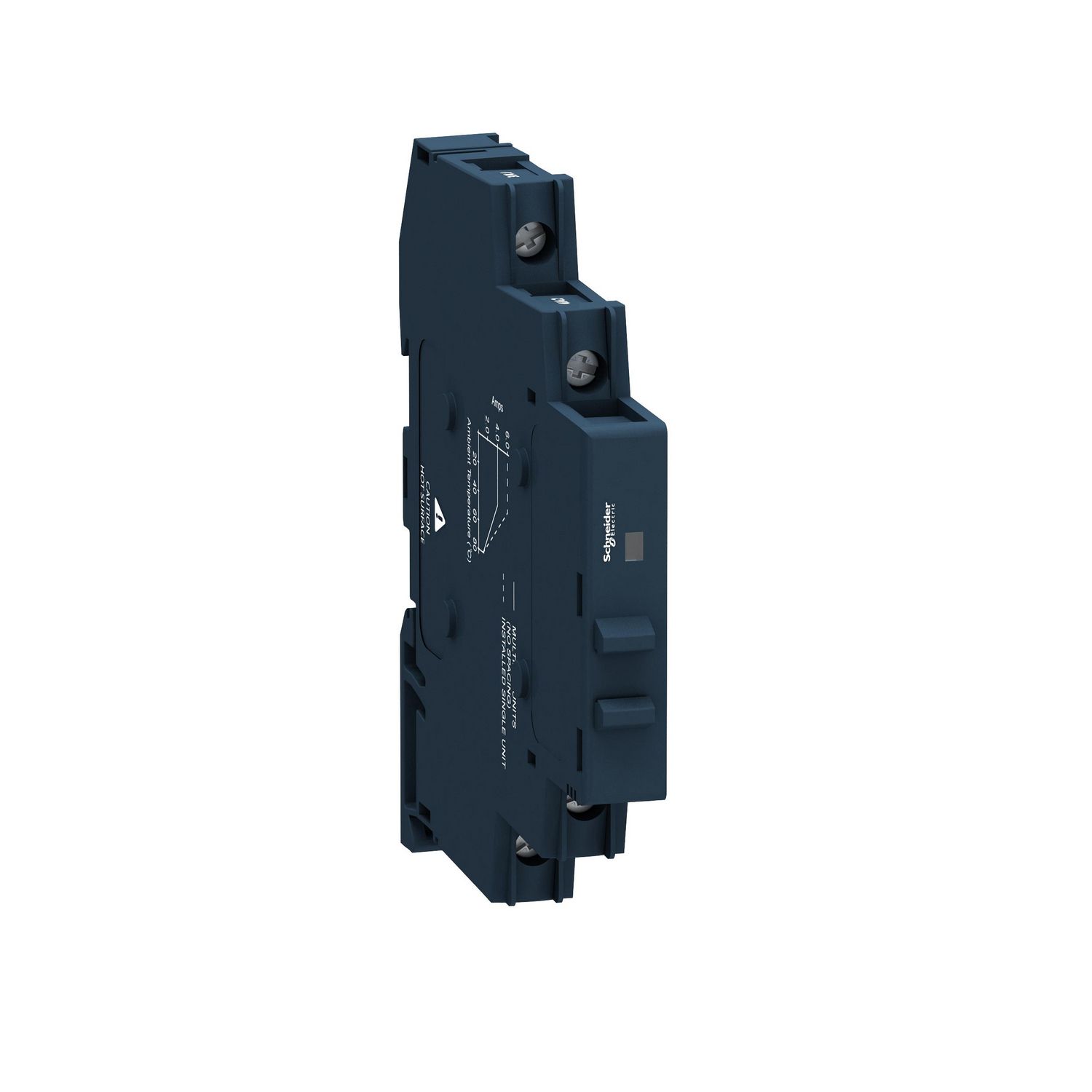

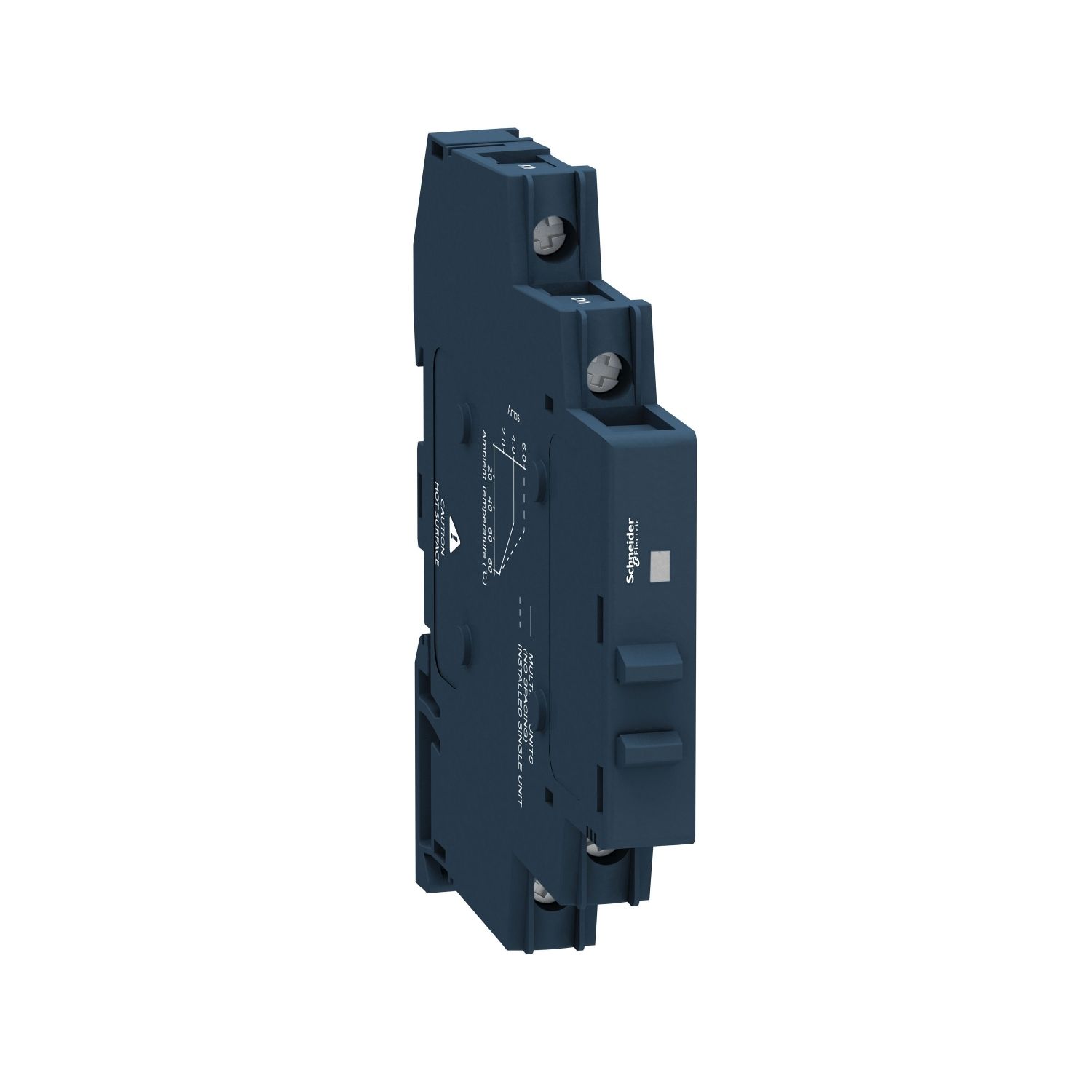

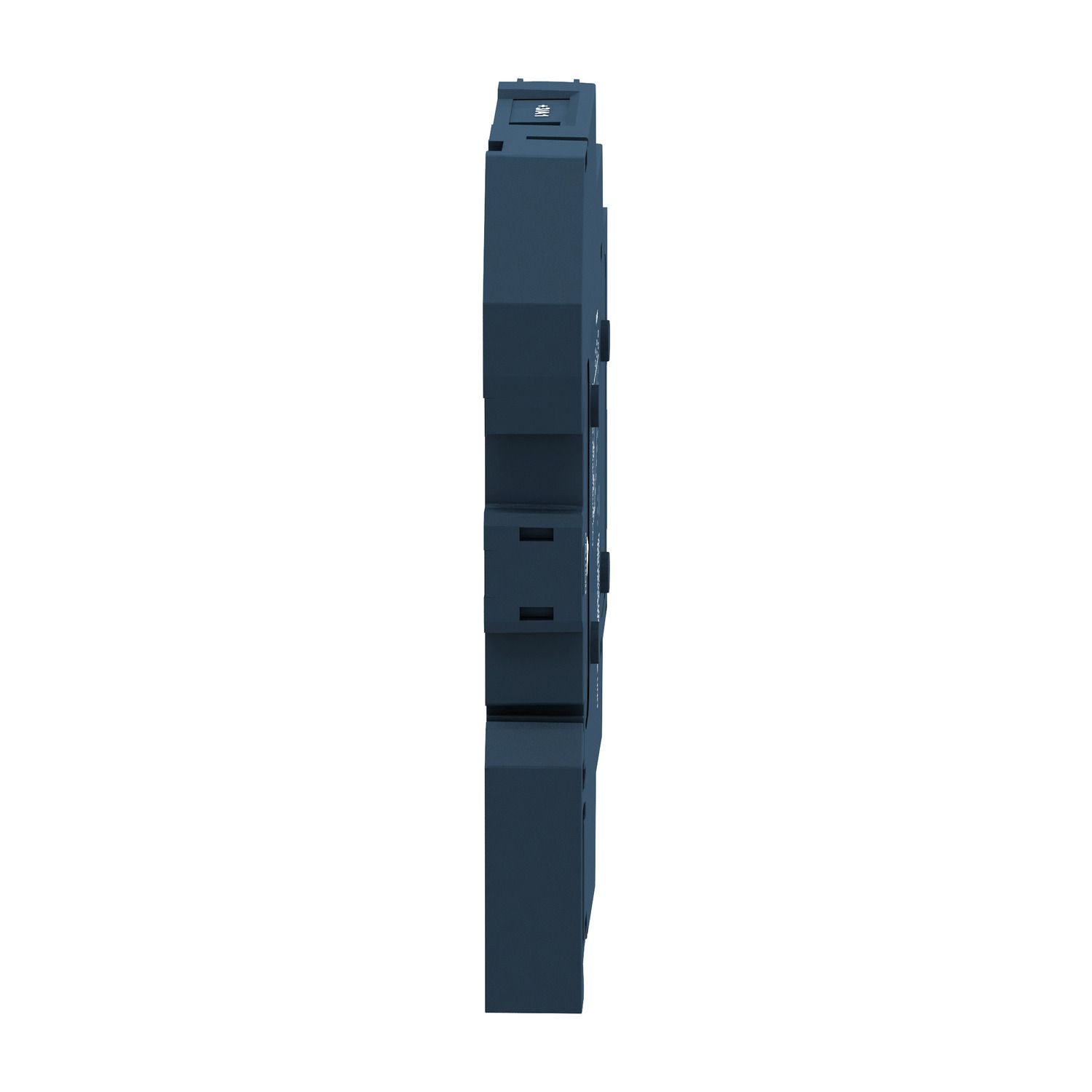

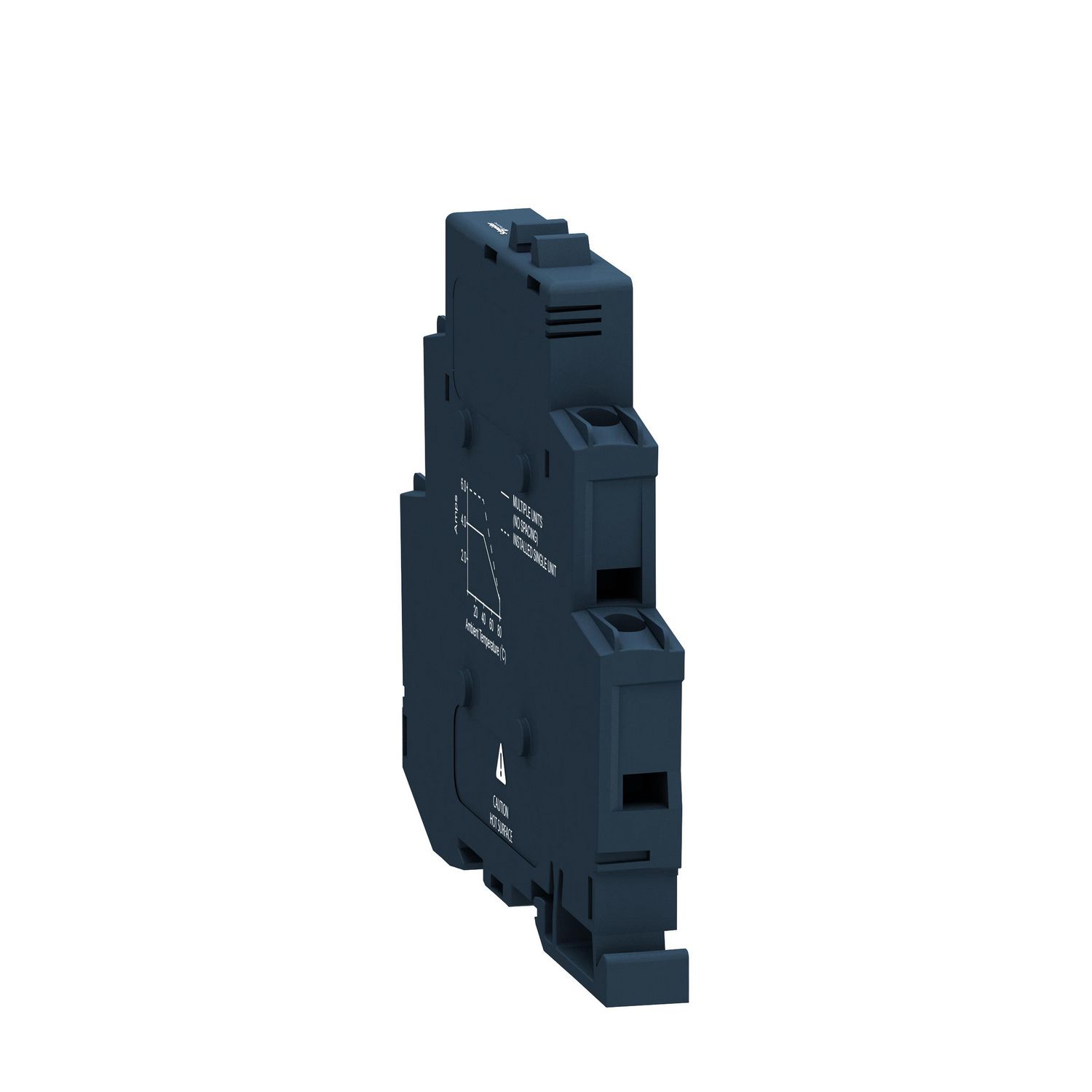

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSM |
| [Uc] control circuit voltage | 4...32 V |
| Number of channels | 1 |
| Range of product | Harmony Solid State Relays |
| Network number of phases | 1 phase |
| Product or component type | solid state relay up to 10 A |
| Output switching mode | DC switching |
| Connections - terminals | screw connectors |
| Complementary | |
| Input current limits | 8-11 mA |
| Maximum switching voltage | 1 V DC turn-off |
| Device presentation | complete product |
| Minimum switching voltage | 4 V DC turn-on |
| Connections - terminals | screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output, screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input |
| Maximum voltage drop | <0.6 V on-state |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Output voltage | 1...60 V DC |
| Height | 90.3 mm |
| Depth | 83.7 mm |
| Overvoltage category | III |
| Width | 11 mm |
| [In] rated current | 6 A |
| Resistance | 0.1 Ohm on-state |
| Capacitance unbalance | 10 pF for input/output |
| Solid state output type | DC switching, Mosfet output |
| Local signalling | LED (green) for input status |
| Absolute maximum voltage | 60 V |
| Maximum leakage current | 0.1 mA off-state |
| Net weight | 0.05 kg |
| Load current | 0.0025-6 A |
| Response time | 0.3 ms (turn-off), 0.6 ms (turn-on) |
| Surge current | 60 A for 10 ms |
| Mounting support | symmetrical DIN rail |
| Tightening torque | 0.5...0.8 N.m for output, 0.5...0.8 N.m for input |
| [Uc] control circuit voltage | 4...32 V DC |
| Environment | |
| Ambient air temperature for storage | -30-100 °C |
| IP degree of protection | IP20 |
| Marking | CE |
| Pollution degree | 2 |
| Ambient air temperature for operation | -30-80 °C |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 4 kV DC for input or output to case, 4 kV DC for input/output |
| Standards | IEC 60950-1, IEC 62314, IEC 61000 |
| Product certifications | CSA, UL |
