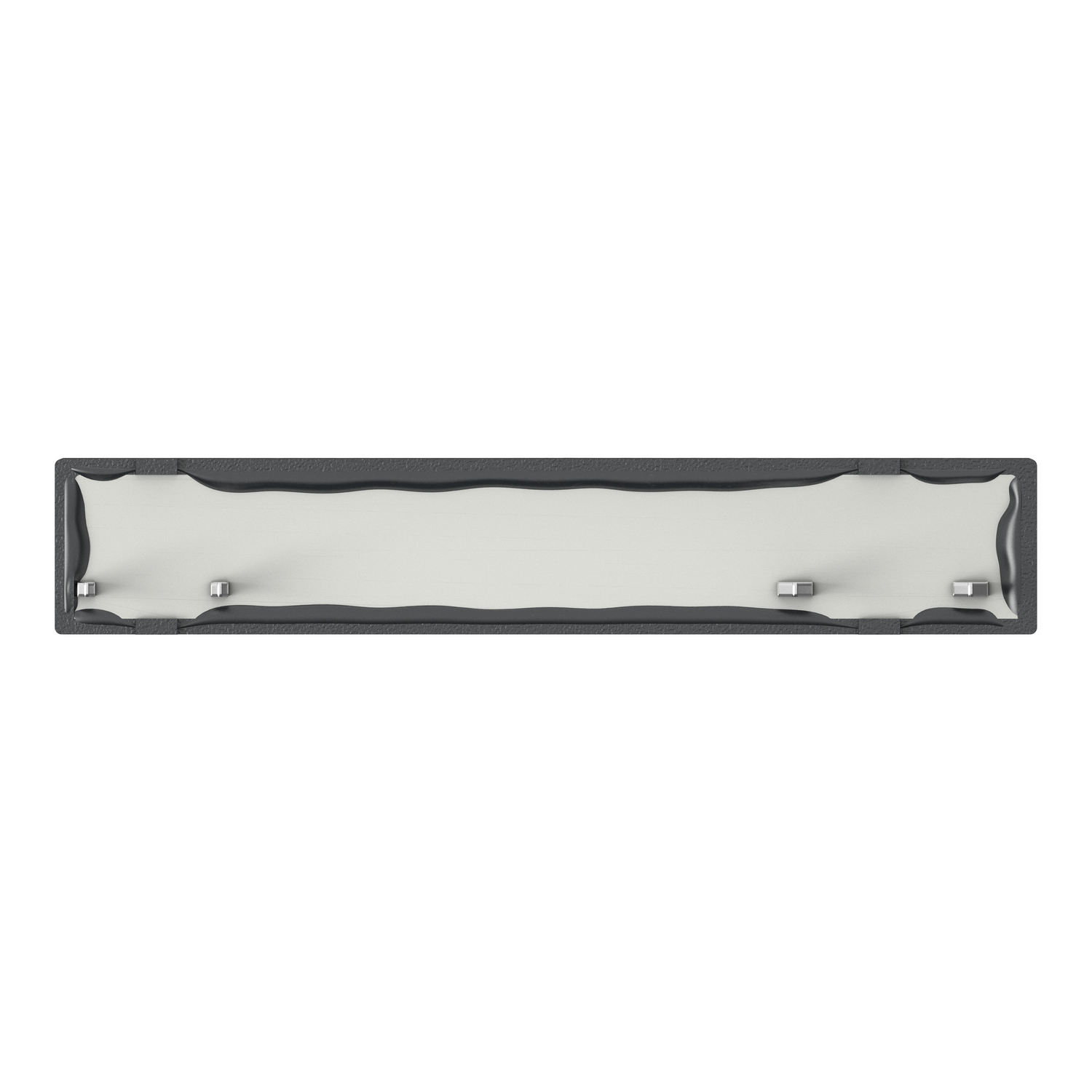

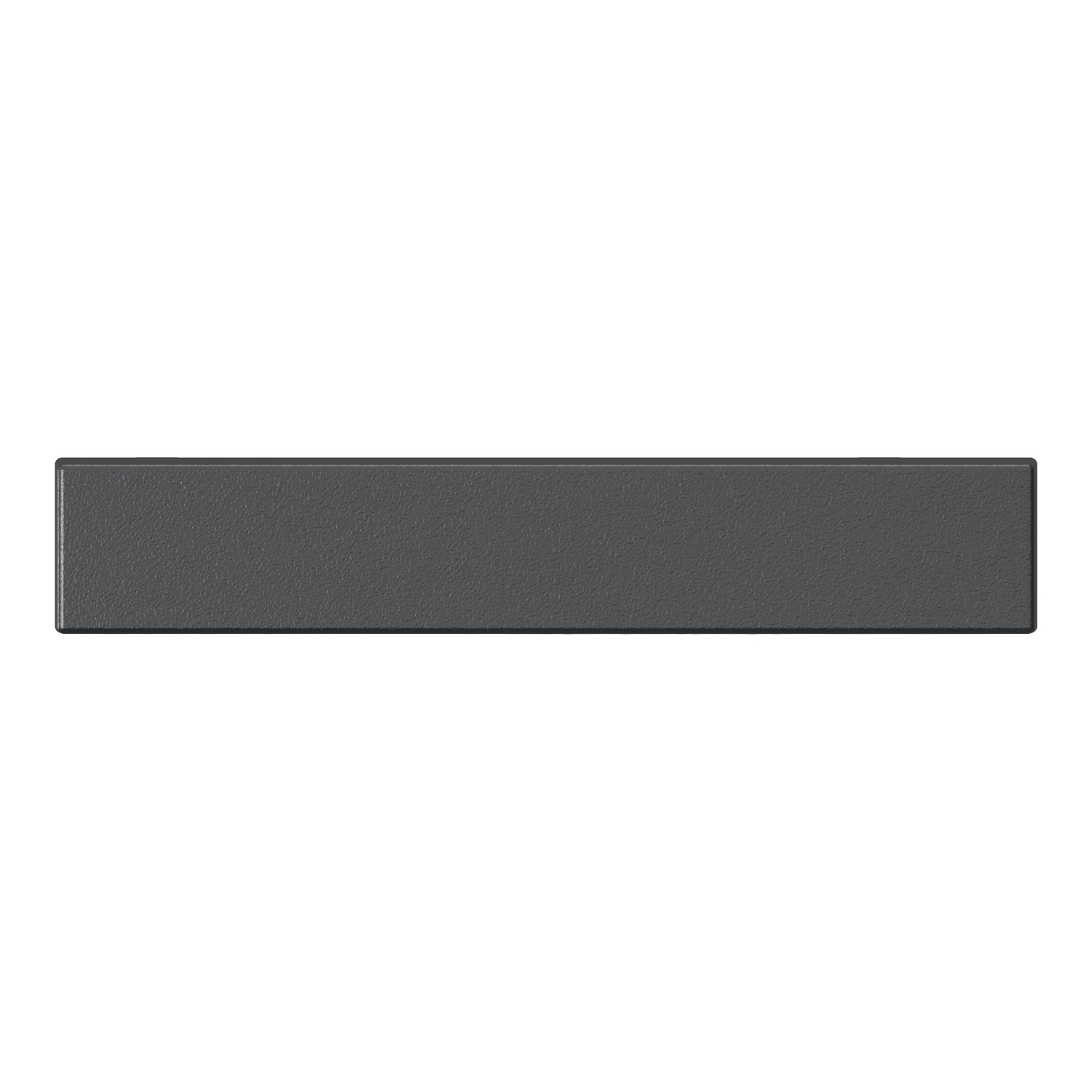

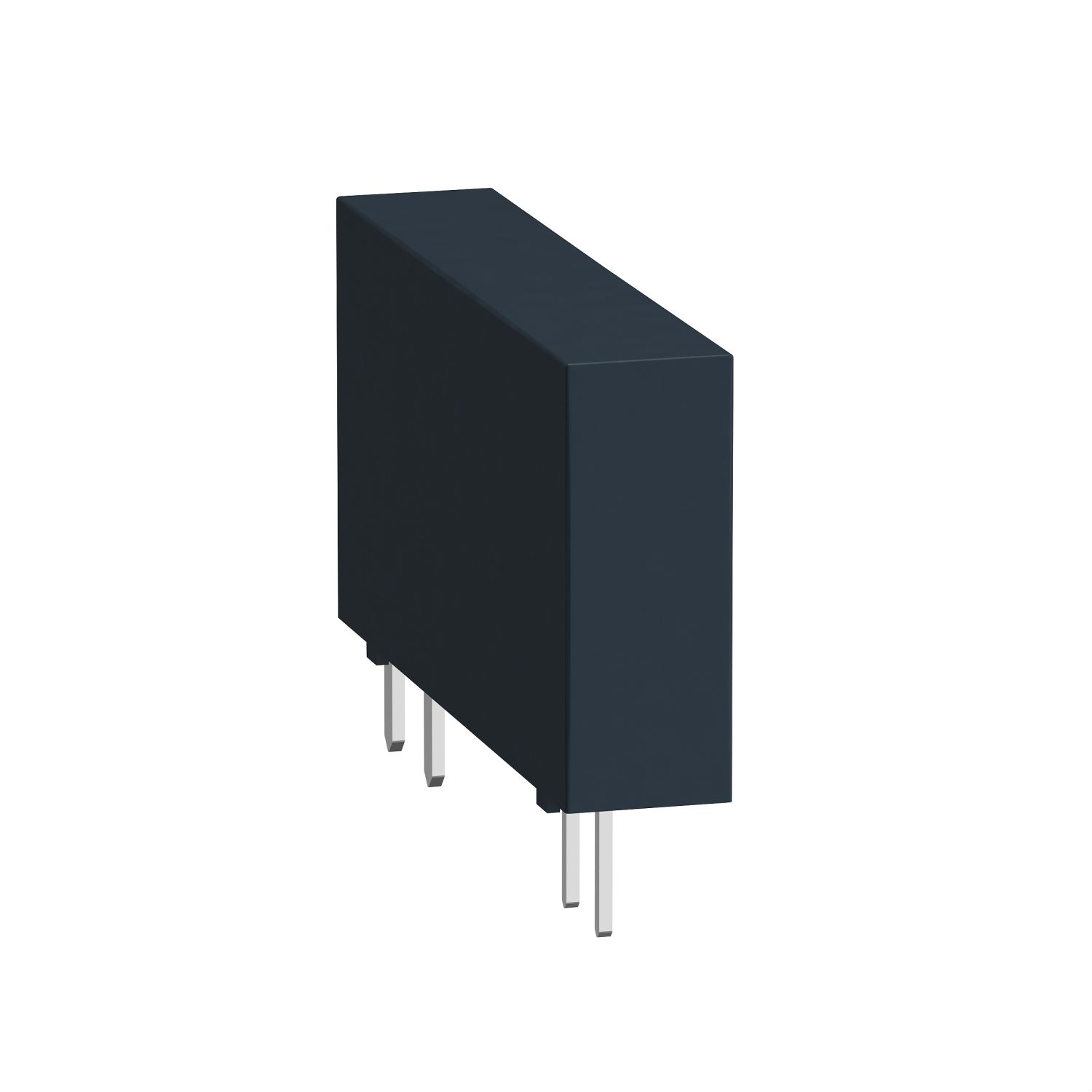

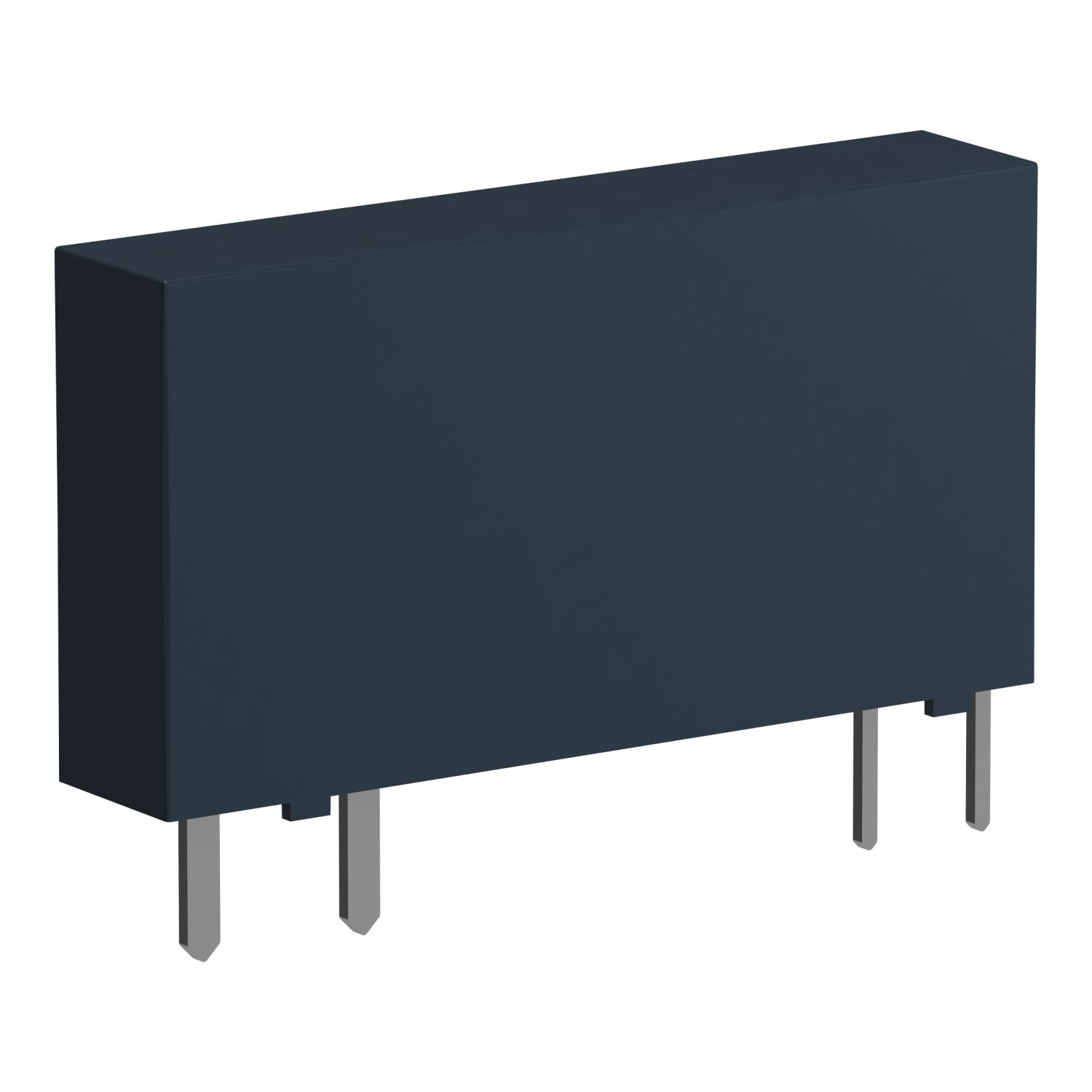

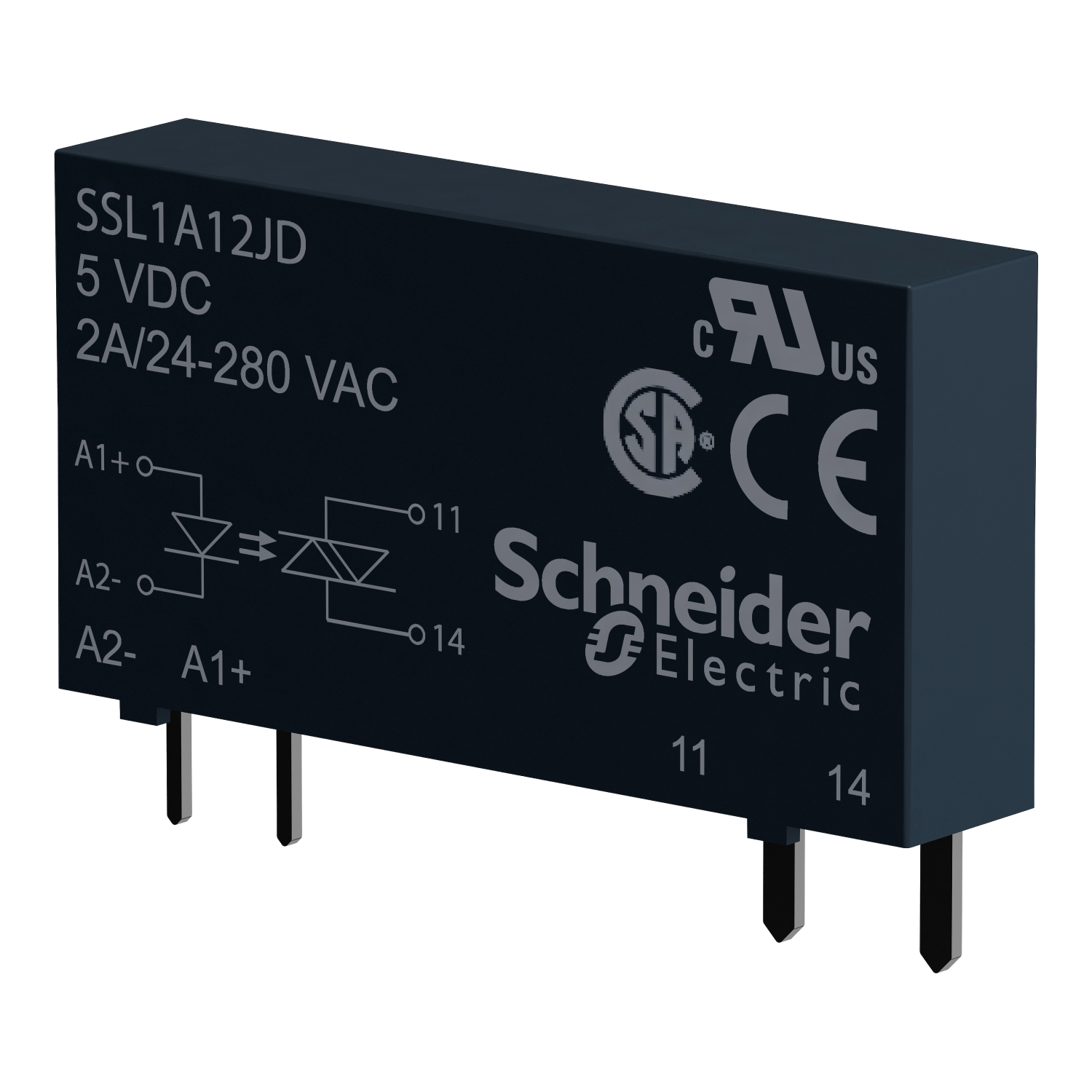

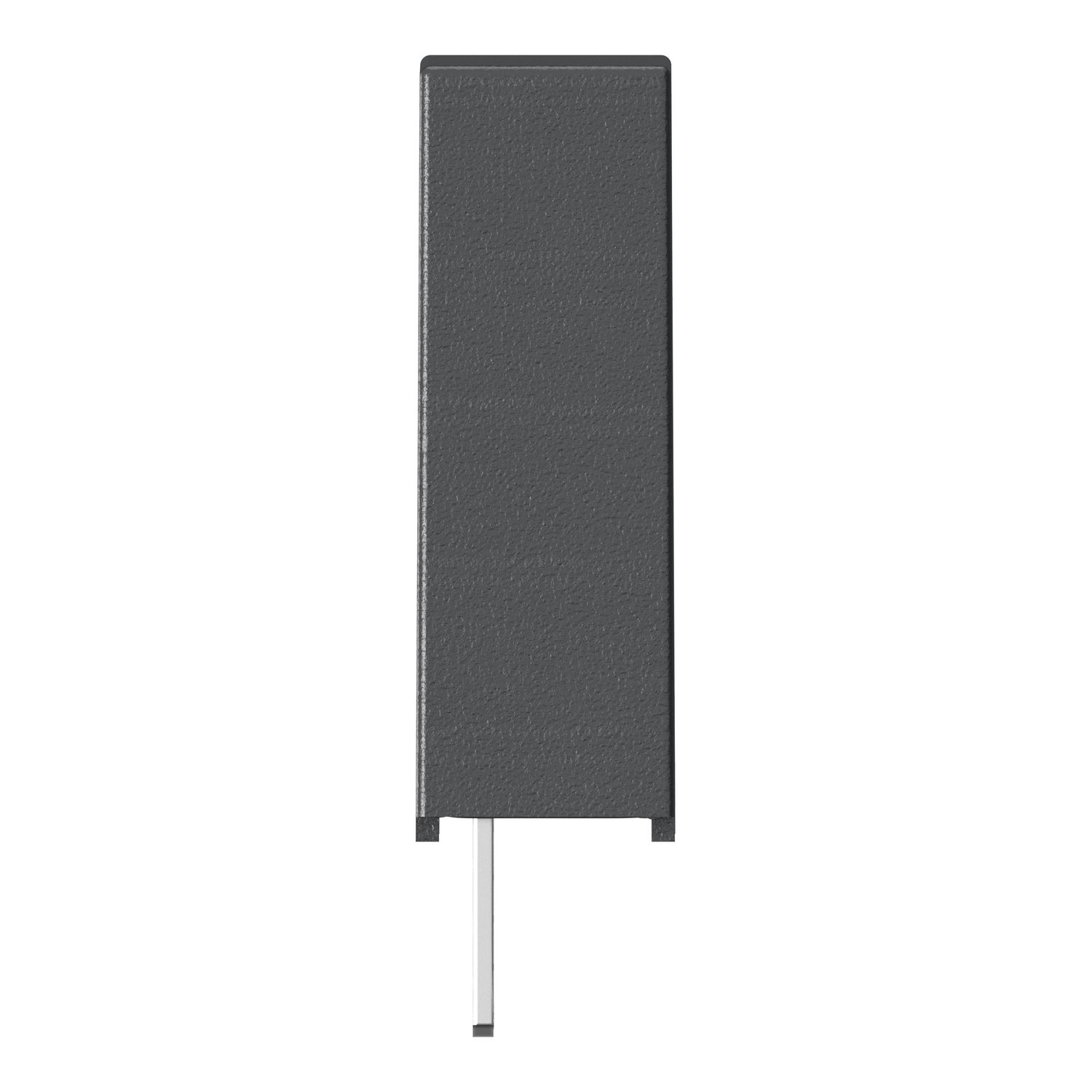

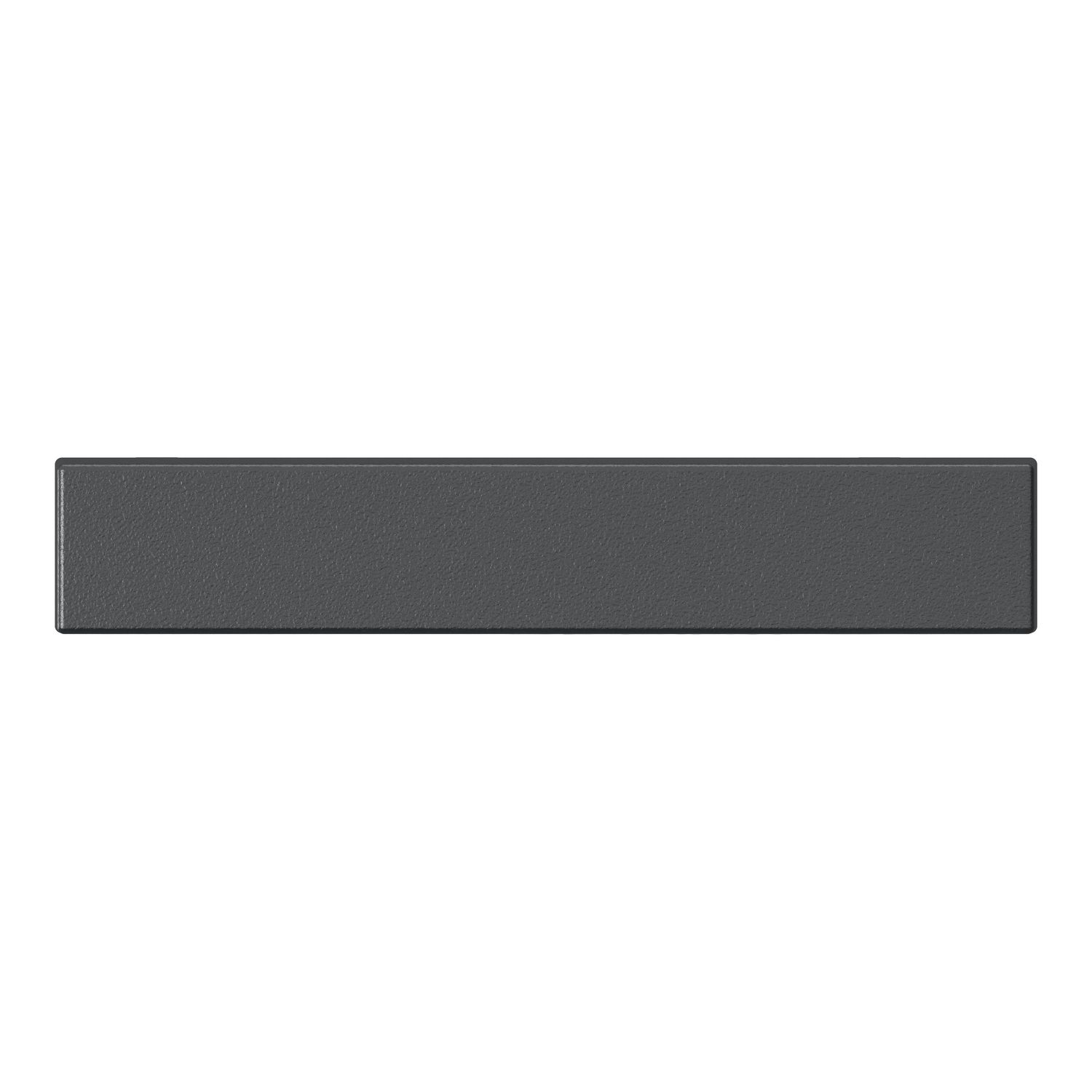

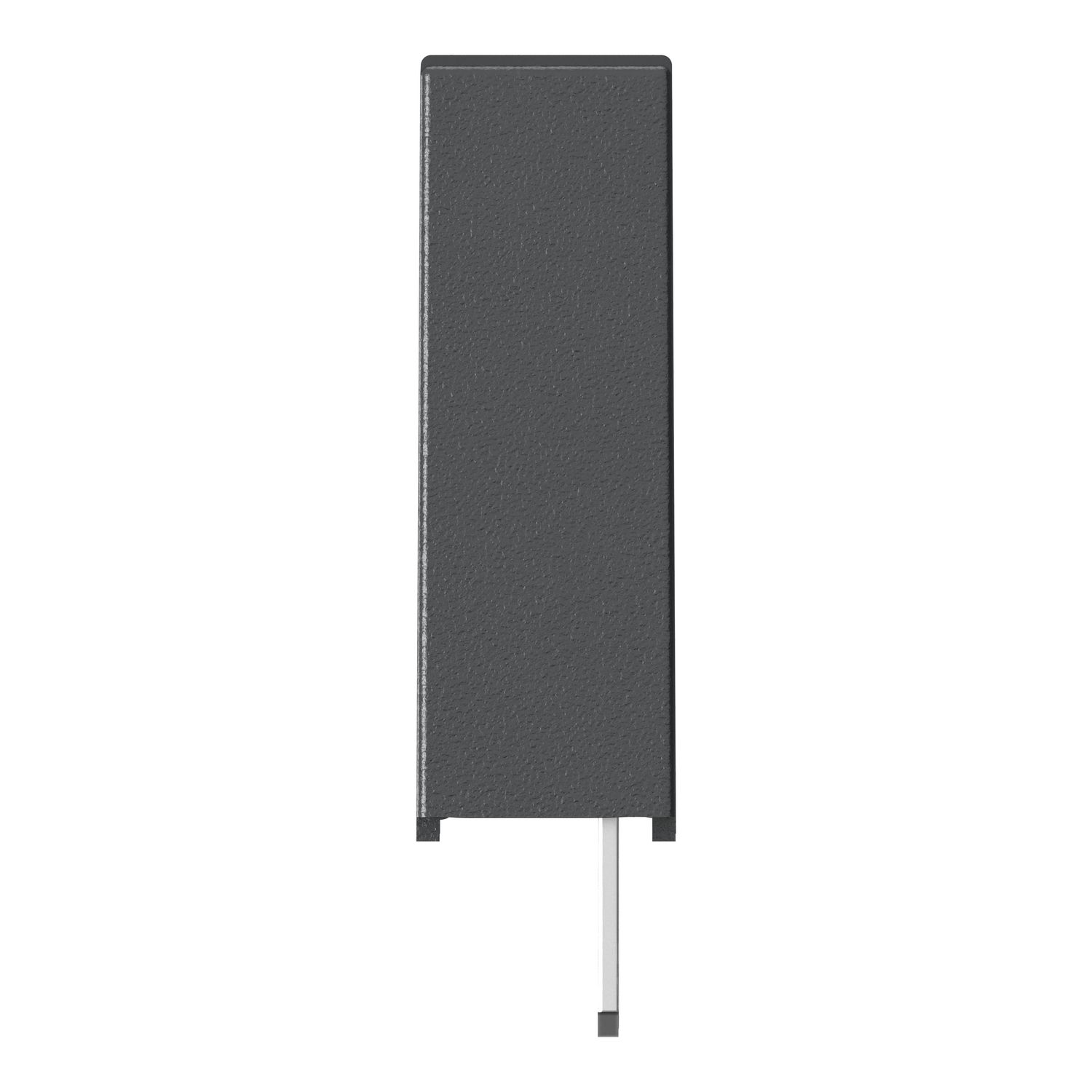

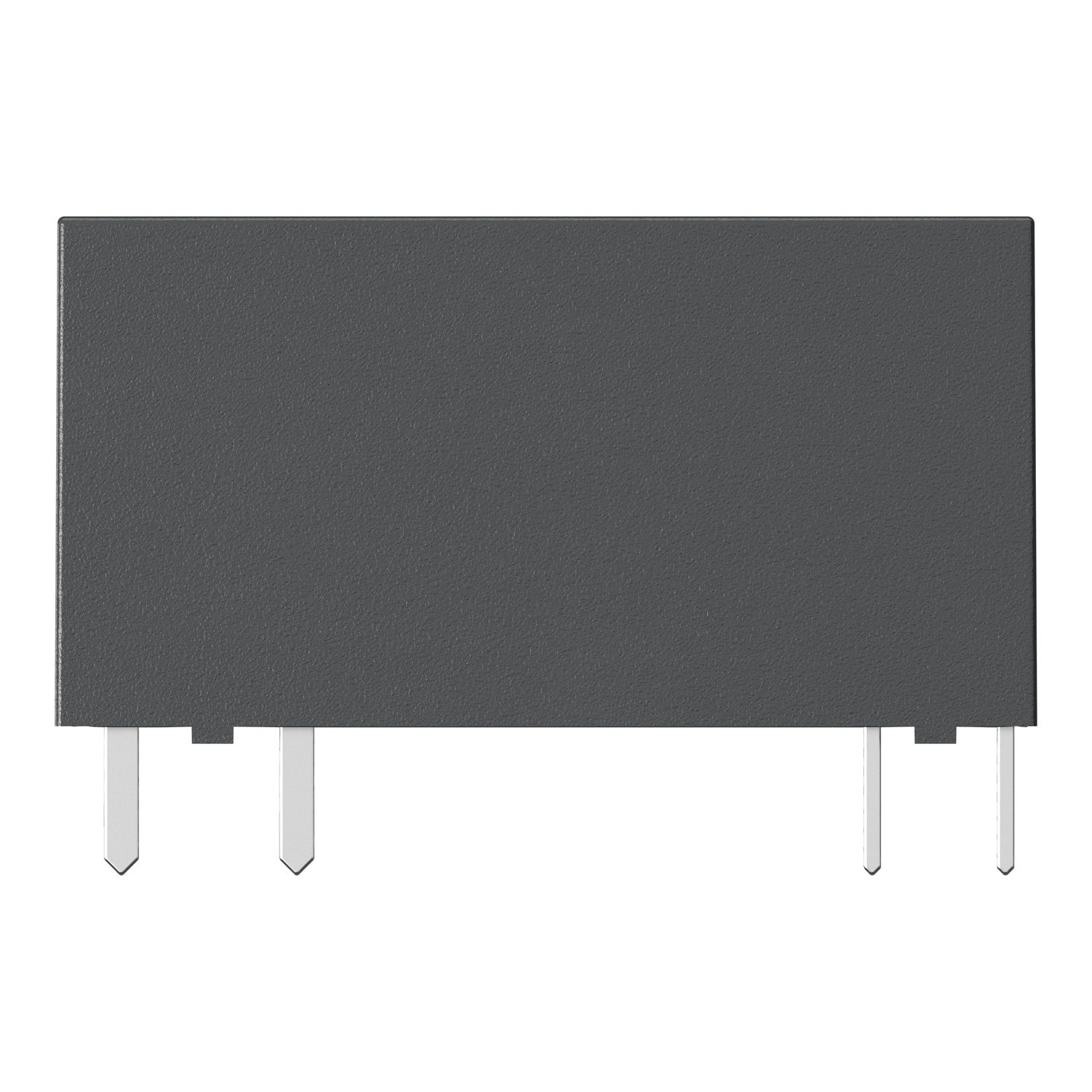

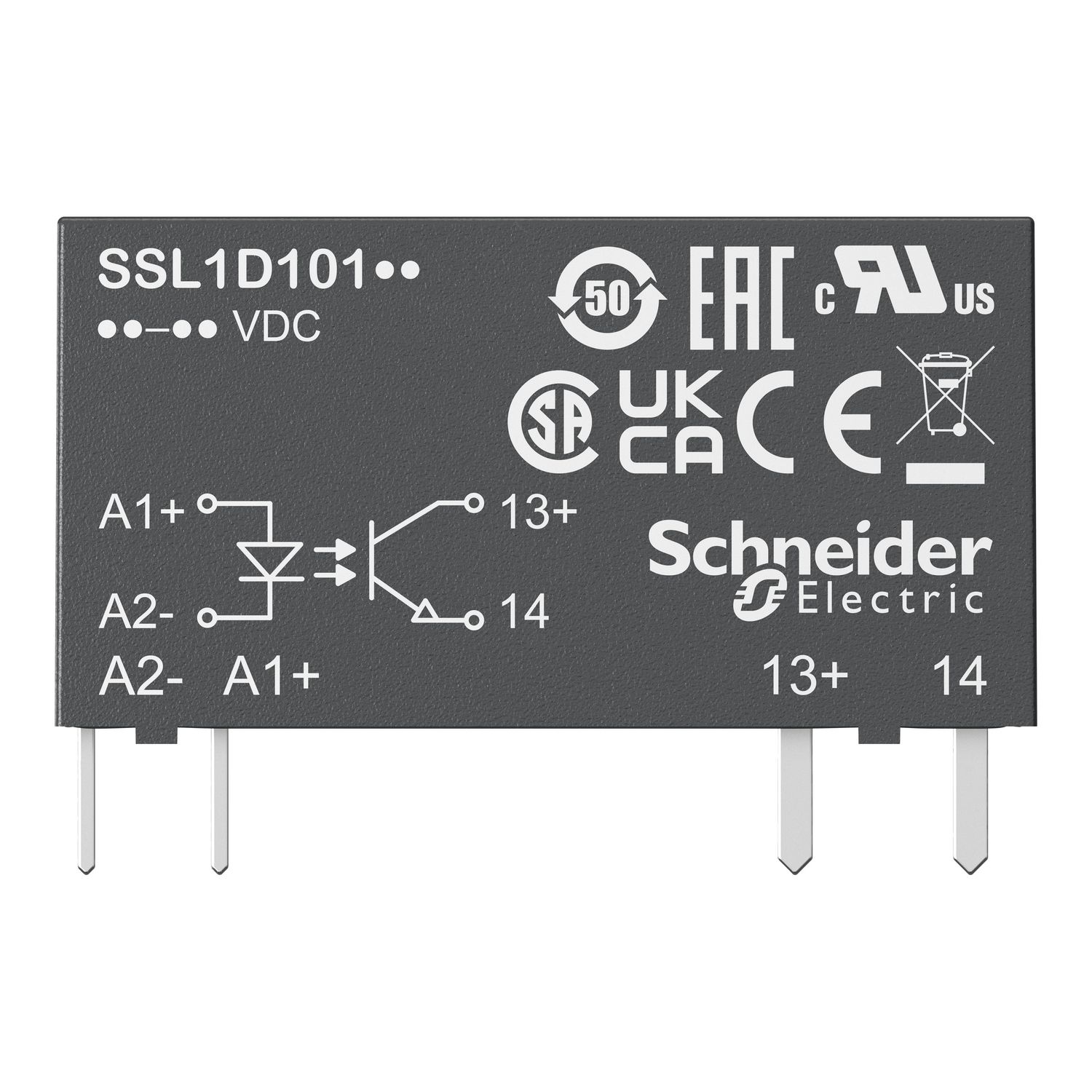

This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 3V to 12V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSL |
| [Uc] control circuit voltage | 3...12 V |
| Range of product | Harmony Solid State Relays |
| Network number of phases | 1 phase |
| Product or component type | solid state relay up to 10 A |
| Output switching mode | zero voltage switching |
| Complementary | |
| Maximum switching voltage | 1 V DC turn-off |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Input current limits | 15-15 mA |
| Device presentation | complete product |
| Minimum switching voltage | 3 V DC turn-on |
| Maximum voltage drop | <1.1 V on-state |
| Output voltage | 24...280 V AC |
| Height | 28 mm |
| Depth | 15 mm |
| Overvoltage category | III |
| Width | 5 mm |
| [In] rated current | 2 A |
| Capacitance unbalance | 1.5 pF input/output |
| Solid state output type | SCR output, random voltage switching |
| Input impedance | 333 kOhm |
| Absolute maximum voltage | 600 V AC |
| Maximum leakage current | 4 mA off-state |
| Net weight | 0.0041 kg |
| Load current | 0.07-2 A |
| Surge current | 115 A for 20 ms, 120 A for 16.6 ms |
| Response time | 0.5 cycle (turn-off), 0.5 cycle (turn-on) |
| Maximum I²t for fusing | 60 A².s for 8.3 ms at 60 Hz, 66 A².s for 10 ms at 50 Hz |
| Mounting support | socket |
| [Uc] control circuit voltage | 3...12 V DC |
| Environment | |
| Ambient air temperature for storage | -20-85 °C |
| Marking | CE |
| Pollution degree | 2 |
| Ambient air temperature for operation | -20-80 °C |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 2500 V for input/output |
| Product certifications | UL, CSA |
