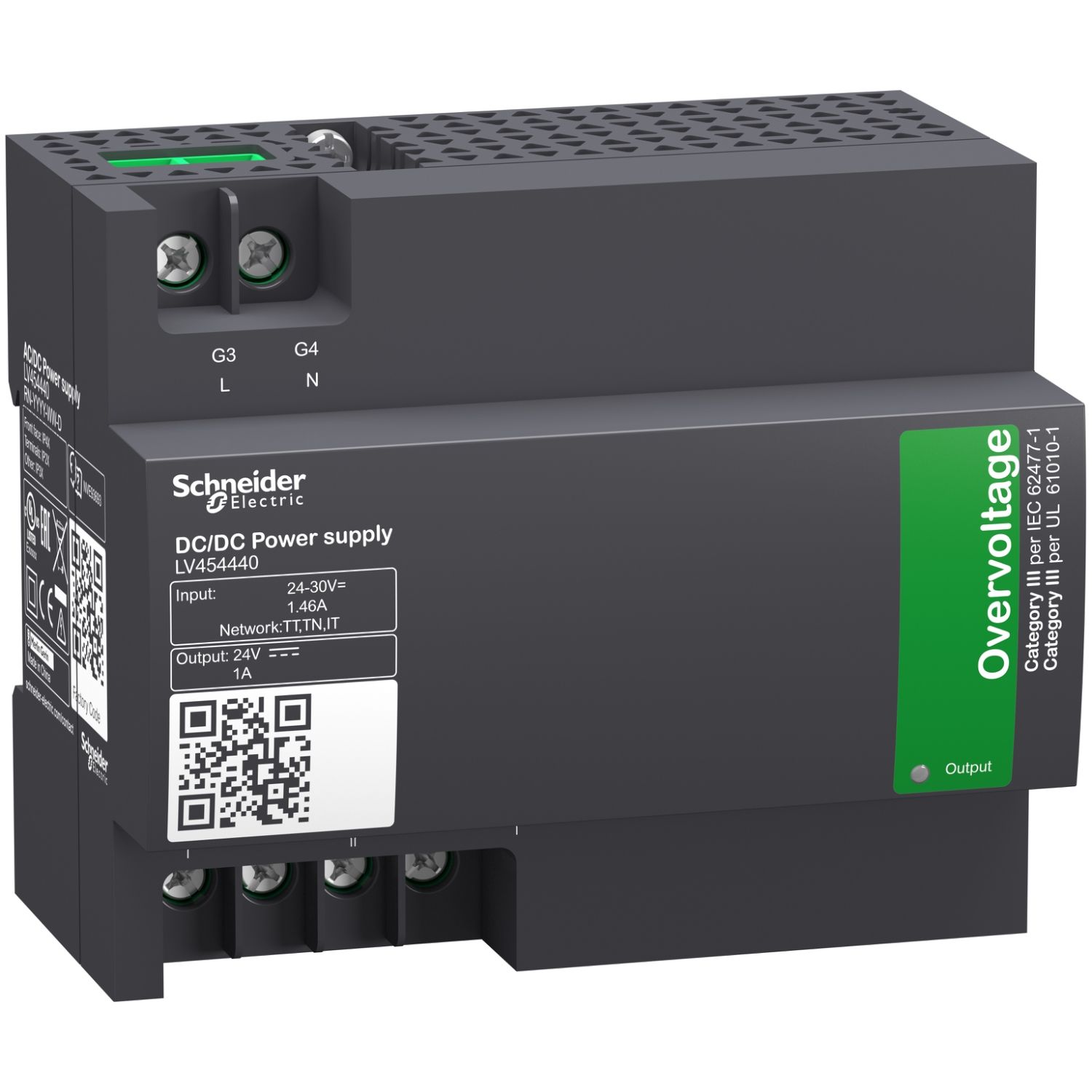

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | power supply |
| Accessory / separate part type | trip unit accessories, control units accessories |
| Range compatibility | MasterPact NT |
| Mounting location | frame |
| Product or component type | external power supply module |
| Offer type | spare part |
| Range of product | MasterPact NW |
| Complementary | |
| [Us] rated supply voltage | 24...30 V DC tolerance: +/- 20 % |
| Operating altitude | 0...2000 m |
| Inrush current | 40 A 2 ms |
| Operating position | horizontal |
| Rated power in W | 24 W |
| Width | 108 mm |
| Height | 90 mm |
| Name of test | conducted emissions on the power line conforming to EN 61000-6-3, radiated emissions conforming to EN 61000-6-3, surge conforming to EN/IEC 61000-4-5, rapid transient conforming to IEC 61000-4-4, radiated electromagnetic field conforming to EN/IEC 61000-4-3, primary outage conforming to IEC 61000-4-29, magnetic field conforming to EN 61000-4-8, induced electromagnetic field conforming to EN/IEC 61000-4-6, electrostatic discharges conforming to EN/IEC 61000-4-2 |
| Overvoltage category | III conforming to UL 61010-1, III conforming to IEC 62477-1 |
| Power supply output current | 1 A |
| Power dissipation in W | 4.5 W |
| Input voltage limits | 19.2...36 V DC |
| Output protection type | thermal, protection technology: automatic reset, against short-circuits, protection technology: manual reset, against overvoltage, protection technology: 30...32 V, manual reset, against overload, protection technology: manual reset |
| Connections - terminals | screw type terminals, connection capacity: 1 x 0.2...1 x 4 mm² AWG 24...AWG 12, screw type terminals, connection capacity: 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16 |
| Permissible temporary current boost | 1.5 A (200 ms) |
| Net weight | 0.4 kg |
| Depth | 67.5 mm |
| Power supply type | regulated switch mode |
| Efficiency | 80 % |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail |
| Holding time | >= 20 ms 24...30 V DC |
| Status LED | 1 LED (green) output voltage |
| Trip unit name | MicroLogic |
| Output voltage | 24 V DC +/-5 % |
| Environment | |
| Dielectric strength | 1840 V between output and ground, 3680 V between input and output, 3680 V between input and ground |
| Compatibility code | CB_EXTERNAL_POWERSUPPLY |
| Relative humidity | 0-95 % in storage, 0-95 % during operation |
| Ambient air temperature for storage | -50-85 °C |
| IP degree of protection | IP3x (housing) conforming to EN/IEC 60529, IP2X (connection terminals) conforming to EN/IEC 60529, IP4X (front face) conforming to EN/IEC 60529 |
| Marking | CE, UL, EAC |
| Environmental characteristic | safety conforming to SELV, safety conforming to IEC 62477-1, EMC conforming to EN/IEC 61000-6-3, EMC conforming to EN/IEC 61000-6-2 |
| Ambient air temperature for operation | -25-70 °C |
| Standards | IEC 62477-1, UL 61010-1 |
