Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

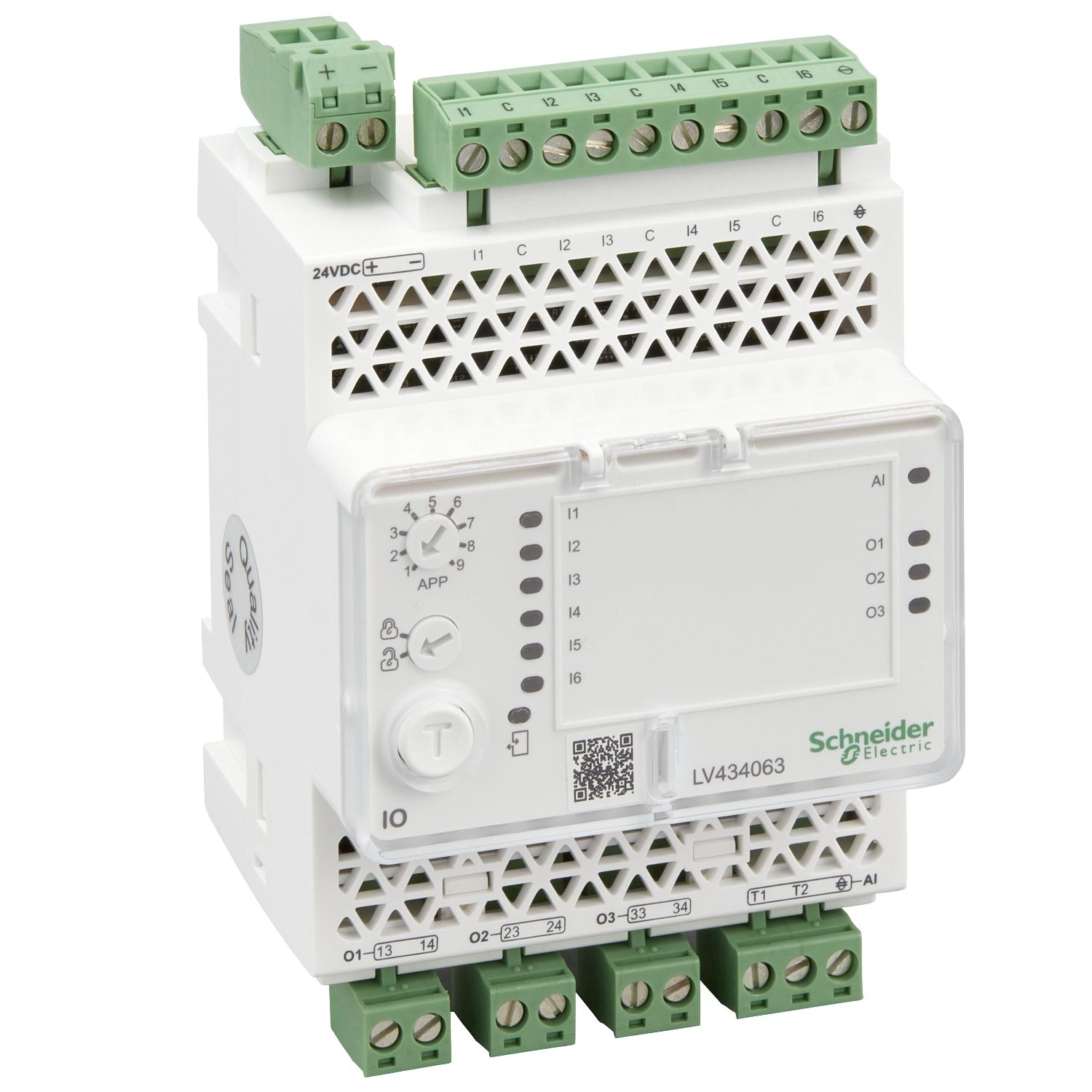

| Device short name | I/O application module |
| Range compatibility | MasterPact NT |
| Mounting location | external |
| Product name | Enerlin'X IO |
| Product or component type | communication module |
| Offer type | spare part |
| Range of product | MasterPact NW |
| Complementary | |
| Depth | 70.6 mm |
| Width | 71.7 mm |
| Compatibility code | I/O |
| Mounting mode | by clips |
| Control type | by software |
| Current consumption | 165 mA |
| Communication network type | Universal Logic Plug on 2 RJ45 connectors |
| Output type | digital: 250 V - AC - 5 A |
| Net weight | 0.3 kg |
| Number of inputs | 1-1 analog, 6-6 digital |
| Time delay | 0...20 s |
| Vibration frequency | 5-8.4 Hz |
| Electromagnetic compatibility | surge immunity test conforming to EN/IEC 61000-4-5, immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 |
| Cable length | 10 m |
| Mounting support | 35 mm DIN rail |
| Number of outputs | 3 digital |
| Standards | UL 508, IEC 60950, UL 60950, IEC 60947-6-2 |
| Height | 116 mm |
| Connections - terminals | screw terminal block |
| [Us] rated supply voltage | 24 V DC - 20...10 % |
| Input type | digital at state 0: 0-19.8 V - DC - 0-0 mA, digital at state 1: 19.8-25.2 V - DC - 6.1-8.8 mA |
| Product certifications | cULus, CE, GOST, FCC |
| Environment | |
| IP degree of protection | IP3x other parts: , IP4X front panel: , IP2X connectors: |
| Relative humidity | 5-85 % |
| Ambient air temperature for storage | -40-85 °C |
| Flame retardance | V0 conforming to UL |
| Pollution degree | 3 |
| Ambient air temperature for operation | -20-70 °C |
| Shock resistance | 1000 m/s² |
