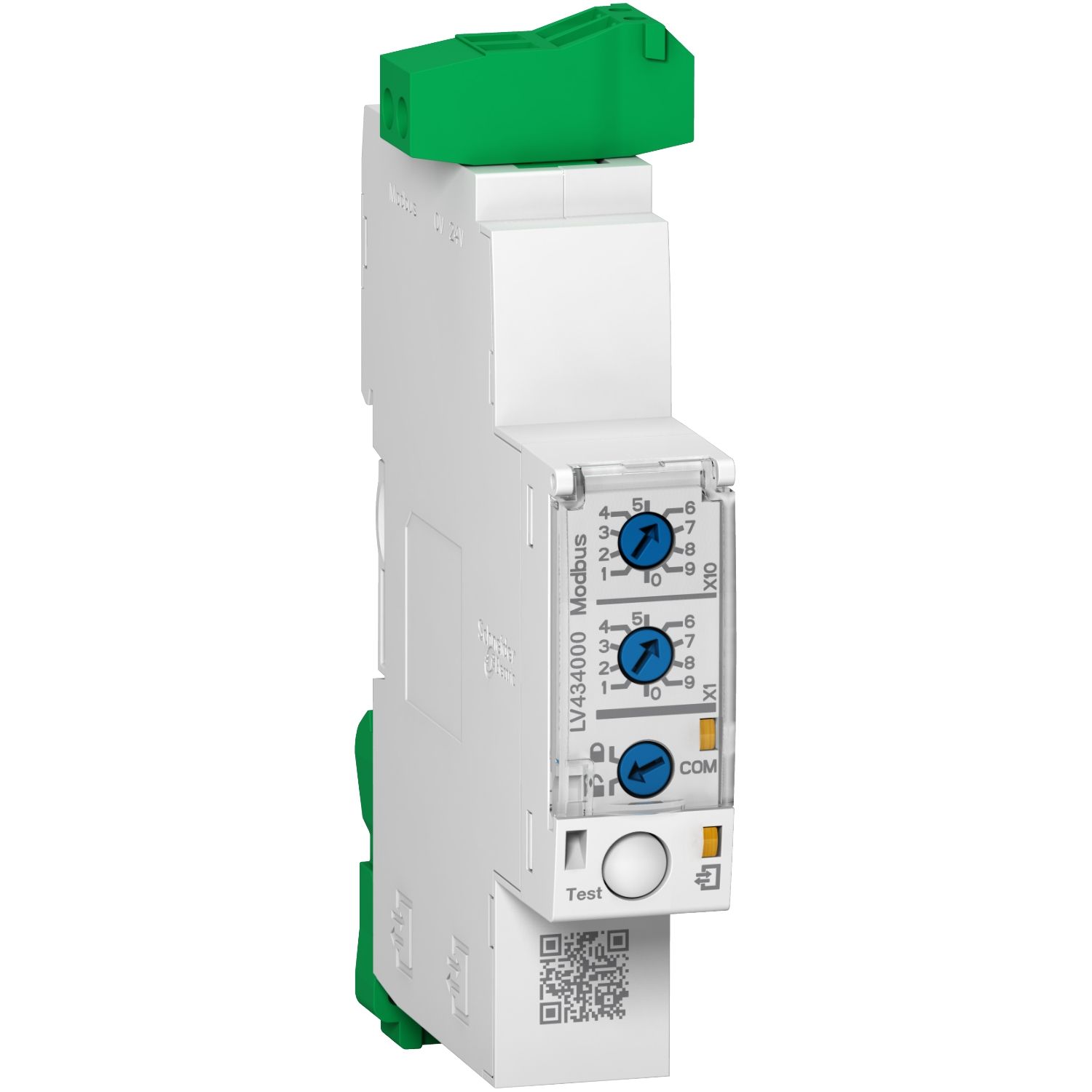

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | IFM |
| Range compatibility | MasterPact NT |
| Mounting location | external |
| Product or component type | communication module |
| Offer type | spare part |
| Range of product | MasterPact NW |
| Complementary | |
| Input voltage | 24 V DC - 20...10 % |
| Accuracy class | class 2 power supply |
| Depth | 73 mm |
| Width | 18 mm |
| Compatibility code | IFM |
| Mounting mode | by clips |
| Memory type | EEPROM data storage |
| Current consumption | 30 mA 24 V DC room temperature |
| Communication network type | Modbus, Modbus Serial line slave9.6...38.4 kbauds on 1 RJ45, Universal Logic Plug on 2-port RJ45 |
| Net weight | 120 g |
| Power consumption in W | 1.635 W |
| Mounting support | 35 mm DIN rail |
| Output voltage | 24 V DC |
| Standards | IACS E10, IEC 60950, CISPR 11, CISPR 24, UL 60950, UL 61010, CISPR 22 |
| Output current | 3 A |
| Height | 109 mm |
| Connections - terminals | screw type terminals, RJ45 connector |
| Product certifications | FCC, CE, cULus, EAC |
| Environment | |
| Vibration frequency | 5-8.4 Hz conforming to EN/IEC 60068-2 |
| IP degree of protection | other parts: IP30, connectors: IP20 |
| Relative humidity | 5-85 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Flame retardance | V0 conforming to UL 94 |
| Shock resistance | +/- 15 gn 11 ms conforming to EN/IEC 60068-2-27 |
| Pollution degree | 3 |
| Ambient air temperature for operation | -20-70 °C |
