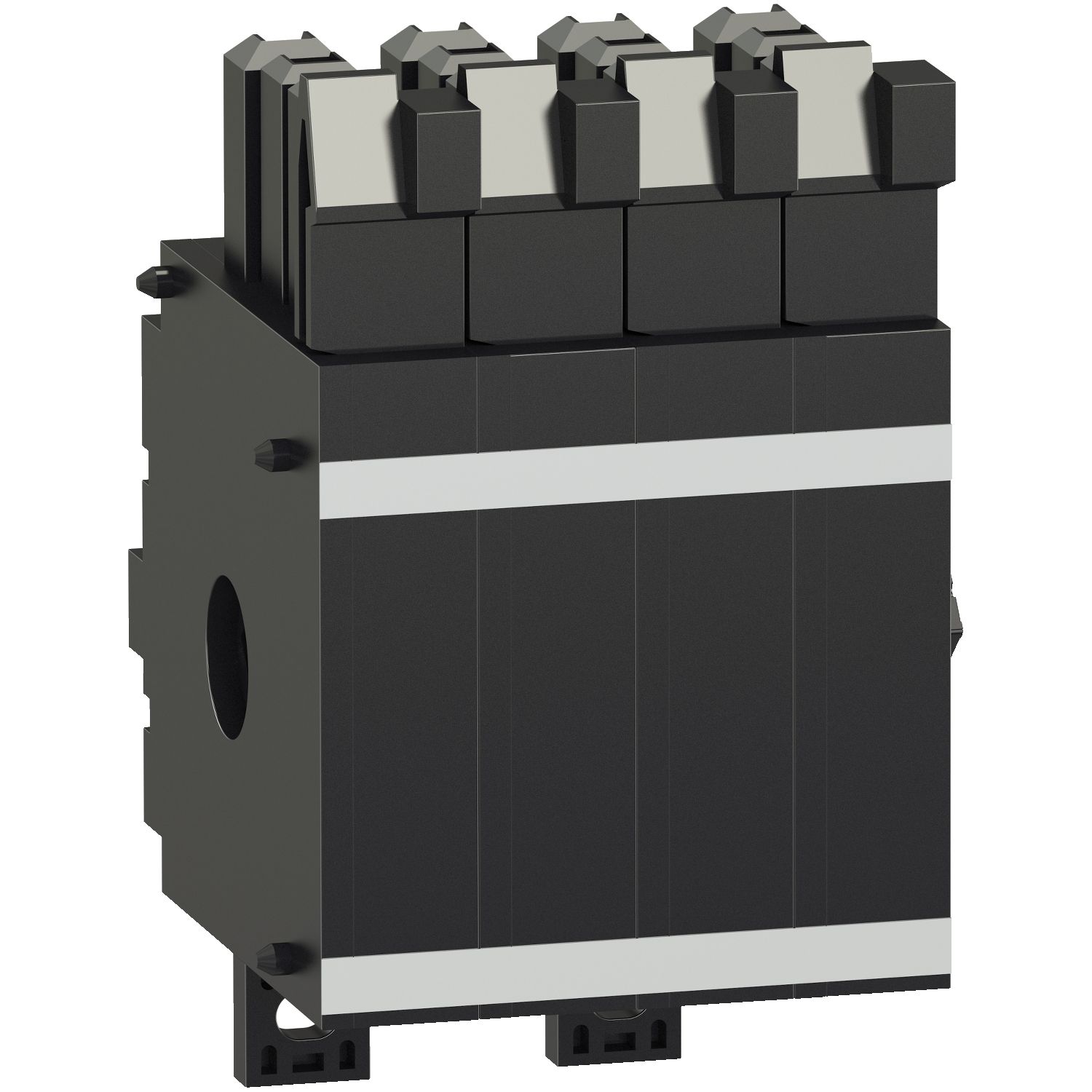

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting location | operating mechanism |
| Device short name | 4 OF |
| Signal contacts composition | 4 NO/NC |
| Product or component type | auxiliary contact |
| Range compatibility | MasterPact NW |
| Range of product | MasterPact NW |
| Complementary | |
| Net weight | 0.1 kg |
| Minimum load | 2 mA at 15 V, 100 mA at 24 V |
| [Ie] rated operational current | 6 A at 250 V DC conforming to UL 489, 6 A at 600 V AC 50/60 Hz conforming to UL 489, 8 A at 480 V AC 50/60 Hz conforming to UL 489, DC-12: 3 A at 250 V DC conforming to EN/IEC 60947-2, DC-12: 10 A at 125 V DC conforming to EN/IEC 60947-2, DC-12: 10 A at 24/48 V DC conforming to EN/IEC 60947-2, AC-12: 6 A at 690 V AC 50/60 Hz conforming to EN/IEC 60947-2, AC-12: 10 A at 480 V AC 50/60 Hz conforming to EN/IEC 60947-2, AC-12: 10 A at 240/380 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Auxiliary contacts type | low level, standard |
| Mounting mode | drawout, fixed |
