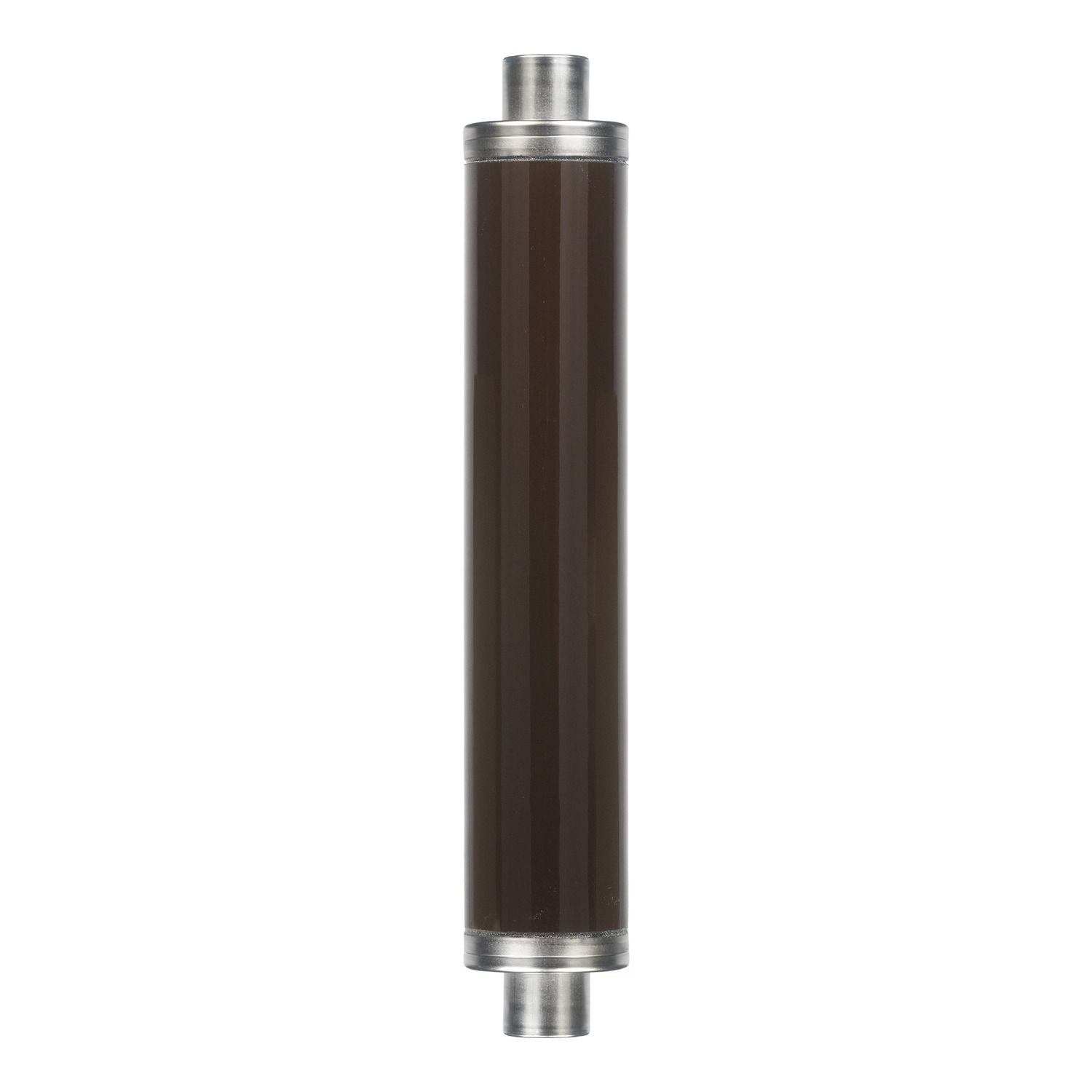

This product is a spare part for your SM6-24. This 100A, 24kV fuse is the original part designed for your cubicle. Usage of a certified spare part for your SM6-24 extends the lifetime of your product and prevents it from unexpected failures.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting location | MV connection compartment |
| Product compatibility | RM6 cubicle, SM6-24 cubicle |
| Product or component type | fuse |
| Range compatibility | SM6-24 |
| Local signalling | striker |
| Range of product | Fusarc CF |
| Complementary | |
| Number of poles | 2 |
| Length | 442 mm |
| [In] rated current | 100 A |
| Electrical connection | 2 connectors |
| Fuse type | FUSARC, cylindrical |
| Rated voltage (Ur) | 24 kV |
