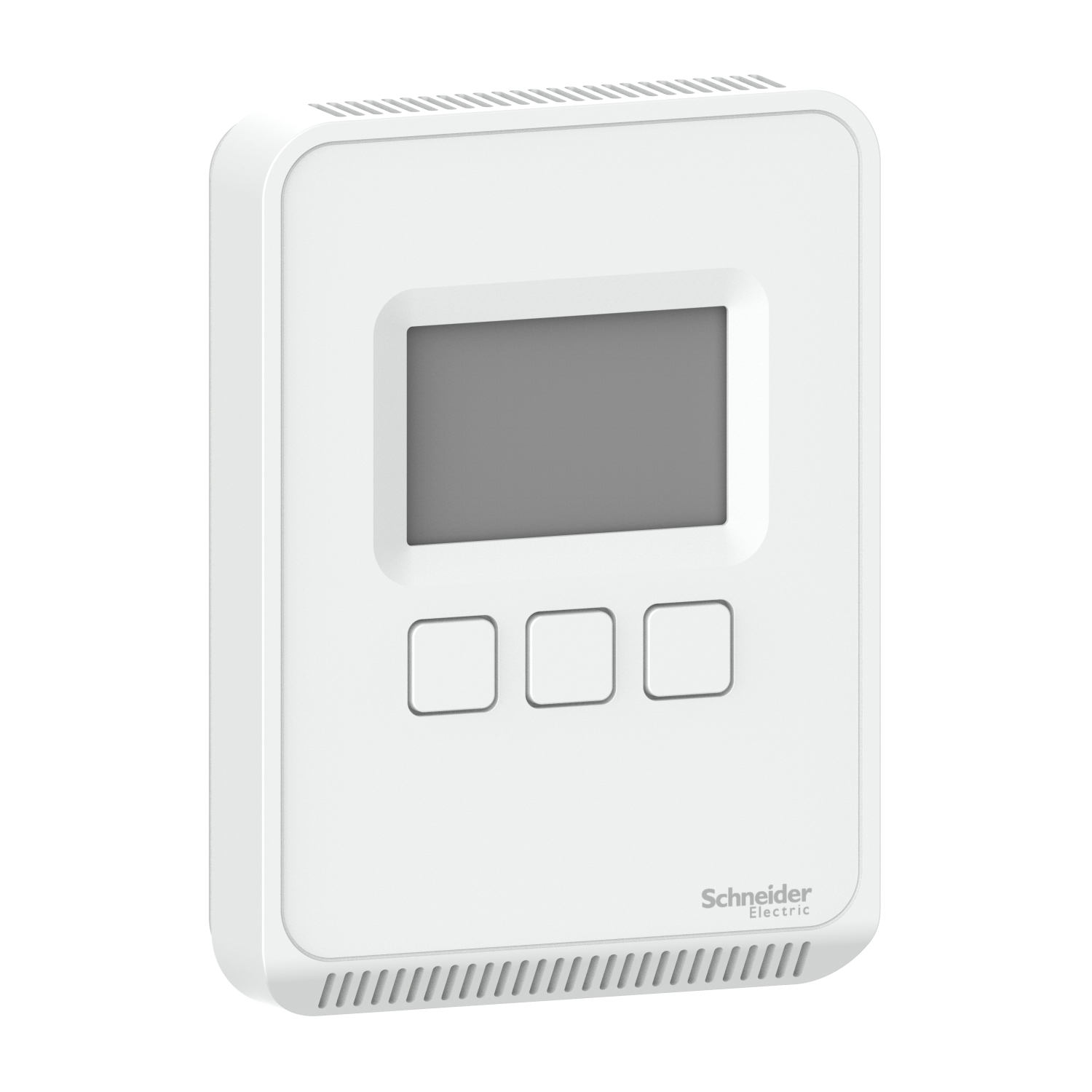

The SpaceLogic SLP Series of wall temperature sensors for rooms is a versatile platform for use with BAS controllers. It is designed to accept BACnet MSTP or Modbus outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature element. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | fan speed controller, temperature control, HVAC |
| Depth | 24 mm |
| Colour | white |
| Width | 115 mm |
| Sensor type | transmitter |
| Relative humidity | 0-95 % |
| Display size | 2 inch |
| Function available | with temperature sensor |
| Range | SpaceLogic |
| Location | living space |
| Product name | SpaceLogic Room Unit |
| Ambient air temperature for operation | 0-50 °C |
| Product or component type | sensor |
| Type of measurement | temperature |
| Surface finish | matt |
| Standards | FCC part 15 class B, UL 916 |
| Mounting support | wall-mount |
| Height | 85 mm |
| Network frequency | 60 Hz, 50 Hz |
| Complementary | |
| Measurement accuracy | typical +/- 0.2 % |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Control type | arrow button, - button, + button |
| [Us] rated supply voltage | 20...30 V DC, 24 V AC 50...60 Hz |
| Device presentation | complete product |
| Connections - terminals | screw terminal - 2 cable(s) (AWG 24...AWG 18) |
| Display type | LCD display |
| Communication port protocol | Modbus, BACnet |
| Range compatibility | EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers |
| Communication port support | RS485 |
| Information displayed | menu-driven user interface, temperature set point, temperature |
| Environment | |
| Temperature setting range | 0-50 °C, 10-35 °C |
| Product certifications | cULus, ICES-003, EAC, RCM, CE conforming to EN 61326-1, CE conforming to EN 61000-6-3, CE conforming to EN 61000-6-2 |
| Measurement range | 0...50 °C temperature |
