| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour tint | front cover: champagne gold, front cover: silver, front cover: white, front cover: black |
| Product or component type | glass touch panel |

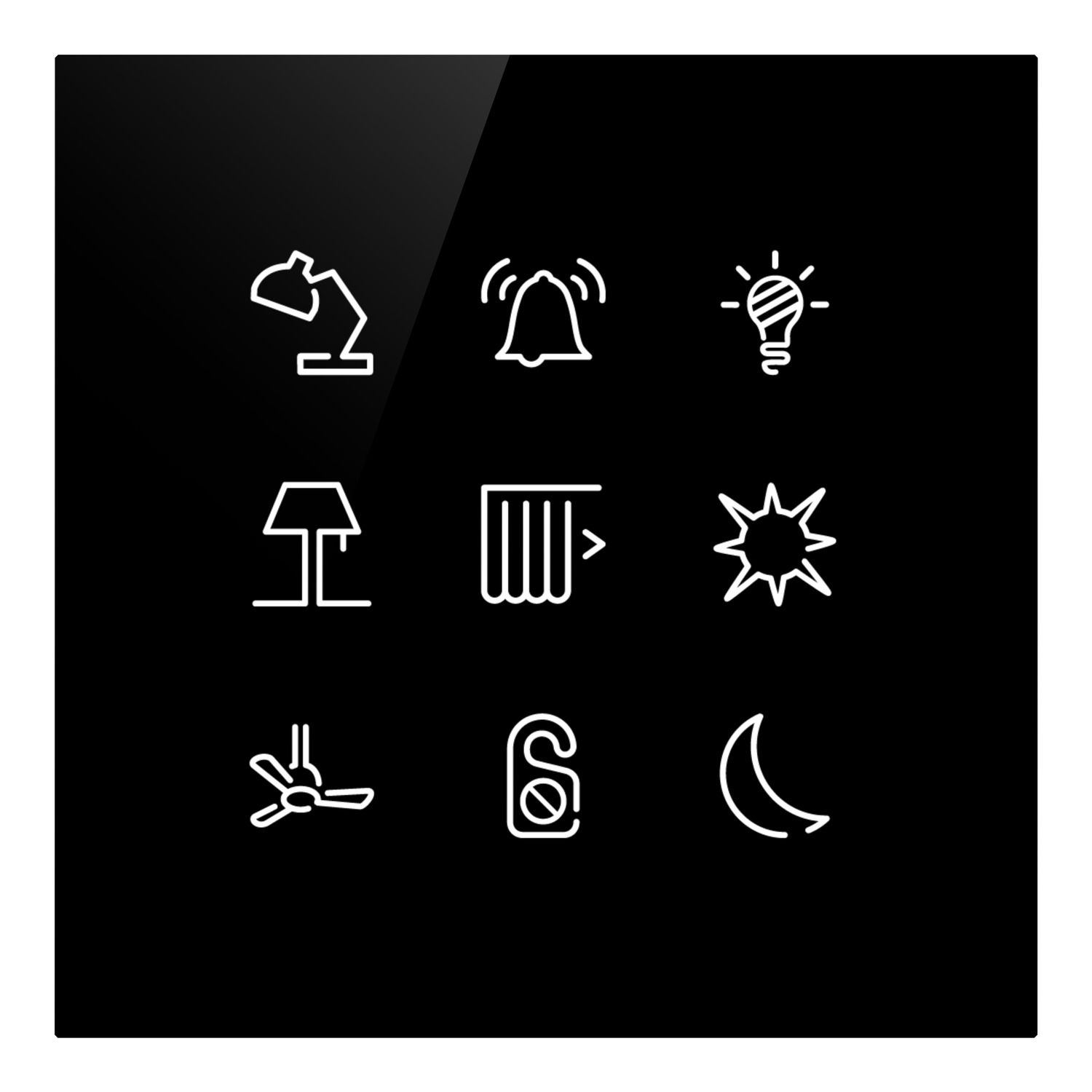

| Product name | Glass Touch Panels |
| Complementary | |
| Current consumption | <= 30 mA |
| Depth | 25.8 mm |
| Communication port protocol | Modbus RTU with RS485 port(s), medium: twisted shielded pairs cable |
| Sensor type | capacitive proximity sensor sensor |
| Control button type | configurable touch button |
| Height | 95 mm |
| [Us] rated supply voltage | 24 V DC |
| Mounting mode | snap-in |
| Relative humidity | 10-90 % |
| Width | 95 mm |
| Environment | |
| Ambient air temperature for operation | 0-45 °C |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP20 |
| Contractual warranty | |
| Warranty | 18 |
