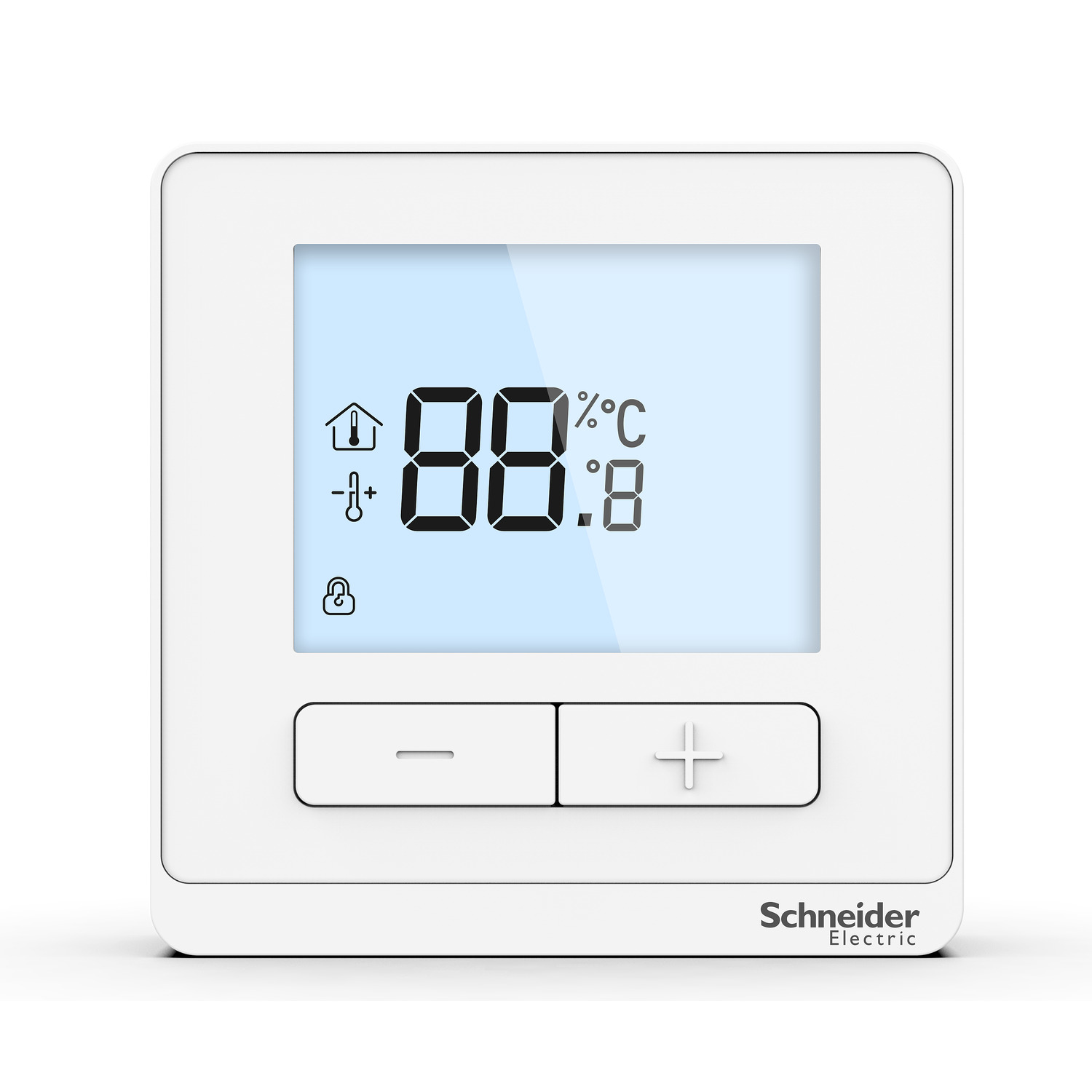

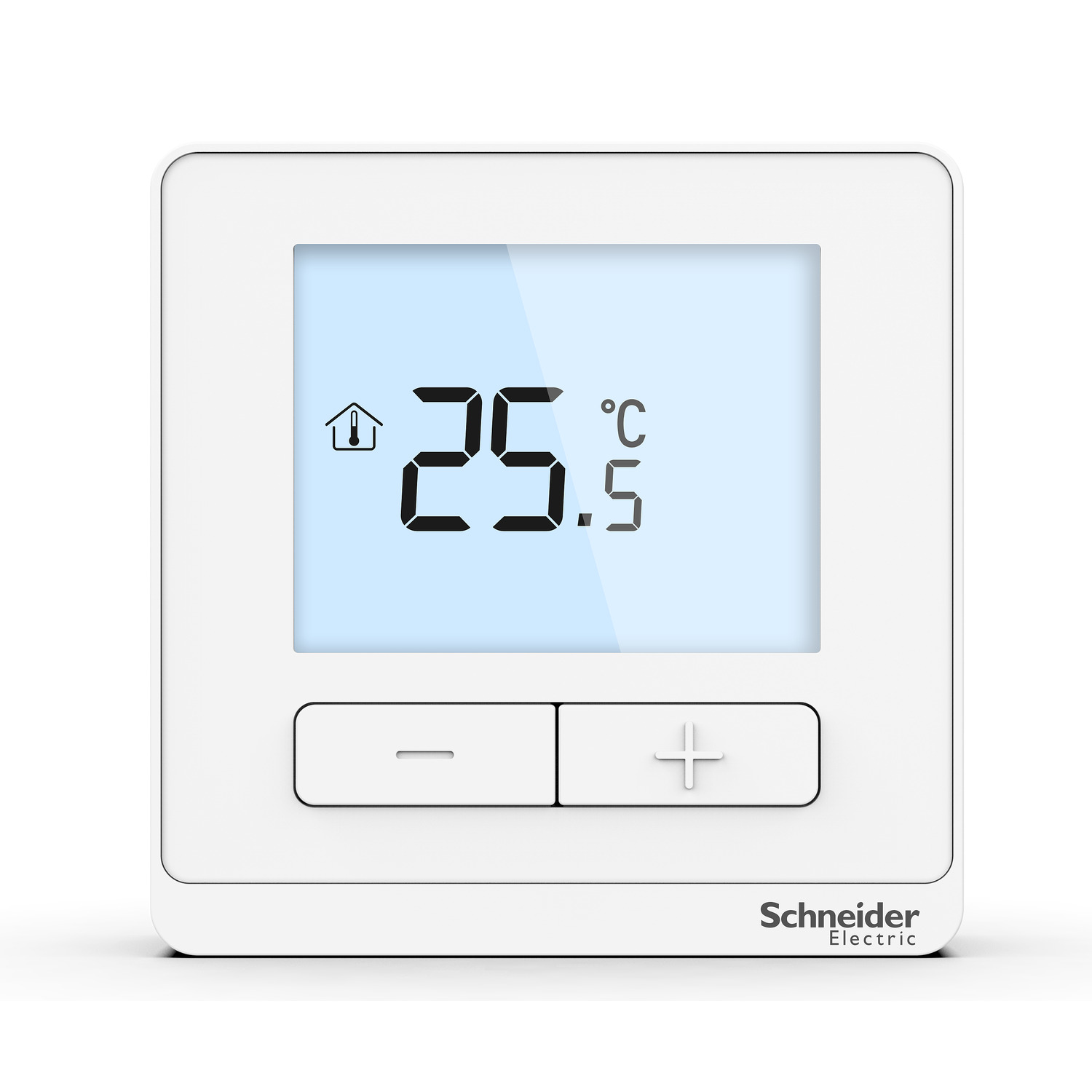

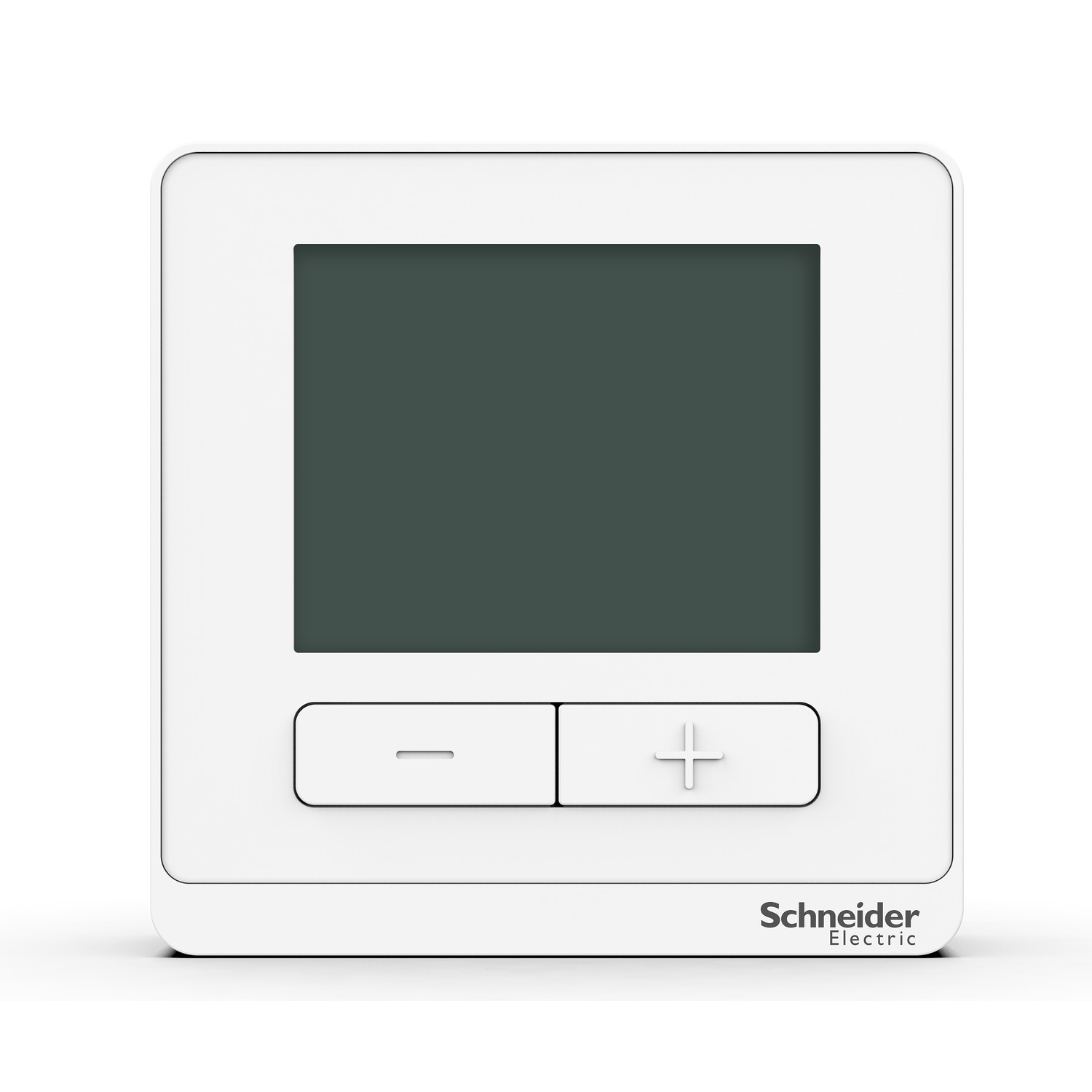

Schneider EasyLogic living space sensors provides a cost-effective solution for living space temperature information. The EasyLogic sensors measure, control and communicate temperature information. The products can be easily integrated with Schneider Electric BAS controllers as analog input. Cost effective solution for temperature information and control with ±0.5 °C accuracy. The living space sensor has LCD for setpoint display and control with 2 push buttons. The EasyLogic sensors are CE, ROHS, Reach certified. These sensors are designed for hassle free installation with screw terminals. The sensors are delivered with Schneider Electric brown box packaging inline with Schneider's commitment to sustainability.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP20 |
| Depth | 21.6 mm |
| Colour | white |
| Output type | analog |
| Width | 86 mm |
| Relative humidity | 5-95 % RH, non-condensing |
| Display size | 55.4 mm |
| Setpoint range | 5...30 °C |
| Function available | with temperature sensor |
| Range | EasyLogic |
| Product name | EasyLogic living space sensor |
| Ambient air temperature for operation | 0-50 °C |
| Product or component type | sensor |
| Type of measurement | temperature |
| Standards | EN/IEC 60730-2-9, EN/IEC 60730-1 |
| Mounting support | surface mount |
| Height | 86 mm |
| Network frequency | 60 Hz, 50 Hz |
| Complementary | |
| Measurement accuracy | NTC 10k type 3 0...50 °C +/- 0.5 °C |
| Material | ABS + PC |
| Control type | - button, + button |
| [Us] rated supply voltage | 24 V DC +/- 15 %, 24 V AC 50...60 Hz +/- 15 % |
| Connections - terminals | screw terminal (AWG 24...AWG 18) |
| Display type | LCD display |
| Range compatibility | SpaceLogic RP-V |
| Environment | |
| Product certifications | CE |
| Setpoint | Yes |
