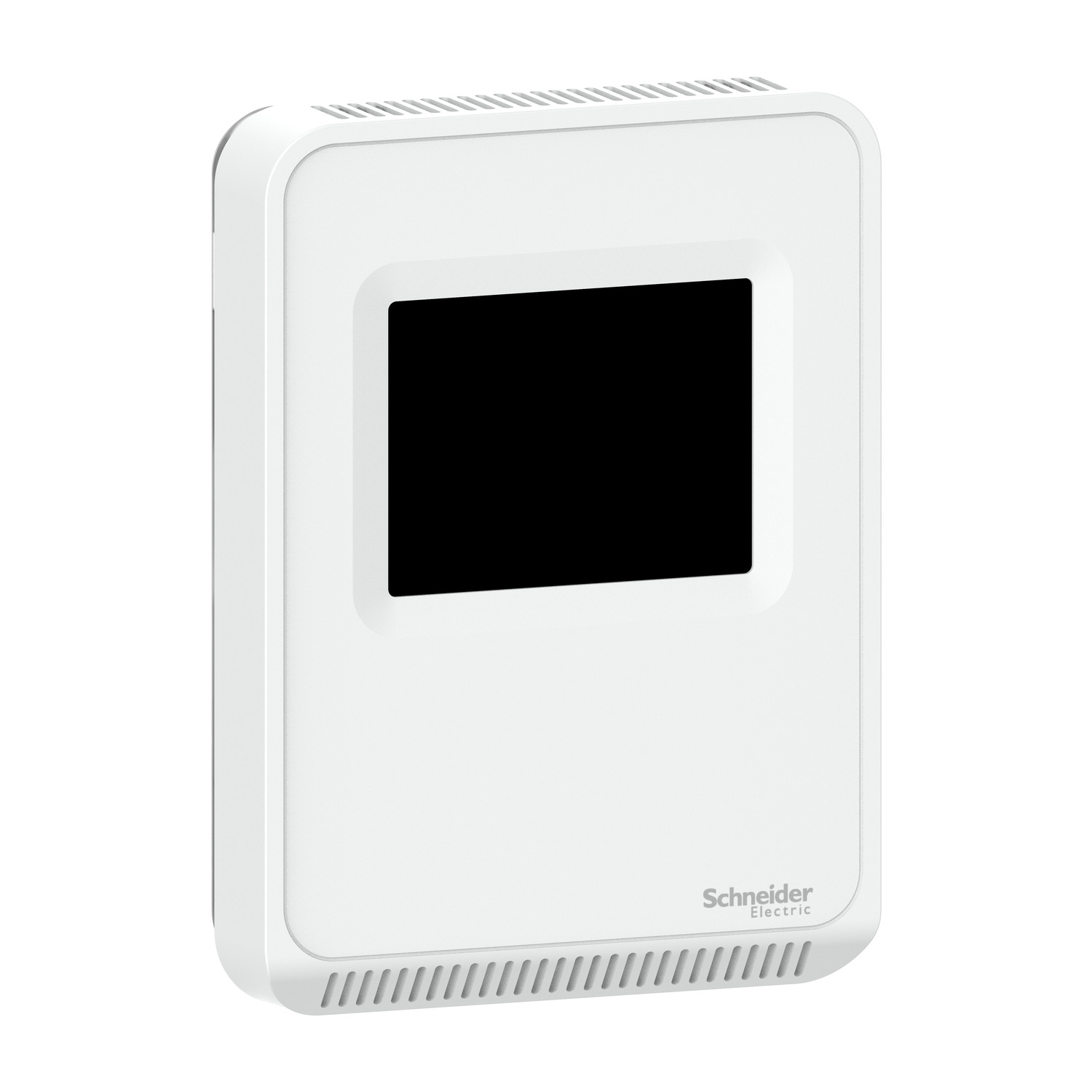

Sensor, SpaceLogic, Temp, 1.8k,CO2, Analog, Touch

Manufacturer: Schneider Electric

SKU: SLASTCX-100

GTIN: 3606487152309

PDF

Instruction sheet

Declaration of conformity

Catalog

Full Description

Sensor, SpaceLogic, Temp, 1.8k,CO2, Analog, Touch The SpaceLogic SLA Series of wall air quality sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. This device offers 1.8k ohms thermistor sensor Sensor can be connected to AS, MP, and RP controllers, as well as third party controllers Its dimensions are 85 mm (3.3 in.) in width,115 mm (4.5 in.) in height and 24 mm (0.9 in.) in depth. The weight of the product is 400 g (0.88 lb) The device must be installed on the wall and at indoor environment

Availability: Out of stock

Old price: $714.12 inc GST

Price: $944.42 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Type of measurement	particulate matter (PM)
Product or component type	air quality sensor
Product name	SpaceLogic Room Unit
Width	3.3 in
Temperature resolution	0.1 °C
Depth	1.3 mm
Height	4.5 in
Analogue output type	4...20 mA
Range of product	SpaceLogic
Range	SpaceLogic
Mounting mode	back of stainless steel plate
Display size	2.4"
IP degree of protection	IP30
Environment
Temperature setting range	0-50 °C
Contractual warranty
Warranty	18
