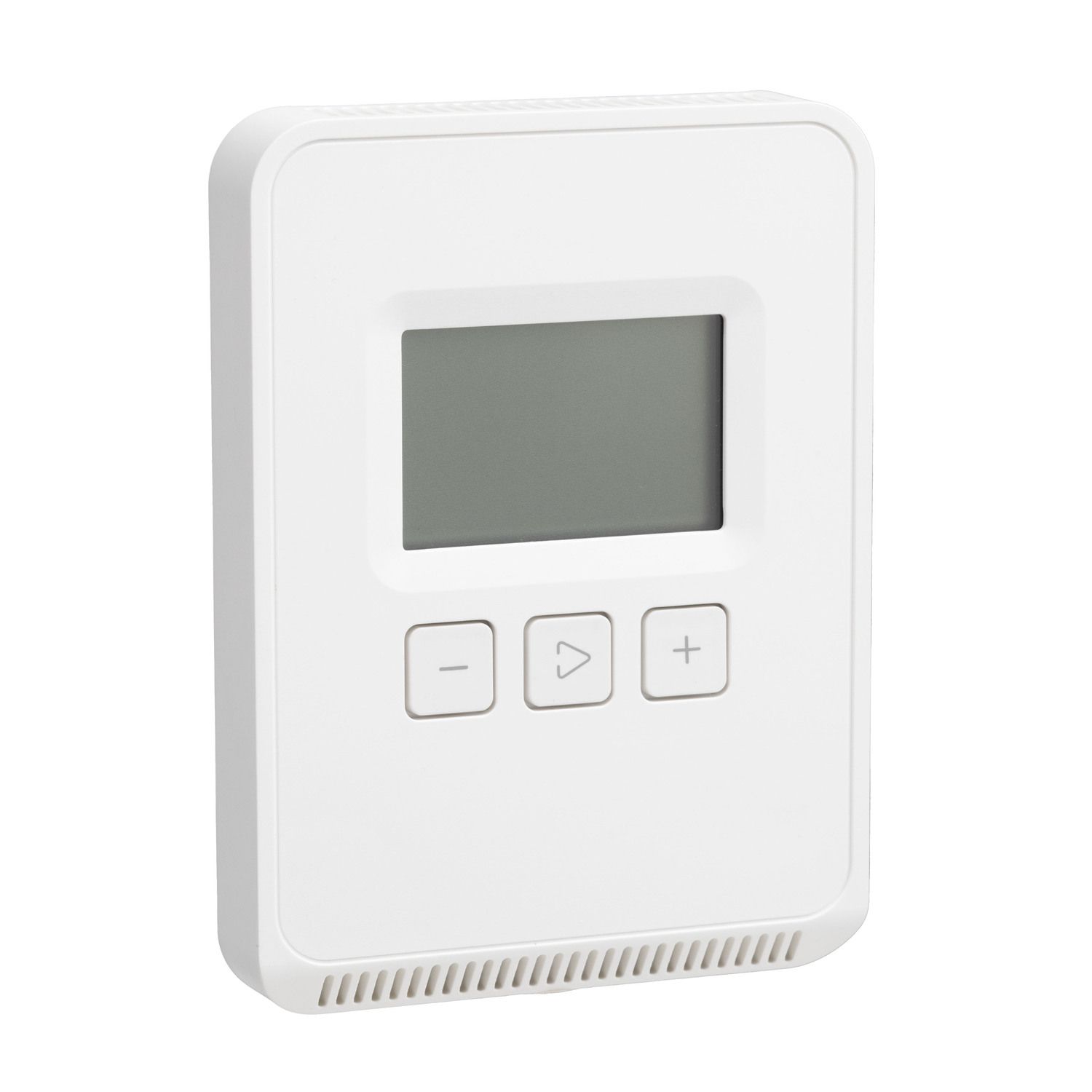

The SpaceLogic SLA Series of wall temperature sensors for rooms is a versatile platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is medium matte white. The user interface is assured by a LCD with 3 control buttons. This air quality sensor include a temperature element. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | fan speed controller, temperature control, HVAC |
| Depth | 24 mm |
| Colour | white |
| Output type | analog |
| Width | 115 mm |
| Sensor type | transmitter |
| Relative humidity | 0-95 % |
| Display size | 2 inch |
| Function available | with temperature sensor |
| Range | SpaceLogic |
| Location | living space |
| Product name | SpaceLogic Room Unit |
| Ambient air temperature for operation | 0-50 °C |
| Product or component type | sensor |
| Type of measurement | temperature |
| Surface finish | matt |
| Standards | FCC part 15 class B, UL 916 |
| Mounting support | wall-mount |
| Height | 85 mm |
| Network frequency | 60 Hz, 50 Hz |
| Complementary | |
| Measurement accuracy | typical +/- 0.2 % |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Control type | arrow button, - button, + button |
| [Us] rated supply voltage | 20...30 V DC, 24 V AC 50...60 Hz |
| Device presentation | complete product |
| Connections - terminals | screw terminal - 2 cable(s) (AWG 24...AWG 18) |
| Display type | LCD display |
| Communication port protocol | - |
| Range compatibility | EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers |
| Information displayed | menu-driven user interface, temperature set point, temperature |
| Communication network type | wired |
| Environment | |
| Temperature setting range | 0-50 °C, 10-35 °C |
| Product certifications | cULus, ICES-003, EAC, RCM, CE conforming to EN 61326-1, CE conforming to EN 61000-6-3, CE conforming to EN 61000-6-2 |
| Measurement range | 0...50 °C temperature |
