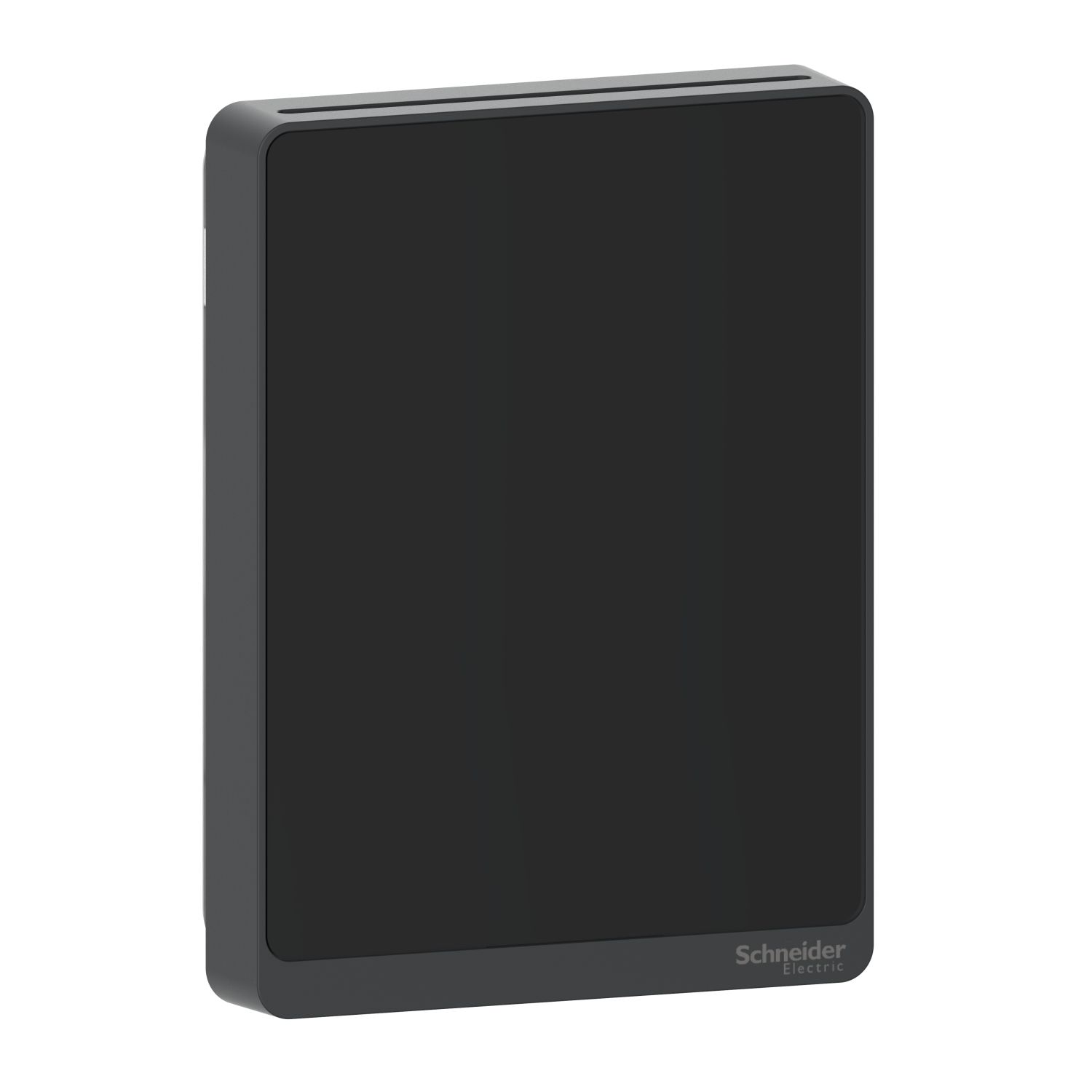

The SpaceLogic SLA Series of wall air quality sensors for rooms is a flexible multisensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs. The wall mounted sensor housing is optimum black. No user interface, the device is protected by a blank cover. This air quality sensor include a temperature, humidity and CO² elements. The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | fan speed controller, temperature control, HVAC |
| Depth | 23.7 mm |
| Colour | black |
| Display type | without display |
| Width | 115 mm |
| Sensor type | thin-film capacitive, NDIR (non-dispersive infrared), transmitter |
| Product specific application | humidity control |
| Device presentation | complete product |
| Range | SpaceLogic |
| Location | living space |
| Product name | SpaceLogic Room Unit |
| Product or component type | sensor |
| Type of measurement | temperature, humidity, carbon dioxide (CO2) |
| Surface finish | glossy |
| Product certifications | cULus, ICES-003, EAC, RCM, CE conforming to EN 61326-1, CE conforming to EN 61000-6-3, CE conforming to EN 61000-6-2 |
| Standards | FCC part 15 class B, UL 916 |
| Mounting support | wall-mount |
| Calibration certificate | humidity: replaceable RH element available in 1% & 2% with NIST |
| Ambient air temperature for operation | 0-50 °C |
| Height | 85 mm |
| [Us] rated supply voltage | 20...30 V DC, 24 V AC |
| Network frequency | 60 Hz, 50 Hz |
| Complementary | |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Function available | with humidity sensor, with CO2 sensor, with temperature sensor |
| Connections - terminals | screw terminal - 2 cable(s) (AWG 24...AWG 18) |
| Hysteresis | 1.5 % |
| Output type | analog |
| Range compatibility | EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers |
| Repeat accuracy | +/- 20 ppm |
| Number of outputs | 1 configurable, 1 fan |
| Output voltage | 0...10 V for configurable analog output, 0...5 V for configurable analog output, 0...10 V for fan speed |
| Communication network type | wired |
| Environment | |
| Temperature setting range | 0-50 °C, 10-35 °C |
| Humidity setting range | 0-100 % |
