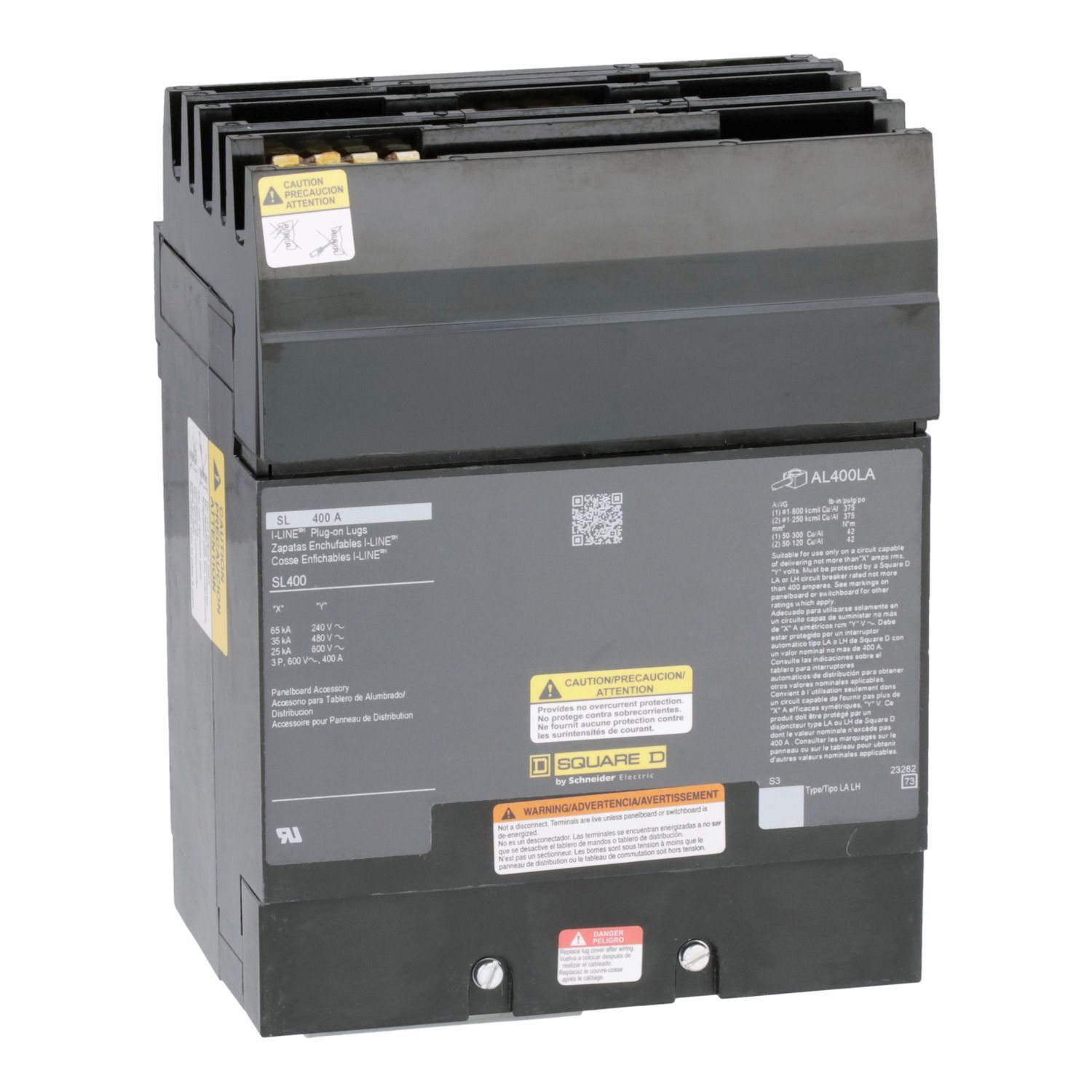

This is a connection accessory for I-Line Panelboards. This is a plug-on subfeed lug kit for I-Line panelboards for PowerPact L-Frame, LA-LH circuit breakers. This has a amperage rating of 400 amps. The frame size 400 amp. The lug accepts (1) #1-600 kcmil, (2) #1-250 kcmil, Al/Cu. This product complies with UL standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | sub-feed lug |
| Range of product | I-Line |
| Complementary | |
| Bar length | 152 mm |
| [In] rated current | 400-400 A |
| Product destination | panelboard HCP-SU H= 2184 mm W= 660 mm, panelboard HCP H= 2184 mm W= 1067 mm |
| Environment | |
| Product certifications | CSA, UL |
